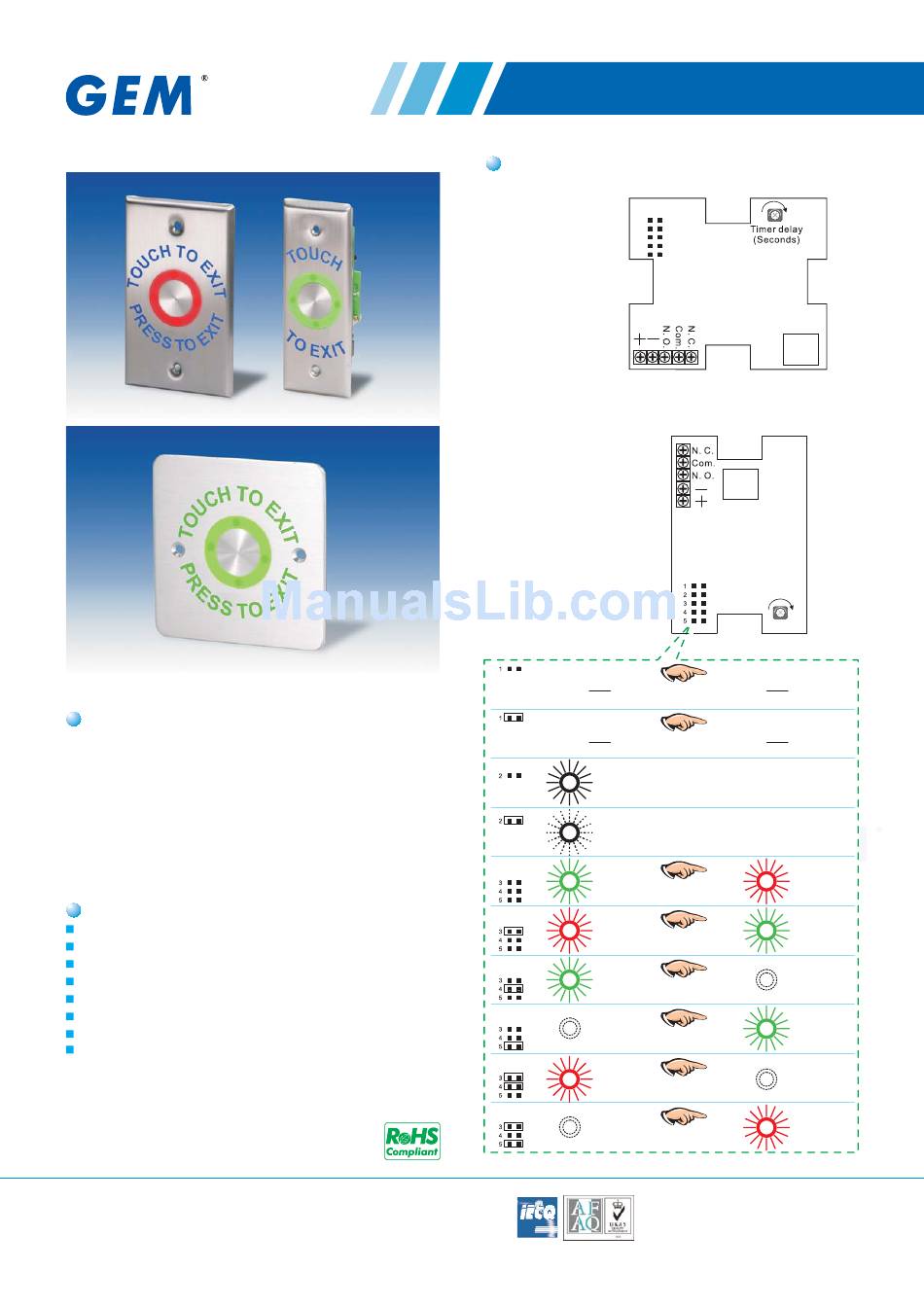

Gianni Industries BTS Series Specifications

BTS-400-ANSI
Statement
BTS-400 , 300, 486 offer a function that the relay output
model & LED brightness setting can be adjusted. When a
finger is touched on the board
the internal relay output, with adjustable timer (1~30
seconds). It includes a selection of touch panel and touch
button switch that making the user easy to use, especially
when wearing gloves. The relay is available in Com-N. C. and
Com.-N. O model. There are 6 X 2 levels of LED light
available.

Specifications

Adjustable switch delay timer (1 to 30 seconds)
SPDT relay rating: 3A@ 125V~
Current: 60mA~100mA@12V DC
Power input : 12~24 V DC
Bi-LED backlight indicate power & status
Beeper sounds when relay activated
Operating Temper.: - 20~+70C
JP setting:
JP1: Relay output model
JP2: LED lighting or blinking setting
Jp3~5: LED brightness setting
GIANNI INDUSTRIES, INC.
No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,
Tu-Cheng City, Taipei, Taiwan 23678
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: info@gianni.com.tw
Website: gianni.tw
Copyright 2008 Gianni industries, inc. All rights reserved.
DM-CA-BTS Ver. E Published on 2008.07.07
BTS-300
BTS-486
flush mount
( )
British size
(or pushing the button), it acts
BTS series
Touch Sensitive Switch
Application
BTS-486
Setting JP
Relay output model
1
control and LED
2
3
brightness setting
4
5
BTS-400-ANSI/300
Relay contact output
(free voltage contact)
12~24VDC power input
Setting JP
Relay output model
control and LED
brightness setting
Relay output
Com. N. C. (Touched)
Relay output
Com. N. O.
(Touched)
(Light is lighting)
(Light is blinking.)
(Green)
(Touched)
(Red)
(Touched)
(Green)
(Touched)
(Touched)
(Red)
(Touched)
(Touched)
