Specifications
Mode
BTS-100
Operating Voltage
12~24VDC
30~60mA/12VDC
Current Draw
40~80mA/24VDC
Relay contact
Com,N/C,N/O
output
Relay rating
3A/30VDC
Relay strike time
1~30 seconds
LED status
Green(Relay)
indication
Temperature
-20~+70ºC
Other
Wiring Diagram
The BTS touch sensitive exit button has
N.O. and N.C. contact output and can be
connected directly to a electromagnetic lock
or a proximity reader in series (or in parallel).
In Fig.A, BTS controls the fail-safe locking
device directly by series connection. BTS
relay time is door-opening time.
In Fig.B, BTS controls the fail-secure locking
device directly by parallel connection. BTS
relay time is door-opening time.
Note:
1. Make sure that the power input and relay rating output (3Amp/24VDC) are correct.
2. Make sure that the "+" and "-" wires are connected correctly.
3. The door strike or relay must have a varistor or a diode across the door strike terminals to suppress the
back EMF of the strike. Failure to do so will damage the relay contacts and electronic omponents, or
even burn the controller.
Copyright © GIANNI Industries,Inc.All rights reserved.
P-MU-BTS Ver.D Published 2011.03.18

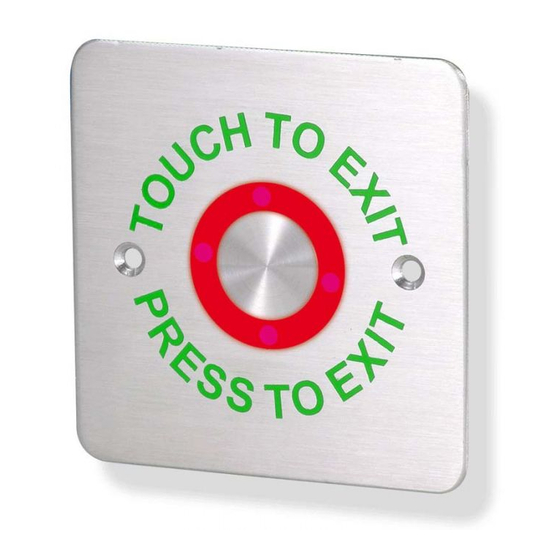

BTS Touch Exit Button
Installation Instruction
BTS-115-ANSI,115-S
12~24VDC
30~50mA/12VDC
20~40mA/12VDC
40~60mA/24VDC
20~50mA/24VDC
Com,N/C,N/O
3A/24VDC
1~30 seconds
Green(Relay)
-20~+70ºC
Power
Supply
Power
Supply
BTS-85UK
BTS-400ANSI,300
12~24VDC
12~24VDC
60~100mA/12VDC
80~120mA/24VDC
Com,N/C,N/O
Com,N/C,N/O
3A/24VDC
3A/24VDC
1~30 seconds
1~30 seconds
2x6 levels of LED
Green(Relay)
indicator
-20~+70ºC
-20~+70ºC
Control Device (Outdoor)
Relay output
control
1
30 sec.
Relay Timer
BTS Touch Sensitive Switch (Indoor)
Control Device (Outdoor)
Relay output
control
1
30 sec.
Relay Timer
BTS Touch Sensitive Switch (Indoor)
BTS-486
12~24VDC
30~60mA/12VDC
40~80mA/24VDC
Com,N/C,N/O
3A/24VDC
1~30 seconds
2x6 levels of LED
indicator
-20~+70ºC
N/O,N/C output setting
Fig.A
Locking Device
(fail-safe)
Fig.B
Locking Device
(fail-secure)
