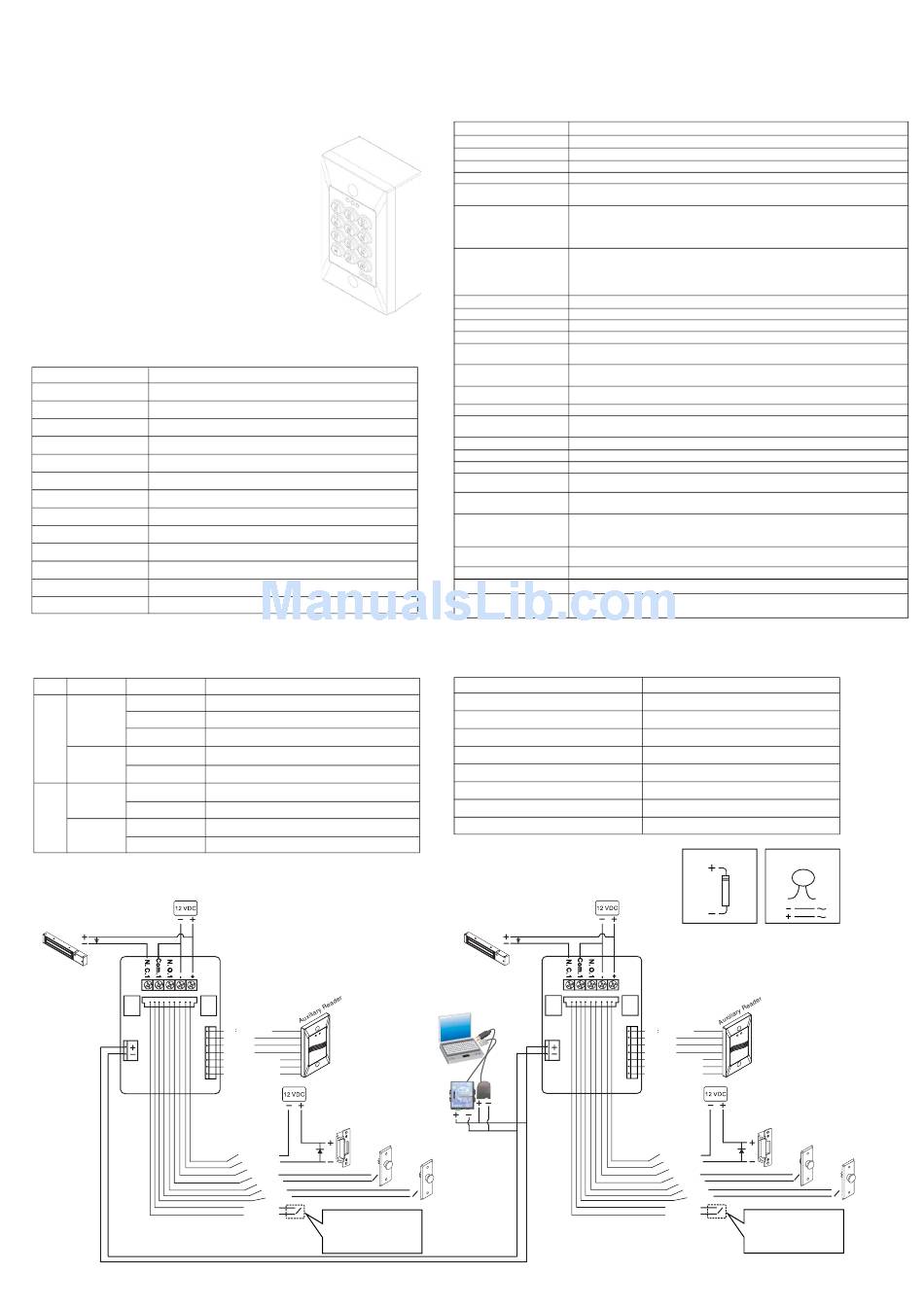

GEM ST-630E Operation Manual

Access control unit

Advertisement

F e atures:
 Master card and codes
 Auto reset function
 Security system setting / Release
 Synchronize with security system
Entering / Exiting programming mode: Only
proximity, Codes + proximity, Codes or proximity
Door status monitor function
Anti pass back function
Emergent access alarm, time delay alarm and forced door alarm output
Dual relays programmable On / Off or pulsed or latched mode
LED indicator to distinguish the status
Use for all kinds of the electric lock
Use software to connect up to 254 controllers
Sp ecificati on s :
Part No
ST-630E
Connection
On line
Users
1000
Record volumes
1000
Reader application
WG26,WG34
Keys
12 keys (0-9,*,#)
Interface
RS485
Proximity distance
10~15cm
Proximity frequency
125Khz (EM)
Indicators
3 LEDs
Dimension(mm)
114(L)x69.5(W)x10(D)mm
Operating voltage
12VDC
Temperature
-5C~60ºC
Humidity
5%~95%(Non-condensing)
In d i cator s S ta tu s an d D ef ault V alu e:
Beep & LED indication:
Mode
Signal
Yellow(Flash slowly)
Green On
Normal
LED
Red On
Yellow (Flash quickly)
Programming
Red(Flash quickly)
1 Beep
Normal
2 Beep
Beep
1 Beep
Programming
2 Beep
W i ring Dia g r am :
Door one
Locking Device 1
(Fail-Safe)
Relay
White
Green
RS 485
Copyright © All Rights Reserved.
P-MU-ST-630E Ver. C Publish:2011.06.27
ST-630E Access Control Unit
Operation Manual (S1 Mode/On line)
Status
Power-on, stand-by
Valid entry, door relay active
Warning, invalid card or code, tamper,alarm relay active
Enter programming mode
Card read, or clear the memory
valid card, keypress, entry program mode
Invalid cards, mistake codes
Valid entry, exit the program mode
Incorrect input or other failed operation
Relay
Red +10~14Vdc
Black:V0
Orange:D1
Yellow:D0
Blue:LED(Yellow)
Pink:LED(Red)
Green:LED(Green)
Locking Device 2
(Fail-Secure)
Blue:N.O.2
Green:Com.2
Yellow:N.C.2
Gray:P2
Gray:B2
White:P1
White:B1
Brown:Reed
Brown:Reed
Door status reed switch contact is (N.
O.) The contact switch is in N.O.(Norm-
al Open) status when the door closes.
The contact switches to N.C. (Normal
Close) when the door opens.
Ope ra t i o n In s t r u ct i on:
*XXXXXX#
* #
01*XXXXXXxxxxxx#
02*XXX#
03*XXX#
10*xxxxx*XXXXXXXXXX#
12*xxxxx*XXXXX#
13*xxxxx*XXXXX*N#
14*xxxxx*XXXX#
15*99#
17*XXXXXXXXXX#
21*XXX#
22*XXX#
25*X#
26*XXXXX*XXXXX#
32*X#
33*X#
34*99#
35*X#
51*99#
55*99#
71*XXXXXXxxxxxx#
72*XXX#
73*X#
74*X#
76*X#
99*
Factory default setting:
Access mode
Card memory
Transaction memory (MAX 1000 cards)
Master codes (Master password)
(All) Functions of alarm
Door relay time
Key timeout
Awaiting code timeout
Programming mode timeout
Door two
Locking Device 1
(Fail-Safe)
Computer
Relay
USB
RJ45
RS 485
485-TO-TCPIP
485-TO-USB
Push Button 2
Push Button 1
(Suggested Card: CCTR00-CNPSLD-CN)
Enter program mode, enter 6-digit codes (Default 123456)
Exit program mode
Change default password, press twice new 6-digit codes
Controller station setting (001-254)
Time Delay Setting from 000-250 seconds. 000= toggle mode.
Adding or revise the card No.
Slot position=00001~01000 and enter the 10-digit card No.
Adding the card No. in sequence. xxxxx=the beginning slot position XXXXX=the
quantity of cards. After setting the quantity of cards, read the first card and press "#"
to complete the setting. The access mode is for Card Only after adding the cards.
(p.s.X≦01000)
Access mode and clear card setting
xxxxx=The beginning slot position XXXXX=the end slot position
Slot position=00001~01000
N indicates the access mode. 0=Access not allowed, 1=Card Only, 2=Card or Code,
3=Card & Code, 4=Clear card information
Code setting: xxxxx=slot position XXXX= 4-digit code (Position=00001~01000)
Clear all cards (Not including master card)
Enter card no. to clear the information when forget the slot position. X=10 digit card no.
Alarm output time setting XXX=000~255 seconds
The second relay activate time. XXX=000~250 seconds (Second relay for security
system) (000 manual mode) (Default value is 15 seconds)
Master cards setting X=(1 or 2) 2 Master card available
Under normal status, proximity the master cards to program mode
Security card arrange setting: XXXXX=00001~01000 (The range of the No. should be
succeeding without a break in numbering.
Anti-pass-back function X=0 / OFF
X=1/ ON
Two doors synchronize X=0/OFF X=1/ON Access controller and reader can control
different doors.
Clear the function of Anti-pass-back
X=1=access record to duty X=0=access record Not to Duty X=default is 0
Reset to default, and clean the controller memory to the factory default.
Read card once and hear 1 Beep to add new card. Read card twice and h
to clear the card (The default access mode for this instruction is Card Only).
Set the emergent code by entering 6-digit code twice. Enter the code to activate the second
relay. Accompany with the instruction of 22*XXX# to set the second relay active time.
Door left open alarm time delay setting. XXX=000~255 seconds. The door status reed switch
is required for this function. The second relay active alarm output after the limited time.
(Refer to 21*XXX#)
X=1 Enter the emergent code or press 99* with security cards, the relay of the
controller will be avtivated. X=0/OFF
Door left open alarm and force open mode are setting. X=1/ON, X=0/OFF
Emergent alarm setting X=1/ON, X=0/OFF
Active the second relay by press the code 99* first, and read the valid card. (without
entering the program mode).
Card only (0000)
All Bits
0 pcs
*123456#
Clear the function (00)
3 seconds
5 seconds
5 seconds
25 seconds
For DC use only
The door strike must have a vartistor or a
diode across the door strike terminals to
suppress the back EMF of the strike-failure
to do so will damage the relay contacts and
electronic components.
Relay
Red +10~14Vdc
Black:V0
Orange:D1
White
Yellow:D0
Green
Blue:LED(Yellow)
Pink:LED(Red)
Green:LED(Green)
Blue:N.O.2
Green:Com.2
Yellow:N.C.2
Gray:P2
Gray:B2
White:P1
White:B1
Brown:Reed
Brown:Reed
ear 2 beeps
For AC/DC
Locking Device 2
(Fail-Secure)
Push Button 2
Push Button 1
Door status reed switch contact is (N.
O.) The contact switch is in N.O.(Norm-
al Open) status when the door closes.
The contact switches to N.C. (Normal
Close) when the door opens.
