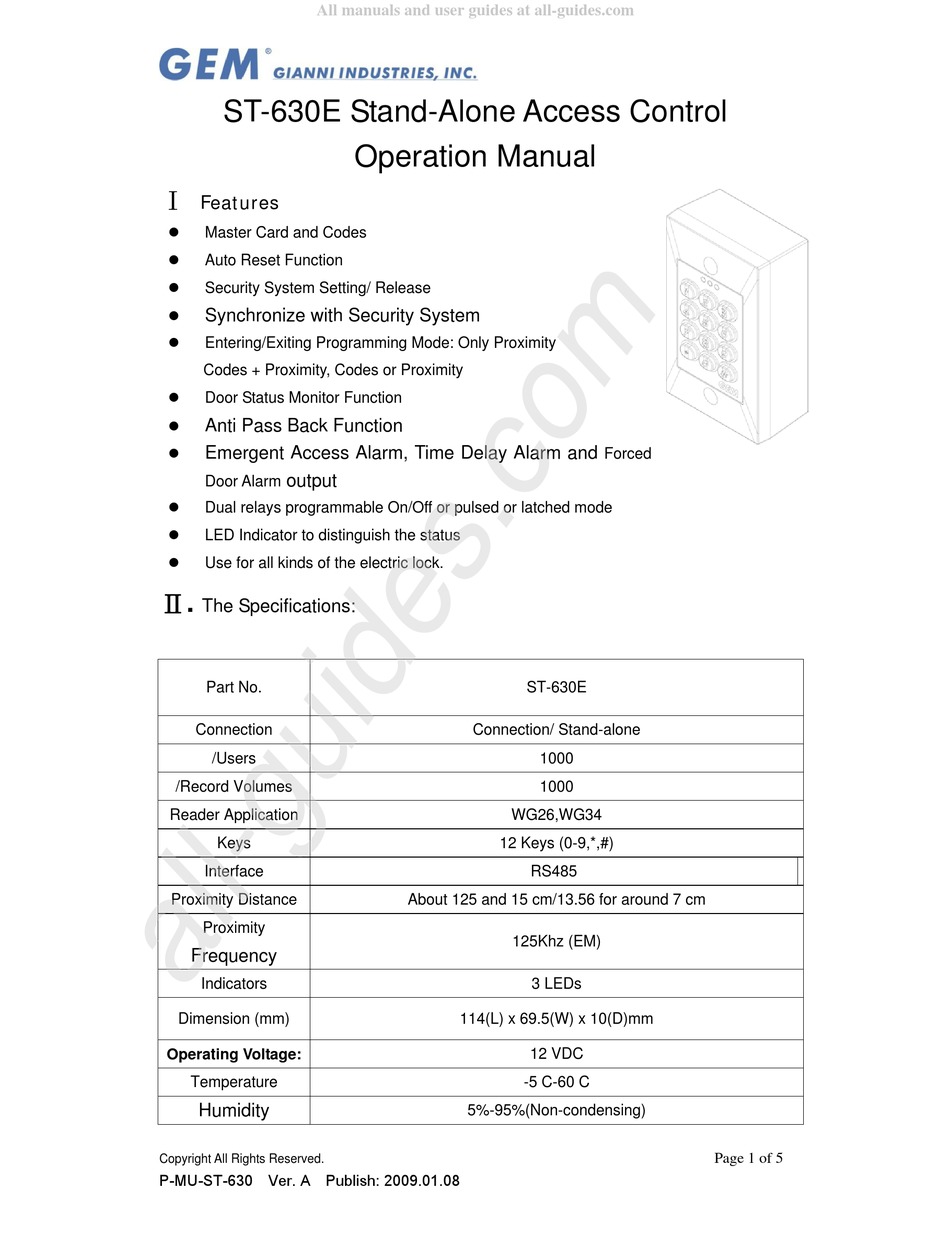

ST-630E Stand-Alone Access Control
Ⅰ
Features
Master Card and Codes
Auto Reset Function
Security System Setting/ Release
Synchronize with Security System
Entering/Exiting Programming Mode: Only Proximity
Codes + Proximity, Codes or Proximity
Door Status Monitor Function
Anti Pass Back Function
Emergent Access Alarm, Time Delay Alarm and
output
Door Alarm
Dual relays programmable On/Off or pulsed or latched mode
LED Indicator to distinguish the status
Use for all kinds of the electric lock.
Ⅱ.
The Specifications:
Part No.
Connection
/Users
/Record Volumes
Reader Application
Keys
Interface
Proximity Distance
Proximity
Frequency
Indicators
Dimension (mm)
Operating Voltage:
Temperature
Humidity
Copyright All Rights Reserved.
P-MU-ST-630 Ver. A Publish: 2009.01.08
Operation Manual
ST-630E
Connection/ Stand-alone
WG26,WG34
12 Keys (0-9,*,#)
RS485
About 125 and 15 cm/13.56 for around 7 cm
125Khz (EM)
3 LEDs
114(L) x 69.5(W) x 10(D)mm
12 VDC
-5 C-60 C
5%-95%(Non-condensing)
Forced
1000
1000
Page 1 of 5
