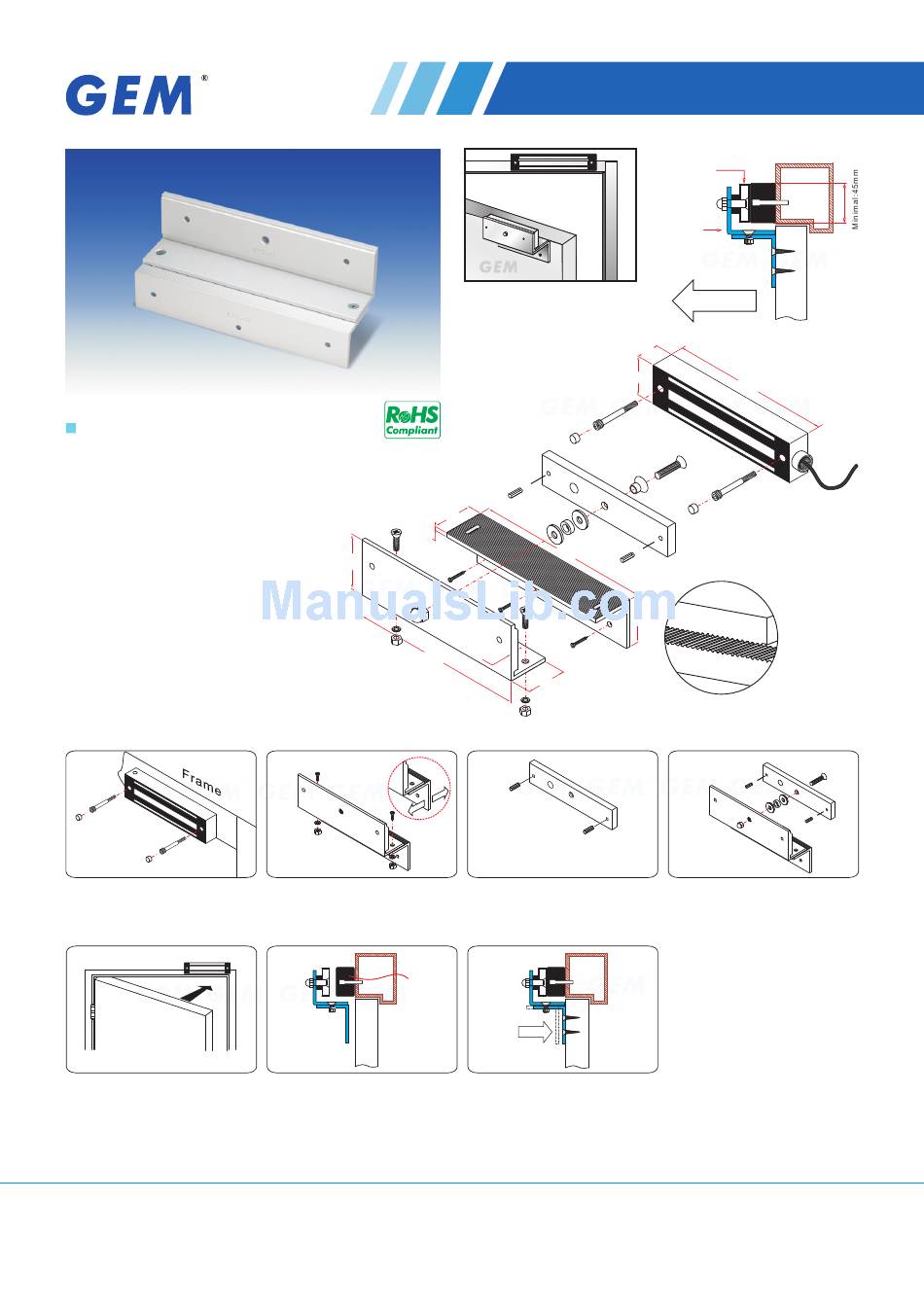

Gianni Industries Z-400N Bracket Specification

Application for the Electromagnet:GL-850
Installation Steps of Z bracket for Inswing doors
1
Tighten the electromagnetic lock
on the L bracket by using the
fixing screw.
5
Close the door. Measure the correct
position by bringing the armature
plate close to the contact surface of
the electromagnetic lock.
Copyright Gianni industries, inc. All rights reserved.
DM-CA-Z-400N Ver. C Published on 2008.05.29
5
5 5
2 2
0
2
Assemble the Z bracket, and make
sure that the Z bracket is adjustable.
6
Power
Turn on the power of EM-Lock,
and let the armature plate bonds
to the EM-lock. Adjust the position
between the Z bracket and the
door frame.
Z-400N Bracket
Typical mounting on
4 8
2 2
0
8
4 8
3
Insert the guide pins into the
armature plate.
Finish
Once the position is correct,
use the screws to permanently
mount the Z bracket on the door
frame. This should be the last step.
GIANNI INDUSTRIES, INC.
No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,
Tu-Cheng City, Taipei, Taiwan 23678
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: info@gianni.com.tw
Website: gianni.tw
i
nswing door
Armature
Frame
Z-Bracket
Door
Inswing
3 0
4 5
2 3
2
4 2
4
Put one rubber washer between
armature plate and the Z bracket.
Unit:mm
