Black Diamond Equipment 213823 Owner's Manual

5500w silent diesel generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

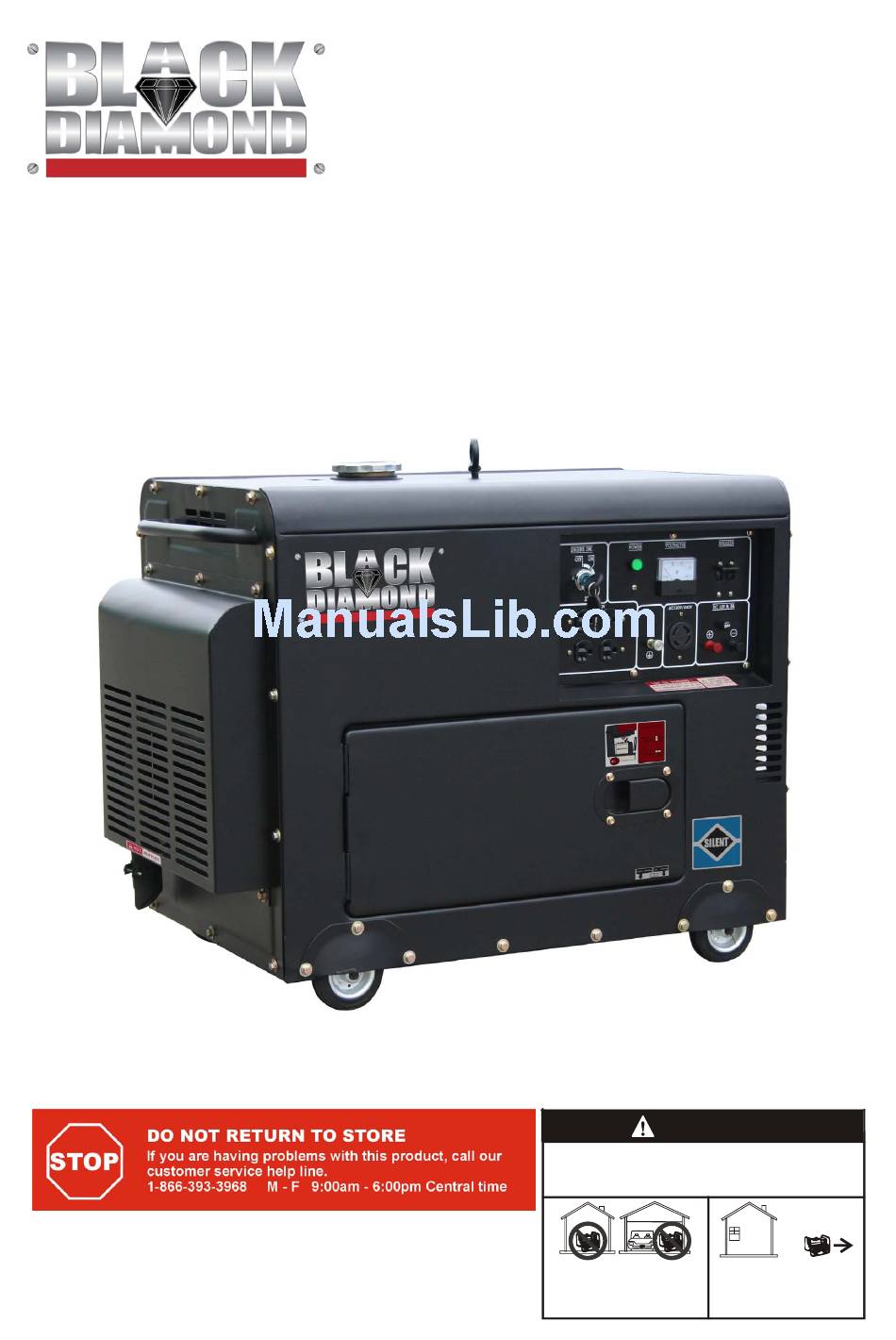

5500w silent Diesel generator
Read carefully before attempting to assemble, install, operate or
maintain the product described. Protect
observing all safety information . Failure to comply with the
,
user s manual
could result in personal injury and/or
property damage! Retain the user s manual for future
Owner's Manual
yourself and others by
,
# 213823
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is
a poison you cannot see or smell.
NEVER use inside a home
or garage, EVEN IF doors
and windows are open.
Only use OUTSIDE and
far away from windows,
doors, and vents.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 213823 and is the answer not in the manual?

Questions and answers

Related Manuals for Black Diamond Equipment 213823

Summary of Contents for Black Diamond Equipment 213823

  • Page 1 # 213823 5500w silent Diesel generator Owner’s Manual DANGER Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell. Read carefully before attempting to assemble, install, operate or yourself and others by maintain the product described.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. GENERAL SAFETY…………………………………………………….…………………...1 A. SET UP PRECAUTIONS…………………………………………………………………1 B. OEPRATING PRECAUTIONS…………………………………………………..……….2 C. SERVICE PRECAUTIONS……………………………………………..… .…………… 2 2. UNPACKING…………………………………………………………………………………3 3. CONTROLS…………………………………………………………………………………..4 4. SET UP INSTRUCTIONS……………………………………………………………………5 A.LOCATION………………………………………………………..……………………….5 B. GROUDING………………………………………………………………………………5 5. OPERATING INSTRUCTIONS……………………………………………………………...6 A.START THE ENGINE……………………………………………………………………6 CHECK AND FILLING ENGINE OIL………………………………………………6 CHECK AND FILLING FUEL……………………………………………………….6 BLEED THE FUEL LINE…………………………………………………………….6 CONNECT THE BATTERY………………………………………………...

  • Page 3: General Safety

    1. GENERAL SAFETY Important safety information: In this manual, on the labeling, and all other information provided with this product: This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 4: Oeprating Precautions

    3. Do not leave the equipment unattended when it is running. Turn off the equipment (and remove safety keys, if available) before leaving the work area. 4. Wear ANSI-approved safety goggles and hearing protection during use. 5. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to a heart pacemaker could cause pacemaker interference or pacemaker failure.

  • Page 5: Unpacking

    3. Do not alter or adjust any part of the equipment or its engine that is sealed by the manufacturer or distributor. Only a qualified service technician may adjust parts that may increase or decrease governed engine speed. 4. Wear ANSI-approved safety goggles, heavy-duty work gloves, and dust mask/respirator during service. 5.

  • Page 6: Controls

    3. Controls Power Indicator Engine Switch Voltage Meter Circuit Breaker Fuse Cover 12V 8.3A DC 120V&240V receptacle 120V Receptacles receptacle...

  • Page 7: Set Up Instructions

    4. Set up instructions Read the entire important safety information section at the beginning of this manual including all text under subheadings therein before set up or use of this product. To prevent serious injury from accidental starting: Turn the power switch of the equipment to its “OFF”...

  • Page 8: Operating Instructions

    5. Operating Instructions Read the entire important safety information section at the beginning of this manual including all text under subheadings therein before set up or use of this product. A. Starting the Engine Inspect engine and equipment looking for damaged, loose, leaking and missing parts before set up and starting.

  • Page 9: Connect The Battery

    3. Using two wrenches, hold the injector with one and back off the steel feed line nut with the other wrench. Repeat the above mentioned flushing cycle to bleed the air from the injector. Wipe all spilled fuel from the engine and components. Note: Do not close the fuel valve with the engine running. This may only be done for the intention of shutting the engine off should the fuel shut-off system fail.

  • Page 10: Break-In Period

    Break-in Period 1. Breaking-in the engine will help to ensure proper equipment and engine operation, and will extend the engine’s lifespan. The warranty is void if the engine is not broken in properly. The first 20 hours of operation is the break-in period. 2.

  • Page 11: Servicing

    7. Servicing To prevent serious injury from accidental starting: Turn the power switch of the equipment to its “OFF” position, wait for the engine to cool before performing any inspection, maintenance, or cleaning procedures. To prevent serious injury from equipment failure: Do not use damaged equipment.

  • Page 12: B.cleaning, Maintenance, And Lubrication Schedule

    6. Clean the cup of all sediment using a rag or brush. 7. Replace the fuel filter element. 8. Reinstall the fuel filter element, fill the cup with fresh and clean diesel fuel and assemble per steps 5 and 4 above. 9.

  • Page 13: Troubleshooting

    Troubleshooting Problem Possible Causes Probable Solutions FUEL RELATED: FUEL RELATED: * Engine will not start 1. No fuel in tank or fuel valve closed. 1. Open fuel valve and fill fuel tank. 2. Air trapped in fuel line/Filter. 2. Bleed fuel line. 3.
  • Page 14 Service Manual 5500W Silent Diesel Generator with Electric Start Engine Diagram...
  • Page 15 Service Manual 5500W Silent Diesel Generator with Electric Start External Components Diagram...
  • Page 16 Parts Pricing List Diag. Description Diag. Description DRAIN PLUG HEAD COVER ASS'Y DRAIN PLUG EXTENSION HEAD COVER DRAIN PLUG SEAL COMPLETE BREATHER OIL SEAL O-RING CYLINDER BLOCK PLUG HEX. BOLT HEAD COVER GASKET WASHER DECOMPRESSION SPRING SPRING WASHER DECOMPRESSION SHAFT HEX.
  • Page 17 Parts Pricing List Diag. Description Diag. Description AIR FILTER COVER SEAL RING FLYWHEEL WITH GEAR SPECIAL WASHER BRACKET FOR COVER (SPEC. ORD.) WING NUT 249-2 FLANGE HD HEX. BOLT FLANGE HD HEX. BOLT 249-3 SPRING WASHER OIL PUMP COVER 249-4 WASHER O-RING FRONT FAN HOOD (SPEC.
  • Page 18 Parts Pricing List Diag. Description Diag. Description 275-2 FLANGE HD HEX. BOLT 309-2 FLANGE HD HEX. NUT SOUNDPROOF COVER (SPEC. ORD.) CONTROL PANEL ASS'Y 276-2 FLANGE HD HEX. BOLT STARTER SWITCH WITH KEY 276-3 WASHER LOW OILWARNING INDICATOR LIGHT UPPER COVER (SPEC. ORD.) POWER INDICATOR LIGHT 277-2 FLANGE HD HEX.
