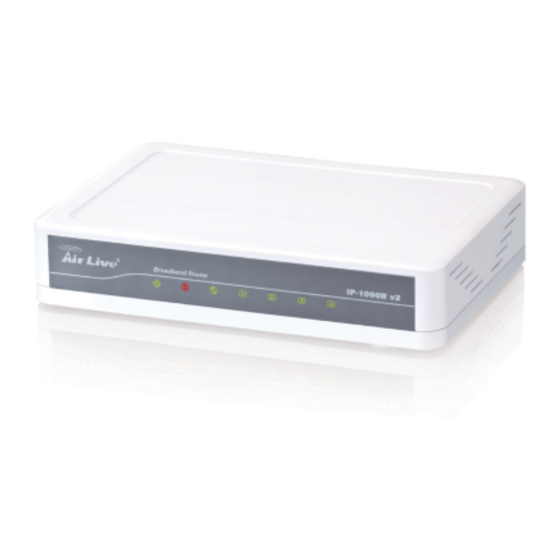

- Page 1 IP-1000R v2 Broadband Router User’s Manual...
- Page 2 However, we are not liable for the inaccuracies or errors in this guide. Please use with caution. All information is subject to change without notice All Trademarks are properties of their respective holders. AirLive IP-1000R v2 User’s Manual...
-
Page 3: Table Of Contents
4.2.2 Static IP (Fixed-IP xDSL) ..................18 4.2.3 PPPoE (Dial-Up xDSL) ................... 19 4.2.4 PPTP ........................20 4.2.5 DNS.......................... 21 5. System ......................22 5.1 System Time ..................22 5.2 Administrator Settings ................23 5.3 Firmware Upgrade ................24 AirLive IP-1000R v2 User’s Manual... - Page 4 8.2 Virtual Server ..................37 9. Firewall......................38 9.1 Block WAN Ping.................38 9.2 Client Filtering ..................39 9.3 MAC Control ..................39 9.4 DMZ (De-Militarized Zone)..............40 9.5 URL Filter...................40 10. Routing ....................41 10.1 Static Routing...................41 11. Specifications..................42 12. Network Glossary ..................43 AirLive IP-1000R v2 User’s Manual...
-
Page 5: Introduction
Since 2009, AirLive has added the “Newsletter Instant Support System” on our website. AirLive Newsletter subscribers receives instant email notifications when there are new download or tech support FAQ updates for their subscribed airlive models. To become an AirLive newsletter member, please visit: http://www.airlive.com/member/member_3.jsp Figure: AirLive Newsletter Support System irLive IP-1000R v2 User’s Manual... -
Page 6: Features
Supports UPnP (Universal Plug and Play) Supports virtual server mapping Supports VPN PPTP and IPSec pass-through Supports packet filtering Simple Firewall protection Upgradeable firmware for future functions Easy setup via Web Browser AirLive IP-1000R v2 User’s Manual... -
Page 7: Installing The Ip-1000R V2
The LED lights up a solid green when the Router is powered on. Otherwise, it is off. STATUS The LED is flashing when the Router is successfully working. If the LED is either always on or off, the Router is not working properly. AirLive IP-1000R v2 User’s Manual... -
Page 8: Hardware Connections
3. Connect one end of another Ethernet cable to the Ethernet port on the computer and the other end of the Ethernet cable to any of the LAN ports on the Router. Since the IP-1000R AirLive IP-1000R v2 User’s Manual... -
Page 9: Restore Settings To Default
2.5 Restore Settings to Default If you have forgotten your IP-1000R v2 IP address or password, you can restore your IP-1000R v2 to the default settings by pressing on the “reset button” for more than 5 seconds. AirLive IP-1000R v2 User’s Manual... -
Page 10: Configuring The Ip-1000R V2
“HTTP Proxy” feature of your web browser is disabled. The network TCP/IP settings differ based on the computer’s operating system (Win95/98/ME/NT/2000/XP/Vista); if you need information on how to configure a TCP/IP settings on a computer, refer to the following section. AirLive IP-1000R v2 User’s Manual... -
Page 11: Windows 95/98/Me
Restart your PC to ensure it obtains an IP Address from the IP-1000R v2. Using "Specify an IP Address" If your PC is already configured, check with your network administrator before making the following changes: AirLive IP-1000R v2 User’s Manual... - Page 12 On the DNS Configuration tab, ensure Enable DNS is selected. If the DNS Server Search Order list is empty, enter the DNS address provided by your ISP in the fields beside the Add button, then click Add. AirLive IP-1000R v2 User’s Manual...
-
Page 13: Windows Xp/2000
2. Right click the Local Area Connection and choose Properties. You should see a screen like the following: 3. Select the TCP/IP protocol for your network card. 4. Click on the Properties button. You should then see a screen like the following. AirLive IP-1000R v2 User’s Manual... - Page 14 LAN administrator can advise you of the IP Address they assigned to the IP-1000R If the DNS Server fields are empty, select Use the following DNS server addresses, and enter the DNS address or addresses provided by your ISP, then click OK. AirLive IP-1000R v2 User’s Manual...
-
Page 15: Windows Nt 4.0
3.2.3 Windows NT 4.0 1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as shown below. 2. Click the Properties button to see a screen like the one below. AirLive IP-1000R v2 User’s Manual... - Page 16 On the following screen, click the Add button in the Gateways panel, and enter the IP-1000R v2’s IP address, as shown in below. If necessary, use the Up button to make the IP-1000R v2 the first entry in the Gateways list. AirLive IP-1000R v2 User’s Manual...
-
Page 17: Windows Vista
4. Click “Continue” to open the “Local Area Connection Properties” windows. 5. Select “Internet Protocol Version 4 (TCP/IPv4)”, then click “Properties” button. 6. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically” in “General” tab. 7. Click “OK” button. AirLive IP-1000R v2 User’s Manual... -
Page 18: Management Interface
We recommend using this interface for initial configurations. To begin, simply enter IP-1000R v2 IP address (default is 192.168.1.1) on the web browser. The default password is “airlive”. If you are placing the RS-2500 behind router or firewall, you might need to open virtual server ports to RS-2500 on your firewall/router ... -
Page 19: Startup And Login
IP-1000R v2 is 192.168.1.1. After the connection is established, a logon screen will pop up. To log in as an administrator, type in the user name “admin” and the password “airlive”, then click the “LOGIN” button, the web-based management interface will appear. -
Page 20: Quick Setup
On the main webpage, select “Quick Setup” to setup the Time Zone and the WAN Type. 4.1 Time Zone Select the appropriate time zone so your system clock can synchronize itself through the SNTP Server. AirLive IP-1000R v2 User’s Manual... -
Page 21: Wan Type
4. Quick Setup 4.2 WAN Type To select the WAN connection type, click Dynamic IP (Cable Modem), Static IP (Fixed-IP), PPPoE (Dial-Up xDSL) or PPTP. AirLive IP-1000R v2 User’s Manual... -
Page 22: Dynamic Ip (Cable Modem)
4.2.2 Static IP (Fixed-IP xDSL) If your Internet Service Provider (ISP) has assigned you a fixed IP address, select this option. Enter the assigned IP address, subnet mask, and the gateway IP address for the IP-1000R v2 Broadband Router. AirLive IP-1000R v2 User’s Manual... -
Page 23: Pppoe (Dial-Up Xdsl)
ISP (default time=0, always connect). Select Connect-on-demand for the Connect mode select feature to enable the IP-1000R v2 Broadband Router to connect to your ISP whenever an Internet connection is required. AirLive IP-1000R v2 User’s Manual... -
Page 24: Pptp
By default, MTU is set at 1460. The Maximum Idle Time feature can control the Internet connection time (default time=0, always connect). Select Connect-on-demand for the Connect mode select feature to enable the IP-1000R v2 Broadband Router to connect to your ISP whenever an Internet connection is required. AirLive IP-1000R v2 User’s Manual... -
Page 25: Dns
Your ISP should provide one or more DNS Server IP addresses, type those IP addresses in the Primary DNS address and Secondary DNS address fields, the IP-1000R v2 Broadband Router will utilize these simultaneously for quicker access to functioning DNS Servers. AirLive IP-1000R v2 User’s Manual... -
Page 26: System
Broadband Router to synchronize the system clock to the global Internet time through the SNTP Server. The synchronized clock in the IP-1000R v2 Broadband Router is used to record the system log and control client filtering. AirLive IP-1000R v2 User’s Manual... -
Page 27: Administrator Settings
(outside of the local network), you must specify the IP address of the remote computer. Leave the IP address as 0.0.0.0, to allow any IP address to access to the IP-1000R v2 Broadband Router. AirLive IP-1000R v2 User’s Manual... -
Page 28: Firmware Upgrade
While upgrading the firmware, please wait after pressing the “APPLY” button, and follow the instructions on the screen; the System LED on the front panel will start blinking when the firmware has been upgraded successfully. AirLive IP-1000R v2 User’s Manual... -
Page 29: Configuration Tools
“config.bin,” or save to a filename of your choosing. ‧ Restore Settings To restore a backup file back to the IP-1000R v2 Broadband Router, specify the path and filename of the backup file (i.e. config.bin). AirLive IP-1000R v2 User’s Manual... -
Page 30: Status
5. System 5.5 Status The “Status” screen will display the IP-1000R v2 Broadband Routers' WAN/LAN interfaces, firmware and hardware version numbers, and the number of connected clients to the network. AirLive IP-1000R v2 User’s Manual... -
Page 31: System Log
View any attempts that have been made to gain access to the network. 5.7 Reset For some reason if you need to reset the IP-1000R v2 Broadband Router without changing any settings, click on the “Reset” to reset the IP-1000R v2 Broadband Router. AirLive IP-1000R v2 User’s Manual... -
Page 32: Wan
Address" button to copy the MAC address of the Ethernet network adapter installed in the PC. The WAN MAC address will be replaced by this MAC address. If your ISP is BigPond (Australia), check the Enable box. AirLive IP-1000R v2 User’s Manual... -
Page 33: Static Ip
6.2 Static IP If the Internet Service Provider has assigned a fixed IP address, enter the assigned IP address, subnet mask and gateway IP address fields. Click “Yes” if you are using two or more IP addresses. AirLive IP-1000R v2 User’s Manual... -
Page 34: Pppoe (Dial-Up Xdsl)
By default, MTU is set at 1492. The Maximum Idle Time feature can control the Internet connection time if you want to reduce the connection fees charged by your ISP (default time=0, always connect). AirLive IP-1000R v2 User’s Manual... -
Page 35: Pptp
The Maximum Idle Time feature can control the Internet connection time (default time=0, always connect). Select Connect-on-demand for the Connect mode select feature to enable the IP-1000R v2 Broadband Router to connect to your ISP whenever an Internet connection is required. AirLive IP-1000R v2 User’s Manual... -
Page 36: Dns
IP address. Most Broadband Internet Service Providers assign dynamic IP addresses. When you use a Dynamic DNS service provider, your friends can enter your host name to connect to your server, no matter what your IP address is. AirLive IP-1000R v2 User’s Manual... -
Page 37: Lan
IP-1000R v2 Broadband Router with his/her current dynamic IP address. Enter the amount of time, in hours, days or weeks, which the user will be “leased” this dynamic IP address. You can enter your local domain name in the Local Domain Name fields. AirLive IP-1000R v2 User’s Manual... -
Page 38: Dhcp Client List
7. LAN 7.2 DHCP Client List The DHCP client list allows you to see which clients are connected to the IP-1000R v2 Broadband Router via IP address, host name, and MAC address. AirLive IP-1000R v2 User’s Manual... -
Page 39: Nat
Network applications that want to save processing time because they have very small data units to exchange (and therefore very little message reassembling to do) may prefer UDP to TCP AirLive IP-1000R v2 User’s Manual... - Page 40 8. NAT AirLive IP-1000R v2 User’s Manual...
-
Page 41: Virtual Server
The virtual server option allows you to define port number on your IP-1000R v2 Broadband Router for redirection to an internal LAN IP address. This feature is useful for hosting online services such as FTP or Web servers. AirLive IP-1000R v2 User’s Manual... -
Page 42: Firewall
When "Discard PING from WAN side" is checked, it causes the public WAN IP address on the IP-1000R v2 Broadband Router to ignore ping commands. Pinging public WAN IP addresses is a common method used by hackers to test whether the WAN IP address is valid. AirLive IP-1000R v2 User’s Manual... -
Page 43: Client Filtering
FTP (Port 21) from Sunday to the following Saturday and from 2:00AM to 11:00 PM 9.3 MAC Control MAC Control allows you to block certain client PCs from accessing the Internet based on MAC addresses. AirLive IP-1000R v2 User’s Manual... -
Page 44: Dmz (De-Militarized Zone)
URL is a specially formatted text string that defines a location on the Internet. If any part of the URL contains the blocked word, the site will not be accessible. If any part of the URL contains the blocked word, the web page will also not display. AirLive IP-1000R v2 User’s Manual... -
Page 45: Routing
The process by manually specify a specific route packets should take on the way to a destination address. You need to configure the Static Routing only for such as multiple Routers or multiple IP subnets located on your network. AirLive IP-1000R v2 User’s Manual... -
Page 46: Specifications
1, 2, 3, 4 LAN ports Power Input DC 5V, 800mA 109 x 155 x 33mm Dimension Operating 0°- 55°C (32° – 131° F) Temperature Humidity 90%RH maximum non-condensing EMI Certification FCC Class B CE Class B AirLive IP-1000R v2 User’s Manual... -
Page 47: Network Glossary
Transparent mode works to transfer real IP address from WAN interface to the device that connects to DMZ port. So the DMZ device can also get real IP address and offer the service with Internet users. AirLive IP-1000R v2 User’s Manual... - Page 48 Internet. An IP address has two parts: an identifier of a particular network on the Internet and an identifier of the particular device (which can be a server or a workstation) within that network. The new IPv6 specification supports 128-bit IP address format. AirLive IP-1000R v2 User’s Manual...
- Page 49 DoS Attack Denial of Service. A type of network attack that floods the network with useless traffic. Many DoS attacks, such as the Ping of Death and Teardrop attacks, exploit limitations in the TCP/IP protocols. AirLive IP-1000R v2 User’s Manual...
