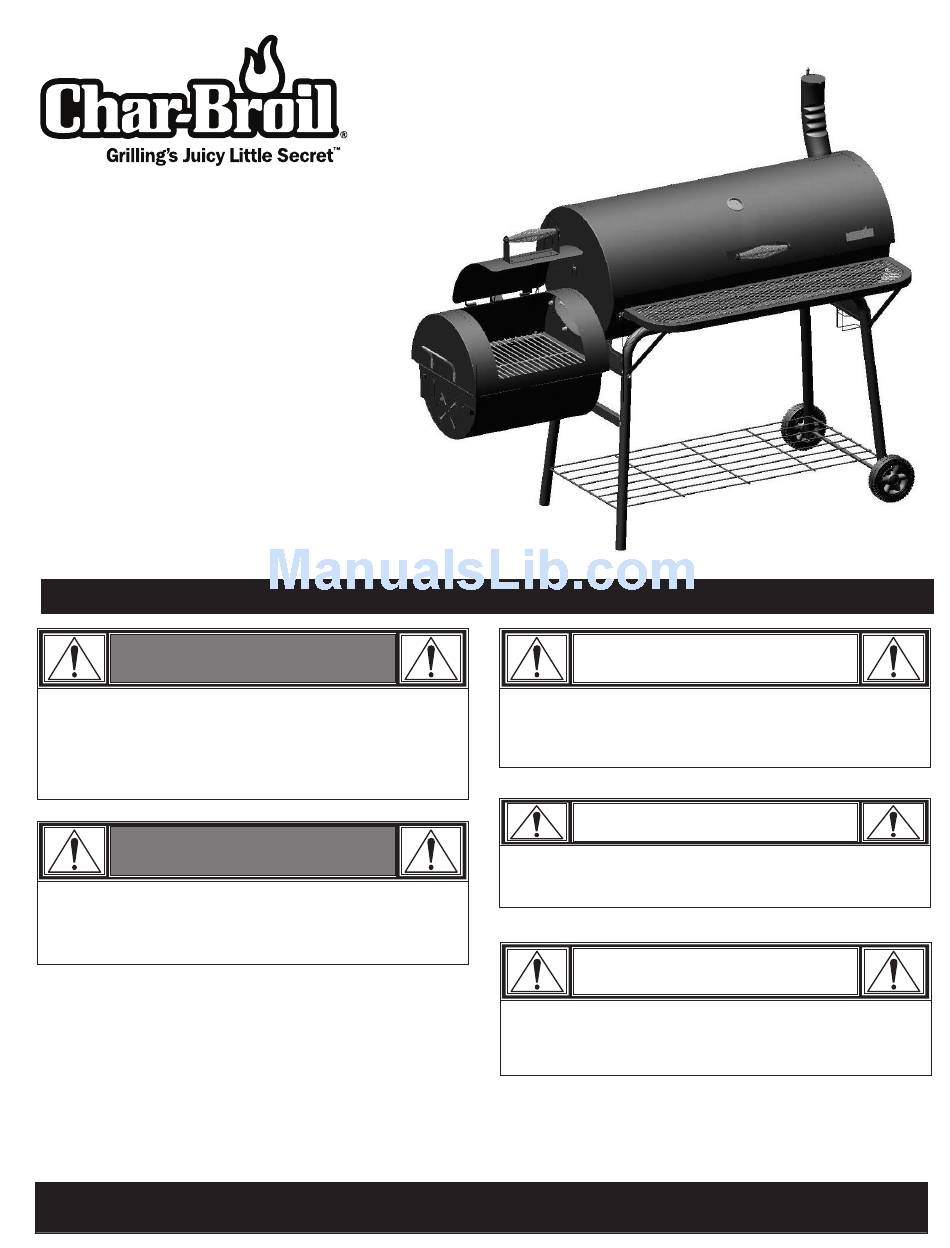

Offset Smoker 1280
Product Guide
Model 13201776
Tools needed for assembly:
Phillips Screwdriver
Pliers
WARNING
CARBON MONOXIDE HAZARD
Burning charcoal inside can kill you. It gives off carbon
monoxide, which has no odor. NEVER burn charcoal
inside homes, vehicles, or tents.
WARNING
Failure to follow all manufacturer's instructions could
result in serious personal injury and/or property
damage.
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
If you have questions or need assistance during assembly, please call 1-800-241-7548.
To insure your satisfaction and for follow-up service, register your appliance online at www.charbroil.com/register
FOR OUTDOOR USE ONLY
CAUTION
Read and follow all safety statements, assembly
instructions, and use and care directions before
attempting to assemble and cook.
CAUTION
Some parts may contain sharp edges! Wear
protective gloves if necessary.
CAUTION
THIS UNIT IS HEAVY! DO NOT attempt to assemble
without a helper.
428042805121 - 07/11/12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Char-Broil 13201776
Summary of Contents for Char-Broil 13201776
-
Page 1: Product Record Information
Leave this manual with consumer. without a helper. CONSUMER: Keep this manual for future reference. If you have questions or need assistance during assembly, please call 1-800-241-7548. To insure your satisfaction and for follow-up service, register your appliance online at www.charbroil.com/register 428042805121 - 07/11/12... -
Page 2: Table Of Contents
TABLE OF CONTENTS WARNING Product Record Information ......1 FAILURE TO READ AND FOLLOW INSTRUCTIONS FOR For Your Safety . -
Page 3: Preparing To Use Your Smoker
Preparing and Using Your Smoker Before cooking with your Smoker, the following steps should be closely followed to both cure the finish and season the interior steel. Failure to properly follow these steps may damage the finish and/or impart metallic flavors to your first foods. -
Page 4: Cooking Tips
USDA Recommended Internal Cooking Temperatures Ground Meat Beef, Pork, Veal, Lamb........160°F Turkey, Chicken..........165°F Fresh Beef, Veal, Lamb Medium Rare............145°F (let stand 3 minutes before cutting) Medium..............160°F Well Done............170°F Poultry Chicken & Turkey, whole........165°F Poultry Parts............165°F Duck & Goose............165°F Fresh Pork Medium Rare............145°F (let stand 3 minutes before cutting) Medium..............160°F... -
Page 5: Smoker Maintenance
THE HEAT OF THE COALS seconds you can hold the palm of your hand 4 inches above the coals temperature range (Fº) visual cues HOT COALS 400 to 450 barely covered with gray ash; deep red glow MODERATELY HOT 375 to 450 thin coating of gray TO HOT COALS ash;... -
Page 6: Limited Warranty
LIMITED WARRANTY LIMITED WARRANTY This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*. -
Page 7: Parts List/ Parts Diagram
Description SMOKESTACK SMOKESTACK DAMPER SPRING Description LOGO PLATE TEMPERATURE GAUGE RIGHT LEG, FRONT LID HANDLE (COOL TOUCH) LEFT LEG, FRONT FIREBOX LID STOP RIGHT LEG, REAR FIREBOX LID LEFT LEG, REAR PUSH HANDLE BOTTOM SHELF FIREBOX COOKING GRATE AXLE FIREBOX DOOR HINGE WHEEL FIREBOX DOOR LEG BRACE... -
Page 8: Assembly
ASSEMBLY FIRST, GET A HELPER! This unit is heavy and requires a second person for lifting and moving. NEXT, pick a suitable location to work. Open the carton and slit the corners so that the carton lays flat. This will give you a protective surface during assembly. - Page 9 Insert a cotter pin into the hole at one end of the axle. Slide a wheel onto the axle. Slide the axle through the holes at the ends of the short legs. Slide remaining wheel onto axle and secure with remaining cotter pin. Cotter pin Axle Attach the leg brace assy with bottle opener on end with wheels using four M6×15mm Phillips head bolts.
- Page 10 Install firebox support bracket onto the holes on the left legs using two M6 x 15mm Phillips head bolts. Do not tighten bolts until Step 6 is completed. Install grill base, with firebox opening towards left side, on top of the legs using four M6 x 15mm Phillips head bolts. Install two M6 x 15mm Phillips head bolts and M6 hex nuts through grill base and flange on leg braces.
- Page 11 Attach front shelf to front of grill base using two M6 x 15mm Phillips head bolts. Attach table supports with slotted holes towards front shelf using four M6 x 15mm Phillips head bolts. Attach push handle onto the firebox lid using two M6 x 15mm Phillips head bolts.
- Page 12 Attach handle to the firebox lid using two M6 x 15mm Phillips head bolts and two M6 hex nuts. Attach firebox lid stop using one M5 x 12mm Phillips head bolt and M5 hex nut.
- Page 13 Attach air shutter onto the firebox door using one M6 x 15mm Phillips head bolt and M6 hex nut. Do not over-tighten air shutter, air shutter should move freely. Attach door latch using one M5 x 12mm Phillips head shoulder bolt and M5 hex nut as illustrated. Connect firebox door hinge to the outside of the door and firebox base using four M5 x 12mm Phillips head bolts and M5 hex nuts.
- Page 14 Connect firebox lid and firebox base using six M6 x 15mm Phillips head bolts. Connect firebox and grill base together using six M6 x 15mm Phillips head bolts.
- Page 15 Connect firebox support with firebox base using two M6 x 15mm Phillips head bolts and M6 hex nuts. Install smokestack bracket into grill lid using two M6 x 15mm Phillips head bolts and M6 hex nuts.
- Page 16 Install smokestack onto the smokestack bracket. To install the temperature gauge, insert into center hole on grill lid, then turn it clockwise to upright position.
- Page 17 Attach grill lid handle using two M6 x 15mm Phillips head bolts and M6 hex nuts. Install grill lid on grill base using two M8 x 23mm Phillips head shoulder bolts.
- Page 18 Use charcoal grate adjusters to lower charcoal grate assembly into grill base. Rest charcoal grate adjusters on supports in grill base. Install the swing away rack inside the grill lid. Insert the cotter pins through the holes from the outside of grill lid. Align the swing away rack support arm holes with the holes on the side panel of grill base, using two M6 cap nuts, two M6 washers, and two M6 x 15mm Phillips head shoulder bolts.
- Page 19 Place cooking grills on support lips of grill base. Place firebox charcoal grate inside the bottom of firebox.
- Page 20 Place firebox cooking grills inside the top of the firebox base. Insert grease cup holder into holes on right leg brace. Place a tin can (not included) on the grease cup holder. A tin can must be placed under the grease drain hole at all times. (Tin can not included)
- Page 21 Congratulations. Enjoy your smoker.
- Page 22 NOTES...
-
