Chapter 2 Introduction to This Motherboard
Chapter 2 Introduction to This Motherboard

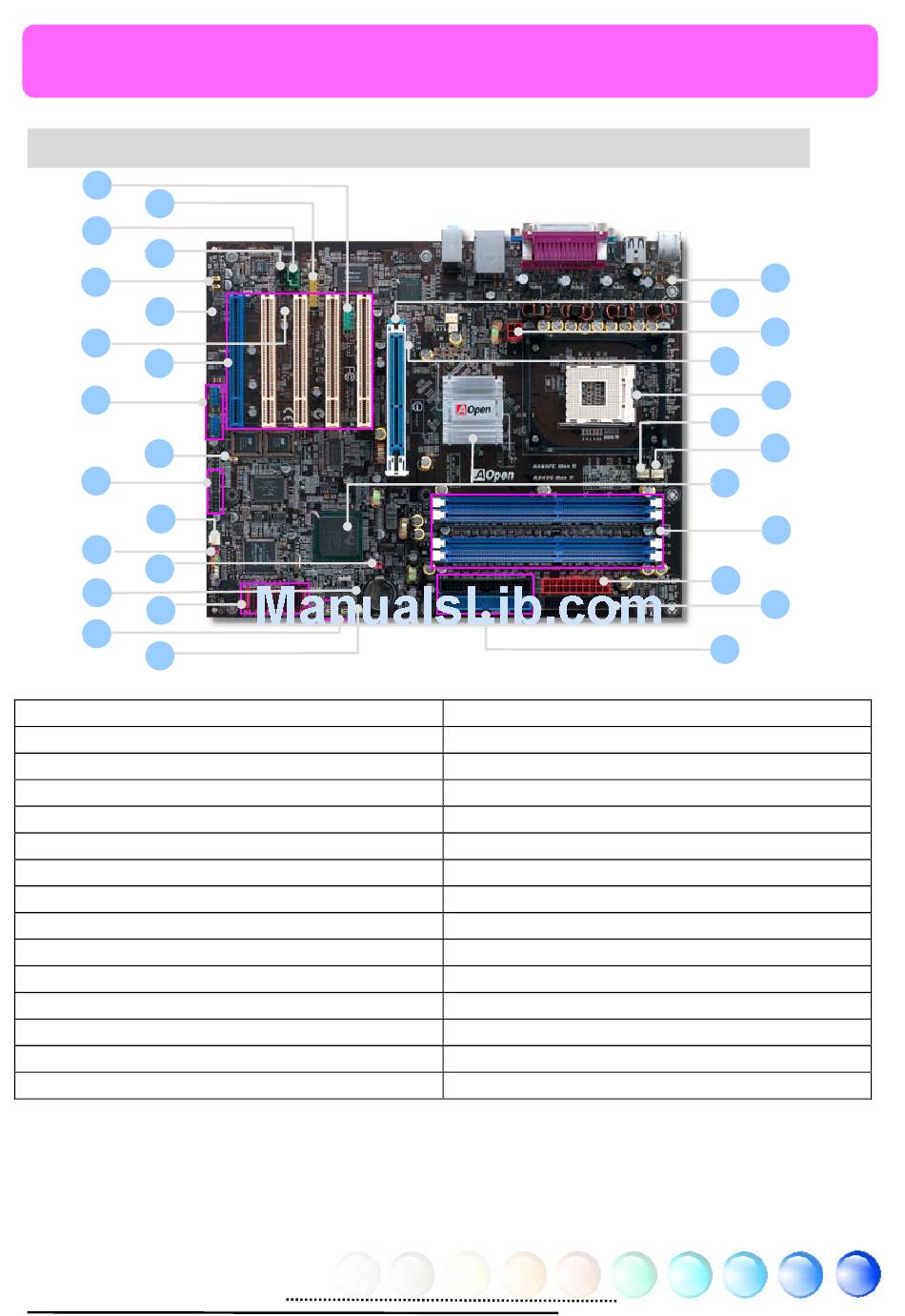

2.1 How does your motherboard look like?
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1. JP28 PS2 KB/Mouse Wakeup Jumper
2. AGP 8X Expansion Slot
3. 4-pin 12V ATX Power Connector
4. AGP Protection LED
5. 478-pin CPU socket supporting Intel P4 CPU
6. SYSFAN1 Connector
7. CPUFAN Connector
8. Intel 865G/865PE Chipsets
9. 184-pin DIMMs X 4
10. ATX Power Connector
11. FDD Connector
12. IDE Connectors x 2
13. COM2 Connector
14. Game Port Connector
15. SSR_OUT Connector
16. CD-IN Connector
17. Front Audio Connector
18. EX_SOUND Connector
19. IrDA Connector
20. 32-bit PCI Expression Slots X 5
21. USB2.0 Connectors X 2
22. JP24 BIOS Rescue Jumper
23. IEEE1394 Connectors X 2
24. SYSFAN2 Connector
25. Front Panel Connector
26. JP14 CMOS Data Clear Jumper
27. Case Open Connector
28. Serial ATA Ports X 6
29. JP15, 16 Dr. Voice II Language Selection
30. JP2 Speaker Output Jumper
6
1
2
3
4
5
6
7
8
9
10
11
12
