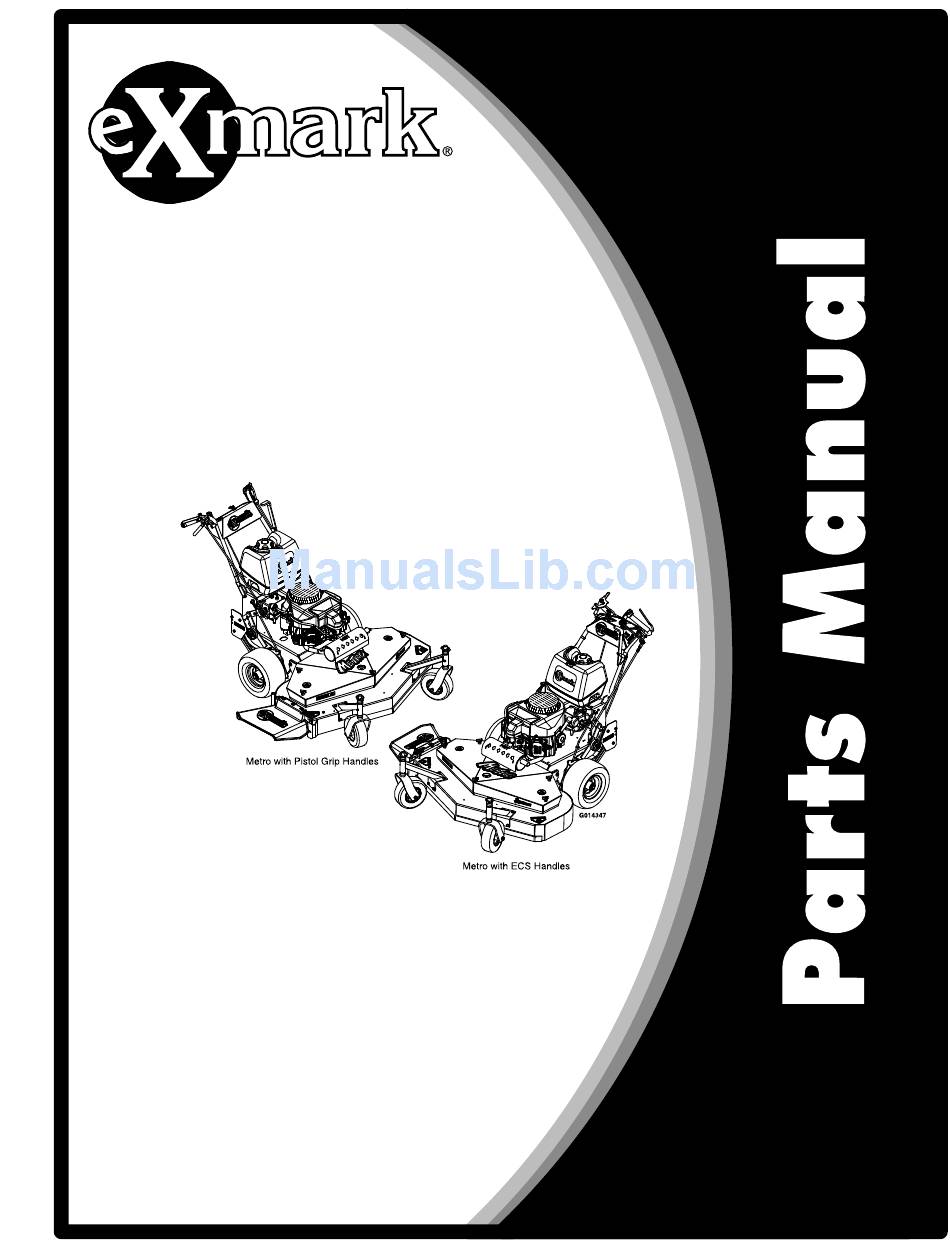

- Page 1 METRO ® Model No. MG16KA362—Serial No. 920000 and Up Part No. 4500-764 Rev. A...
- Page 2 ROPS: roll-over protection system Touch Up Paint Exmark black touch up spray paint – gloss black. Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140). © 2010—Exmark Mfg. Co., Inc. Contact us at www.Exmark.com.
-
Page 4: Table Of Contents
Contents Mower Deck Assembly ..................6 Engine Deck Assembly . -
Page 6: Mower Deck Assembly
Mower Deck Assembly 4500-764A... - Page 7 ● Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads. ■ Requires installation of mulch kit for proper mulching. See your Exmark dealer for details. ▲ Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.
-
Page 8: Engine Deck Assembly
Engine Deck Assembly 4500-764A... - Page 9 Engine Deck Assembly (continued) Ref. Part Number Qty. Description Ref. Part Number Qty. Description 103-3499 Rear Deck (117-3521-01) 323-13 Screw-HH 3/8-16 X 2 3/4 W/Decals 1-803310 Setscrew-5/16-18 X 3/8 ■ 1-323500 Transmission 1-633453 Spacer-Clutch 1-324340 Asm, Coupling, W/Guard 1-603610 Washer-Spring Disc 7/16 And Zerk 9264964 Bolt-HWH 5/16-18 X 3/4 Tap...
-
Page 10: Engine Deck Assembly (Cont.)
Engine Deck Assembly (cont.) 4500-764A... - Page 11 Engine Deck Assembly (cont.) (continued) Ref. Part Number Qty. Description Ref. Part Number Qty. Description 103-1611-03 Arm-Brake 103-1620 Linkage, Brake (RH) 302-19 Zerk-1/4-28 Str 1-513959 Wingnut-Nyloc 5/16 1-322117-03 Axle 323-39 Screw-HH 3/8-16 X 5 2412-104 Clamp-R 1-523157 Washer ● 103-1615-03 Arm-Idler, LH 1-543436 Washer-Spacer...
-
Page 12: Ecs Upper Handle And Controls
ECS Upper Handle and Controls 4500-764A... - Page 13 Part Number Qty. Description Ref. Part Number Qty. Description 116-4079 Wld, Lever, Opc (LH) ▲ 44:1 1-603511 Key-Ignition 1-303365 Bushing-Nylon 44:2 103-2106 Key-Exmark Logo 1-633181 Plate-Tapped 1-803322 Setscrew-5/16-24 X 5/16 ■ 103-0769-03 Wld, Opc Axle Lever 3296-39 Nut-Nyloc 3/8-16 1-303363 Spring-Extension 3290-500...
-
Page 14: Fuel Tank Assembly
Fuel Tank Assembly Ref. Part Number Qty. Description Ref. Part Number Qty. Description 2412-98 115-7872 Hose-Fuel Clamp-Hose 116-3656 Asm-Fuel Tank 1-603770 Valve-Fuel 99-5000 Valve-Check, Fuel 119-6549 Grommet-Valve, Roll Over 103-2605 Fitting-Fuel Bulkhead 120-2234 Fitting-Tee W/Strainer ▲ 120-2235 Filter-Air 104-8300 Nut-Nyloc 5/16-18 Flg 322-10 Screw-HH 5/16-18 X 2 106-9492... -
Page 15: Decals
Part Number Qty. Description Ref. Part Number Qty. Description 103-1623 103-2920 Decal, Metro Model Decal, Console 1-303508 Decal-Warning, Discharge 103-1798 Decal, Throttle 103-2882 Decal, Exmark Logo 1-403005 Decal-Danger 117-2718 Decal-Arrester, Spark 1-303517 Decal,Belt Drive 103-2076 1-403143 Decal, Sulky Warning Decal-Caution 1-323427... - Page 16 Notes:...
- Page 17 Notes:...
- Page 18 Notes:...
- Page 19 Synthetic formulation. Gas & Diesel compatible. Anti-corrosion additives. API 'SL' and JASO rated with wet clutch compatibility for other machines. Available from your local Exmark dealer. Find your closest dealer at exmark.com...
