Exmark METRO Parts Manual
  1. Manuals
  2. Brands
  3. Exmark Manuals
  4. Lawn Mower
  5. METRO
  6. Parts manual

Exmark METRO Parts Manual

Hide thumbs Also See for METRO:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Place Model No. And Serial No.
Label Here (Included in Literature
Pack) or Fill in Below
Model No.
Serial No.
METRO
®
Date Purchased
Engine Model No. and Spec. No.
Engine Serial No. (E/No)
The Serial No. plate is located on the top front engine frame on
the right hand side of the machine. For ease of ordering and
reference, we suggest that you record the information requested.
For Serial Nos.
720,000 & Higher
Part No. 4500-204 Rev. A

Advertisement

Table of Contents
loading

Related Manuals for Exmark METRO

Summary of Contents for Exmark METRO

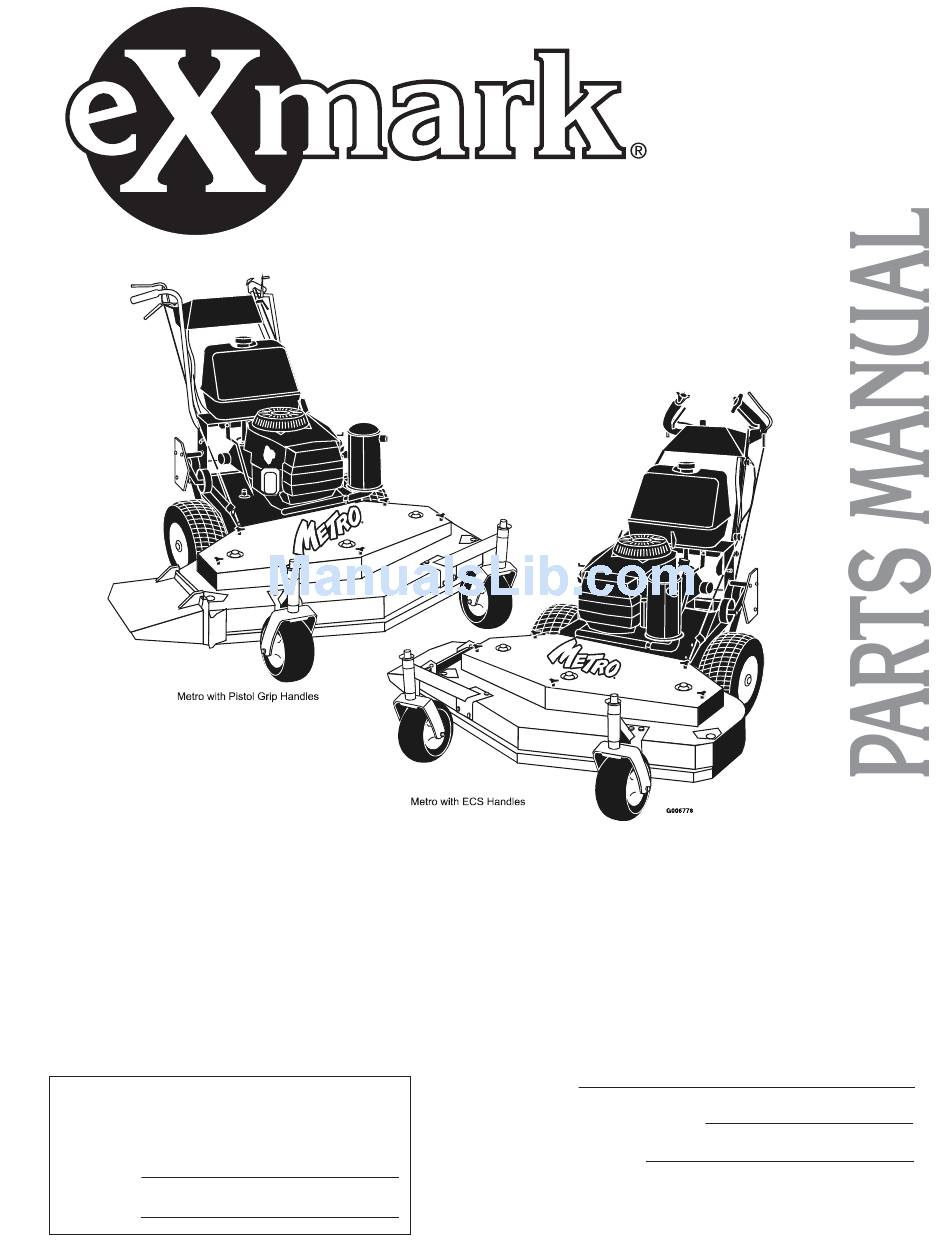

  • Page 1 For Serial Nos. 720,000 & Higher METRO ® Date Purchased Place Model No. And Serial No. Label Here (Included in Literature Engine Model No. and Spec. No. Pack) or Fill in Below Engine Serial No. (E/No) Model No. The Serial No. plate is located on the top front engine frame on the right hand side of the machine.
