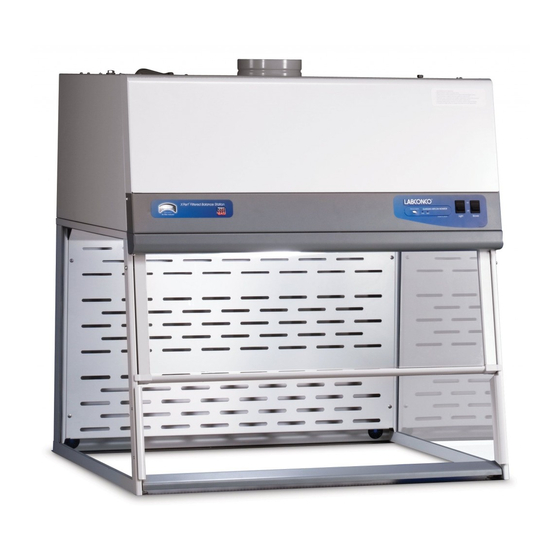

User's Manual
XPert
™
Filtered Balance Systems &
XPert
™
Filtered Balance Stations
Models
3940200, 3940201, 3940202, 3940220, 3940221,
3940222, 3940300, 3940301, 3940302, 3940320,
3940321, 3940322, 3940400, 3940401, 3940402,
3940420, 3940421, 3940422
3950200, 3950201, 3950202, 3950220, 3950221,
3950222, 3950300, 3950301, 3950302, 3950320,
3950321, 3950322, 3950400, 3950401, 3950402,
3950420, 3950421, 3950422
Labconco's Mascot,
Labby the LABster

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3940200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Labconco 3940200

Summary of Contents for Labconco 3940200

  • Page 1 ™ Filtered Balance Systems & XPert ™ Filtered Balance Stations Models 3940200, 3940201, 3940202, 3940220, 3940221, 3940222, 3940300, 3940301, 3940302, 3940320, 3940321, 3940322, 3940400, 3940401, 3940402, 3940420, 3940421, 3940422 3950200, 3950201, 3950202, 3950220, 3950221, 3950222, 3950300, 3950301, 3950302, 3950320, 3950321, 3950322, 3950400, 3950401, 3950402, 3950420, 3950421, 3950422 Labconco’s Mascot,...
  • Page 2 For more information, please contact us: ExpotechUSA 10700 Rockley Road Houston, Texas 77099 281-496-0900 [voice] 281-496-0400 [fax] E-mail: sales@expotechusa.com Website: www.ExpotechUSA.com...

  • Page 3: Warranty

    Labconco XPert Filtered Balance System/Station Manual Warranty Labconco provides a warranty on all parts and factory workmanship. The warranty includes areas of defective material and workmanship, provided such defect results from normal and proper use of the equipment. The warranty for all Labconco products will expire one year from date of installation or two years from date of shipment from Labconco, whichever is sooner, except the following: Purifier®...

  • Page 4: Table Of Contents

    CHAPTER 1: INTRODUCTION About This Manual Typographical Conventions CHAPTER 2: PREREQUISITES Support, Vibration & Movement Requirements Temperature Variation Requirements Humidity and Static Electricity Requirements Background on Electrostatics or Static Electricity Location and Air Current Requirements Exhaust and Blower Requirements Electrical Requirements Space Requirements CHAPTER 3: GETTING STARTED Unpacking Your Enclosure...
  • Page 5 Filters with Volatile Chemicals Chemical Carcinogen Use with Odor Control Carbon Filters Prohibited Acid Use CHAPTER 6 MAINTAINING YOUR FILTERED ENCLOSURE 43 Routine Maintenance Schedule Decontamination Determination of when to Replace HEPA Filters How to Install a New HEPA Filter with Bag-In/Bag-Out Procedure for XPert Filtered Balance Systems and Stations HEPA Filter Leak Test Setting the Inflow Face Velocity with the Speed Control...
  • Page 6 Congratulations on your purchase of a Labconco XPert™ Filtered Balance System or XPert™ Filtered Balance Station. Your enclosure provides personnel protection through superior containment while conserving energy at OSHA approved velocities as low as 60 feet per minute. It is the result of Labconco’s more than 50 years experience in manufacturing fume hoods and more than 30 years experience in manufacturing filtered enclosures.

  • Page 7: Chapter 1: Introduction

    Chapter 1: Introduction filtered enclosures include a true bag-in/bag-out HEPA filter to properly protect personnel during filter changing operations. See chart below and contact Labconco for additional ordering information. Application Weighing Hazardous & Nuisance Powders & Particulates Weighing Hazardous and Nuisance Powders, Particulates &...

  • Page 8: About This Manual

    Chapter 1: Introduction About This Manual This manual is designed to help you learn how to install, use, and maintain your filtered enclosure. Instructions for installing optional equipment or accessory carbon filters on your filtered enclosure are also included. Chapter 1: Introduction provides a brief overview of the filtered enclosure, explains the organization of the manual, and defines the typographical conventions used in the manual.

  • Page 9: Typographical Conventions

    Chapter 1: Introduction Appendix C: Specifications contains the electrical requirements for filtered enclosures. Wiring diagrams are also included. Appendix D: Quick Chart provides an airflow table and test data for the filtered enclosures. Appendix E: References lists the various resources available that address laboratory ventilation and biosafety.
  • Page 10 Before you install the filtered enclosure, you need to prepare your site for installation. You must be certain that the area is level and of solid construction. In addition, a dedicated source of electrical power should be located near the installation site to power the filtered enclosure, balance and other apparatus.

  • Page 11: Chapter 2: Prerequisites

    Chapter 2: Prerequisites Support, Vibration and Movement Requirements At a minimum, the supporting structure usually consists of a base cabinet and chemical-resistant work surface. The ability for analytical balances to accommodate vibration varies with type and brand. More advanced balances have improved tolerance, however in the preparation of a balance enclosure site, please consider the following: Temperature Variation...

  • Page 12: Humidity And Static Electricity Requirements

    Humidity and Static Electricity Requirements Electrostatics can be troublesome in a balance enclosure. It is important to understand and, to the extent possible, control static charges. An electrostatic charged vessel, sample or enclosure can apply forces and lead to errors in weighing. The repulsion or attraction can be detected with micro, semi micro and analytical balances.

  • Page 13: Location And Air Current Requirements

    Chapter 2: Prerequisites The ability of a material to become polarized is a property known as permittivity. On highly insulative materials like acrylic, ions or charged molecules are strongly bound to the surface by polarization forces. The higher the force, the higher is the permittivity value of the material.
  • Page 14 The HEPA-filtered exhaust air can be recirculated into the laboratory or exhausted outside with the addition of the exhaust connection kit and remote blower listed in Chapter 7. The XPert Filtered Balance Station does not include the motorized impeller and must be exhausted to the outside by a remote blower. The XPert Filtered Balance Station remote blower may be switched from the blower switch on the enclosure.

  • Page 15: Electrical Requirements

    Chapter 2: Prerequisites Proper blower selection can be determined from these exhaust requirements and the total system static pressure loss. For outside exhaust, the enclosure must be connected to either a dedicated blower or a house exhaust system. Labconco offers accessory remote blowers listed in Chapter 7. Contact Labconco for blower sizing assistance.

  • Page 16: Getting Started

    Now that the site for your filtered enclosure is properly prepared, you are ready to unpack, inspect, install, and validate your system. Read this chapter to learn how to: Unpack and move the enclosure. Set up the enclosure with the proper supporting structure and work surface.

  • Page 17: Chapter 3: Getting Started

    Chapter 3: Getting Started Unpacking the Enclosure Carefully remove the shrink-wrap or carton on the enclosure and The United States inspect it for damage that may have occurred in transit. If Interstate Commerce Commission rules damaged, notify the delivery carrier immediately and retain the require that claims be entire shipment intact for inspection by the carrier.
  • Page 18 0.36" of the front of the work surface. Mounting holes are provided in the Labconco accessory work surfaces to secure the enclosure. Work Surface Specifications The work surface should be smooth, rigid, and durable, such as a chemical-resistant epoxy resin. The surface should be non-porous and resistant to the powders, solvents and chemicals used in conjunction with the XPert Filtered Enclosure.
  • Page 19 Chapter 3: Getting Started Figure 3-1 Filtered Enclosure Installation...

  • Page 20: Connecting To The Exhaust System (Optional)

    Connecting to the XPert Exhaust System (Optional Station on XPert Filtered Balance System) WARNING: The weight of the exhaust ductwork system must be supported independently of the enclosure superstructure or damage may occur. The exhaust system should be installed by a qualified HVAC contractor.
  • Page 21 Chapter 3: Getting Started Figure 3-2 XPert Filtered Balance Station only Model Series 3940200, 3940300, and 3940400...
  • Page 22 Chapter 3: Getting Started Figure 3-3 Exhaust Duct Connection Kit shown installed on XPert Filtered Balance System (Optional) Kit #3924400 (2'), 3924401 (3'), and 3924402 (4')

  • Page 23: Installation Of Hepa Filters And Accessory Odor Control Carbon Filters

    Chapter 3: Getting Started Installation of HEPA Filters and Accessory Odor Control Carbon Filters HEPA Filters HEPA HEPA filters are shipped installed with the gasket on the downstream side. The HEPA filters are leak checked at Labconco. A second leak check is recommended before using the enclosure and at least annually thereafter.

  • Page 24: Connect The Electrical Supply Source To Filtered Enclosure

    Filter Type HEPA HEPA 2' 3707900 3' 3707901 4' 3707902 Organic Vapor Activated Carbon Carbon 2' 3937200 3' 3937300 4' 3937400 Formaldehyde (Formalin) Carbon 2' 3937201 3' 3937301 4' 3937401 Ammonia and Amines Carbon 2' 3937202 3' 3937302 4' 3937402 Important: Carbon filters do not provide any particulate protection, but provide odor control.
  • Page 25 Chapter 3: Getting Started The maximum circuit load for the electrical relay is 6 amps. Only the remote blower wiring is connected inside the electrical junction box. The lights and airflow monitor are powered from a standard duplex electrical receptacle located nearby for connecting the power cord.

  • Page 26: Set The Face Velocity With Speed Control Adjustment

    230V Models The same procedure applies for the 230V except it is shipped without a plug. Install the appropriate plug for your electrical specifications per local codes. Set the Face Velocity with the Speed Control Adjustment For XPert Filtered Balance Systems, adjustment of the speed control gives the correct face velocity and is located behind the front panel.

  • Page 27: Sealing The Filtered Enclosure To The Work Surface

    Chapter 3: Getting Started individual ratings). For “field use” ASHRAE testing contact Labconco for a certified on-site contractor. For particulate powder validation, Labconco had containment testing performed to validate the enclosures for sodium naproxen powders. The XPert HEPA filtered enclosures demonstrated excellent containment when used by an operator using excellent technique and good containment when used by an operator using marginal technique.
  • Page 28 High Performance Features: The patented* XPert Filtered Balance System and XPert Filtered Balance Station are designed to meet the needs of the laboratory scientist, and provide superior containment while conserving energy at OSHA approved “low flow” velocities as low as 60 feet per minute. The filtered enclosures have been tested to effectively contain toxic and noxious materials when properly installed and operated.
  • Page 29 Chapter 4: High Performance Features and Safety These concentrations of materials are predominantly removed on the “first pass” of airflow through the chamber resulting in high performance containment. The plenum and the HEPA filter are jacketed by negative pressure. Should a leak occur in the filter gasket or the plenum, the contaminated air is recaptured and refiltered.

  • Page 30: Components

    Not Shown 7, 9, 10, 11, 12, 13, 20, 21, 22, 23, 24, 25, 28 (See Figure 4-2) Chapter 4: High Performance Features and Safety Figure 4-1...
  • Page 31 Chapter 4: High Performance Features and Safety Figure 4-2 HEPA Filtered Enclosure Airflow Diagram...
  • Page 32 Chapter 4: High Performance Features and Safety 1. Aerodynamic Clean-Sweep™ Air Foil has a unique shape that allows air to sweep the work surface for maximum containment. The Clean-Sweep™ openings create a constant protective barrier from contaminants. Should the operator inadvertently block the airflow entering the air foil, air continues to pass under the air foil and through the Clean-Sweep openings.
  • Page 33 Chapter 4: High Performance Features and Safety 3. Upper Dilution Air Supply provides bypass air from 4. Zoned Rear Perforated Baffle directs horizontal laminar 5. Side-Entry Air Foils allow turbulence-free air to enter the 6. Ergonomic Slope of 10 degrees provides maximum 7.
  • Page 34 Chapter 4: High Performance Features and Safety Monitor also displays a face velocity value, provides an RS232 output, a night setback mode and several auxiliary relay ports. Both airflow monitors are available options on all XPert models. See Figure 4-1 and 4-2. 11.
  • Page 35 Chapter 4: High Performance Features and Safety 20. HEPA (High Efficiency Particulate Air) Filter is rated to 21. Lamp Ballast (Not Shown) for the fluorescent lamp is 22. Accessory Work Surface (not shown) is dished and 23. XPert Filtered Balance Station Exhaust Collar (Not 24.

  • Page 36: Safety Precautions

    Safety Precautions 1. Although the enclosure has been engineered to maintain optimum operator safety, caution should always be used while working. Prior to using the enclosure, check to make sure that the exhaust blower is operating and that air is entering the enclosure at its specified face velocity.
  • Page 37 Chapter 4: High Performance Features and Safety 12. The sash must remain in the down position while using the 13. Proper performance of the enclosure depends largely upon 14. The enclosure should be recertified whenever it is serviced 15. The HEPA filter provides personnel and environmental 16.
  • Page 38 Chapter 4: High Performance Features and Safety 20. Ensure that the filtered enclosure is connected to an electrical service in accordance with local and national electrical codes. Failure to do so may create a fire or electrical hazard. Do not remove or service any electrical components without first disconnecting the filtered enclosure from electrical service.
  • Page 39 Chapter 4: High Performance Features and Safety 29. Use the smallest possible quantity of chemical(s) within the 30. For weighing procedures, adjust face velocity between 60 31. Leave the blower on for at least one minute after work in 32. If a chemical, powder or particulates are spilled on the 33.

  • Page 40: Chapter 5: Appropriate Applications For Your Filtered Enclosure

    Now that the installation of your filtered enclosure is completed, you are ready to use your filtered enclosure. Read this chapter to learn about: 1. Routine Daily Work Procedures. 2. Suitable Applications. 3. Appropriate HEPA Filter Applications, Suitability and Guidelines. 4.
  • Page 41 Chapter 5: Using Your Filtered Enclosure and Appropriate Application Start-up Loading Materials and Equipment Work Techniques Final Purging Unloading Materials and Equipment Arrange for minimal disruptions, such as room traffic or entry into the room while the enclosure is in use. Turn on exhaust system and accessory light.

  • Page 42: Suitable Applications

    Chapter 5: Using Your Filtered Enclosure and Appropriate Application Shutdown Turn off the exhaust system and light. Suitable Applications NIOSH (National Institute for Occupational Safety and Health, USA) has established guidelines for chemical cartridge and HEPA filtered respirators. Suitable applications for the filtered enclosures are based on these guidelines.

  • Page 43: Odor Control Carbon Filter Applications

    Chapter 5: Using Your Filtered Enclosure and Appropriate Application The HEPA filter will gradually accumulate airborne particulate matter from the room and from work performed in the enclosure. The rate of accumulation will depend upon the cleanliness of the room air, the amount of time the enclosure is operating, and the nature of work being done.

  • Page 44: Definition Of Terms

    Chapter 5: Using Your Filtered Enclosure and Appropriate Application PRODUCT. IT IS THE USER’S RESPONSIBILITY TO BECOME AWARE OF LOCAL REGULATIONS GOVERNING THE SAFE USE AND DISPOSAL OF CHEMICALS, CARBON AND HEPA FILTERS. KNOWLEDGE OF ESTABLISHED SAFE EXPOSURE LEVELS IS IMPERATIVE TO THE PROPER USE OF FILTERED ENCLOSURES.

  • Page 45: Appropriate Chemicals For Odor Control Carbon Filters

    Chapter 5: Using Your Filtered Enclosure and Appropriate Application immediate irreversible health effects. IDLH concentrations should not be approached in the enclosure. Appropriate Chemicals for Odor Control Carbon Filters Below is a general set of rules to determine appropriateness of chemical usage.

  • Page 46: Chemical Carcinogen Use With Odor Control Carbon Filters

    Chapter 5: Using Your Filtered Enclosure and Appropriate Application user continues to operate the enclosure with any of the following conditions present a potentially hazardous condition will exist: 1. The inlet concentration of vapors is greater than the TWA. 2. The carbon filter becomes saturated. 3.
  • Page 47 Chapter 5: Using Your Filtered Enclosure and Appropriate Application separate ventilated enclosure or vented fume hood should be used with a remote blower ducted to the outside. No exceptions are permitted, as the impeller life span will be limited with acid use. NOTE: Low level acids can be used with the XPert Filtered Balance Station, which uses a remote blower.
  • Page 48 Monitoring airflow and changing the filters is the primary maintenance required. Decontamination may be required and is reviewed in Chapter 6. Certification and recertification is reviewed in Chapter 6. Review this chapter on maintenance for the following: 1. Routine Maintenance. 2.

  • Page 49: Chapter 6 Maintaining Your Filtered Enclosure

    Chapter 6: Maintaining Your Filtered Enclosure Routine Maintenance Schedule Weekly Monthly (or more often as required) HEPA CARBON CARBON Wipe down the interior surfaces of the enclosure with a disinfectant or cleaner, depending upon the usage of the unit and allow to dry. Using a damp cloth, clean the exterior surfaces of the enclosure, particularly the front and top to remove any accumulated dust.

  • Page 50: Decontamination

    Annually Replace the fluorescent lamps. Have the enclosure validated by a qualified certification technician. See Certification and Recertification in Chapter All monthly activities. Decontamination When used in conjunction with biohazards, the XPert Filtered Balance System and XPert Filtered Balance Station should be decontaminated with formaldehyde gas before: maintenance work in contaminated areas HEPA filter changes...

  • Page 51: Procedure For Xpert Filtered Balance Systems And Stations

    Chapter 6: Maintaining Your Filtered Enclosure How to Install a New HEPA Filter with the Bag-In/Bag-Out Procedure for XPert Filtered Balance Systems and Stations The XPert enclosures include a true bag-in/bag-out filter disposal system for safely removing the HEPA filter and protect the worker from toxic powders and particulates.

  • Page 52: Hepa Filter Leak Test

    9. Carefully fold and roll the new bag in four-inch pleats and push the bag into the access port. Reinstall the retaining strap and bungee cords. Turn the enclosure ON to draw a vacuum on the bag. Reinstall the front panel. Figure 6-1 Bag-In-Bag-Out HEPA Filter Changing Procedure Diagram &...
  • Page 53 Chapter 6: Maintaining Your Filtered Enclosure Apparatus 1. An aerosol photometer ATI model 2D, 2E, 2G or equivalent. Air Techniques Hamilton Associates inc. 11403 Cron Ridge Dr. Owings Mills, MD 21117 2. One aerosol generator of the Laskin nozzle(s) type. An aerosol of mineral oil or suitable liquid shall be created by flowing air through it.

  • Page 54: Setting The Inflow Face Velocity With The Speed Control Adjustment

    8. If necessary, adjust the speed control of the enclosure to maintain the following airflows at 90 fpm; 2' (130cfm), 3' (200 cfm, 4' (265 cfm.) 9. Position the aerosol generator discharge in the intake of the baffle inside the enclosure. 10.

  • Page 55: Calibrate And Operate The Airflow Monitors

    Chapter 6: Maintaining Your Filtered Enclosure Calibrate and Operate the Airflow Monitors Guardian Airflow Monitor (LED Monitor) OPTION Refer to Figure 6-2 for operation and calibration. Labconco Airflow Monitor / Airflow Switch Operation The Guardian Airflow Monitor (LED) consists of a circuit board and an airflow switch.
  • Page 56 External Alarm allows an external signal to sound the alarm, such as a sash open switch, or a “fail” signal from the building airflow system. Alarm Disable allows an external signal to prevent a “low” airflow alarm from occurring. Night Setback allows an external signal to prevent a “low” airflow alarm from occurring (not any different from Alarm Disable above other than the terminology.) Contact Labconco for ordering information on this special PCB.

  • Page 57: Guardian Digital 1000 Airflow Monitor

    Chapter 6: Maintaining Your Filtered Enclosure Figure 6-2 Guardian Airflow Monitor (LED) with Airflow Switch Guardian Digital 1000 Airflow Option Monitor Refer to Figure 6-3 for operation and calibration. Refer to the separate Labconco 1000 Alarm Manual for detailed information.

  • Page 58: Operation

    Chapter 6: Maintaining Your Filtered Enclosure Operation The Guardian Digital Airflow Monitor consists of the airflow sensor, the Alarm Unit, and the 15 VDC power supply. For 115V operation the alarm unit is powered by plugging the power supply into the factory-prepared digital airflow monitor socket. For 230V operation, the Alarm Unit is powered by plugging the power supply into a building outlet.
  • Page 59 Chapter 6: Maintaining Your Filtered Enclosure To start the calibration, use the Labconco 1000 Manual and enter the “CALIBRATIION” mode on the display. Follow the instructions on the display and alter the low and high exhaust volumes with the speed control. The following suggested inflow face velocity speeds are recommended to successfully calibrate.
  • Page 60 Chapter 6: Maintaining Your Filtered Enclosure Figure 6-3 Guardian Digital 1000 Airflow Monitor...

  • Page 61: Determination Of When To Replace Odor Control Carbon Filters And How To Replace

    Chapter 6: Maintaining Your Filtered Enclosure Determination of When to Replace Odor Control Carbon Filters and How to Replace The carbon filters MUST be replaced when any one of the following two conditions are met: 1. The filtered enclosure outlet (exhaust) concentration approaches the inlet concentration, indicating filter saturation.
  • Page 62 syringe represents a 100-ml sample and corresponds to the number of strokes necessary to give the indicated color changes. Due to the wide variety of organics and varying TWA’s, it is recommended that specific detector tubes be purchased directly from Sensidyne, Draeger or your laboratory supply dealer.

  • Page 63: Calculating Odor Control Carbon Filter Life

    Chapter 6: Maintaining Your Filtered Enclosure 3. Re-install the new carbon filter with the gasket down. 4. The weight of the carbon filter with the gasket down will Calculating Odor Control Carbon Filter Life Labconco developed a modeling program to estimate the filter life for typical carbon filters.

  • Page 64: Initial Certification

    Formaldehyde only For formaldehyde, use 10% of the impregnated carbon weight. Formalin is 37% formaldehyde by weight. The density of formalin is 1.08 g/ml. Pounds of Model Formasorb Size Filter Size Carbon 18 x 18 x 1 30 x 18 x 1 12.0 42 x 18 x 1 16.8...

  • Page 65: Fluorescent Light Replacement

    Chapter 6: Maintaining Your Filtered Enclosure Measure of Line Voltage and Current Smoke Test to determine proper airflow patterns Lighting Intensity Test (when appropriate) Noise Level Test (when appropriate) Vibration Test (when appropriate) Fluorescent Light Replacement 1. Disconnect the power. 2.
  • Page 66 Chapter 6: Maintaining Your Filtered Enclosure 6. Reassemble the new motorized impeller by reversing the assembly steps. Figure 6-4 Motorized Impeller Replacement...

  • Page 67: Speed Control Replacement

    Chapter 6: Maintaining Your Filtered Enclosure Speed Control Replacement 1. Remove the bracket that the speed control is attached to. See XPERT Figures 6-1, 6-2 and 6-3. FILTERED 2. Remove the two screws holding the speed control using a BALANCE Phillips screwdriver.

  • Page 68: Filtered Enclosure

    There are several ways to accessorize and modify the filtered enclosure for your individual requirements. These include the addition of accessory work surfaces, airflow monitors; exhaust transition kits, remote blowers, exhaust dampers, filters, storage cabinets and utility shelf kit. 1. Work Surfaces An optional dished work surface is available to attach to the filtered enclosure.

  • Page 69: Chapter 7 Accessorizing & Modifying Your Filtered Enclosure

    Chapter 7: Accessorizing and Modifying your Filtered Enclosure 2. Guardian™ 1000 Digital Airflow Monitor or Description Guardian Airflow Monitor 115V or 230V 1 ea. 1 ea. 2 ea. 2 ea. Guardian Digital 1000 Airflow Monitor 115V 230V Add appropriate Front Panel with cutout to mount Digital 1000 Airflow Monitor 1 ea.
  • Page 70 Chapter 7: Accessorizing and Modifying your Filtered Enclosure Order the following: Part Description 3924400 2' Exhaust Transition Kit 3924401 3' Exhaust Transition Kit 3924402 4' Exhaust Transition Kit 4. Remote Blowers Has a 1/4 hp direct drive motor and corrosion-resistant epoxy- coated steel housing and wheel with blower inlet of 6.00"...
  • Page 71 Chapter 7: Accessorizing and Modifying your Filtered Enclosure 5. Exhaust Dampers 6. Accessory Filters HEPA Filter HEPA Filter is 99.99% efficient on particles 0.3 micron. HEPA Filter Bag-In/Bag-Out Bag The bag helps contain hazardous particulate matter during filter changing operations. Odor Control Carbon Filter Provides granular activated carbon or impregnated carbon used for Odor Control applications on integral motorized impeller...
  • Page 72 7. Storage Cabinets Size/Description Dual Doors 48" 9902000 36" 9902100 30" 9902200 24" 18" 12" 48" w/Self-Closing Doors 9903000 36" w/Self-Closing Doors 9903100 30" w/Self-Closing Doors 9903200 24" w/Self-Closing Doors 24" ADA 24" ADA w/Self-Closing Doors 18" ADA 12" ADA Size/Description Dual Doors 48"...
  • Page 73 Chapter 7: Accessorizing and Modifying your Filtered Enclosure...
  • Page 74 Refer to the following table if your filtered enclosure fails to operate properly. If the suggested corrective actions do not solve your problem, contact Labconco for additional assistance. PROBLEM CAUSE Contaminants outside Improper user of enclosure. techniques for the enclosure. Restriction of the baffle air slots or blockage of the...

  • Page 75: Chapter 8: Troubleshooting

    Chapter 8: Troubleshooting PROBLEM Blower won’t operate. Low face velocity or poor containment of contaminants. Blower and lights won’t operate. Lights do not work. Lamp not installed Airflow monitor malfunction. CAUSE CORRECTIVE ACTION Unit not plugged Plug the enclosure into appropriate into outlet.
  • Page 76 PROBLEM CAUSE Airflow Monitor Wrong alarm set Malfunction point. (Continued) Constant audible alarm. Continuous alarm. Monitor alarms; air way to airflow monitor sensor is blocked by insects, dust or debris. Audible disable will not stay operational. Chapter 8: Troubleshooting CORRECTIVE ACTION Airflow monitor was not properly adjusted.
  • Page 77 Chapter 8: Troubleshooting Service Operating Record Log Customer Name Date Installed Unit Location Date Model Number Serial Number Comments...

  • Page 78: And Replacement Parts

    The components that are available for your filtered enclosure are listed. The parts shown are the most commonly requested. If other parts are required, please contact Product Service.

  • Page 79: Part Number Description

    Appendix A: Replacement Parts Item Qty. 1.9 Ft Part Number Description 3911000 Glass, Side 3911900 Glass, Sash 2' 3911901 Glass, Sash 3' 3911902 Glass, Sash 4' 3911800 Sash Assembly, 2' 3911801 Sash Assembly, 3' 3911802 Sash Assembly, 4' 3905600 Lower Air Foil, 2' 3905601 Lower Air Foil, 3' 3905602...
  • Page 80 Item Qty. Part Number 3918500 3918600 3811500 1885405 3926800 3910700 1891808 Multiple 1905617 1307000 1 or 2 3904800 3904801 3904802 3904803 3904804 3904805 4472400 3916500 3916501 3903300 3903301 1601800 1306900 1306900 1306600 1306800 1306800 1306800 1235400 1235500 1294000 1325500 1325501 3910800 3910801 3910802...
  • Page 81 Appendix A: Replacement Parts Item Qty. 1 - (115V) 2 – 230V 1 (115V) 1 (230V) 2, 1" Long Part Number Description 1893708 Screw, #10 x .50 PH Phil. Thd. Forming 1881196 Capscrew, 3/8 –16 x 6.0 Lg. Hx. Hd. 1924403 Sealing Washer 3/8 3707900...
  • Page 82 Use for XPert System and XPert Station Appendix A: Replacement Parts Placed on ledge above HEPA filter...
  • Page 83 Appendix A: Replacement Parts Use for XPert System, XPert Station, Digital Monitor and Bag 41, Location only Not shown 39 Needs to be sealed on Location only Not shown XPert Station Ships uninstalled as shown...

  • Page 84: Appendix B: Dimensions And Exhaust Options

    See the following dimensions and exhaust options for all the XPert Filtered Balance Systems and XPert Filtered Balance Stations.
  • Page 85 Appendix B: Dimensions and Exhaust Options Figure B-1 XPert Filtered Balance System...
  • Page 86 Appendix B: Dimensions and Exhaust Options Figure B-2 XPert Filtered Balance Station...
  • Page 87 Appendix B: Dimensions and Exhaust Options Figure B-3 Exhaust Duct connection Kit (Optional Installation on Integral Blower Models such as the XPert Filtered Balance System)

  • Page 88: Environmental Conditions

    This Appendix contains technical information about all the XPert Filtered Enclosures including electrical specifications, environmental operating conditions and wiring diagrams. 3 Amps, 115V or 2 Amps, 230V, 50/60 Hz, XPert Filtered Balance System and XPert Filtered Balance Station. Environmental Conditions Indoor use only.
  • Page 89 Appendix C: Filtered Enclosure Specifications Used in an environment of Pollution degrees 2 (i.e., where normally only non-conductive atmospheres are present). Occasionally, however, a temporary conductivity caused by condensation must be expected, in accordance with IEC 664.
  • Page 90 Appendix C: Filtered Enclosure Specifications...
  • Page 91 Appendix C: Filtered Enclosure Specifications...
  • Page 92 Appendix C: Filtered Enclosure Specifications...
  • Page 93 Appendix C: Filtered Enclosure Specifications...
  • Page 94 Model Size Sash Height from Work Surface (inches) Total Open Area with Bypass (sq. ft.) Exhaust Airflow Volume at 90fpm (CFM) Alarm Airflow Volume at 60 fpm (CFM) Initial Mag. Gauge Pressure Reading (inches H Number of Laskin Nozzles needed at 10 psig Exhaust HEPA Filter w/ Gasket Dimensions (inches) *Motor Horsepower (HP) *Capacitor (MFD, Volts)
  • Page 95 Many excellent reference texts and booklets are currently available. The following is a brief listing: Laboratory Ventilation Standards Federal Register 29 CFR Part 1910 Non-mandatory recommendations from “Prudent Practices.” Fume hoods should have a continuous monitoring device Face velocities should be between 60-100 linear feet per minute (lfpm) Average 2.5 linear feet of hood space per person...
  • Page 96 Occupational Health and Safety U.S. Department of Labor 200 Constitution Avenue N.W. Washington, DC 20210 (202) 523-1452 www.osha.gov Industrial Ventilation-ACGIH Fume hood face velocities between 60-100 lfpm Maximum of 125 lfpm for radioisotope hoods Duct velocities of 1000-2000 fpm for vapors, gasses and smoke Stack discharge height 1.3-2.0 x building height Well designed fume hood containment loss, <0.10 ppm...
  • Page 97 Appendix E: References American Industrial Hygiene Association 2700 Prosperity Avenue, Suite 250 Fairfax, VA 22031 (703) 849-8888 www.aiha.org SEFA 1-2002 Fume hood face velocities based on toxicity levels of chemicals Class A – 125 to 150 fpm Class B – 80 to100 fpm Class C –...
  • Page 98 Appendix E: References General References American Conference of Governmental Industrial Hygienists. Industrial Ventilation, A Manual of Recommended Practice, Cincinnati, OH ASHRAE Standard Committee. ASHRAE Standard Atlanta: ASHRAE Publications Sales Department, 1995 British Standards Institution, Laboratory Fume Cupboards. Parts 1, 2 and 3, London: 1990 Department of Labor, Occupational Safety and Health Administration, 29 CFR Part 1910, Occupational Exposures to Hazardous Chemicals in Laboratories, Final Rule.
  • Page 99 Appendix E: References Kruse, R.H., WH. Puckett and J. H. Richardson. 1991. Biological Safety Cabinetry, Clin. Microbiol. Rev. 4:207- 241. Miller, C.D., D.H.M. Groschel, J. H. Richardson, D. Vesley, J. R. Songer, R. D. Housewright and W. E. Barkley. 1986. Laboratory Safety, Principles and Practices, American Society for Microbiology, Washington, D.D.
  • Page 101 For more information, please contact us: ExpotechUSA 10700 Rockley Road Houston, Texas 77099 281-496-0900 [voice] 281-496-0400 [fax] E-mail: sales@expotechusa.com Website: www.ExpotechUSA.com...
