No Suppress PTT Out on PTT In – This option allows the tracker to be used in
burst-after-voice mode without breaking any lines between the microphone and
radio. PTT is not asserted by the tracker until the microphone PTT is released.
External Squelch – Enables the use of an external squelch or COR input.
Copy from Profile n – This button copies the contents of one profile to the other.

11.10. Tuning and Diagnostics

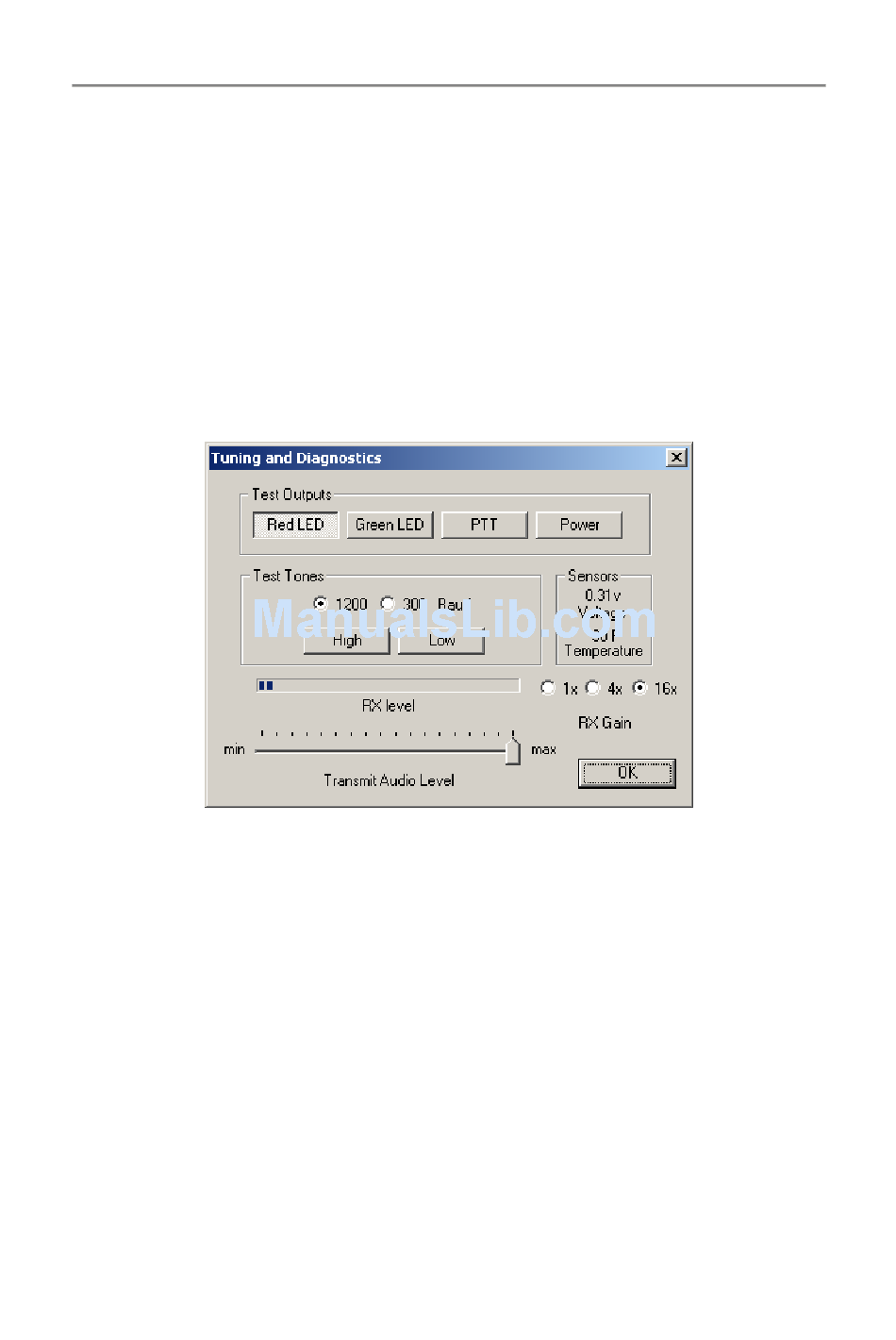

Access the tuning and diagnostics screen with the 'Tuning/Diagnostics' button.
From this screen, you can exercise the tracker hardware and set the audio level.
The top row of buttons controls the red and green elements of the ACT LED, the
PTT output, and the power relay, and the second row allows AFSK tones to be
sent, either with or without PTT on. When both tone buttons are on, the tracker
sends alternating mark/space tones at the specified baud rate. The 'Sensors' pane
shows the raw readings from the on-board sensors. The temperature reading is
shown without the calibration constant applied.
Use the RX Gain setting and your radio's volume adjustment to keep the
received audio level (indicated by the blue bar) between 50% and 100% of full
scale when the radio is receiving a packet.
