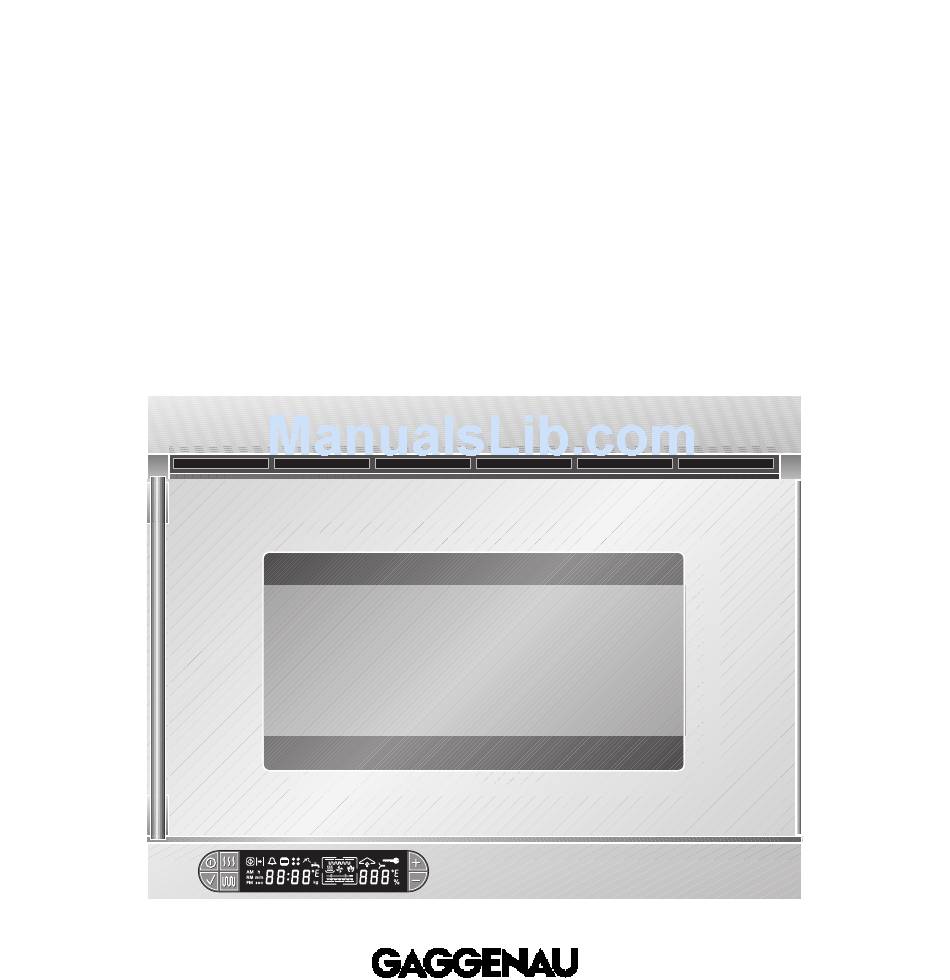

- Page 1 Operating and assembly instructions EM 220/221 Built-in microwave oven with grill...
-
Page 3: Table Of Contents
EM 220/221 Important Notes Page 3-5 Operating for the first time Page 3 About use Page 3 General safety information Page 4 Safety information concerning microwave operation Page 5 Features and operating principles Page 6-9 Features Page 6 Cooking methods... - Page 4 Congratulations on buying your new microwave oven with grill. Before switching your appliance on for the first time, we would like you to familiarize yourself with your new appliance. In this manual you will find important notes on safety and operation. These will serve to ensure your personal safety and the lasting value of your appliance.
-
Page 5: Important Notes
Gaggenau after-sales service. regulations. Observe the assembly instructions! The serial number of the appliance can be found on the quality control slip which is included with these instructions. -
Page 6: General Safety Information
General safety information Do not operate the appliance if it is damaged. Caution: Children must only be permitted to operate the appliance without supervision if Caution: the appliance heats up during operation. comprehensive instructions have been given with Keep children away. Only operate the appliance regard to safe operation and the dangers of under supervision. -
Page 7: Safety Information Concerning Microwave Operation
Safety information concerning microwave operation Foodstuffs that are cooked in containers made from Food wrapped in plastic foil may explode, and the plastic, paper or other combustible materials must foil melt when heated in a microwave. be carefully monitored during the heating process. Never cook eggs in their shells or heat up cooked The appliance door must not be opened if smoke eggs, as they may crack or explode. -
Page 8: Features And Operating Principles
2. Features and operating principles Features Grill heating element 2 Oven lighting Ventilation slots 4 Display with control keys 5 Glass tray for defrosting and grilling 6 Oven door 7 Cancel key 8 Microwave key 9 Plus key 10 Start key, Confirmation key Grill key 12 Time display... -
Page 9: Cooking Methods
Cooking methods Microwave operation The appliance features a cooling fan which Microwaves are converted to heat when applied to switches on while the appliance is operating. When foodstuffs. The micro-wave oven is ideal for quick the appliance is switched off, the cooling fan defrosting, warming, melting and cooking. -
Page 10: What You Should Know About Utensils
What you should know about utensils Use utensils made of temperature-resistant glass, porcelain, ceramics or earthenware. Heat-resistant plastic designed for micro-waves can also be used. These materials allow microwaves to penetrate. Suitable: glass, porcelain, ceramics and earthenware or heat-resistant plastic. Metal does not allow microwaves to penetrate. -
Page 11: Cookware Overview Table
Cookware overview table Type of utensil Microwave Grill Combined operation Heat-resistant glass and porcelain (without metal parts, e.g. Pyrex or Jenaer Glas) Non-heat-resistant glass or porcelein (e.g. serving dishes) Glass ceramics and vitro-ceramics made of heat and frost resistant materials (e.g. Arcoflam) Ceramics, earthenware Plastic , heat resistant... -
Page 12: Operation
3. Operation Microwave oven Setting procedure • Press the microwave key. The microwave power setting of 850 W is shown on the display. • Select the desired power setting between 100 - 850 W using the +/– keys. The value is shown on the display. -
Page 13: Grilling
Grilling Setting procedure • Press the grill key. The temperature of 190 °C is shown on the display. • Select the desired temperature between 100 - 220 °C using the +/– keys. The value is shown on the display. Confirm the chosen value with the confirmation key. -
Page 14: Combined Operation
Combined operation Setting procedure • Press the microwave key. The microwave power setting of 850 W is shown on the display. • Select the desired power setting between 100 - 850 W using the +/– keys. The value is shown on the display. -
Page 15: Further Functions
4. Further functions 3-stage programming • Press the microwave key, when you have entered all three values, in order to access the second When simmering or defrosting foodstuffs in the program stage. Now you can select the desired microwave, it is often the case that you require two setting for the second program stage. - Page 16 An example of 3-stage programming • Now you can select the desired microwave power setting: press the – key, until 425 is shown on the This example will lead you step by step through display. Press the microwave key. storing a program with the following program •...
-
Page 17: Options Menu, Setting The Clock
Options menu, setting the clock With the aid of the options menu, you can program Setting procedure the following settings of your microwave oven: • Keep the confirmation key pressed and additionally press the grill key, until a signal is •... -
Page 18: Child Lock
Child lock The child lock prevents inadvertent activation of the oven. Switching on • Press the confirmation key and keep it pressed. Simultaneously press the cancel key and keep them both pressed. • A signal is sounded. The child lock symbol on the display flashes. -
Page 19: Practical Tips
5. Practical tips Practical tips on microwave use Use salt and other condiments sparingly, as microwave cooking generally retains most of the When defrosting, always place the food in an open food’s characteristic taste. container (without lid) or in the glass tray. Having removed the cooked food from the When defrosting meat, you will obtain the best microwave, you should allow the food to stand for a... -
Page 20: Cleaning And Care
6. Cleaning and care Looking after your appliance Note: to avoid jeopardising the electrical safety of the Appliance exterior appliance, do not use high-pressure or steam jet All you need to do is wipe the outside with a damp cleaning devices – risk of short circuits! cloth and then dry it with a soft cloth. -
Page 21: Troubleshooting
7. Troubleshooting Should your appliance malfunction for any reason, yourself can eliminate. The table below contains this is often due to a minor problem which you some advice to help you. Fault Possible cause Remedy The appliance cannot be No electricity. Check the domestic fuse. -
Page 22: Maintenance
If the power supply is functioning correctly, but your appliance still does not work, please contact your dealer or your local Gaggenau customer service agency. Specify the appliance type. The serial number and type of the appliance can be found on the quality control slip which is included with these instructions. -
Page 23: Disassembly Of The Front Window
Disassembly of the front window The oven door is actively ventilated. Dust and grease particles may therefore settle after some time. Detach the front window to remove this soiling. Proceed as follows: • Remove the bottom screw from the door handle. •... -
Page 24: Assembly Instructions
9. Assembly instructions Technical data The wiring schematic that is placed on the outer panel of the appliance shows the connection variant Total connected load: 220-240 V AC, 16 A again. Do not use any extension leads! Heating power: The electrical safety of the appliance is guaranteed Grill: 1 800W only if the earthing system belonging to the... -
Page 25: Installation
Installation place electrical junction Proceed as follows: box above the appliance • When unpacking the appliance, check it for transport damage. • Please remove the adhesive tapes that protect the door during transport. • A flexible cable should be used as the mains lead. The cross-section must be selected according to the rated current consumption and the type of connection. - Page 28 GAGGENAU HAUSGERÄTE GMBH CARL-WERY-STR. 34 · D - 81739 MÜNCHEN (0 89) 45 90 - 03 FAX (0 89) 45 90 - 23 47 www.gaggenau.com...
