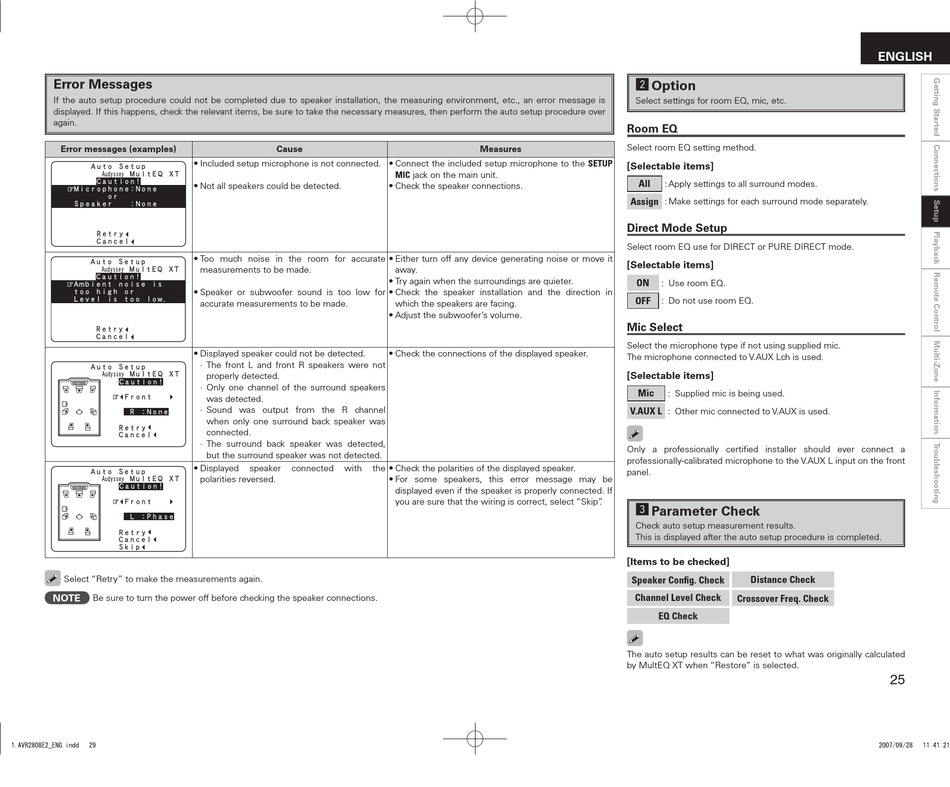

Error Messages

If the auto setup procedure could not be completed due to speaker installation, the measuring environment, etc., an error message is
displayed. If this happens, check the relevant items, be sure to take the necessary measures, then perform the auto setup procedure over
again.
Error messages (examples)
• Included setup microphone is not connected.
Auto Setup
Audyssey MultEQ XT
Caution!
• Not all speakers could be detected.
Microphone:None
or
Speaker :None
Retry
Cancel
• Too much noise in the room for accurate
Auto Setup
measurements to be made.
Audyssey MultEQ XT
Caution!
Ambient noise is
• Speaker or subwoofer sound is too low for
too high or
Level is too low.
accurate measurements to be made.
Retry
Cancel
• Displayed speaker could not be detected.
· The front L and front R speakers were not
Auto Setup
Audyssey MultEQ XT
properly detected.
Caution!
· Only one channel of the surround speakers
Front was detected.
· Sound was output from the R channel
R :None
when only one surround back speaker was
Retry
connected.
Cancel
· The surround back speaker was detected,
but the surround speaker was not detected.
• Displayed
Auto Setup
polarities reversed.
Audyssey MultEQ XT
Caution!
Front
L :Phase
Retry
Cancel
Skip
Select "Retry" to make the measurements again.
NOTE
Be sure to turn the power off before checking the speaker connections.
Cause
• Connect the included setup microphone to the SETUP
MIC jack on the main unit.
• Check the speaker connections.
• Either turn off any device generating noise or move it
away.
• Try again when the surroundings are quieter.
• Check the speaker installation and the direction in
which the speakers are facing.
• Adjust the subwoofer's volume.
• Check the connections of the displayed speaker.
speaker connected with the • Check the polarities of the displayed speaker.
• For some speakers, this error message may be
displayed even if the speaker is properly connected. If
you are sure that the wiring is correct, select "Skip" .
s Option
Select settings for room EQ, mic, etc.
Room EQ
Select room EQ setting method.
Measures
[Selectable items]
All
Assign
Direct Mode Setup
Select room EQ use for DIRECT or PURE DIRECT mode.
[Selectable items]
ON
OFF
Mic Select
Select the microphone type if not using supplied mic.
The microphone connected to V.AUX Lch is used.
[Selectable items]
Mic
V.AUX L
Only a professionally certified installer should ever connect a
professionally-calibrated microphone to the V.AUX L input on the front
panel.
d Parameter Check
Check auto setup measurement results.
This is displayed after the auto setup procedure is completed.
[Items to be checked]
Speaker Config. Check
Channel Level Check
EQ Check
The auto setup results can be reset to what was originally calculated
by MultEQ XT when "Restore" is selected.
: Apply settings to all surround modes.
: Make settings for each surround mode separately.
: Use room EQ.
: Do not use room EQ.
: Supplied mic is being used.
: Other mic connected to V.AUX is used.
Distance Check
Crossover Freq. Check
