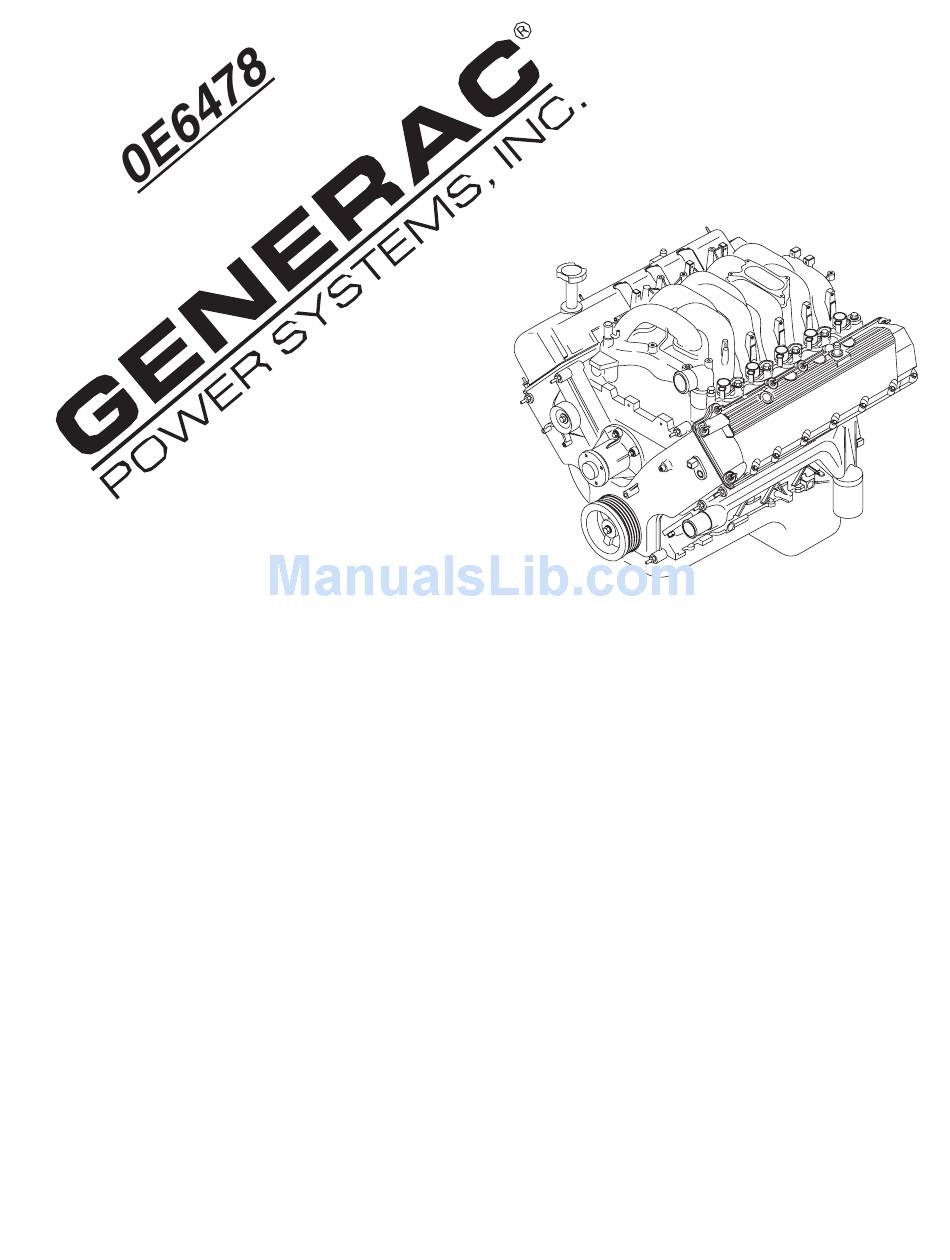

- Page 1 LITER FORD G A S ENGINE PARTS MANUAL P.O. BOX 310 EAGLE WI 53119 PRINTED IN U.S.A. Revision 0: 08/29/03...
-
Page 3: Table Of Contents
QUICK REFERENCE GUIDE ... 2 SERVICE RECOMMENDATIONS ... 3 ENGINE LOWER ... 8 ENGINE UPPER ... 12 ENGINE FRONT ... 14 COOLING SYSTEM ... 16 INTAKE AND IGNITION SYSTEM ... 18 ENGINE COMMON PARTS: LEFT HAND SIDE (DIRECT DRIVE UNITS) ... 20 LEFT HAND SIDE (GEAR BOX UNITS) ... -
Page 4: Quick Reference Guide
6.8L GAS QUICK REFERENCE GUIDE PART NUMBER 0D5419 0D34540114 0D34540115 0D34540203 0D34540123 0D34540126 0D34540213 0D34540232 0D34540233 0D34540235 0D34540238 0D34540249 0D34540186 0D3488 0D3488A 0A1232 0D5418 0A8584 053667 053666 QUICK REFERENCE ENGINE PARTS DESCRIPTION FILTER ASY. - OIL PISTON RING SET STD (2 PISTONS) PISTON RING SET .020"/.50MM O/S CAP - OIL FILLER SLINGER-CRANKSHAFT OIL REAR... -
Page 5: Engine Oil Recommendations
◆ ENGINE OIL RECOMMENDATIONS The unit has been filled with “break in” engine oil at the factory. Use a high-quality detergent oil classified “For Service CC, SD, SE or SF .” Detergent oils keep the engine cleaner and reduce carbon deposits. Use oil hav- ing the following SAE viscosity rating, based on the ambient temperature range anticipated before the next oil change:... - Page 6 6.8L GAS SERVICE RECOMMENDATIONS 35 KW - 200 KW STANDBY GAS ENGINE DRIVEN GENERATOR SETS Following is a recommended maintenance schedule for Generac standby gas engine driven generator sets from 35 kW to 200 kW in size. The established intervals in the schedule are the maximum recommended when the unit is used in an average service application.
- Page 7 GENERAC POWER SYSTEMS, INC. RECOMMENDED SCHEDULED MAINTENANCE PROGRAM SERVICE WORK TO BE PERFORMED BY FACTORY-TRAINED PERSONNEL ONLY. DEALER INFORMATION NAME: ACCOUNT #: ADDRESS: PHONE: TECHNICIAN: SIGNATURE: PURCHASE DATE: APPLICATION: Standby Power GENERATOR & TRANSFER SWITCH INFORMATION GENERATOR MODEL NUMBER: SERIAL NUMBER:...
- Page 8 6.8L GAS SERVICE RECOMMENDATIONS Maintenance Level 1 Tasks Recom- mended to be done monthly/ 10 hrs. 1. Disable the unit from operating per the first page warning. 2. Check the engine oil level. Adjust as necessary. 3. Check the engine coolant level.
- Page 9 Maintenance Level 1 Tasks Recom- mended to be done monthly/ 10 hrs. 13. Initiate an automatic start and transfer of the unit to site load and exercise it for at least 1 hour looking for leaks, loose connections or components, and abnormal operating conditions.
-
Page 10: Engine Lower
6.8L GAS ENGINE LOWER... -
Page 11: Piston Ring Set Std (2 Pistons)
ITEM PART NUMBER 6010 0D34540100 6026AA 0D34540101 6026A 0D34540102 6026A 0D34540103 6026BA 0D34540104 6397D 0D34540105 8555 0D34540106 N806040 0D34540107 6A008 0D34540108 6108 0D34540109 6108 0D34540110 6108 0D34540111 6135 0D34540112 6140 0D34540113 6148 0D34540114 6148 0D34540115 6200 0D34540116 6207 0D34540117 6211 0D34540118 0D34540119 6214... - Page 12 6.8L GAS ENGINE LOWER...
- Page 13 ITEM PART NUMBER 6622 0D34540147 6626 0D34540148 6675 0D34540150 6710 0D34540151 6731 0D5419 6840 0D34540154 6884 0D34540155 6890 0D34540156 87836 0D34540187 N620482 0D34540158 N806155 0D34540305 N806156 0D34540159 N806180 0D34540160 N806183 0D34540161 N605904 0D34540162 W701605 0D34540163 W704787 0D34540164 6.8L GAS ENGINE LOWER DESCRIPTION SCREEN &...
-
Page 14: Engine Upper
6.8L GAS ENGINE UPPER... - Page 15 ITEM PART NUMBER 6A008 0D34540108 6026C 0D34540166 6026BA 0D34540104 6026K 0D34540167 6049 0D34540168 6049 0D34540169 6051 0D34540170 6051 0D34540171 6057 0D34540172 6057 0D34540173 6065 0D34540174 6L293 0D34540175 N808777 0D34540176 6C501 0D34540177 6505 0D34540178 6507 0D34540179 6510 0D34540180 6513 0D34540181 6514 0D34540182 6518 0D34540183...
-
Page 16: Engine Front
6.8L GAS ENGINE FRONT... -
Page 17: Chain-Timing
ITEM PART NUMBER 6019 0D34540205 6020 0D34540206 6020 0D34540207 6020 0D34540208 6K255 0D34540209 6M256 0D34540210 6L266-CA 0D34540211 6L266-DA 0D34540212 6268 0D34540213 6M274 0D34540214 6K297 0D34540215 6306 0D34540216 6700 0D34540217 12A227 0D34540218 N605892 0D34540219 N606527 0D34540220 N606543 0D34540221 N806177 0D34540222 N808140 0D34540223 N808142 0D34540224... -
Page 18: Cooling System
6.8L GAS COOLING SYSTEM... - Page 19 ITEM PART NUMBER 8501 0D34540232 8507 0D34540233 N808794 0D34540234 8255 0D34540235 8555 0D34540236 8575 0D34540238 8592 0D34540239 18599 0D34540241 18663 0D34540242 N806178 0D34540243 N811415 0D34540244 6.8L GAS COOLING SYSTEM DESCRIPTION PUMP ASY & SEAL-WATER SEAL-WATER PUMP BOLT & WASHER-WATER PUMP SEAL-THERMOSTAT (O-RING) TUBE-WATER THERMOSTAT ASSY-WATER...
-
Page 20: Intake And Ignition System
6.8L GAS INTAKE & IGNITION SYSTEM... -
Page 21: Coil & Boot Asy-Ignition
ITEM PART NUMBER 9424 0D34540245 9424 0D34540246 9439 0D34540247 18599 0D34540304 N806156 0D34540159 12029 0D34540249 W706175 0D34540252 6.8L GAS INTAKE & IGNITION SYSTEM DESCRIPTION MANIFOLD ASY-INTAKE UPPER MANIFOLD-INTAKE LOWER GASKET-INT MNFLD TO CYL HEAD TUBE - INT MAN HEATER INLET BOLT - M8 X 1.25 X 43MM COIL &... -
Page 22: Engine Common Parts: Left Hand Side (Direct Drive Units)
6.8L GAS ENGINE COMMON PARTS LH (DIRECT DRIVE UNITS) - Page 23 6.8L GAS ENGINE COMMON PARTS LH ITEM PART NUMBER 0D3293A 0D2149 0D2843 0D2844 0D5419 0D7055 0D3488 057795 0A6283 046526 0D1744 0A1232 031678 022241 055476 053666 0D6658 047411 022097 022473 042568 022129 022142 039253 022145 057796 0A5737B 0D3507 022237 022131 0D3784 0D3784A 049814 0D7801...
-
Page 24: Left Hand Side (Gear Box Units)
6.8L GAS ENGINE COMMON PARTS LH (GEAR BOX UNITS) - Page 25 ITEM PART NUMBER 049814 0D3784 0D2843 0D2844 0D5419 0D7055 0D3488A 057795 0A6283 046526 022237 0A1232 031678 022241 055476 053666 0D6658 047411 022097 022473 042568 022129 022131 039253 022145 057796 0A5737B 0D3507A 0D1744 0D7801A 032300 086310 028578 034125 033121 022152 023897 0D8991 0D8032 0D8033...
-
Page 26: Right Hand Side (Direct Drive Units, Open Set - No Enclosure)
6.8L GAS ENGINE COMMON PARTS RH (DIRECT DRIVE UNITS, OPEN SET - NO ENCLOSURE) - Page 27 6.8L GAS ENGINE COMMON PARTS RH ITEM PART NUMBER 0D3454 0D5418 0D4162 0D4312 050968 083982 0E0561 053667 0D2696 0D2698 057823 049120 049340 0C7649 049821 022129 043146 055816 022097 045757 022473 049226 052618 051713 0D3808 0D4255 070010 0D6344 0D3803 0D3805 0A8240 0D2608 070006 070008...
-
Page 28: Right Hand Side (Direct Drive Units, Closed Set - W/ Enclosure)
6.8L GAS ENGINE COMMON PARTS RH (DIRECT DRIVE UNITS, CLOSED SET - W/ ENCLOSURE) - Page 29 6.8L GAS ENGINE COMMON PARTS RH ITEM PART NUMBER 0D3454 0D5418 0D4162 0D4312 050968 047290 0E0561 053667 0C3433A 0D2696 0D2698 057823 049120 049340 0C7649 049821 022129 043146 055816 022097 045757 022473 049226 052618 051713 0D3808 0D4255 070010 0D6344 0D3803 0D3805 0A8240 0A6765 0D3649...
-
Page 30: Right Hand Side (Gear Box Units, Open Set - No Enclosure)
6.8L GAS ENGINE COMMON PARTS RH (GEAR BOX UNITS, OPEN SET - NO ENCLOSURE) - Page 31 6.8L GAS ENGINE COMMON PARTS RH ITEM PART NUMBER 0D3454 0D5418 0D4162 0D4312 050968 047290 0E0561 053667 055934M 0D2696 0D2698 057823 049120 049340 0C7649 049821 022129 043146 055816 022097 045757 022473 049226 052618 051713 0D3808 0D4255 070010 0D6686 0D3803 0D3805 021113 077996 022131...
-
Page 32: Right Hand Side (Gear Box Units, Closed Set - W/ Enclosure)
6.8L GAS ENGINE COMMON PARTS RH (GEAR BOX UNITS, CLOSED SET - W/ ENCLOSURE) - Page 33 6.8L GAS ENGINE COMMON PARTS RH ITEM PART NUMBER 0D3454 0D5418 0D4162 0D4312 050968 047290 0E0561 053667 0C3433A 0D2696 0D2698 057823 049120 049340 0C7649 049821 022129 043146 055816 022097 045757 022473 049226 052618 051713 0D3808 0D4255 070010 0D6686 0D3803 0D3805 021113 0A6765 0D3166...
- Page 34 Notes...
- Page 35 Notes...
