S11
Digital Projector Camcorder User Manual
Welcome

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S11 and is the answer not in the manual?

Questions and answers

Related Manuals for BenQ S11

Summary of Contents for BenQ S11

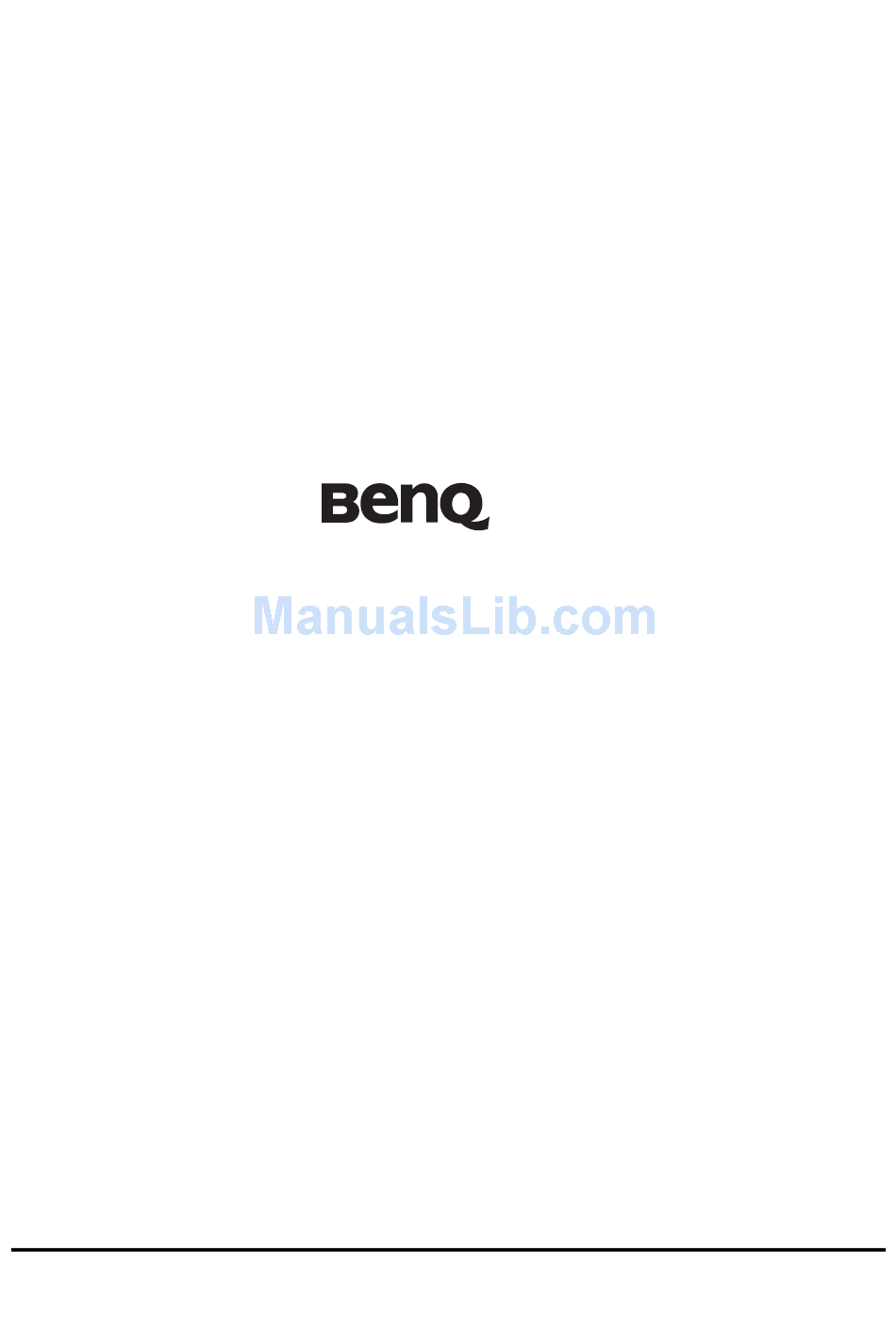

  • Page 1 Digital Projector Camcorder User Manual Welcome...
  • Page 2 <Notes>...

  • Page 3: Table Of Contents

    Table of Contents OVERALL INTRODUCTION ........9 ......... 9 YSTEM EQUIREMENTS ............10 CCESSORIES ..........11 XTERNAL ........... 12 NITIAL 1.4.1 Insert SD Card ..........12 1.4.2 Load Battery ..........12 1.4.3 Charging Battery ........13 ........14 HARGING THE ATTERY ........
  • Page 4 ........30 ROJECTOR FOR HOTO ......... 31 ARIOUS HOTO ETUP SETUP MENU ............32 SETUP ........32 O INTO THE MENU ............. 32 ETUP 4.2.1 To change NTSC/PAL TV setting ....32 4.2.2 File Number ..........32 4.2.3 Date/Time Settings ........33 4.2.4 Formatting of SD memory card ....

  • Page 5: About This Manual

    Copyright Copyright 2010 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in...
  • Page 6 Safety Warning and Notice Before operating the camcorder, please make sure that you read and fully understand the content in this section. If you ignore and violate all safety warning notices indicated in this section, the camcorder warranty may be void.
  • Page 7 Batteries could explode, for instance. All batteries can cause property damage, injury or burns if a conductive material such as jewelry, keys or beaded chains touch exposed terminals. The material may complete an electrical circuit and become quite hot. Exercise care in handling any batteries, particularly when placing it inside your pocket, purse, or other container with metal objects.
  • Page 8 The only way of replacing the battery and the memory card is to open the Battery / Memory cover. Dispose of unwanted batteries and camcorders as permitted by the laws in your countries. Water may cause a fire or electric shock. Therefore, store your camcorder in a dry place.
  • Page 9 Whenever there is data in the external memory card, you should make a backup copy to a computer or disc. So, you can have a backup solution if data loss occurs. All original accessories are designed only for use with this camcorder model you purchased.
  • Page 10 The camcorder operating temperature is between 0 and 40 degrees Celsius. It is normal for the operating time to be shortened when the temperature is low. The capacity of your camcorder batteries will reduce each time it is charged/emptied. Storage at too high or low temperatures will also result in a gradual capacity loss.

  • Page 11: Overall Introduction

    1 Overall Introduction Please read this chapter carefully to understand the features and functions of this device. The description of this chapter also includes the description of system requirement, package contents, and hardware components. System Requirements This Digital Projector Camcorder requires a unit of computer with the following specifications: •...

  • Page 12: Accessories

    Accessories This package should contain the following items. In case there is any missing or damaged item, please contact your dealer immediately. ① Digital Projector ② Pouch ③ Quick guide Camcorder ④ Software CD ⑤ HDMI ⑥ Video ⑦ USB cable cable cable ⑧...

  • Page 13: External View

    External View Recording Button Hand Strap Slot HDMI / USB /AV Out Projector Lens Power On/Off SD/SDHC Memory Card Slot Self Portrait Mirror Projector Focus Adjustment Video Camera Lens Speaker LED indicator Tripod Mount LED Torch (Assist LED light) Battery Cover Lock...

  • Page 14: Initial Set Up

    Initial Set Up 1.4.1 Insert SD Card Open the SD card cover and insert an SD card. Make sure the “gold pin” is facing the right way as illustrated. Note: Do not remove or insert SD card when the power of the Digital Projector Camcorder is on to avoid damaging files.

  • Page 15: Charging Battery

    Make sure the gold pin connection is on the correct side of the battery compartment. Insert the cover hook into the recess and gently push the cover until it fully locks into place. 1.4.3 Charging Battery You can use the adaptor attached to charge the lithium-ion battery. Just insert the battery into the Digital Projector Camcorder and connect the adaptor to the camcorder and a power outlet.

  • Page 16: Charging The Battery

    Charging the Battery You can use the adaptor attached to charge the lithium battery. Insert the lithium battery into the Digital Video Camera and connect to the cable of the adaptor.

  • Page 17: First Time Usage Setting

    First Time Usage Setting 1.5.1 Language to go to various pages for the language selection, Press & on the language icon (Example: [ENG]) to select and confirm. 1.5.2 Date/Time Press on the relevant icon (example: [2010]) to high light the setting. Press to adjust the value.

  • Page 18: Quick Access To Video, Playback, And Photo

    Quick Access to Video, Playback, and Photo Press enter the Video mode. Press again to start video recording. Press Press again enter the Photo to stop video mode. recording. Press capture an image. Press to enter the playback mode.

  • Page 19: Video Mode

    2 Video Mode For Video Shoot Press to go In the Video into Video Mode, press here Mode. to start or stop Press again video recording. to start video recording. Press again to stop video Press recording. to zoom in/ out during Video Shoot.
  • Page 20 3) Use & to go to various pages. 4) Press the file to select the video clip you wish to review. 5) Press to replay your selected clip. 6) Press , and use & to adjust volume. 7) Use & to fast forward and rewind.

  • Page 21: Video Playback Menu

    2.2.2 Video Playback Menu Press for other menu option for video playback. Press to go to Video Playback Menu. You will find the following 3 options. File Protection Play Options Delete File Protection Press the [File Protect icon] to go into the Protect menu selections. You will have 4 options to select as follows: - Protect One Video Clip - Unprotect One Video Clip...
  • Page 22 Play Options Press [Play Options icon] to go into the Play Options menu selections. You will have 4 options to select as follows: - Play One Video Clip - Play All Video Clips - Repeat One Video Clip - Repeat All Video Clips Press on the relevant icon to select, press to confirm or cancel.

  • Page 23: Photo Shoot During Video Playback

    Photo Shoot During Video Playback To take a photo from your video clip, simply press the recording button during your video playback as follows: 1) Press here to playback. 2) Press here for photo shoot. Fast or Slow Motion Forward / Rewind Slow Motion Icon (1) For Fast Motion:...

  • Page 24: Projector For Video

    (on the right) to adjust the focus. Here, you will see the “BenQ” text on the screen. Now you can move the projector focus adjustment until you can see the “BenQ” text clearly (the focus range is correct). Once the projector is set to High Brightness, after several minutes the...

  • Page 25: For Various Video Setup

    For Various Video Setup You can press on the 4 icons on the screen to change the various settings for your video shoot: Video Resolution Press the [Video Resolution Icon] to adjust the Video Resolution. You have 5 options as follows: FHD 1080p @ 30fps (1920 x 1080) HD 720p @ 60fps (1280 x 720) HD 720p @ 30fps (1280 x 720)

  • Page 26: Photo Mode

    3 Photo Mode For Photo Shoot In the Photo Mode, press here to shoot your photos. Press to go into Photo Mode. Press to shoot your photos. Press to zoom in/out before photo Press for Photo shoot. Review.

  • Page 27: For Photo Review

    For Photo Review 3.2.1 Photo Review Press 2) Press the camera icon here to review photos. 3) Use & to go to the various pages. 4) Press the file to select the photos you wish to review.
  • Page 28 5 ) Use for the previous or for the next photo. 6) Use & to zoom in/out of your photo. After you press enlarge the photo, you can use to manipulate the image further.

  • Page 29: Photo Review Menu

    3.2.2 Photo Review Menu Press [Menu] for other menu option for photo review. Press to go to Photo Review Menu. You will find the following 6 options: File Delete Slide Show Slide Show Protection Setting Effect Rotate DPOF...
  • Page 30 File Protection Press the [File Protection icon] to go into the Protect menu selections. You will have 4 options to select as follows: - Protect One Photo - Unprotect One Photo - Protect All Photos - Unprotect All Photos Press on the relevant icon to select, press to confirm or cancel.
  • Page 31 Delete Press [Delete Icon] to go into the Delete menu selections. You have 3 options to select as follows: - Delete Single Photo - Delete All Photos - Delete from Thumbnail View Press on the relevant icon to select, press to confirm or cancel.

  • Page 32: Projector For Photo

    Projector for Photo Press on to turn on the projector. You will have 3 options to choose from. - High Brightness - Low Brightness - Off Projector Then use the projector focus adjustment to set the projector focus.

  • Page 33: For Various Photo Setup

    For Various Photo Setup You can press on the 4 icons on the screen to change the various settings for your photo shoot: Photo Resolution Press [Photo Resolution Icon] to adjust the Photo Resolution. You have 4 options as follows: 16MP (4608 x 3456;...

  • Page 34: Setup Menu

    4 Setup Menu Go into the SETUP menu Press > Setup icon to go into the SETUP menu page. > > & to go to different page of the SETUP menu (2 pages). Setup Menu (a) Page 1 of 2 4.2.1 To change NTSC/PAL TV setting Press the [NTSC/PAL icon] for selection.

  • Page 35: Date/Time Settings

    4.2.3 Date/Time Settings Press the [Date/Time Setting icon] to set the date/time. Press on the relevant icon to High light the setting (Example [2010]) icon to adjust the value. Press (at the bottom right corner) to confirm. 4.2.4 Formatting of SD memory card Press the [SD Card icon] for selection.

  • Page 36: Auto Power Off

    4.2.8 Auto Power Off Press the [Auto Power Off icon] for selection. Press the relevant icon to choose between OFF / 3 MIN/ 5 MIN. (b) Page 2 of 2 4.2.9 Language Press the [Language icon] for selection. to go to various pages of the language selection. &...

  • Page 37: Digital Zoom Setting (Optional)

    4.2.13 Digital Zoom Setting (Optional) Press the [Digital Zoom icon] for selection. Press the relevant icon to choose between x10 / MAX. 4.2.14 EV value Extra Optional Functions Press on the middle of the screen and press to adjust the EV value of the device.

  • Page 38: Pc And Tv Connection

    5 PC and TV Connection Connecting to the Computer As shown in the illustration, use the USB cable provided to connect the Digital Projector Camcorder to a computer. When connecting to a computer, make sure the camcorder is turned When the camcorder is turned off, connecting it to a computer charges the lithium battery.

  • Page 39: Connecting To A Standard Tv / Hd Tv

    Connecting to a Standard TV / HD TV As shown in the illustration, you can also use the accompanying video cable to connect the Digital Projector Camcorder to a standard TV, or you can use the HDMI cable provided to connect the Digital Projector Camcorder to an HD TV for high resolution picture display.

  • Page 40: Editing Software

    6 Editing Software ArcSoft Total Media Extreme(TME) ™ manages your media for you, and gives you tons of fun and exciting ways to create and share projects featuring your photo, video, and music files. Edit, enhance and add creative effects to your photos. You can Create your own videos or photo slide shows complete with soundtrack.

  • Page 41: Appendix

    7 Appendix Specifications (camcorder) Image sensor 1/3.2 inch. 5.0 mega pixels CMOS sensor Effective pixels 5.03 Mega pixels (2592 x 1944) Storage media SD card and SDHC card supported. Lens F/2.8, f = 4.86mm Focus range Normal: 80cm~infinity Format: JPEG (DPOF, EXIF) Still image Resolution: 16MP (interpolation), 5MP, 3:2, 16:9 Video Clip...

  • Page 42: Specifications (Projector)

    TV output NTSC/PAL Electronic shutter Shutter 2 ~ 1/8000 second Auto Power Off Off, 3 minutes, 5 minutes Power Source Lithium battery BL-5B Dimensions 108 x 55 x 16 mm Weight 110 g (without battery and SD card) Specifications (projector) Resolution 320 x 240 Pico Projector...

  • Page 43: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Can not turn on the 1. Battery is not 1. Please insert battery power of Digital inserted correctly. correctly. Projector Camcorder. 2. Battery is exhausted. 2. Replace the battery. 1. Power saving mode 1. Please turn on the Camera shutdown already activated.
  • Page 44 Take out battery in All buttons can not when connecting the the camera and work or camera hangs. camera to other re-insert again. device. Technical support For technical assistance, free driver updates, product information, and news releases, visit the following web site: http://www.BenQ.com...
