  • Page 2: Table Of Contents

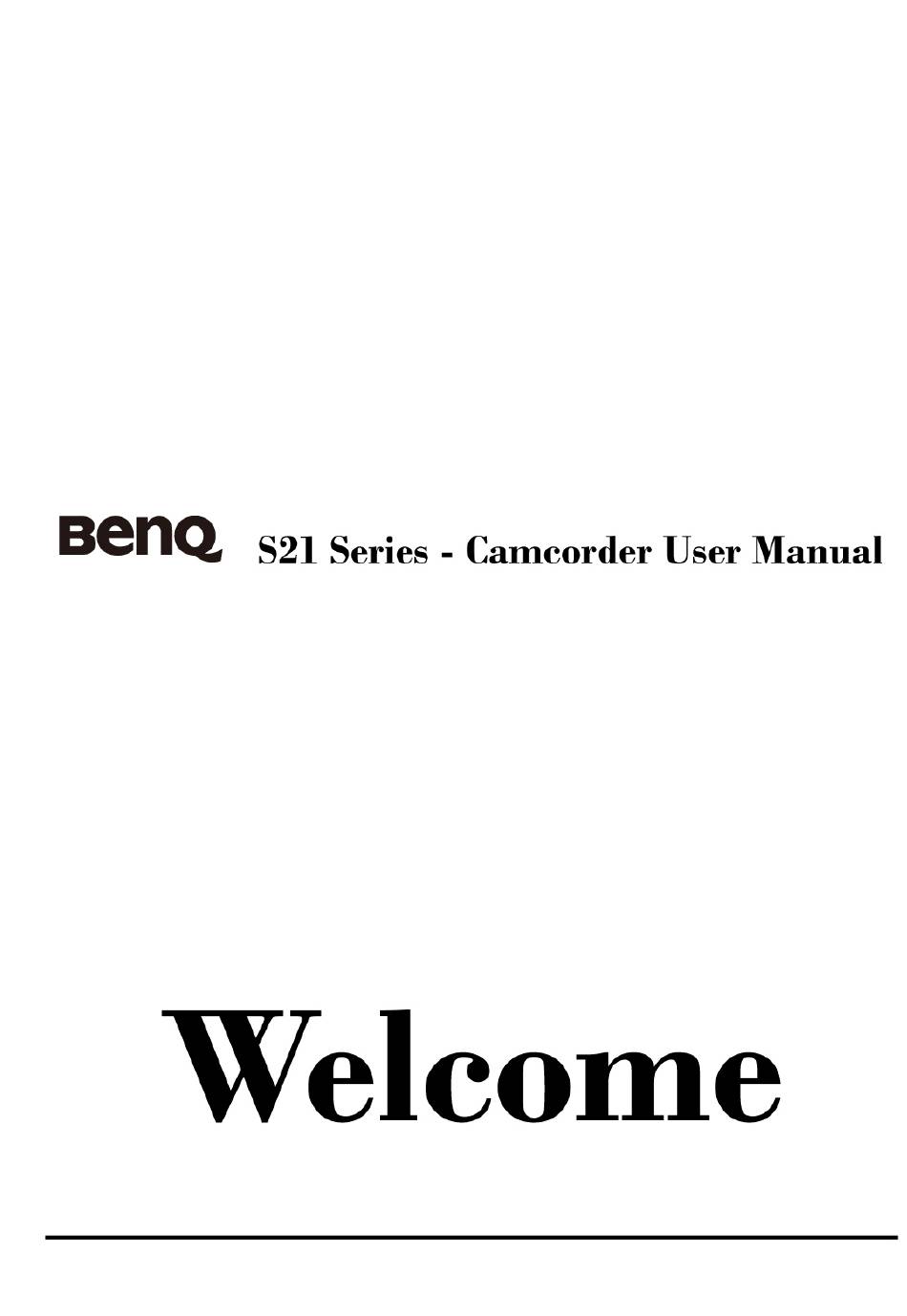

    Contents Preface..............6 About This Manual..........6 Copyright..............6 Disclaimer..............6 Safety Warning and Notice ........7 Overall Introduction ......12 1.1 System Requirements .........12 1.2 Features..............12 1.3 Accessories............13 1.4 External View............14 1.5 Adjusting LCD Display ........15 Getting Started ........16 2.1 Inserting SD Card..........16 2.2 Loading Batteries..........17 2.3 Charging the Battery (Optional)......19 2.4 The gestures of using the touch screen.....20...
  • Page 3 LCD Display Information....25 3.1 In Movie Clip Mode ..........25 3.2 In Voice Recording Mode........27 3.3 In DSC Mode............28 Using the Camera......30 4.1 Shooting a Movie Clip..........30 4.2 Capturing a still image from a movie....32 4.3 Capturing a still image in video mode ....33 4.4 Voice Recording:..........34 4.5 Movie Clip / Voice Clip Playback......35 4.6 Shooting / Playback images........38...
  • Page 4 6.1.9 Multi shot ..............54 6.2 Menus of Movie Clip/Voice Playback ....55 6.2.1 Delete ..............55 6.2.2 Protect ..............57 6.3 Menu options of Camera Mode ......58 6.3.1 Still Image Resolution ..........58 6.3.2 White Balance ............59 6.3.3 Effect ............... 60 6.3.4 Metering ..............
  • Page 5 6.5.13 Instant Review............85 6.5.14 Memory ..............86 6.5.15 Volume ..............87 6.5.16 Start-up LOGO ............88 6.5.17 Face Detection ............89 PC and TV Connection......90 7.1 Connecting to the Computer .......90 7.2 Connecting to a Standard TV ......90 7.3 Connecting to a HD TV ........91 Installing the Software ......92 Editing Software ........93 Appendix..........94...

  • Page 6: Preface

    All information presented is as accurate as possible but is subject to change without notice. Copyright Copyright 2010 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer...

  • Page 7: Safety Warning And Notice

    Safety Warning and Notice Before operating the camcorder, please make sure that you read and fully understand the content in this section. If you ignore and violate all safety warning notices indicated in this section, the camcorder warranty may be void. Meanwhile, not only the camcorder but also you and all other people and things around you may be severely damaged, injured, or even placed in danger of death.
  • Page 8 Batteries could explode, for instance. All batteries can cause property damage, injury or burns if a conductive material such as jewelry, keys or beaded chains touch exposed terminals. The material may complete an electrical circuit and become quite hot. Exercise care in handling any batteries, particularly when placing it inside your pocket, purse, or other container with metal objects.
  • Page 9 The only way of replacing the battery is to open the battery cover. Dispose of unwanted batteries and camcorders as permitted by the laws in your countries. Water may cause a fire or electric shock. Therefore, store your camcorder in a dry place. If your camcorder becomes wet, wipe it with a dry cloth as soon as possible.
  • Page 10 Whenever there is data in the external memory card, you should make a backup copy to a computer or disc. So, you can have a backup solution if data loss occurs. All original accessories are designed only for use with this camcorder model you purchased.
  • Page 11 The capacity of your camcorder batteries will reduce each time it is charged/emptied. Storage at too high or low temperatures will also result in a gradual capacity loss. As a result, the operating time of your camcorder may be considerably reduced. It is normal for the camcorder to become warm during operation, because the camcorder casing can conduct heat.

  • Page 12: Overall Introduction

    1 Overall Introduction Please read this chapter carefully to understand the features and functions of this Digital Video Camera. The description of this chapter also includes the description of system requirement, package contents, and hardware components. 1.1 System Requirements This Digital Video Camera requires a unit of computer with the following specifications: •...

  • Page 13: Accessories

    1.3 Accessories This package should contain the following items. In case there is any missing or damaged item, please contact your dealer immediately. ① ② ③ Digital video camera Quick guide Software CD ④ ⑤ ⑥ ⑦ HDMI cable Video cable USB cable Lithium battery ⑧...

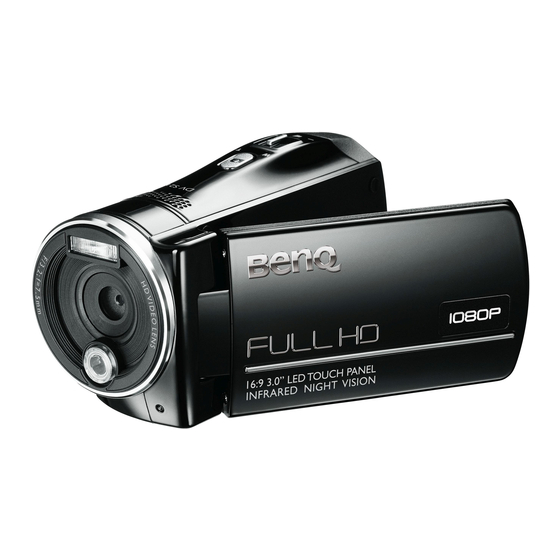

  • Page 14: External View

    1.4 External View...

  • Page 15: Adjusting Lcd Display

    1.5 Adjusting LCD Display Before taking picture or recording movie clips, please rotate according to the illustrations below.

  • Page 16: Getting Started

    2 Getting Started 2.1 Inserting SD Card Insert an SD card and make sure facing the touching face downward. Note: Do not remove or insert SD cards when the power of the Digital Video Camera is on to avoid damaging files.

  • Page 17: Loading Batteries

    2.2 Loading Batteries Please use only batteries provided or recommended by the manufacturer or dealer. This package is supplied with AA*2. or Lithium battery, both an optional accessory. Note: Insert batteries correctly according to this description. Error in inserting batteries could result in non-repairable damage to this Digital Video Camera.
  • Page 18 Insert batteries according to the illustration. *Important: 1. Please use the supplied lithium battery when using the infrared function. The infrared function can not be supported by using AA batteries. 2. Close battery cover.

  • Page 19: Charging The Battery (Optional)

    2.3 Charging the Battery (Optional) You can use the supplied battery charger to charge the lithium battery. Safety instructions In order for Li-ion batteries to get optimum performance it is highly recommended to charge the battery for at least 8 hours on first use or after storage of more than 3 months.

  • Page 20: The Gestures Of Using The Touch Screen

    2.4 The gestures of using the touch screen 2.4.1 Single touch Single touch for the below touchable hotkeys: Mode change (DV, DSC and Voice Recording) Resolution change (FHD, HD, WVGA, WEB or 16M, 8M, 5M,...

  • Page 21: Slide

    2.4.2 Slide Slide right or left to view the previous file or the next file under the Playback Mode. 2.4.3 Rotate Under Playback Mode, you can rotate the image by 90° /step as shown below.

  • Page 22: Buttons & Functions

    2.5 Buttons & Functions Description Button Function Power Press the button to turn ON/OFF the Digital Button Video Camera. Menu Press the button to display the main OSD Button menu. There are three operating modes for the Digital Video Camera: DV Mode, DSC MODE Mode, and Voice Recording Mode.

  • Page 23: Infrared Night Vision

    This Digital Video Camera is equipped with 4X (720P) digital zoom function. Zoom Press the Zoom Button Right (T) to pull in button the distance of the subject, or Left (W) to move away the distance from the object. Macro function allows you to shoot image of an object at very close distance.

  • Page 24: Initial Settings Before Use

    2.8 Initial settings before use 2.8.1 Setting Date and Time Turn on the Digital Video Camera to set up the date and time for the first time. Set the date and time by moving up/down button or touch the screen to select. Press the 4-Way Direction Button left/right to highlight each column.

  • Page 25: Lcd Display Information

    3 LCD Display Information 3.1 In Movie Clip Mode The following table regarding the description of each icon and symbol will be shown when the Digital Video Camera is in DV Mode Movie Clip recording indicator Motion Detection Night Mode indicator Exposure compensation indicator Color effect indicator...
  • Page 26 Metering Mode Memory Status indicator : SD card 1 indicator; : SD card 2 indicator : Internal memory indicator (displayed when there is no SD card ) Compensation indicator Macro indicator White balance indicator Battery status indicator Remaining recording time indicator 00:00:00 Histogram indicator Playback indicator...

  • Page 27: In Voice Recording Mode

    3.2 In Voice Recording Mode The following table regarding the description of each icon and symbol will be shown when the Digital Video Camera is in Voice Recording Mode ( ). Voice Recording Mode indicator Memory Status indicator : SD card 1 indicator; : SD card 2 indicator : Internal memory indicator (displayed when there is no SD card)

  • Page 28: In Dsc Mode

    3.3 In DSC Mode The following table regarding the description of each icon and symbol will be shown when the Digital Video Camera is in DSC Mode ( DSC Mode indicator Night Mode indicator EV compensation indicator Effect indicator Metering Mode Memory Status indicator : SD card 1 indicator;...
  • Page 29 Backlight compensation Macro indicator White balance indicator Battery indicator 0000 Number of pictures left. Histogram indicator Playback Button Digital zoom indicator Menu Button Flash Mode selection (off, auto, fill-in) Resolution indicator Continuous Shot Mode Self-timer indicator...

  • Page 30: Using The Camera

    4 Using the Camera 4.1 Shooting a Movie Clip DV mode is the default setting after you power on the Digital Video Camera. Press the Recording button to start or stop movie recording. The Digital Video Camera will store the Movie clip automatically.
  • Page 31 LCD screen ratio will be different depending on the setting of Movie Clip resolution. Please refer to the table shown below: Video Resolution Preview 16:9 ratio FHD (1920 x 1080) HD (1280 x 720) WVGA (848x480) 4:3 ratio WEB (320 x 240)

  • Page 32: Capturing A Still Image From A Movie

    4.2 Capturing a still image from a movie You can save a selected frame from a recorded movie as a still image. Select the video clip, and press the shutter button at an interested frame. DV mode is the default setting after you power on the Digital Video Camera.

  • Page 33: Capturing A Still Image In Video Mode

    4.3 Capturing a still image in video mode You can save a selected frame in the video mode as a still image. Press shutter button at an interested preview image to save the interested frame. It is also workable during recording a video clip. Press the shutter button in movie clip during playback .

  • Page 34: Voice Recording

    4.4 Voice Recording: 1. Turn on the Digital Video Camera. 2. Press the MODE button to enter Voice Recording mode or touch the screen hotkey. 3. Press the Recording button to start or stop Voice recording. Voice Recording Mode...

  • Page 35: Movie Clip / Voice Clip Playback

    4.5 Movie Clip / Voice Clip Playback In Movie/Voice Recording Mode, press Playback Button to display recently stored file on the LCD screen. Playback Playback Mode indicator Playback Mode indicator...
  • Page 36 Press 4-Way Direction Button up/down, left/right to view the stored file. Press SET Button to playback or touch the screen to select Playback of the file. To pause the Playback of file, press the Recording button or touch the screen icon ( Press the Playback Button to return to Movie/Voice Recording Mode.
  • Page 37 You can also playback the movie clip by different speed by touching (ON/OFF) the screen icon ( Playback speed is as below when Playback speed is as below when the the Slow Motion is “ “ “ “ OFF” ” ” ” : Slow Motion is “ON”: Rewind 1/2X play...

  • Page 38: Shooting / Playback Images

    4.6 Shooting / Playback images 4.6.1 Taking a picture Turn on the power and adjust the Mode Button to DSC Mode or touch hot key on the screen to set up. Press Shutter Button to capture images. DSC Mode indicator...

  • Page 39: Images Playback

    4.6.2 Images Playback In DSC Mode, press Playback Button to display the images on the LCD screen. Playback Playback Mode Indicator Press 4-Way Direction Button up/down, or left/right to view the stored files. Press SET Button to replay or touch the screen to playback.
  • Page 40 Press SET Button or touch the screen to return to full screen for viewing images. Touch the panel icon ( ) to enlarge or shrink the image. Then, you can move the image up/down or left/right. Press Playback Button again to return to DSC Mode.

  • Page 41: Lcd Display Information

    5 LCD Display Information 5.1 Movie Clip Recording Mode: Please refer to the following table regarding the description of each icon and symbol. Playback Mode icon Folder and file number 000-0000 File Protect indicator Memory Status indicator : SD card 1 indicator; : SD card 2 indicator : Internal memory indicator (displayed when there is no SD card)
  • Page 42 00:00:00 Length of each Movie Clip Sound volume touch icons Return Button Fast forward Playback Button Playback/Pause button Fast rewind Playback Button Menu Button Resolution indicator Slow motion Playback...

  • Page 43: Voice Recording Mode

    5.2 Voice Recording Mode: Please refer to the following table regarding the description of each icon and symbol. Playback Mode icon 000-0000 Folder and file number File Protect indicator Memory Status indicator : SD card 1 indicator; : SD card 2 indicator : Internal memory indicator (displayed when there is no SD card) Battery status indicator...

  • Page 44: Dsc Playback Mode

    5.3 DSC Playback Mode Please refer to the following illustration to familiarize yourself with icons and symbols of DSC Playback Mode. Image Playback Mode icon DPOF （Digital Print Order Format） indicator Exposure compensation indicator File Protect indicator Memory Status indicator : SD card 1 indicator;...
  • Page 45 White balance Battery status indicator 000-0000 Number of pictures left Return Button Zoom- In indicator Zoom- Out indicator Menu Button Resolution indicator...

  • Page 46: Menu Mode

    6 Menu Mode When the menu appears on the LCD display, the button is MENU used to move through the highlighted items in the submenu or to select a menu item. 6.1 Menu options of Movie Clip Mode When in Movie Clip mode, press the Button to show the MENU Movie options menu.

  • Page 47: White Balance

    Notes: 1. When setting to FHD, HD or WVGA resolution, the LCD display aspect ratio is 16:9. 2. When setting to WEB video resolution, the LCD display aspect ratio is 4:3. 6.1.2 White Balance Turn on the Digital Video Camera and make sure it is in the DV Mode.

  • Page 48: Effect

    6.1.3 Effect Turn on the Digital Video Camera and make sure it is in the DV Mode. Press Button and press the 4-Way Direction Button to MENU highlight the Effect item. Press Button to display submenu; or touch the screen to select the item. Press 4-Way Direction Button to select Normal, B/W or Sepia.

  • Page 49: Metering

    6.1.4 Metering Turn on the Digital Video Camera and make sure it is in the DV Mode. Press Button and move the 4-Way Direction Button to MENU highlight the Metering item. Press Button to display submenu; or touch the screen to select the item. Press 4-Way Direction Button to select Spot, Center or Touch Press Button to confirm;...

  • Page 50: Backlight

    6.1.5 Backlight 1. Turn on the Digital Video Camera and make sure it is in the DV Mode. 2. Press Button and move the 4-Way Direction Button to MENU highlight the Backlight item. Press Button to display submenu; or touch the screen to select the item. 3.

  • Page 51: Night Mode

    6.1.6 Night Mode Turn on the Digital Video Camera and make sure it is in the DV Mode. Press Button and press the 4-Way Direction Button to MENU highlight the Night Mode item. Press Button to display submenu; or touch the screen to select the item. Press 4-Way Direction Button to select On or Off.

  • Page 52: Motion Detection

    6.1.7 Motion Detection When Motion Detection is turned on, the camera will detect the motion for Movie Clip recording without human intervention. When the AE variation is detected, the recording will start immediately. Turn on the Digital Video Camera and make sure it is in the DV Mode.

  • Page 53: Ev Compensation

    6.1.8 EV Compensation You can adjust the value of the exposure compensation which is ranged from -2.0EV to +2.0EV (at 0.5EV increment). The higher the EV value, the brighter the image will be. Turn on the Digital Video Camera and make sure it is in the DV Mode.

  • Page 54: Multi Shot

    6.1.9 Multi shot Turn on the Digital Video Camera and make sure it is in the DV Mode. Press Button and press the 4-Way Direction Button to MENU highlight the Multi shot item. Press Button to display submenu; or touch the screen to select the item. Press 4-Way Direction Button to select On or Off.

  • Page 55: Menus Of Movie Clip/Voice Playback

    6.2 Menus of Movie Clip/Voice Playback When in Movie Clip mode, press the SET Button to show the Movie Clip options menu. 6.2.1 Delete Turn on the Digital Video Camera and make sure it is in the Movie Clip/Voice Playback Mode. Press Button and move the 4-Way Direction Button to MENU...
  • Page 56 Press 4-Way Direction Button to select “O” Yes or “X” NO. Press Button to confirm; or touch the screen to select the item. Delete the current file Delete One Delete all files stored in the Digital Video Camera Delete All Note: The file cannot be recovered once it is deleted.

  • Page 57: Protect

    6.2.2 Protect Turn on the Digital Video Camera and make sure it is in the Movie Clip/Voice Playback Mode. Press Button and move the 4-Way Direction Button to MENU highlight the Protect item. Press Button to display submenu; or touch the screen to select the item. Use 4-Way Direction Button to select Lock One, Local All, Unlock One or Unlock All.

  • Page 58: Menu Options Of Camera Mode

    6.3 Menu options of Camera Mode When in DSC Mode, press Button to display camera mode MENU option Menu. 6.3.1 Still Image Resolution Turn on the Digital Video Camera and make sure it is in the DSC Mode. Press Button and move the 4-Way Direction Button to MENU highlight the Resolution item.

  • Page 59: White Balance

    6.3.2 White Balance Turn on the Digital Video Camera and make sure it is in the DSC Mode. Press Button and move the 4-Way Direction Button to MENU highlight the White Balance item. Press Button to display submenu; or touch the screen to select the item. Use 4-Way Direction Button to select Auto, Daylight, Cloudy, Fluorescent or Tungsten.

  • Page 60: Effect

    6.3.3 Effect This Digital Video Camera can take standard color images, Black and White images, or Sepia color tone images. Turn on the Digital Video Camera and make sure it is in the DSC Mode. Press Button and move the 4-Way Direction Button to MENU highlight the Effect item.

  • Page 61: Metering

    6.3.4 Metering Turn on the Digital Video Camera and make sure it is in the DSC Mode. Press Button and move the 4-Way Direction Button to MENU highlight the Metering item. Press SET Button to display submenu; or touch the screen to select the item. Press 4-Way Direction Button to select Spot, Center or Touch Press SET Button to confirm;...

  • Page 62: Backlight

    6.3.5 Backlight Turn on the Digital Video Camera and make sure it is in the DSC Mode. Press Button and move the 4-Way Direction Button to MENU highlight the Backlight item. Press SET Button to display submenu; or touch the screen to select the item. Press 4-Way Direction Button to select ON or OFF.

  • Page 63: Night Mode

    6.3.6 Night Mode Turn on the Digital Video Camera and make sure it is in the DSC Mode. Press Button and move the 4-Way Direction Button to MENU highlight the Night Mode item. Press SET Button to display submenu; or touch the screen to select the item. Press 4-Way Direction Button to select On or Off.

  • Page 64: Self-Timer

    6.3.7 Self-timer Turn on the Digital Video Camera and make sure it is in the DSC Mode. Press Button and use the 4-Way Direction Button to MENU highlight the Self-timer item. Press SET (Menu Button) to display submenu; or touch the screen to select the item. Press 4-Way Direction Button to select OFF, 2 Sec or 10 sec.

  • Page 65: Continuous Shot

    6.3.8 Continuous Shot You can continuously shoot three pictures using this function. To start, press and hold the Shutter Button. The function will end automatically after three pictures are taken. Turn on the Digital Video Camera and make sure it is in the DSC Mode.

  • Page 66: Ev Compensation

    6.3.9 EV compensation You can adjust the value of the exposure compensation which is ranged from -2.0EV to +2.0EV (at 0.5EV increment). The higher the EV value, the brighter the image will be. Turn on the Digital Video Camera and make sure it is in the DSC Mode.

  • Page 67: Menus Of Playback

    6.4 Menus of Playback 6.4.1 Delete Use this function to delete the files. Turn on the Digital Video Camera and make sure it is in the Playback Mode. Press MENU Button and press the 4-Way Direction Button Down; or touch the screen to select the file to be deleted or to delete all files.
  • Page 68 Press 4-Way Direction Button or touch the screen to select “O” YES or “X” No and press SET Button to delete file(s). Note: The files cannot be recovered once deleted. Therefore, please make sure you have a backup file before delete. protect files will not be able to delete.

  • Page 69: Protect

    6.4.2 Protect Turn on the power of Digital Video Camera and make sure it is in the Playback Mode. Choose the file which you want to protect. Press MENU Button and move the 4-Way Direction Button to highlight the Protect item. Press SET Button to display submenu;...

  • Page 70: Auto Play

    6.4.3 Auto play This Digital Video Camera includes a slide show function that could playback each picture at a regular interval. Turn on the power of Digital Video Camera and make sure it is in the Playback Mode. Press Button and move the 4-Way Direction Button MENU to highlight the Auto play item.

  • Page 71: Rotate

    6.4.4 Rotate Turn on the power of the Digital Video Camera and make sure it is in the Playback Mode. Use 4-Way Direction Button to highlight Rotate item and press SET Button; or touch the screen to select the Left 90 or Right 90.

  • Page 72: Dpof

    6.4.5 DPOF Use DPOF (Digital Print Order Format) function to indicate the printing information stored in the memory card. Turn on the power of the Digital Video Camera and make sure it is in the Playback Mode. Press Playback Button and press SET Button to display Image Playback Menu;...
  • Page 73 DPOF Press the Playback Button or touch the screen to exit the image. Note: 1. A memory card is required for the DPOF function. 2. If DPOF is set, the pictures to be printed are ordered to print.

  • Page 74: Setting Menu

    6.5 Setting Menu Setting Menu can be used to select all kinds of the Digital Video Camera settings. 6.5.1 Information This function can be used to display information on the LCD screen to help you in capturing best images and movie clips. Turn On the Digital Video Camera and switch to SET Mode.

  • Page 75: Beep

    6.5.3 Beep Turn on the power of Digital Video Camera and switch to SET Mode. Press the 4-Way Direction Button up or down to highlight the Beep and press SET selection Button to confirm or touch the screen to select. Use 4-Way Direction Button or touch the screen to select On or Off.

  • Page 76: Default

    6.5.4 Default Use this function to reset all settings to default settings. Turn on the power of Digital Video Camera and switch to SET Mode. Press 4-Way Direction Button to highlight Default item. Press SET Button to display submenu; or touch the screen to select the item.

  • Page 77: Tv Standard

    6.5.5 TV standard Use the TV standard to set the TV system for your area. Turn on the power of Digital Video Camera and switch to SET Mode. Use 4-Way Direction Button to highlight the TV standard item. Press SET Button to display submenu; or touch the screen to select the item.

  • Page 78: Usb

    6.5.6 This setting is for USB output function. You can select an external device to connect the Digital Video Camera by using the supplied USB cable. Turn on the Digital Video Camera and switch to SET Mode. Press 4-Way Direction Button to highlight the USB item. Press SET Button to display submenu;...

  • Page 79: Auto Power Off

    6.5.7 Auto Power Off This function can be used to turn off the Digital Video Camera automatically after a period of time not using the Digital Video Camera. Turn on the Digital Video Camera and switch to SET Mode. Press 4-Way Direction Button to highlight Auto Power Off item.

  • Page 80: Frequency

    6.5.8 Frequency Use the Frequency option to set the frequency system for your area. Turn on the power of Digital Video Camera and switch to SET Mode. Use 4-Way Direction Button to highlight the Frequency selection item. Press SET Button to display submenu; or touch the screen to select the item.

  • Page 81: Language

    6.5.9 Language Turn on the power of the Digital Video Camera. Then select the Mode Button to “SET”. Move 4-Way Direction Button up and down to highlight the Language and press SET button to confirm or touch the screen to select. Press 4-Way Direction Button or touch the screen to select the following languages: English, German, French, Italian, Japanese, Spanish, Portuguese, Traditional Chinese,...

  • Page 82: Format

    6.5.10 Format This function allows you to format the memory card or the built-in memory. Turn on the power of Digital Video Camera and switch to SET Mode. Press 4-Way Direction Button to highlight Format item. Press SET Button or touch the screen to display submenu.

  • Page 83: File Number(Default: Series)

    6.5.11 File Number (Default: Series) This setting allows you to name the files. If “Series” is selected, the file name will follow the latest stored file instead. If “Reset” is selected, the next file name will start from 0001 even after formatting, deleting or inserting a new memory card.

  • Page 84: Lcd Brightness

    6.5.12 LCD brightness This function can be used to adjust the brightness of the screen. Turn on the Digital Video Camera and switch to SET Mode. Use 4-Way Direction Button to highlight LCD brightness item. Press SET Button to display submenu; or touch the screen to select the item.

  • Page 85: Instant Review

    6.5.13 Instant Review This function can be used to instantly browse the files after taking the picture. Turn on the Digital Video Camera and switch to SET Mode. Press 4-Way Direction Button to highlight Instant Review item. Press SET Button to display submenu; or touch the screen to select the item.

  • Page 86: Memory

    6.5.14 Memory Use this function to select data storage location. Turn on the Digital Video Camera and switch to SET Mode. Press 4-Way Direction Button to highlight Memory item. Press SET Button to display submenu; or Touch the screen to select the item. Press 4-Way Direction Button to select Internal, SD1, or SD2.

  • Page 87: Volume

    6.5.15 Volume Use this function to adjust the volume of sound. Turn on the Digital Video Camera and switch to SET Mode. Press the 4-Way Direction Button to highlight Volume item. Press SET Button to display submenu; or touch the screen to select the item. Press the 4-Way Direction Button to select High, Medium, or Low.

  • Page 88: Start-Up Logo

    6.5.16 Start-up LOGO Use this function to the image that is displayed on the LCD when the digital camcorder is turned on. Turn on the Digital Camcorder and switch to Setup Menu. Press the 4-Way Direction Button to highlight the Star-up Logo item.

  • Page 89: Face Detection

    6.5.17 Face Detection You can use the Face Detection function to detect faces in a scene automatically during a photo shoot. Turn on the Digital Camcorder and switch to Setup Menu. Press the 4-Way Direction Button to highlight the Face Detection item.

  • Page 90: Pc And Tv Connection

    7 PC and TV Connection 7.1 Connecting to the Computer As shown in the illustration, use the USB cable provided to connect the Digital Video Camera to a PC for file transmission, or use the Digital Video Camera as a Web camera for conferencing purpose. 7.2 Connecting to a Standard TV As shown in the illustration, use the video cable to connect the Digital Video Camera to a standard TV.

  • Page 91: Connecting To A Hd Tv

    7.3 Connecting to a HD TV As shown in the illustration, use the HDMI cable provided to connect the Digital Video Camera to a HD TV for high resolution picture display.

  • Page 92: Installing The Software

    8 Installing the Software Place the CD ROM attached into the CD player. If the CD is not executed automatically, please use Windows File Manager to execute the Install_CD.exe file in the CD. The following screen will be displayed. Press the Menu item and follow the Installation process and follow the instructions on-screen.

  • Page 93: Editing Software

    9 Editing Software ArcSoft Total Media Extreme (TME) ™ manages your media for you, and gives you tons of fun and exciting ways to create and share projects featuring your photo, video, and music files. Edit, enhance and add creative effects to your photos. You can Create your own movies or photo slide shows complete with soundtrack.

  • Page 94: Appendix

    10 Appendix Specifications Image sensor 1/2.5 inch. 5.0 mega pixels CMOS sensor 5.03 Mega pixels (2592 x 1944) Effective pixels Storage media SD card and SDHC card Supported. ISO Equipment Auto Color effect Normal/BW/Sepia Fixed lens Lens F/3.2, f=7.5mm Normal: 1.5m~infinity Focus range Macro: 16 cm Format: JPEG (DPOF, EXIF)
  • Page 95 LCD Display 3.0” Touch Panel screen(16:9) Range: < 2 m Flash light off, auto, fill-in Range: < 1.5m IR Night Vision Video Mode: On/Off White balance Auto / Daylight / Cloudy / Tungsten / Fluorescent Exposure -2.0 EV~+2.0 EV Self-Timer Off, 2 seconds, 10 seconds.

  • Page 96: Troubleshooting

    Troubleshooting Problem Possible Cause Solution 1. Please insert 1. Batteries are not batteries inserted Can not turn on the correctly. correctly. power of Digital Video Camera. 2. Replace the 2. Batteries are batteries. exhausted. 1. Power saving 1. Please turn on the mode already power again.
  • Page 97 All Buttons can not occurred when the camera and work or camera connecting the re-insert again. hangs. camera to other device. Technical support For technical assistance, free driver updates, product information, and news releases, visit the following web site: http://www.BenQ.com...
