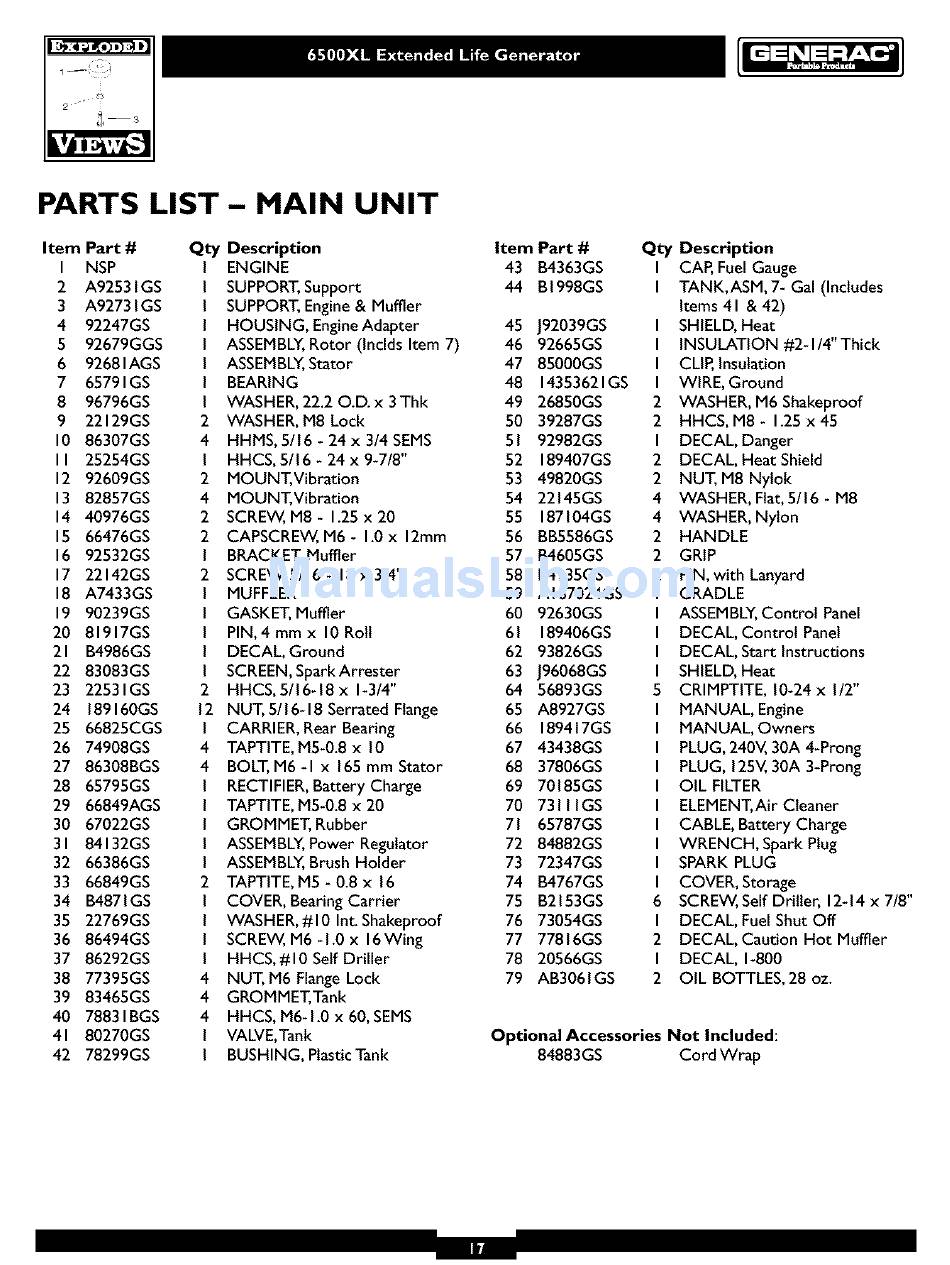

PARTS LIST- MAIN UNIT
Item Part #
I NSP
2 A92531GS
3 A92731GS
4 92247GS
5 92679GGS
6 92681AGS
7 65791GS
8 96796GS
9 22129GS
10 86307GS
II 25254GS
12 92609GS
13 82857GS
14 40976GS
15 66476GS
16 92532GS
17 22142GS
18 A7433GS
19 90239GS
20 81917GS
21 B4986GS
22 83083GS
23 22531GS
24 189160GS
25 66825CGS
26 74908GS
27 86308BGS
28 65795GS
29 66849AGS
30 67022GS
31 84132GS
32 66386GS
33 66849GS
34 B4871GS
35 22769GS
36 86494GS
37 86292GS
38 77395GS
39 83465GS
40 78831BGS
41 80270GS
42 78299GS
Qty
2
4
I
2
4
2
2
I
2
I
I
I
I
I
2
12
I
4
4
I
I
I
I
I
2
I
I
I
I
4
4
4
I
I
Description
ENGINE
SUPPORT,Support
SUPPORT,Engine & Muffler
HOUSING, EngineAdapter
ASSEMBLY, R otor (Inclds Item 7)
ASSEMBLY, Stator
BEARING
WASHER, 22.2 O.D. x 3 Thk
WASHER, M8 Lock
HHMS, 5/16 - 24 x 3/4 SEMS
HHCS, 5/16 - 24 x 9-7/8"
MOUNT, Vibration
MOUNT, Vibration
SCREW, M8 - 1.25 x 20
CAPSCREW, M6 - 1.0 x 12mm
BRACKET,Muffler
SCREW,5/16 - 18 x 3/4"
MUFFLER
GASKET, Muffler
PIN, 4 mm x 10 Rott
DECAL, Ground
SCREEN,Spark Arrester
HHCS, 5/16-18 x I-3/4"
NUT, 5/16-18 Serrated Flange
CARRIER, Rear Bearing
TAPTITE, M5-0.8 x 10
BOLT,M6 -I x 165 mm Stator
RECTIFIER,Battery Charge
TAPTITE, M5-0.8 x 20
GROMMET, Rubber
ASSEMBLY, P ower Regulator
ASSEMBLY, B rush Holder
TAPTITE, M5 - 0.8 x 16
COVER, Bearing Carrier
WASHER,#10 Int. Shakeproof
SCREW, M6 -I.0 x 16Wing
HHCS, # I0 Self Driller
NUT, M6 Flange Lock
GROMMET,Tank
HHCS, M6-1.0 x 60, SEMS
VALVE,Tank
BUSHING, PlasticTank
Item Part #
43 B4363GS
44 BI998GS
45 J92039GS
46 92665GS
47 85000GS
48 14353621GS
49 26850GS
50 39287GS
51 92982GS
52 189407GS
53 49820GS
54 22145GS
55 187104GS
56 BB5586GS
57 B4605GS
58 B4135GS
59 AI87024GS
60 92630GS
61 189406GS
62 93826GS
63 J96068GS
64 56893GS
65 A8927GS
66 189417GS
67 43438GS
68 37806GS
69 70185GS
70 731 I IGS
71 65787GS
72 84882GS
73 72347GS
74 B4767GS
75 B2153GS
76 73054GS
77 77816GS
78 20566GS
79 AB3061GS
Qty Description
CAP, Fuel Gauge
TANK,ASM, 7- Gal (Includes
Items 41 & 42)
SHIELD, Heat
INSULATION #2- I/4" Thick
CLIP,Insulation
WIRE, Ground
2 WASHER, M6 Shakeproof
2 HHCS, M8- 1.25x45
I DECAL, Danger
2 DECAL, Heat Shield
2 NUT, M8 Nylok
4 WASHER, FIat, 5/16- M8
4 WASHER, Nylon
2 HANDLE
2 GRIP
2 PIN, with Lanyard
CRADLE
ASSEMBLY, Control Panel
DECAL, Control Panel
DECAL, Start Instructions
SHIELD, Heat
CRIMPTITE, 10-24 x I/2"
MANUAL, Engine
MANUAL, Owners
PLUG, 240V,30A 4-Prong
PLUG, 125V,30A 3-Prong
OIL FILTER
ELEMENT, A ir Cleaner
CABLE, Battery Charge
WRENCH, Spark Plug
SPARK PLUG
COVER, Storage
6 SCREW,Self Driller, 12-14 x 7/8"
I DECAL, Fuel Shut Off
2 DECAL, Caution Hot Muffler
I DECAL, 1-800
2 OIL BOTTLES,28 oz.
Optional Accessories Not Included:
84883GS Cord Wrap
