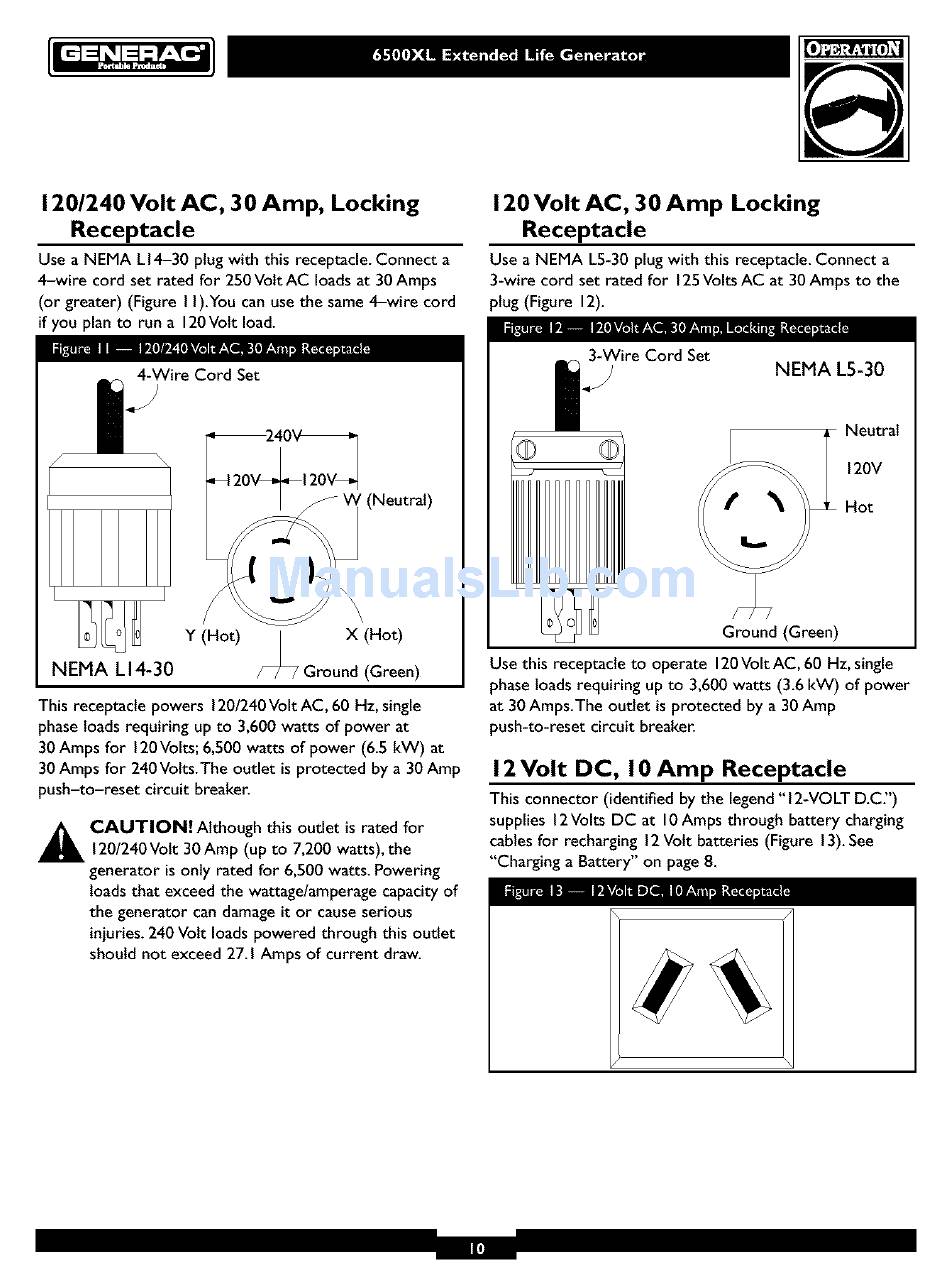

Generac Power Systems 6500XL Owner's Manual page 10

120/240 Volt AC, 30 Amp, Locking
Receptacle
Use a NEMA LI4-30 plug with this receptacle. Connect a
4-wire cord set rated for 250VoltAC loads at 30 Amps
(or greater) (Figure I I).You can use the same 4-wire cord
you plan to run a 120Volt load.
pa_ Ip,(o]kv_aF.'T o, . . -" ._ m
_l_ Ill IlP, Tolp,11loltllHr:T_r_l
4-Wire Cord Set
i
f
(Neutral)
Y (Hot) | X (Hot)
NEMA L 14-30 /_7 Ground
(Green)
This receptacle powers 120/240Volt AC, 60 Hz, single
phase loadsrequiring up to 3,600 watts of power at
30 Amps for 120Volts; 6,500 watts of power (6.5 kW) at
30 Amps for 240Volts.The outlet is protected by a 30 Amp
push-to-reset circuit breaker.
_ AUTION!Although this outlet is rated for
120/240Volt 30 Amp (up to 7,200 watts), the
generator is only rated for 6,500 watts. Powering
loads that exceed the wattage/amperage capacity of
the generator can damageit or cause serious
injuries. 240 Volt loadspowered through this outlet
should not exceed 27.1 Amps of current draw.
120 Volt AC, 30 Amp Locking
Receptacle
Use a NEMA L5-30 plug with this receptacle. Connect a
3-wire cord set rated for 125Volts AC at 30 Amps to the
plug (Figure 12).
3-Wire Cord Set
i NEMA L5-30
Neutral
120V
Hot
Ground (Green)
Use this receptacle to operate 120Volt AC, 60 Hz, single
phase loads requiring up to 3,600 watts (3.6 kW) of power
at 30 Amps.The outlet is protected by a 30 Amp
push-to-reset circuit breaker.
12 Volt DC, I 0 Amp Receptacle
This connector (identified by the legend "I2-VOLT D.C")
supplies 12Volts DC at I 0 Amps through battery charging
cables for recharging 12Volt batteries (Figure 13).See
"Charging a Battery" on page 8.
