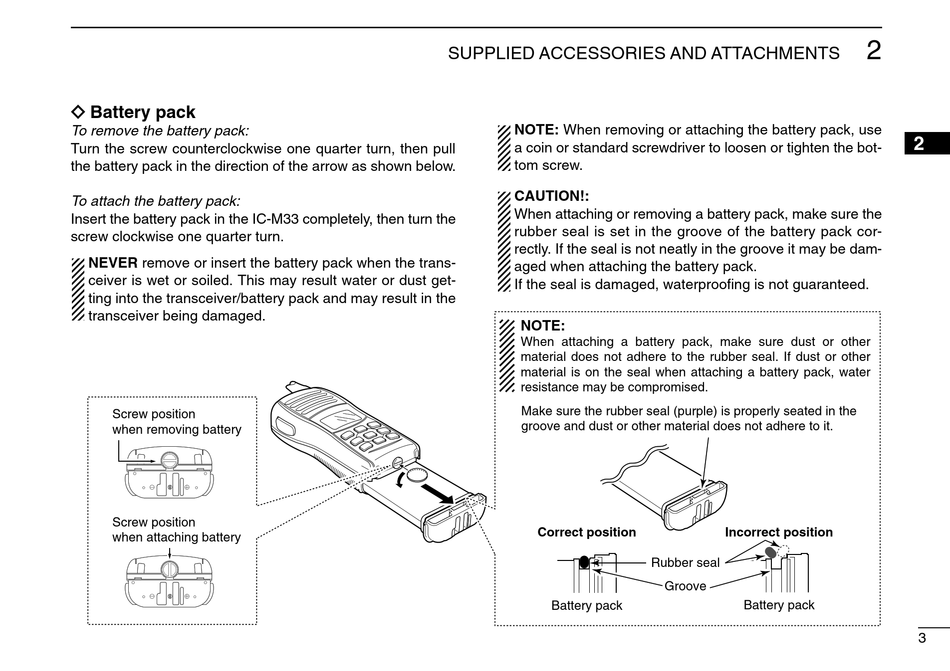

Supplied Accessories And Attachments - Icom IC-M33 Instruction Manual

ï Battery pack
To remove the battery pack:
Turn the screw counterclockwise one quarter turn, then pull
the battery pack in the direction of the arrow as shown below.
To attach the battery pack:
Insert the battery pack in the IC-M33 completely, then turn the
screw clockwise one quarter turn.
NEVER remove or insert the battery pack when the trans-
ceiver is wet or soiled. This may result water or dust get-
ting into the transceiver/battery pack and may result in the
transceiver being damaged.
Screw position
when removing battery
Screw position
when attaching battery

SUPPLIED ACCESSORIES AND ATTACHMENTS

NOTE: When removing or attaching the battery pack, use
a coin or standard screwdriver to loosen or tighten the bot-
tom screw.
CAUTION!:
When attaching or removing a battery pack, make sure the
rubber seal is set in the groove of the battery pack cor-
rectly. If the seal is not neatly in the groove it may be dam-
aged when attaching the battery pack.
If the seal is damaged, waterproofing is not guaranteed.
NOTE:
When attaching a battery pack, make sure dust or other
material does not adhere to the rubber seal. If dust or other
material is on the seal when attaching a battery pack, water
resistance may be compromised.
Make sure the rubber seal (purple) is properly seated in the
groove and dust or other material does not adhere to it.
Correct position
Battery pack
Incorrect position
Rubber seal
Groove
Battery pack
