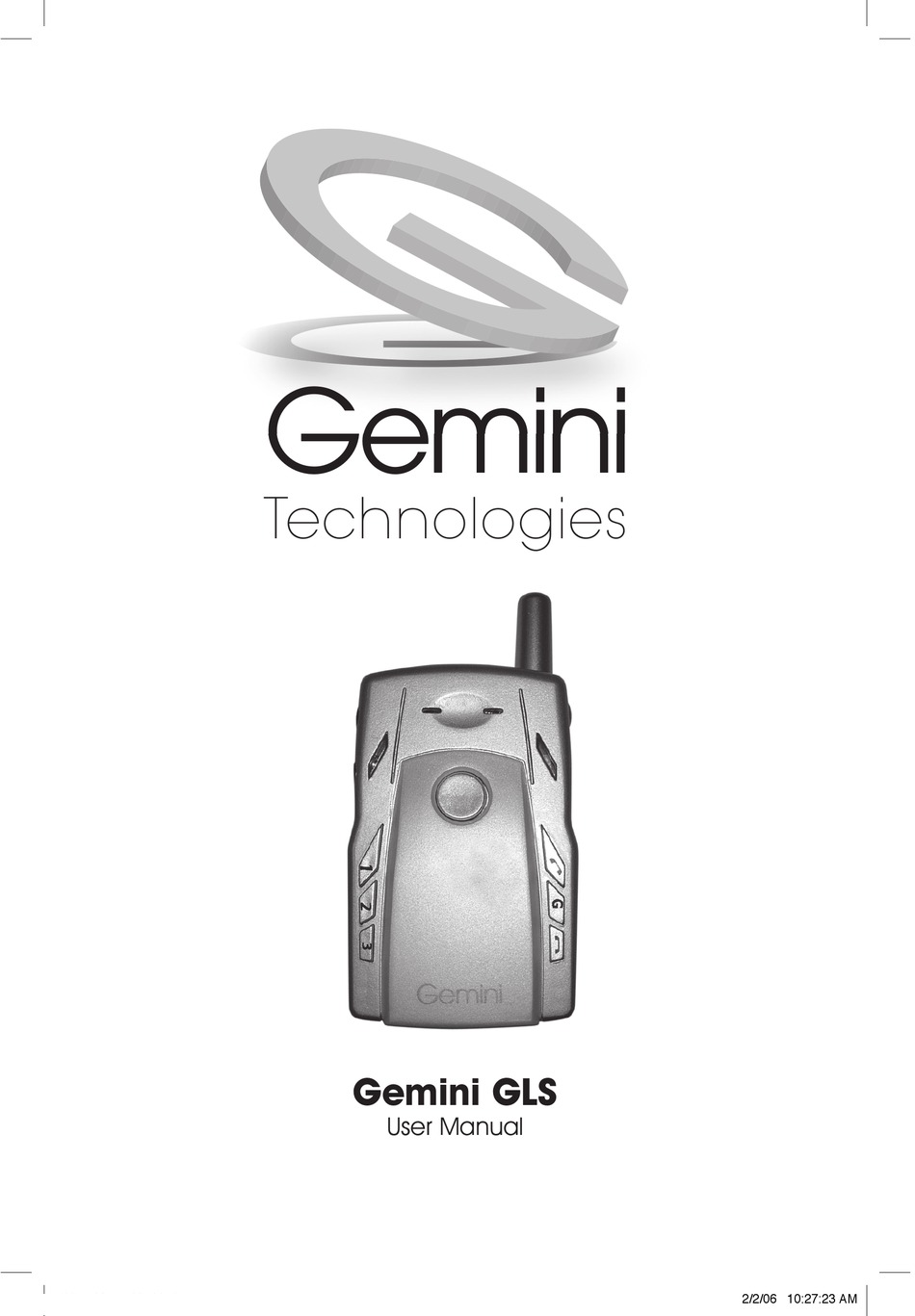

- Page 1 ������ ������ ������������ Gemini GLS User Manual User Manual.indd 1 2/2/06 10:27:23 AM...
-
Page 2: About Device
Gemini GLS About Device The simple, yet sporty and sleek Gemini GLS is a personal and portable tracking device unlike anything else. Always know where your child may be. Watch over loved ones who may need you. Track your company’s assets wherever they go. With just one push of a button, you can know within seconds the exact location your Gemini device.* Device Features... -
Page 3: Table Of Contents
Contents Packing List ............ii Description of Unit Front View . -
Page 4: Packing List
Packing List Gemini GLS Unit ������ ������ ������������ ������ ��� ���� ������ User’s Manual, Set Up Guide and Warranty Card • Contents of the manual are subject to change without notice. • Accessories may vary by region. Please consult your retailer. User Manual.indd 2 Home Charger Car Charger... -
Page 5: Description Of Unit
Description of Unit Front View ������� �������������� ���������� ������������ ������������ ������������ ����������������������� Signal Light LED light information for user (See “Description of Lights” on page 4 for details) SOS Button Reports to the control center by sending a text message when pressed, signaling an emergency. -
Page 6: Rear View
Description of Unit Rear View ������������� ����������� ����������������������������������������� Armband Holder Battery Cover Strap Mount Bottom View ������������ ������������������ On/Off Switch To turn power On/Off Battery Cover Lock To lock the battery cover User Manual.indd 2 (continued) For attaching armband to unit, can be attached if desired Removes easily to change the battery For attaching a strap or necklace to the unit 2/2/06 10:27:43 AM... -
Page 7: Left View
Description of Unit Left View ���������� ������������ ������������� ����������������� Right View ��������������������������������������� Microphone To speak into for voice calls Charger Jack For charging the battery of the main unit Earphone Jack For hands free function Music Ring Output Music ring for incoming call Volume/Test To adjust the volume during phone calls. -
Page 8: Description Of Lights
Description of Lights ������������ �������������� LED C IGHT Signal Light Blue Light stays on for approximately 2 minutes Blue Light blinks for approximately 2 minutes Green light blinks 4 times Blue and Green Lights blink alternately Red Lights stay on Off... -
Page 9: Buttons: Signal Light & Sound
Buttons: Signal Light & Sounds �������������� ���������� ������������ ������������ ������������ ������������������������ • Geofence and SOS Buttons MUST be held for at least 4 seconds, other buttons press for 2 seconds. UTTON Answer Button Geofence Button—press and hold for at least 4 sec- onds Hang-up Button Speed Dial 1... -
Page 10: Battery Tips
Battery Tips Battery life depends on the network, signal strength, temperature, features, and accessories in use. For maximum performance, please note the following guidelines: • New batteries or batteries stored for a long time may take more time to charge •... -
Page 11: Getting Started
Getting Started Charging the Battery • For the initial charging of the battery, it is recommended that the unit remain in the “Off ” postition. 1. Insert the Home Charger plug into “Charger Jack” on your Gemini unit (See “Description of Unit” on page 3 for location of jack). 2. -
Page 12: Speed Dial Buttons
Speed Dial Buttons The Speed Dial Buttons Have Three Functions: 1. The person carrying the unit may place a voice call to the numbers assigned to the speed dial buttons. (See Example 1: Placing a Voice Call, page 9). 2. Mobile numbers assigned to these buttons are able to request location information from the unit. -
Page 13: Example 1: Placing A Voice Call
Example 1: Placing a Voice Call By simply pressing the appropriate Speed Dial Button, the person carrying the unit may place a voice call only to the numbers assigned to these Speed Dial Buttons. ������������ ������������ ����������������������� In the example above, the unit is able to place a voice call to Mom’s Cell, Dad’s Cell, or Gemini Customer Service. -
Page 14: Example 2: How To Request A Position
Example 2: How to Request a Position Using the Internet Please visit www.geminitracking.com and log into your account. Once logged in, click on “Locate Unit”, select the unit you would like to request a position for and then click “Get Location”. Using a Telephone Only numbers stored in the Speed Dial Buttons may request a position. -
Page 15: Sos Button
SOS Button The SOS Button should ONLY be used for an emergency. By pressing and holding down the SOS Button for 4 seconds, a message is sent including the location to the contact you chose to be notified. ���������� ������������ ����������... -
Page 16: Geofence Button
Geofence (Safety Zone) Button Internet Setup For more information and to program the Geofence (also called Safety Zone), please visit www.geminitracking.com. Once you are logged into your account on the Internet, click on “Set Boundaries” and follow the instructions. If the unit goes outside of this highlighted area a text message is sent to the speed dial numbers that you set to be alerted. -
Page 17: Receiving/Testing Signals
Receiving/Testing Signals Receiving GPS & GSM (cellular) Signals Every time you turn your unit on, it immediately starts searching for a GPS signal, then a GSM (cellular) signal. The following light sequence indicates which signals have been received: 1. Signal light stays solid blue for approximately 2 minutes while searching for a GPS signal. -
Page 18: Testing Gps & Gsm (Cellular) Signals
Quick Reference Guide UNCTIONS Sending Press and hold the SOS Button for a minimum of 4 seconds. The Signal an SOS light will be green while the unit reports the emergency to the control panel and to the speed dial numbers that you set. Location Mobile phone numbers that have been preset and stored in Speed Request—... -
Page 19: Specifications
Specifications PECIFICATION Dimension L:73mm W:45mm H:20mm Weight 170 g ± 5 g Frequencies 900/1800/1900MHz 850/1800/1900MHz Storage temperature Between –10°C and + 55°C Battery capacity 850 mA Power consumption Standby mode: <45mA, GSM Operating: < 250mA User Manual.indd 15 2/2/06 10:27:55 AM... -
Page 20: Helpful Hints
Helpful Hints • For faster charging, turn your unit Off while charging or remove the battery and charge it directly using your desktop charger. (Note: Unit will not operate while in Off position or with the battery removed.) • Signal light will always be red when the unit is in the On position while charging, even when the battery is fully charged. -
Page 21: Troubleshooting
Troubleshooting ROBLEM Buttons not working Unable to find GPS signal Unable to find GSM signal Speed Dial 1 & 2 not work- ing (Speed Dial 3 is reserved for Gemini Customer Service) SOS Button not working Incoming calls hard to hear For any issues not listed here, please login to your account at www.geminitracking.com and refer to the online Help. -
Page 22: Limited Warranty
Limited Warranty Gemini warrants to the original purchaser only that the Product will be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. Gemini’s warranty shall not apply to any Product: (i) subjected to accident, misuse, neglect, alteration, acts of God, improper handling, improper transport, improper storage, improper use or application, or unauthorized repair;... - Page 23 the unit back to you upon completion of repairs. We may use functionally equivalent reconditioned/refurbished/pre-owned or new products or parts. To take advantage of this Limited Warranty you will be required to either 1) return the below warranty registration card within 30 days of purchase or 2) supply the original packing slip or dated bill of sale (invoice) when you return the product for warranty repairs.
- Page 24 ������ ������ ������������ All rights reserved. Unauthorized duplication of this manual is prohibited. User Manual.indd 20 2/2/06 10:27:57 AM...
