Summary of Contents for Electrolux EMS17206

  • Page 1: Microwave Oven

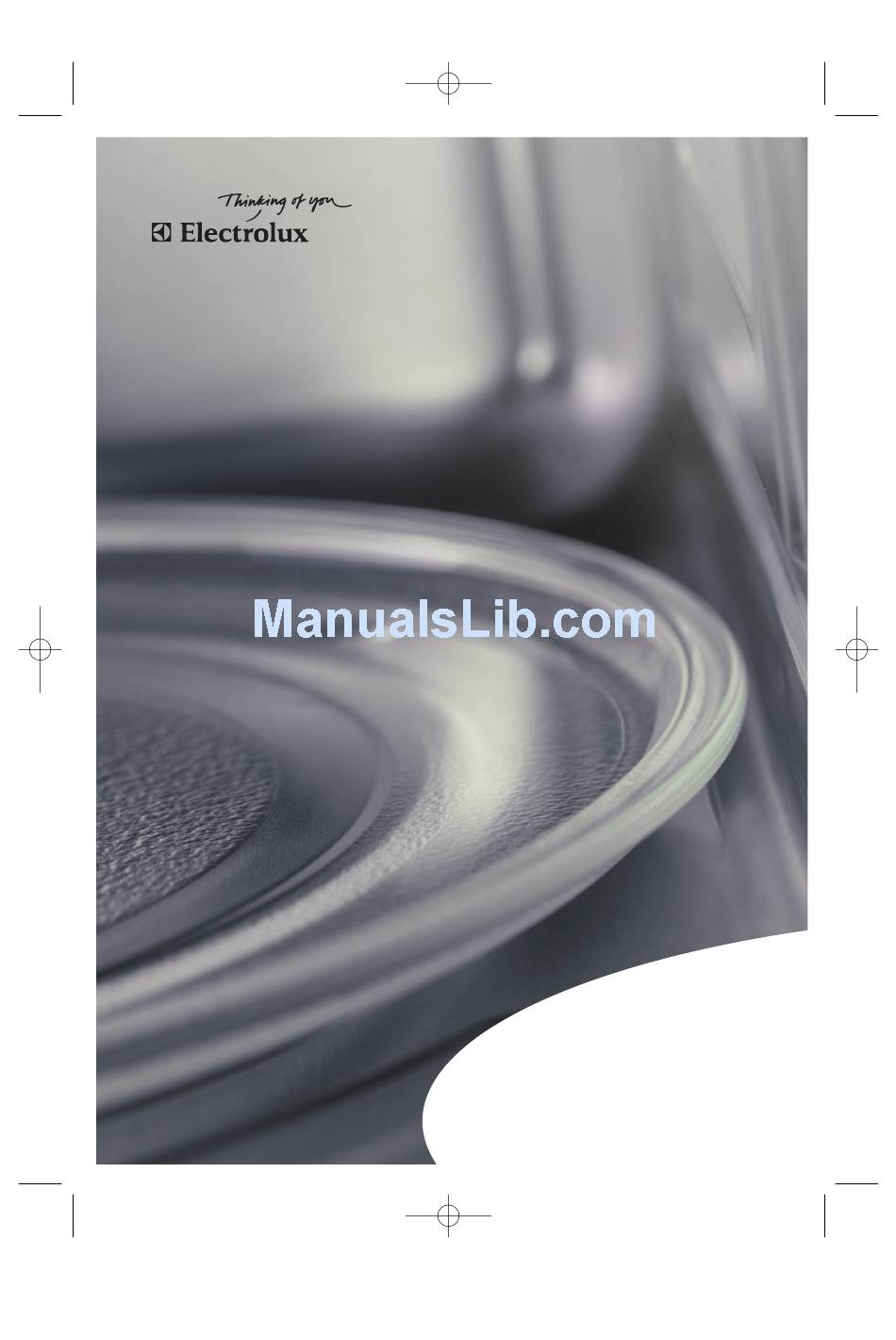

    EX-22F-EU Covers 19/9/06 10:15 Page 1 User Manual Microwave oven EMS17206...
  • Page 2 EX-22F-EU Covers 19/9/06 10:15 Page 2 We were thinking of you when we made this product...
  • Page 3 EX-22F-EU Covers 19/9/06 10:15 Page 3 electrolux Welcome to the world of Electrolux You’ve chosen a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. Electrolux ambition is to offer a wide variety of quality products that would make your life even more com- fortable.

  • Page 4: Table Of Contents

    EX-22F-EU Covers 19/9/06 10:15 Page 4 electrolux Contents Safety information Product description Before first use Operation Programme charts Recipes Care & cleaning Troubleshooting Specification Installation Environmental information Guarantee / Customer service...

  • Page 5: Safety Information

    EX-22F-EU English 19/9/06 10:17 Page 5 electrolux safety information Important safety instructions: Read carefully & keep for future reference To avoid the danger of fire Do not place flammable materials near the oven or ventilation openings. Do The microwave oven should not be not block the ventilation openings.
  • Page 6 EX-22F-EU English 19/9/06 10:17 Page 6 electrolux safety information Never adjust, repair or modify the Do not attempt to replace the oven oven yourself. It is hazardous for lamp yourself or allow anyone who is not anyone other than a competent authorised by ELECTROLUX to do so.
  • Page 7 EX-22F-EU English 19/9/06 10:17 Page 7 electrolux safety information To avoid misuse by children Do not cook eggs in their shells and whole hard boiled eggs should not be heated in microwave ovens Warning: Only allow children to use since they may explode even after the oven without supervision when microwave cooking has ended.
  • Page 8 EX-22F-EU English 19/9/06 10:17 Page 8 electrolux safety information Only use the turntable and the turntable support designed for this oven. Do not operate the oven without the turntable. To prevent the turntable from breaking: a) Before cleaning the turntable with water, leave the turntable to cool.

  • Page 9: Product Description

    EX-22F-EU English 19/9/06 10:17 Page 9 electrolux product description Product description 1 Front trim 8 Door seals and sealing surfaces 2 Oven lamp 9 Fixing points (4 points) 3 Control panel 10 Ventilation openings 4 Door opening button 11 Outer cover 5 Waveguide cover 12 Rear cabinet 6 Oven cavity...
  • Page 10 EX-22F-EU English 19/9/06 10:17 Page 10 electrolux product description Control panel 1 Digital display 2 Indicators The appropriate indicator will flash or light up, just above each symbol according to the instruction. When an indicator is flashing, press the appropriate button (having the same symbol) or carry out the necessary operation.
  • Page 11 EX-22F-EU English 19/9/06 10:17 Page 11 electrolux product description Accessories Check to make sure the following accessories are provided: (15) Turntable (16) Turntable support (17) 4 fixing screws (not shown) • Place the turntable support in the seal packing on the floor of the cavity.

  • Page 12: Before First Use

    EX-22F-EU English 19/9/06 10:17 Page 12 electrolux operation Before first use Before operation Example: To set the 24 hour clock to 23:35. 1. Plug in the oven. 1. Choose the clock function. (12 2. The oven display will flash: hour clock). x1 and hold for 3 seconds 3.

  • Page 13: Operation

    EX-22F-EU English 19/9/06 10:17 Page 13 electrolux operation Notes: Round/oval dishes are preferable to 1. You can rotate the TIMER/WEIGHT square/oblong ones, as the food in the knob clockwise or counter-clockwise. corners tends to overcook. A variety of 2. Press the STOP button if you make a cookware can be used as listed on mistake during programming.
  • Page 14 EX-22F-EU English 19/9/06 10:17 Page 14 electrolux operation Food characteristics Composition Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating time. Care should be taken as overheating can lead to fire. Density Food density will affect the amount of cooking time needed. Light porous foods, such as cakes or bread, cook more quickly than heavy, dense foods, such as roasts and casseroles.
  • Page 15 EX-22F-EU English 19/9/06 10:17 Page 15 electrolux operation Browning agents After more than 15 minutes cooking time food acquires a brownness, although this is not comparable to the deep brownness and crispness obtained through conventional cooking. In order to obtain an appetising brown colour you can use browning agents.
  • Page 16 EX-22F-EU English 19/9/06 10:17 Page 16 electrolux operation Cookware Microwave Comments safe Aluminium Foil/ Small pieces of aluminium foil can be used to shield food Foil Containers from overheating. Keep foil at least 2 cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specified by the manufacturer, e.g.

  • Page 17: Microwave Power Levels

    EX-22F-EU English 19/9/06 10:17 Page 17 electrolux operation Microwave power levels Your oven has 5 power levels. To choose the power level for cooking, follow the advice given in the recipe section. Generally the following recommendations apply: Power Suggested use setting 800 W used for fast cooking or reheating e.g.

  • Page 18: Manual Operation

    EX-22F-EU English 19/9/06 10:17 Page 18 electrolux operation Manual operation Your oven can be programmed for up 3. Press the START/+30 button once to 90 minutes. (90.00) The input unit of to begin cooking. cooking (defrosting) time varies from 10 seconds to five minutes. It depends on the total length of the cooking (defrosting) time as shown in the table.

  • Page 19: Other Convenient Functions

    EX-22F-EU English 19/9/06 10:17 Page 19 electrolux operation Other convenient functions 1. Multiple sequence cooking Stage 2 3. Enter the desired cooking time by rotating the TIMER/WEIGHT knob. A maximum of 3 sequences can be input, consisting of manual cooking time and mode.
  • Page 20 EX-22F-EU English 19/9/06 10:17 Page 20 electrolux operation 2. Add 30 seconds function 4. Safety lock function The START/+30 button allows you to To set the safety lock function operate the two following functions: 1. Press and hold the STOP key for 3 seconds.

  • Page 21: Auto Programmes Operation

    EX-22F-EU English 19/9/06 10:17 Page 21 electrolux operation Auto programmes operation The AUTO PROGRAMMES function The final temperature will vary automatically works out the correct according to the initial temperature. cooking mode and cooking time. You Check food is piping hot after can choose from 7 AUTO COOK menus cooking.

  • Page 22: Programme Charts

    EX-22F-EU English 19/9/06 10:17 Page 22 electrolux programme charts Programme charts Auto programmes chart Button Autocook Weight (increasing Procedure weight) / utensils AC-1 Cook 0,1 - 0,6 kg (100 g) • Add 1 tbsp water per 100 g and Frozen Vegetables (initial temp -18 °C) salt as desired.

  • Page 23: Auto Defrost Chart

    EX-22F-EU English 19/9/06 10:17 Page 23 electrolux programme charts Button Autocook Weight (increasing Procedure weight) / utensils AC-5 Cook 0,1 - 0,8 kg (100 g) Boiled Potatoes: Peel the potatoes Boiled Potatoes (initial temp 20 °C) and cut them into similar sized pieces. Jacket Potatoes Bowl &...
  • Page 24 EX-22F-EU English 19/9/06 10:17 Page 24 electrolux programme charts Button Auto defrost Weight (increasing Procedure weight) / utensils Ad-3 Defrost 0,9 - 1,5 kg (100 g) • Place the poultry in a flan dish in the Poultry (initial temp -18 °C) centre of the turntable.
  • Page 25 EX-22F-EU English 19/9/06 10:17 Page 25 electrolux programme charts Recipes for auto programmes AC-6 & AC-7 Preparation Fish fillet with sauce (AC-6) 1. Mix ingredients for the sauce. Fish fillet with piquant sauce 2. Place the fish fillet in a round gratin 0,4 kg 0,8 kg 1,2 kg dish with the thin ends toward the 140 g 280 g 420 g canned tomatoes...

  • Page 26: Cooking Charts

    EX-22F-EU English 19/9/06 10:17 Page 26 electrolux programme charts Preparation Gratin (AC-7) 1. Grease the gratin dish and place Potato-courgette-gratin alternate layers of potato slices and 0,5 kg 1,0 kg 1,5 kg courgette in the dish. 200 g 400 g 600 g boiled potatoes 2.
  • Page 27 EX-22F-EU English 19/9/06 10:17 Page 27 electrolux programme charts Defrosting & cooking Food Quantity Power Time Added Hints Standing -Setting- -Min- water time -tbsps- -Min- Fish fillet 800 W 10-12 cover One Plate Meal 800 W 9-11 cover, stir after 6 minutes Broccoli 800 W cover, stir halfway through...

  • Page 28: Recipes

    EX-22F-EU English 19/9/06 10:17 Page 28 electrolux programme charts Cooking meat, fish, poultry & fresh vegetables Food Quantity Power Time Hints Standing -Setting- -Min- time -Min- Roasts 800 W 8-10* season to taste, place in a shallow (pork, veal, 400 W 10-12 flan dish turn over after * lamb) 1000...
  • Page 29 EX-22F-EU English 19/9/06 10:17 Page 29 electrolux recipes Mushroom soup 1. Place the vegetables and the stock Total cooking time: approx. 13-17 min. in the bowl, cover and cook. Utensil: Bowl with Lid (2 l Capacity) 8-9 min. 800 W Ingredients 2.
  • Page 30 EX-22F-EU English 19/9/06 10:17 Page 30 electrolux recipes Lasagne 1. Cut the tomatoes into slices, mix with Total cooking time 22-26 min. the ham and onion, garlic, minced Utensils: Bowl with lid (2 l capacity) meat and mashed tomato. Season shallow square soufflé...
  • Page 31 EX-22F-EU English 19/9/06 10:17 Page 31 electrolux recipes Sole fillets 1. Wash the sole fillets and pat them Total cooking time: approx. 13-16 min. dry. Remove any bones. Utensils: shallow,oval oven dish with 2. Cut the lemon and the tomatoes microwave, cling film into thin slices.
  • Page 32 EX-22F-EU English 19/9/06 10:17 Page 32 electrolux recipes Baked potatoes 1. Place the potatoes in a dish, add Total cooking time 12-16 min. the water, cover and cook. Utensils: Bowl with lid (2 l capacity) Rearrange halfway through cooking. 8-10 min. 800 W China plate Ingredients...

  • Page 33: Care & Cleaning

    EX-22F-EU English 19/9/06 10:17 Page 33 electrolux care & cleaning Care & cleaning Oven interior 1. For cleaning, wipe any spatters or CAUTION: DO NOT USE spills with a soft damp cloth or COMMERCIAL OVEN CLEANERS, sponge after each use while the STEAM CLEANERS, ABRASIVE, oven is still warm.

  • Page 34: Troubleshooting

    EX-22F-EU English 19/9/06 10:17 Page 34 electrolux troubleshooting Troubleshooting Symptom Possible symptoms/remedies ... the microwave appliance is not Check that working properly? - the fuses in the fuse box are working, - there has not been a power outage, - If the fuses continue to blow, please contact a qualified electrician.

  • Page 35: Specification

    EX-22F-EU English 19/9/06 10:17 Page 35 electrolux specifications Specifications AC Line Voltage : 230 V, 50 Hz, single phase Distribution line fuse/circuit breaker : Minimum 10 A AC Power required: Microwave : 1.2 kW Output power: Microwave : 800 W (IEC 60705) : 2450 MHz * (Group 2, Class B) Microwave Frequency : 592 mm (W) x 370 mm (H) x 316 mm (D)

  • Page 36: Installation

    EX-22F-EU English 19/9/06 10:17 Page 36 electrolux installation Installation Installing the appliance 4. Fit the appliance into the kitchen cupboard slowly, and without force, until the front frame of the 1. Remove all packaging and check oven seals against the front carefully for any signs of damage.
  • Page 37 EX-22F-EU English 19/9/06 10:17 Page 37 electrolux installation Safe use of the appliance Position Niche Size Chimney (min) Between Cupboard If fitting the microwave in position & Ceiling B or C: 560x550x360 • The cupboard must be a minimum 560x300x350 of 500 mm (E) above the worktop 560x300x360 and must not be installed directly...
  • Page 38 EX-22F-EU English 19/9/06 10:17 Page 38 electrolux installation Connecting the appliance to Electrical Connections the power supply • The electrical outlet should be WARNING: THIS APPLIANCE readily accessible so that the MUST BE EARTHED. unit can be unplugged easily in The manufacturer declines any an emergency.

  • Page 39: Environmental Information

    EX-22F-EU English 19/9/06 10:17 Page 39 electrolux environmental information Environmental information Ecologically responsible disposal The symbol on the product or on of packaging materials and old its packaging indicates that this appliances product may not be treated as household waste. Instead it shall be Packaging materials handed over to the applicable Electrolux microwave ovens require...

  • Page 40: Guarantee / Customer Service

    EX-22F-EU English 19/9/06 10:17 Page 40 electrolux guarantee/customer service Guarantee / Customer service Standard guarantee conditions • Appliances found to be in use We, Electrolux, undertake that if within within a commercial environment, 12 months of the date of the purchase plus those which are subject to this Electrolux appliance or any part rental agreements.
  • Page 41 EX-22F-EU English 19/9/06 10:17 Page 41 electrolux guarantee/customer service Customer care • The appliance is installed and used For general enquiries concerning your in accordance with instructions Electrolux appliance, or for further issued by Electrolux and is only information on Electrolux products used within the home i.e.
  • Page 42 EX-22F-EU English 19/9/06 10:17 Page 42 electrolux www.electrolux.com ¤ Albania +35 5 4 261 450 Rr. Pjeter Bogdani Nr. 7 Tirane Belgique/België/ +32 2 363 04 44 Bergensesteenweg 719, 1502 Lembeek Belgien ˘ Cjeská republika +420 2 61 12 61 12 Budejovická...
  • Page 43 EX-22F-EU Covers 19/9/06 10:15 Page 43...
  • Page 44 EX-22F-EU Covers 19/9/06 10:15 Page 44 www.electrolux.com www.electrolux.co.uk TINS-A498URR0...
