Electrolux ESL6115 Instruction Book

Hide thumbs


D i s h w a s h e r
Model ESL 6115
Instruction book


Table of Contents

  Also See for Electrolux ESL6115

  Related Manuals for Electrolux ESL6115

  Summary of Contents for Electrolux ESL6115

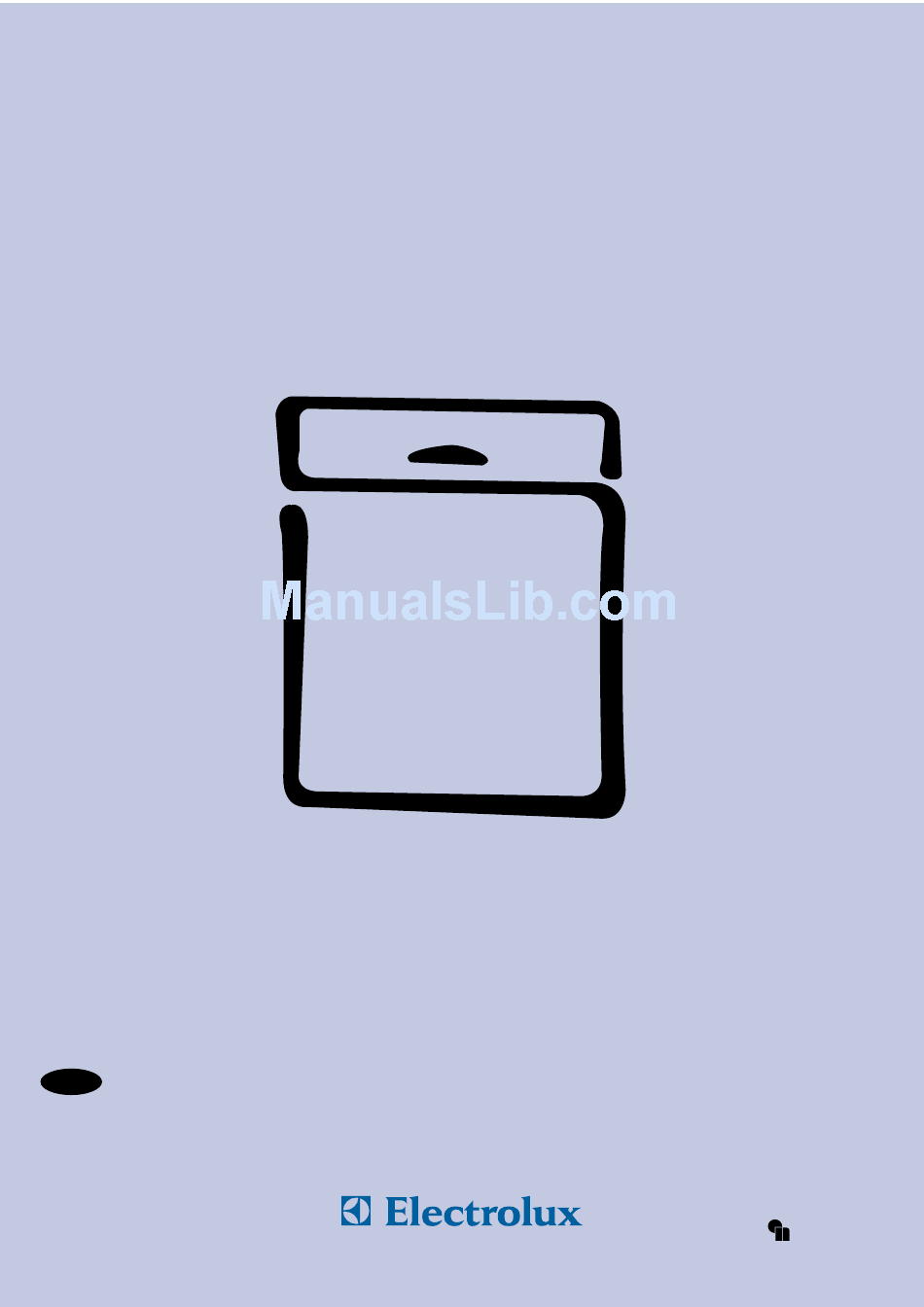

  • Page 1 D i s h w a s h e r Model ESL 6115 Instruction book 09/05...
  • Page 2: Table Of Contents

    Contents Safety instructions Installation instructions Building-in Disposal Levelling Fixing to adjacent units Economical and ecological dishwashing Water supply connections Description of the appliance Water outlet hose connection Electrical connection The control panel Audible signals Hints for test centres Prior to using for the first time Setting the water softener Filling with dishwasher salt Rinse aid...
  • Page 3: Safety Instructions

    Safety instructions It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.
  • Page 4: Description Of The Appliance

    Description of the appliance Upper basket stop Water hardness dial Salt container Detergent dispenser Control panel Rating plate Rinse aid dispenser Filters Lower spray arm 10. Upper spray arm 11. Upper basket...
  • Page 5: The Control Panel

    The control panel Washing programmes On/Off button Delay start button Indicator lights Programme selection/cancel button Programme indicator lights "Programme selection/cancel" button: Audible signals selection of a washing programme occurs by the means of this Audible signals have been introduced to help indicate which button, press it until the indicator light corresponding to the operations the dishwasher is performing.
  • Page 6: Prior To Using For The First Time

    Prior to using for the first time Before using your dishwasher for the first time: b) Setting electronically 1. Ensure that the electrical and water connections comply The dishwasher is factory set at level 5. with the installation instructions 2. Remove all packaging from inside the appliance 1.
  • Page 7: Filling With Dishwasher Salt

    Filling with dishwasher salt Rinse aid Only use salt specifically designed for use in Rinse aid is automatically added during the last rinse, ensuring dishwashers. thorough rinsing, and spot and streak free drying. All other types of salt not specifically designed for use in The dispenser, which is positioned inside the door, holds about a dishwasher, especially table salt, will damage the water 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing...
  • Page 8: In Daily Use

    In daily use Check if it’s necessary to refill with dishwasher salt or rinse Loading cutlery and dishes Sponges, household cloths and any object that can Load cutlery and dishes into the dishwasher. absorb water may not be washed in the dishwasher. Fill with dishwasher detergent .
  • Page 9: The Upper Basket

    The upper basket Use of detergent The upper basket is Only use detergents specifically designed for use in designed for plates (dessert dishwashers. plates, saucers, dinner plates We recommend the use of Finish detergents. of up to 24 cm in diameter), Using no more then the correct amount of detergent salad bowls, cups and contributes to reducing pollution.
  • Page 10: Different Kinds Of Detergent

    Different kinds of detergent Detergent tablets Use of "3 in 1" combi detergents Detergent tablets from different manufactures dissolve at These products are detergents with a combined cleaning, different rates. For this reason, some detergent tablets do not rinsing and salt function. attain their full cleaning power during short washing 1.
  • Page 11: Washing Programmes

    Washing programmes Programme Degree of soil Cycle description (3) Consumption values Energy Water Programme type of load consumption consumption duration (in kWh) (in litres) (in minutes) Hot prewash Main wash up to 70°C Heavy soil. Intensive 70°C 2 warm rinses Crockery, cutlery, pots 85 - 95 1,7 - 1,9...
  • Page 12: Starting A Washing Programme

    Starting a washing programme In this fully integrated appliance the controls are located on the It is now possible to select another washing programme. top of the door. When selecting a washing programme, the If a new washing programme will be selected, check that door needs to be slightly open.
  • Page 13: Maintenance And Cleaning

    Maintenance and cleaning Clean the external surfaces of the machine and control panel Attention! with a damp soft cloth. If necessary use only neutral Under no circumstances may the dishwasher be used without detergents. Never use abrasive products, scouring pads or filters.
  • Page 14: What To Do, When

    What to do, when... Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the instructions given here, without calling out an engineer..a fault code appears The dishwasher will not start or stops during operation. Open the dishwasher’s door.
  • Page 15: The Wash Results Are Not Satisfactory

    ...the wash results are not satisfactory The dishes are not clean The wrong washing programme has been selected. The dishes were arranged in such a way as to stop water reaching all parts of the surface. The baskets must not be overloaded. The spray arms do not rotate freely due to wrong arrangement of the load.
  • Page 16: Service And Spare Parts

    Service and Spare Parts In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local Service Force Centre by telephoning: 08705 929929 Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
  • Page 17: Guarantee Conditions

    Guarantee Conditions Standard Guarantee Conditions European Guarantee We, Electrolux, undertake that if within 12 months of the date If you should move to another country within Europe then your of purchase this Electrolux appliance or any part thereof is guarantee moves with you to your new home subject to the proved to be defective by reason only of faulty workmanship or following qualifications: materials, we will, at our option repair or replace the same...
  • Page 18: Technical Specifications

    Installation instructions Any electrical and/or plumbing work required to install Water supply connections this appliance should be carried out by a qualified We recommend that this dishwasher is connected to your cold electrician and/or plumber or competent person. water supply. Remove all packaging before positioning the machine.
  • Page 19: Water Outlet Hose Connection

    Water outlet hose connection Electrical connection The end of the drain hose can be connected in the following WARNING: THIS APPLIANCE MUST BE EARTHED. ways: The manufacturer declines any responsibility 1. To the sink outlet spigot, securing it to the underside of the should this safety measure not be observed.
  • Page 20: Hints For Test Centres

    Hints for test centres Testing in accordance with EN 60704 must be carried out with appliance fully loaded and using the test programme (see "Washing programmes" chart). Test in accordance with EN 50242 must be carried out when the salt dispenser and rinse aid container have been filled with salt and rinse aid respectively and using the test programme (see "Washing programmes"...
  • Page 24 The Electrolux Group. The World’s No.1 choice. The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. 14 billion USD in more than 150 countries around the world.
