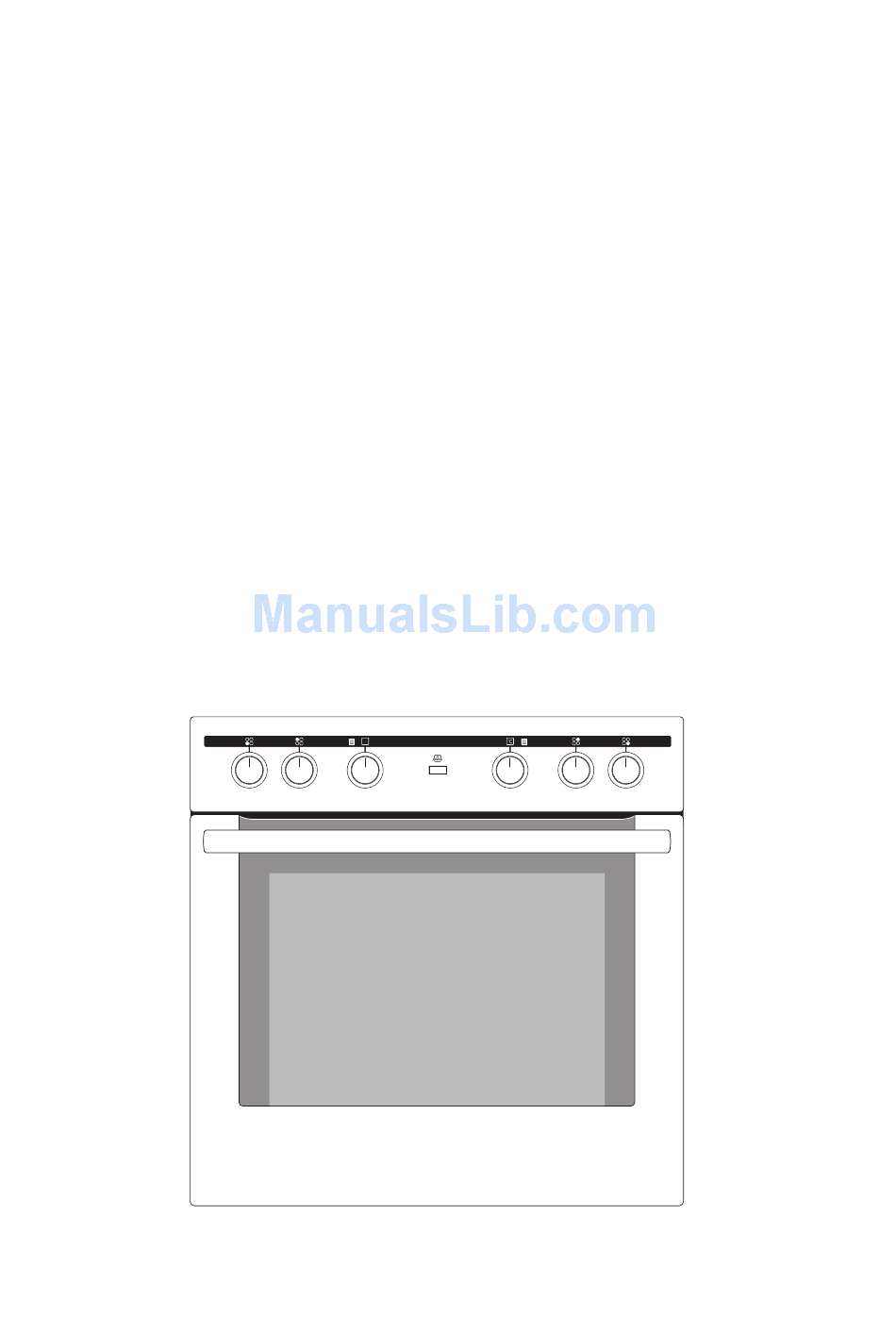

- Page 1 COMPETENCE E3051-4 Built-In Electric Oven Operating Instructions...
-
Page 2: Dear Customer
Dear Customer, Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appli- ance. The following symbols are used in the text: Safety instructions Warning! Information that affects your personal safety. Important! Information that prevents damage to the appliance. -
Page 3: Table Of Contents
Contents Operating Instructions ........Safety instructions. - Page 4 Cleaning and Care ..........36 Outside of the appliance.
-
Page 5: Operating Instructions
Operating Instructions Safety instructions This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC – 93/68/EEC dated 22.07.1993 CE Marking Directive Electrical safety • This appliance must be only connected by a registered electrician. •... -
Page 6: How To Avoid Damage To The Appliance
How to avoid damage to the appliance • Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on the oven floor, as the heat that builds up will dam- age the oven enamel. •... -
Page 7: Description Of The Appliance
Description of the Appliance General Overview Control panel Door handle Full glass door... -
Page 8: Control Panel
Control Panel Oven Power Indicator Temperature Pilot Light Low Temperature Temperature selector Oven Functions Hob Cooking Zone Control Hob Cooking Zone Control Oven Features Top heat and heating elements Oven lighting Shelf positions Fat Filter Fan heating element Bottom Heat Oven shelf runners, removable... -
Page 9: Oven Accessories
Oven steam vent The steam from the oven is fed di- rectly upwards via the duct in the rear of the cooking surface. Oven accessories Oven shelf For cookware, cake tins, roasts and grilled foods. Baking tray For cakes and biscuits. Roasting Pan For baking and roasting or as a pan for collecting fat. -
Page 10: Before Using For The First Time
Before Using for the first time Initial Cleaning Before using the oven for the first time you should clean it thoroughly. Caution: Do not use any caustic, abrasive cleaners! The surface could be damaged. To clean metal fronts use commercially available cleaning agents. 1. -
Page 11: Using The Rings
Using the Rings Also refer to the operating instructions for your built-in hob. It con- tains important information on ovenware, operation, cleaning and care. Heat settings • You may select the heat settings within the range of settings 1-9. • Intermediate positions may be selected between settings 2 and 7. 1 = lowest heat setting 9 = highest heat setting Switch the cooking zone off approx. -
Page 12: Setting The Heat Setting
Setting the heat setting 1. Select the heat setting. 2. To end the cooking process, turn back to the Off position. The corresponding ring pilot light is lit while the ring is operating. -
Page 13: Using The Oven
Using the Oven The oven is equipped with retractable buttons for “Oven functions” and “Temperature selection”. To use, press the relevant button. The button then sticks out. Switching the Oven On and Off Oven Power Indicator Temperature Pilot Light Low Temperature Cook- Temperature selector Oven Functions 1. - Page 14 Gar Control This function makes it possible to save energy by the deliberate use of residual heat. After the oven is switched off, the Gar Control indicator lights up. As long as the indicator is lit, the temperature in the oven is high enough to finish the cooking process.
-
Page 15: Oven Functions
Oven Functions The oven has the following functions: Heating element/ Oven function Application Light Using this function you can light up the oven interior, e.g. for cleaning. Fan-assisted For baking on up to two oven Top heat, bottom- circulation levels. heat, fan Set the oven temperatures 20-40 °C lower than when using Con-... -
Page 16: Inserting The Oven Shelf, Baking Tray And Roasting Pan
Inserting the Oven Shelf, Baking Tray and Roasting Pan Shelf runner safety and anti-tip device As a shelf runner safety device, all insertable components have a small curved indentation at the bottom on the right and left-hand edge. Always insert insertable components so that this indentation is at the back of the oven interior. -
Page 17: Inserting/Removing The Grease Filter
Inserting/Removing the Grease Filter Only use the grease filter when roasting to protect the rear heating elements from fat splashes. Inserting the grease filter Hold the grease filter by the grip and insert the two mounts downwards into the opening on the rear wall of theoven (fan opening). -
Page 18: Uses, Tables And Tips
Uses, Tables and Tips Cooking table The information given in the following table is for guidance only. Heat Cooking- Cooking set- suitable for Tips/Hints process time ting Residual heat, Off posi- tion Keeping Keeping cooked foods food as required Cover warm warm Hollandaise sauce,... - Page 19 We recommend when boiling or searing foods using the highest heat setting at first and then letting foods requiring a longer cooking time finish cooking on the desired heat setting. Overheated fats and oils can ignite quickly. If you are cooking foods in fat or oil (e.g.
-
Page 20: Baking
Baking Oven function: Fan-assisted circulation , Fan cooking Conventional Baking tins • For Conventional , dark metal and non-stick tins are suitable. • For Fan-assisted circulation or Fan cooking , bright metal tins are also suitable. Oven levels • Baking with Conventional and Fan-assisted circulation is possi- ble on one oven level. - Page 21 General Instructions • Insert the tray with the bevel at the front. • With Conventional or Fan-assisted circulation you can also bake with two tins next to one another on the oven shelf at the same time. This does not significantly increase baking time. When frozen foods are used the trays inserted may distort during cook- ing.
-
Page 22: Baking Table
Baking table Time Type of Shelf Tempera- Ovenfunction Hours baking position ture °C mins. Baking in tins Ring cake or brioche Fan-assisted 150-160 0:50-1:10 circulation Madeira cake/Fruitcakes Fan-assisted 140-160 1:10-1:30 circulation Sponge cake Fan-assisted 0:25-0:40 circulation Sponge cake Conventional 0:25-0:40 Flan base - short pastry Conventional 180-200... - Page 23 Time Type of Shelf Tempera- Ovenfunction Hours baking position ture °C mins. Fruit flans (made with yeast Fan-assisted 0:35-0:50 dough/sponge mixture) circulation Fruit flans (made with yeast Conventional 0:35-0:50 dough/sponge mixture) Fruit flans made with short Conventional 170-190 0:40-1:20 pastry Yeast cakes with delicate Conventional 160-180...
- Page 24 Time Type of Shelf Tempera- Ovenfunction Hours baking position ture °C mins. Rolls Fan-assisted 0:20-0:35 circulation Rolls Conventional 0:20-0:35 Small cakes (20per tray) Fan-assisted 0:20-0:30 circulation Small cakes (20per tray) Fan-assisted 1 / 4 0:25-0:40 circulation Small cakes (20per tray) Conventional 0:20-0:30 1) Pre-heat the oven...
- Page 25 Baking on more than one oven level Fan-assisted circulation cooking Time Type of baking Hours: Shelf positions from bottom Tempera- Mins. ture in °C 2 levels 3 levels Cakes/pastries/breads on baking trays Cream puffs/Eclairs 1 / 4 160-180 0:35-0:60 Dry streusel cake 1 / 3 140-160 0:30-0:60...
-
Page 26: Tips On Baking
Tips on Baking Baking results Possible cause Remedy The cake is not Wrong oven level Place cake lower browned enough un- derneath The cake sinks (be- Oven temperature too high Use a slightly lower setting comes soggy, lumpy, Baking time too short Set a longer baking time streaky) Baking times cannot be re-... -
Page 27: Table For Bakes And Gratins
Table for Bakes and Gratins Tempera- Time Shelf Dish Oven function ture Hours position °C mins. Pasta bake Conventional 180-200 0:45-1:00 Lasagne Conventional 180-200 0:25-0:40 Vegetables au gratin Rotitherm 160-170 0:15-0:30 Baguettes topped with Rotitherm 160-170 0:15-0:30 melted cheese Sweet bakes Conventional 180-200 0:40-0:60... -
Page 28: Roasting
Roasting Oven function: Conventional or Rotitherm Insert the grease filter when roasting! Roasting dishes • Any heat-resistant ovenware is suitable to use for roasting (please read the manufacturer's instructions). • Large roasting joints can be roasted directly in the roasting tray or on the oven shelf with the roasting tray placed below it. -
Page 29: Roasting Table
Roasting table Temper- Time Shelf Type of meat Quantity Ovenfunction ature Hours position °C mins. Beef Conven- Pot roast 1-1.5 kg 200-250 2:00-2:30 tional per cm. of Roast beef or fillet thickness per cm. 190- - rare Rotitherm 0:05-0:06 of thickness per cm. - Page 30 Temper- Time Shelf Type of meat Quantity Ovenfunction ature Hours position °C mins. Poultry 200-250g Poultry portions Rotitherm 200-220 0:35-0:50 each 400-500g Half chicken Rotitherm 190-210 0:35-0:50 each Chicken, poulard 1-1.5 kg Rotitherm 190-210 0:45-1:15 Duck 1.5-2 kg Rotitherm 180-200 1:15-1:45 Goose 3.5-5 kg Rotitherm...
-
Page 31: Grill Sizes
Grill Sizes Oven function: Grill or Dual gril with maximum temperature setting Important: Always grill with the oven door closed. The empty oven should always be pre-heated with the grill functions for 5 minutes. • For grilling, place the shelf in the recommended shelf position. •... -
Page 32: Defrosting
Defrosting Oven function: Defrost (no temperature setting) • Unwrap the food and place it on a plate on the oven shelf. • Do not cover with a plate or bowl, as these can substantially lengthen the defrosting time. • For defrosting, place the shelf in the 1st oven level from the bot- tom. -
Page 33: Drying
Drying Oven function: Fan cooking • Use oven shelves covered with greaseproof paper or baking parch- ment. • You get a better result if you switch the oven off halfway through the drying time, open the door and leave the oven to cool down overnight. -
Page 34: Making Preserves
Making Preserves Oven function: Bottom heat • For preserving, use only commercially available preserve jars of the same size. • Jars with twist-off or bayonet type lids and metal tins are not suitable. • When making preserves, the first shelf position from the bottom is the one most used. -
Page 35: Preserves Table
Preserves table The times and temperatures for making preserves are for guidance only. Cooking time Continue to Temperature Preserve until simmering cook at 100°C in°C in mins. in mins. Soft fruit Strawberries, blueberries, 160-170 35-45 raspberries, ripe gooseberries Unripe gooseberries 160-170 35-45 10-15... -
Page 36: Cleaning And Care
Cleaning and Care Warning: For cleaning, the appliance must be switched off and cooled down. Warning: For safety reasons, do not clean the appliance with steam jet or high-pressure cleaning equipment. Attention: Do not use any scouring agents, sharp cleaning tools or scourers. -
Page 37: Shelf Support Rails
Shelf Support Rails The shelf support rails on the left and right hand sides of the oven can be removed for cleaning the side walls. Removing the shelf support rails First pull the front of the rail away from the oven wall (1) and then un- hitch at the back (2). -
Page 38: Oven Lighting
Oven Lighting Warning: Risk of electric shock! Prior to changing the oven light bulb: – Switch off the oven! – Disconnect from the electricity supply. Place a cloth on the oven floor to protect the oven light and glass cov- Changing the oven light bulb/ cleaning the glass cover 1. -
Page 39: Oven Ceiling
Oven Ceiling The upper heating element can be folded down to make it easier to clean the oven ceiling. Folding down the heating ele- ment Warning: Only fold down the heat- ing element when the oven is switched off and there is no risk of being burnt! 1. -
Page 40: Oven Door
Oven door For easier cleaning of the oven interior the oven door of your appliance can be taken off its hinges. Removing the oven door from its hinges 1. Open the oven door as far as it will 2. Undo the clamping levers (A) on both door hinges fully. - Page 41 Hanging the oven door back on its hinges 1. From the handle side take hold of the oven door with a hand on each side and hold at an angle of approx. 45°. Position the recesses on the bottom of the oven door on the hinges on the oven.
-
Page 42: Oven Door Glass
Oven door glass The oven door is fitted with three panels of glass mounted one behind the other.The inner panels can be removed for cleaning. Important! Rough handling, especially around the edges of the front panel, can cause the glass to break. Removing the door glass panels 1. - Page 43 5. Take hold of the door glass panels on their upper edge one after the other and take them out of the guide by pulling them upwards.. Cleaning the door glass panels Clean the door glass panels thoroughly with a solution of water and washing up liquid.
- Page 44 On the open side of the door trim (B) there is a guide bar (C). This must be pushedThis must be pushed between the outer door panel and the guide corner (D). The clip seal (E) must be snapped in. 3.
-
Page 45: What To Do If
What to do if … Problem Possible cause Remedy The cooking zones are not Consult the operating instructions for the built-in cook- functioning ing surface The oven does not heat up The oven is not switched Switch the oven on The required settings have Check the settings not been set... -
Page 46: Disposal
Disposal Packaging material The packaging materials are environmentally friendly and can be recy- cled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities. Old appliance The symbol on the product or on its packaging indicates that this... -
Page 47: Service
Service In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instruc- tions (section “What to do if…”). If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners. - Page 48 www.electrolux.com 822 928 621-A-270706-01 Subject to change without notice...
