EUC 2323
2222 263-32


Table of Contents

Summary of Contents for Electrolux EUC2323

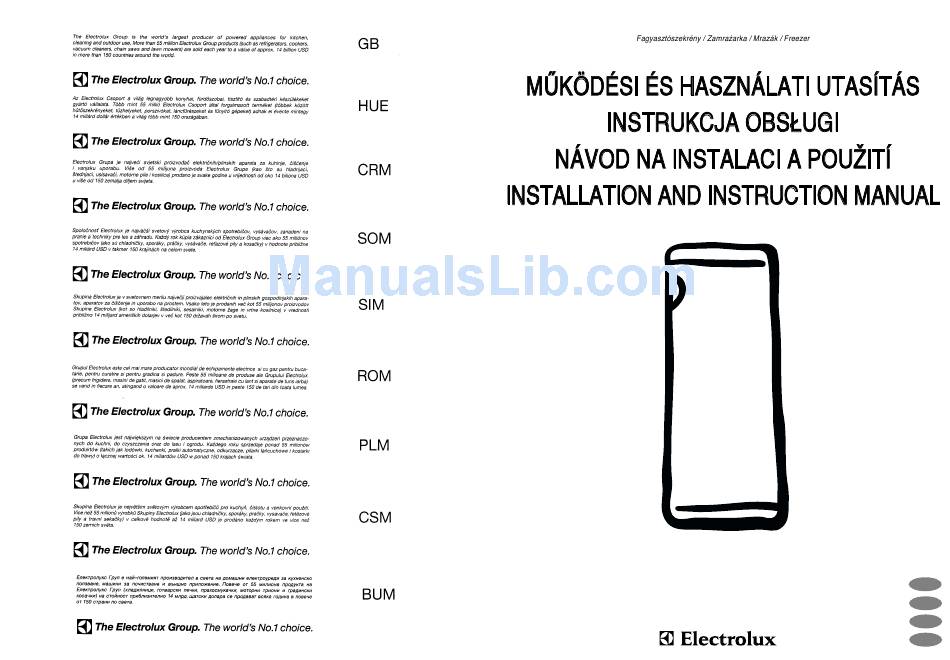

  • Page 1 EUC 2323 2222 263-32...
  • Page 2 Újrahasznosított papírra nyomtatva...
  • Page 3 TARTALOMJEGYZÉK 2222 263-32...
  • Page 4: Changing The Opening Direction Of The Door

    Changing the opening direction of the door Before carrying out any operations, remove the plug from the power socket. To change the opening direction of the door, ALARM SUPER proceed as follows: 1. Remove the ventilation grill (D). 2. Unscrew the bottom hinge (E). 3.
  • Page 5: Rear Spacers

    Rear spacers 10 kg In the bag with the documentation, there are two spacers which must be fitted in the two top 10 kg corners. Slacken the screws and insert the spacer under the screw head, then re-tighten the screws. D594 Electrical connection Before plugging in, ensure that the voltage and...
  • Page 6: Technical Information

    TECHNICAL INFORMATION EUC 2323 Gross Freezer Capacity lt. Net Freezer Capacity lt. Dimensions (width*height*depth, cm) 160x60x62,5 Tension (V/Hz) 220-240/50 0,721 Energy Consumption (kWh/24h) Energy Class Freezing Capacity (kg/24h) Temperature increase time h Noise (dB/A) Climatic Class SN-T The technical infomation are situated in the rating plate on the internal left side of the appliance . INSTALLATION Location The appliance should be installed well away from...
  • Page 7: Customer Service And Spare Parts

    Noisiness Hereunder you will find some normal causes of noise that do not jeopardise normal functioning of the product. Brrrr Noise due to the adjustment of the unit’s structure Possible noise sources that are Compressor motor noise easy to eliminate: The appliance is not well levelled: Simply adjust the levelling foot.
  • Page 8 Defrosting The freezer compartment, however, will become progressively covered with frost. This should be removed with the special plastic scraper provided, whenever the thickness of the frost exceeds 4 mm. During this operation it is not necessary to switch off the power supply or to remove the foodstuffs.
  • Page 9: Maintenance

    MAINTENANCE Unplug the appliance before carrying out any maintenance operation. Warning This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therfore only be carried out by authorized technicians. Periodic cleaning Clean the inside with warm water and bicarbonate of Brrrr soda.
  • Page 10: Hints For Freezing

    HINTS EUC 2323 Hints for storage of frozen food Hints for freezing To help you make the most of the freezing process, To obtain the best performance from this appliance, here are some important hints: you should: 160x60x62,5 • the maximum quantity of food which can be •...
  • Page 11 Freezing fresh food 10 kg The 4-star compartment is suitable for long term storage of commercially frozen food, and 10 kg for freezing fresh food. To freeze fresh foods press the quick freezing switch at least 12 hours before introducing the food into the freezer in order to ensure better freezing results.
  • Page 12: Operation

    Cleaning the interior Do not use detergents or abrasive Before using the appliance for the first time, wash powders, as these will damage the finish. the interior and all internal accessories with luke- warm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.
  • Page 13: Environment Protection

    • Do not place carbonated or fizzy drinks in the • There are working parts in this product which freezer as it creates pressure on the container, heat up. Always ensure that there is adequate which may cause it to explode, resulting in ventilation as a failure to do this will result in component failure and possible food loss.
  • Page 14: General Safety

    WARNINGS It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings.
