T E C H N O L O G I E S

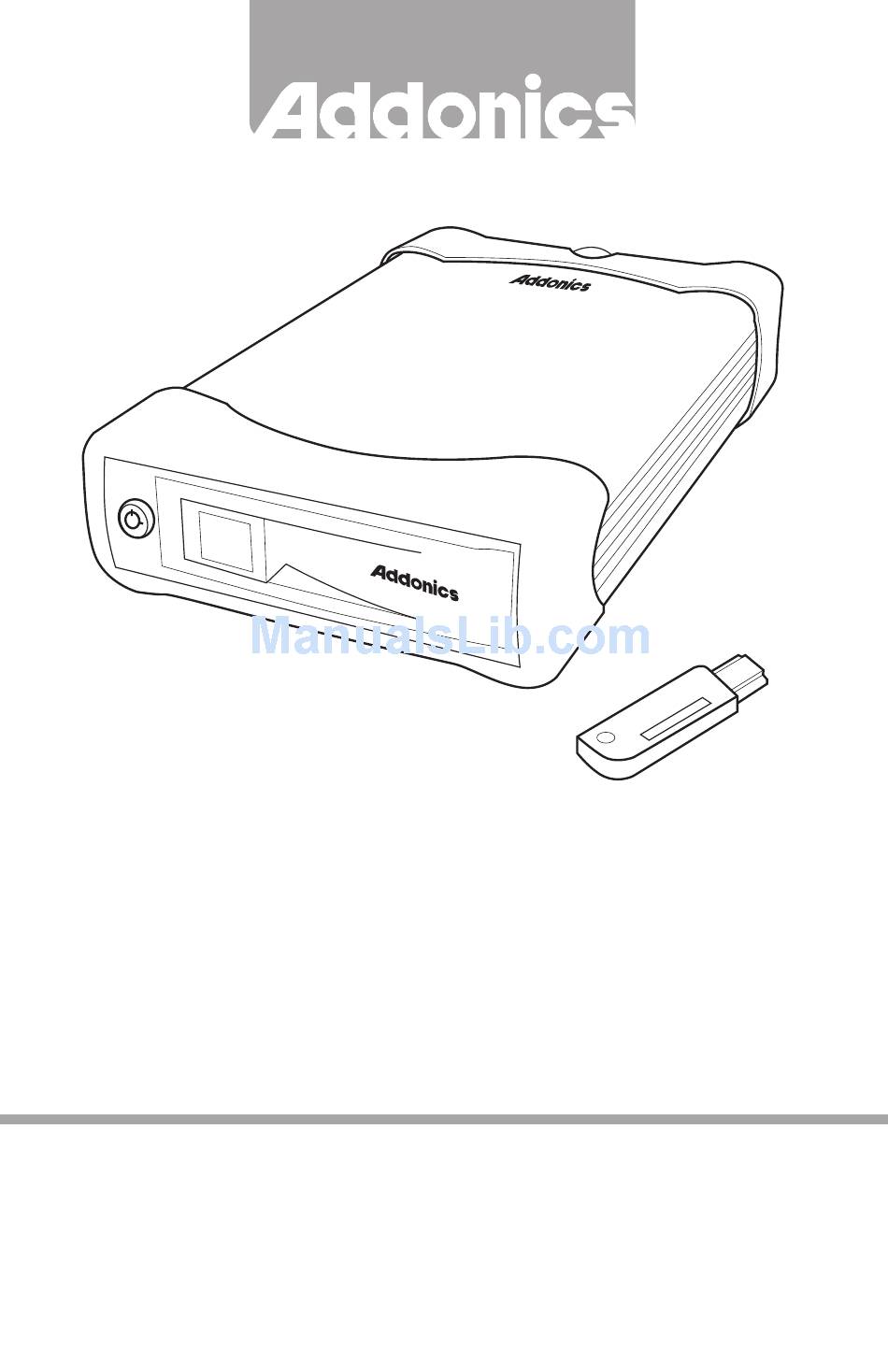

User Guide
Cipher Z-Drive Cartridge System
(ZSNAES256 / ZSNA256EU)
www.addonics.com
v3.1.11
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Addonics Technologies ZSNA256EU
Summary of Contents for Addonics Technologies ZSNA256EU
- Page 1 T E C H N O L O G I E S User Guide Cipher Z-Drive Cartridge System (ZSNAES256 / ZSNA256EU) www.addonics.com v3.1.11 Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at:...
- Page 2 Open Lock Front Power LED Lever / Handle Lock Mechanism Drive Activity LED To open the front panel and insert HD: 1. Using the key provided, place the lock mechanism in the Open position. 2. Pull the lever towards you. This will open the front panel. 3.
- Page 3 Back Switch CipherChain CipherChain Cipher eSATA Power Connector (to host) RESET eSATA Port CipherChain Power LED Cipher HDD LED eSATA Cipher Keyhole (to host) RESET Reset Switch How to operate the Cipher Z-Drive Cartridge System: Note: Hot swapping refers to the ability to plug and unplug the component without rebooting.
- Page 4 Reset switch The RESET button enables the adding and removing of hard drives without rebooting the enclosure. Following are examples of such an applications: a. When the cipher key is removed from the Cipher Z-Drive Cartridge System, pressing the reset switch will clear the key code and remove the drive icon. This is good for security when the Cipher Z-Drive Cartridge System is left unattended.
