Addonics Technologies AE6CFHI User Manual

Cf or cfast drive
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
(AE6CFHI / AE6CAHI)
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
T E C H N O L O G I E S
User Guide
CF or CFast Drive
www.addonics.com
v3.1.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AE6CFHI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Addonics Technologies AE6CFHI

Summary of Contents for Addonics Technologies AE6CFHI

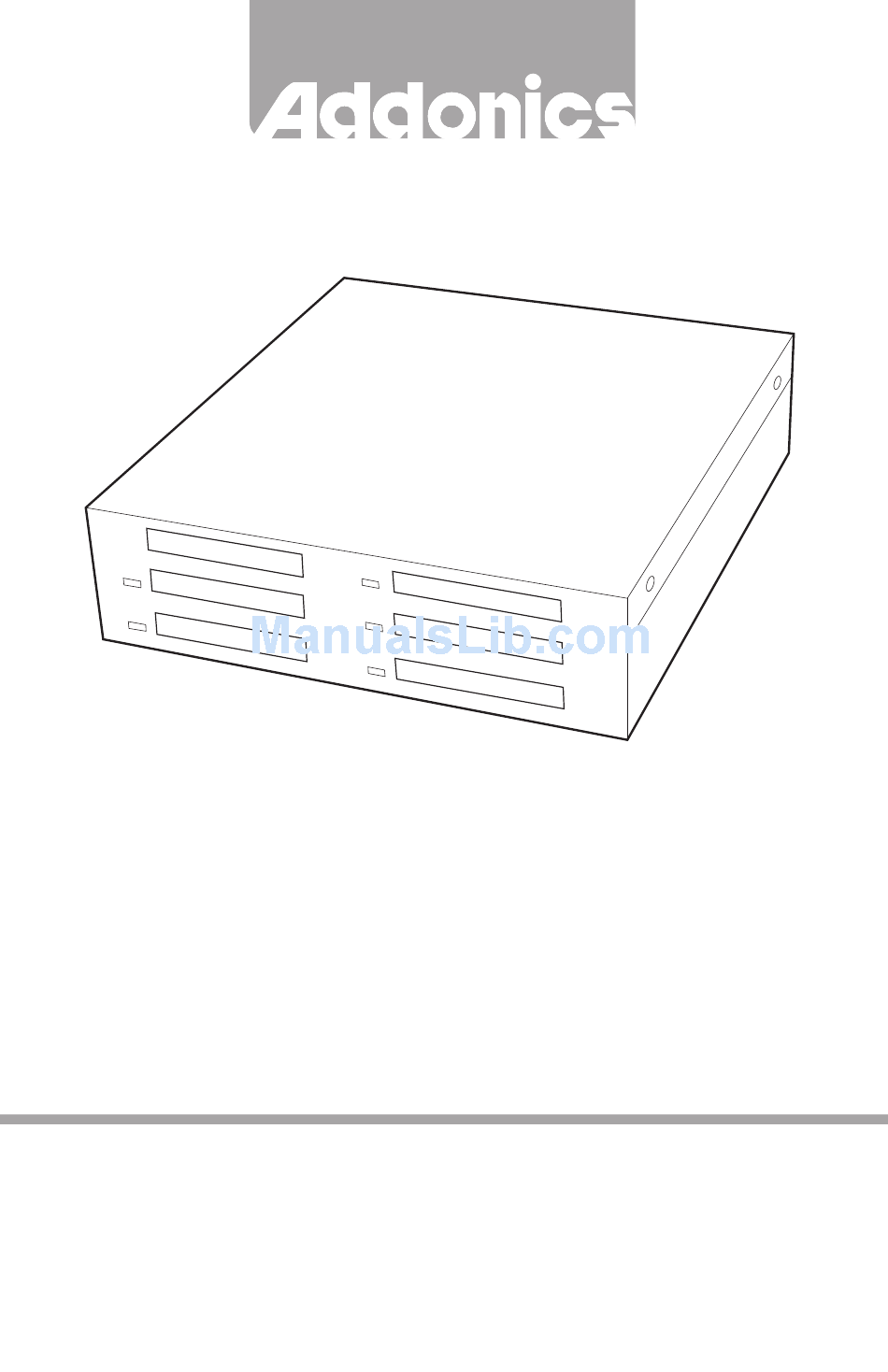

  • Page 1 T E C H N O L O G I E S User Guide CF or CFast Drive (AE6CFHI / AE6CAHI) www.addonics.com v3.1.11 Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at: Hours: 8:30 am - 6:00 pm PST Phone: 408-453-6212 Email: http://www.addonics.com/support/query/...
  • Page 2 Top Cover Screws Removing Cover of CF / CFAST Drive To remove the top cover of the CF / CFast Drive, loosen the 4 screws located at the side of the device using a Philips screwdriver by turning counter-clockwise. Separate the metal casing of the drive from the housing by lifting up the casing. Installing CF / CFAST cards into the CF Drive Slide the CF card into each of the slot on the CF / CFAST Drive.

  • Page 3: Dip Switch Settings

    RAID Setting Button Dip Switch SATA Host Port (Port 5) SATA Port 2 SATA Port 1 SATA Port 0 Floppy Power Connector SATA Port 3 SATA Port 4 Drive activity LED Jumper Block (J1) Error LED Jumper Block (J3) Dip Switch Settings Raid Mode Individual Drive (Factory Default)
  • Page 4 Default factory DIP Switch setting: SW1 – RAID Setting DIP Switch BZS – Error buzzer function EZ – Automatic rebuilding to spare drive (one of the drives on the raid is set as a spare). If EZ is ENABLED anda drive failure occurs, the spare will automatically act as a drive replacement and rebuilding will automatically start.
  • Page 5 Setting or Modifying the RAID Mode Using the JMicron HW RAID Manager Utility Program: For Windows users, install the JMicron HW RAID Manager located on the SATA Controller CD. In the CD, go to Configuration Utilities > JMB393. This manager can be use to create and monitor the status of the RAID volume. It is recommended to use the default factory RAID DIP switch setting when using the JMicron HW RAID Manager.

  • Page 6: Large Mode

    On the DIP switch, change (M0 to M2) setting to the desired RAID mode using the diagram below. All settings on the diagram shows • Error buzzer function is ENABLED • EZ function is DISABLED. RAID 0 Mode Clone Mode BZS EZ M2 M1 M0 BZS EZ M2 M1 M0 RAID 1&...
  • Page 7 RAID Setting Notes: When 2 drives are RAID 1& RAID 10 Mode connected to the HPM-XA, and DIP switch is set to this setting, the 2 drives will be configured as a 2-drive RAID1 array. BZS EZ M2 M1 M0 When 4 drives are connected to the HPM-XA, the 4 drives will be configured as a 4-drive RAID10 array.
  • Page 8 Notes on Spare Drives using the Easy RAID Setting (EZ) When EZ function is ENABLED, the auto-rebuilding to spare drive is automatic. The degraded RAID group will start rebuilding automatically by using the existing spare drive. * Spare drive can be either plugged before RAID building or a new drive can be plug as the spare drive when RAID rebuild is required.
