Possibilities for insertion

Building over a kitchen unit with
door

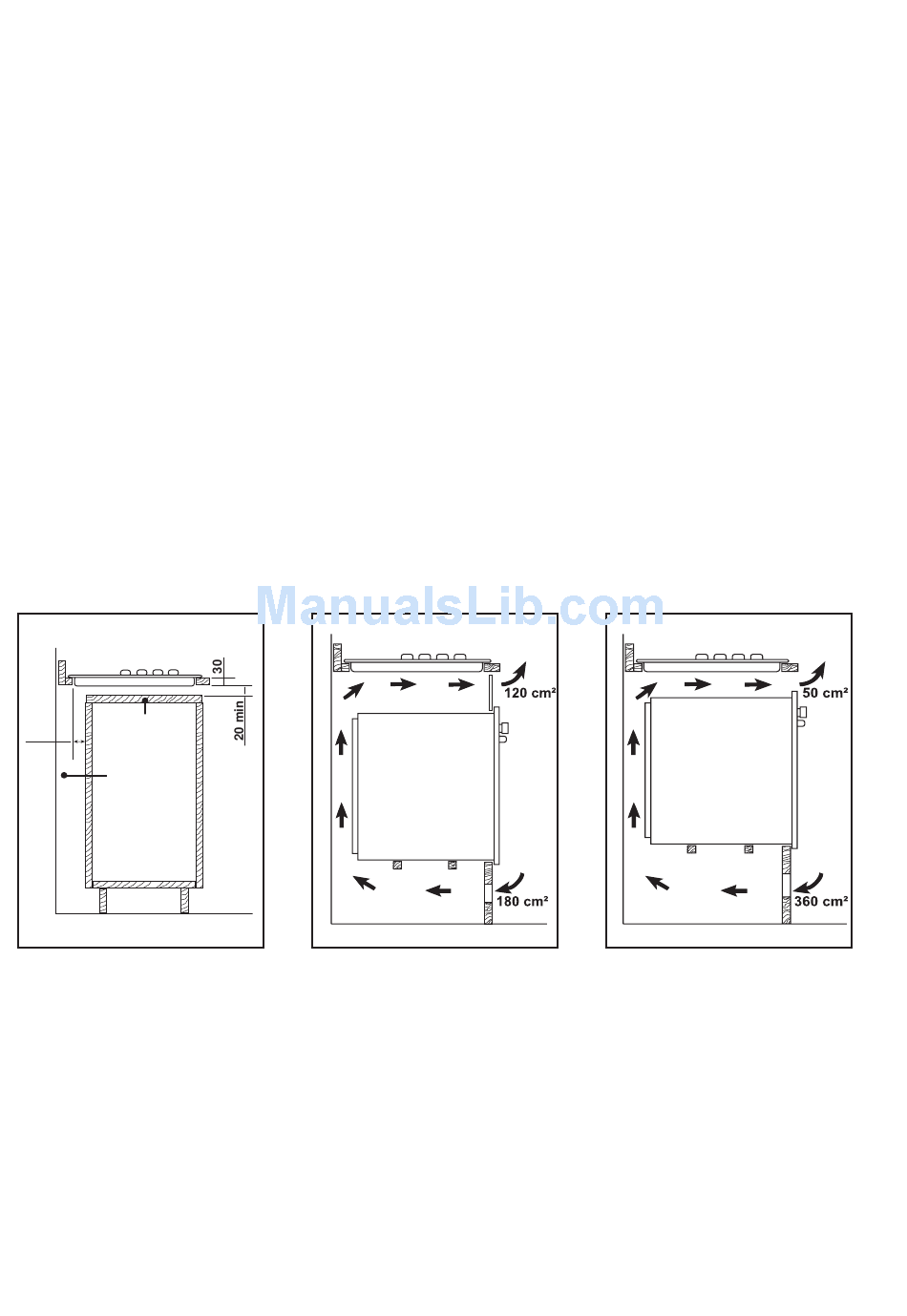

Proper arrangements must be taken in designing the
furniture unit, in order to avoid any contact with the bottom
of the hob which can be hot when in operation. The
recommended solution is shown in Fig. 4.
The panel fitted under the hob ("a") should be easily
removable to allow easy access if technical assistance
is needed. The space behind the kitchen unit ("b") can
be used for connections.
Kitchen unit with oven
The hob recess dimensions must comply the indication
given in Fig. 2 and the kitchen unit must be provided with
proper openings to allow a continuous supply of air.
Suggestions to ensure a proper ventilation are shown in
Figs. 5 and 6.
The electrical connection for the hob must be separate
from the electrical connection for the oven, to ensure
safety and to allow an easy removal of the oven from the
unit, if necessary.
Fig. 4
Fig. 5
Fig. 6
a
80
b
FO 0939
FO 0938
FO 2166
a) Removable panel
b) Space for connections
7
