2-10

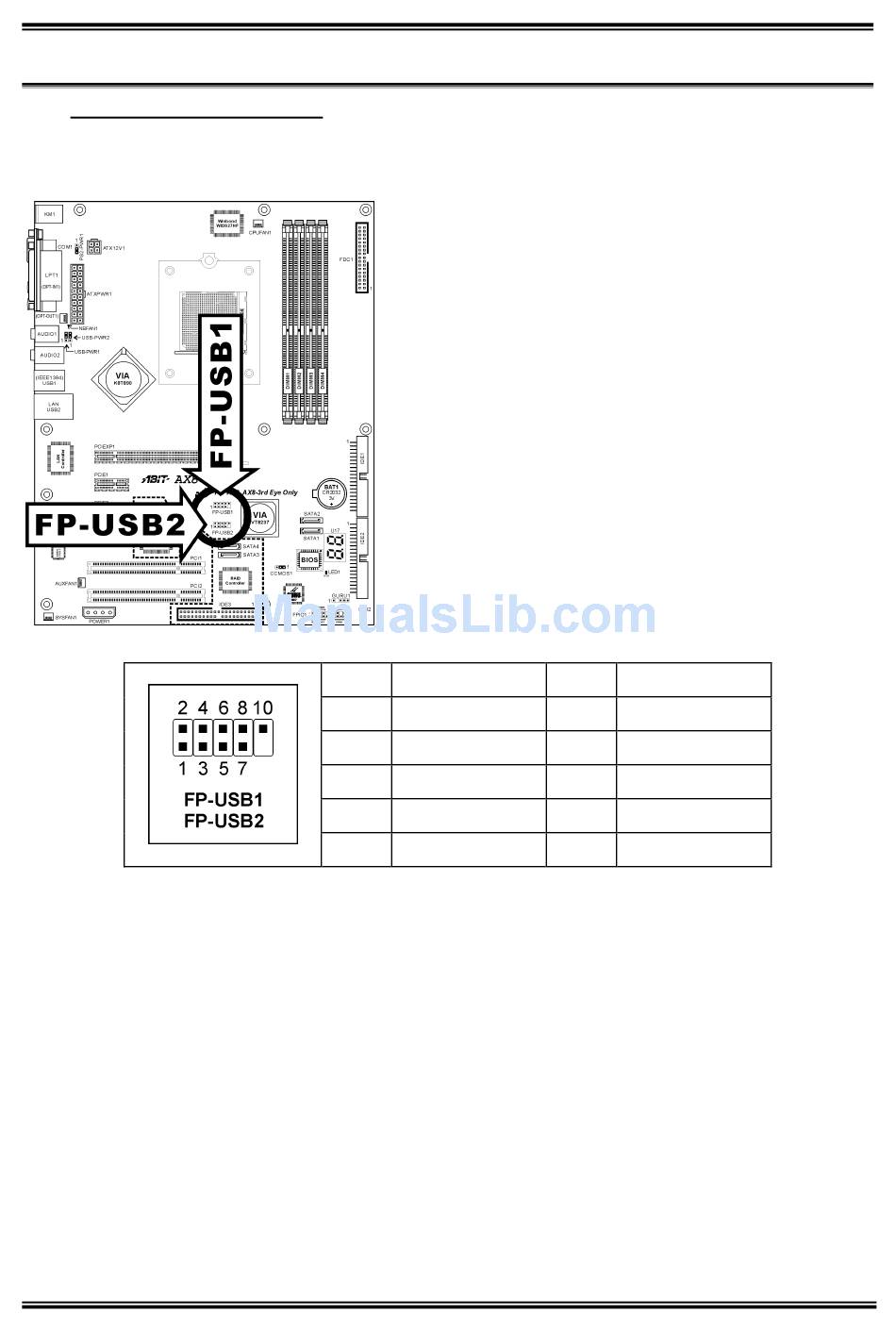

(6). Additional USB Port Headers
These headers each provide 2 additional USB 2.0 ports connection through an USB cable designed for
USB 2.0 specifications.
AX8 Series
Pin
Pin Assignment
1
VCC
3
- Data 0
5
+ Data 0
7
Ground
Pin
Pin Assignment
2
VCC
4
- Data 1
6
+ Data 1
8
Ground
10
NC
Chapter 2
