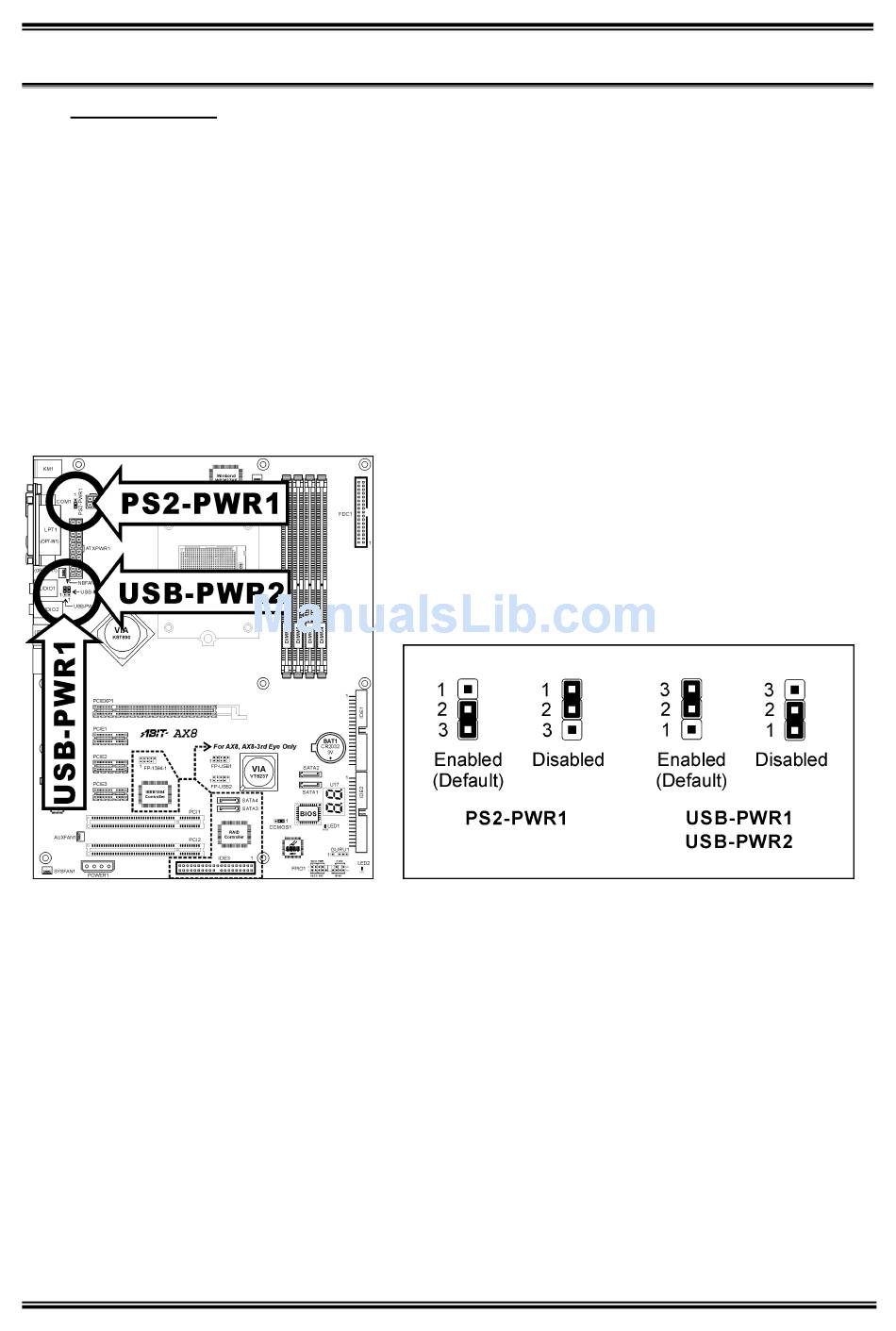

(4). Wake-up Header

These headers use a jumper cap to enable/disable the wake-up function.
•
PS2-PWR1:
Pin 2-3 shorted (default): Enable wake-up function support at Keyboard/Mouse port.
Pin 1-2 shorted: Disable wake-up function support at Keyboard/Mouse port.
•
USB-PWR1:
Pin 2-3 shorted (default): Enable wake-up function support at USB1 port.
Pin 1-2 shorted: Disable wake-up function support at USB1 port.
•
USB-PWR2:
Pin 2-3 shorted (default): Enable wake-up function support at USB2 port.
Pin 1-2 shorted: Disable wake-up function support at USB2 port.
