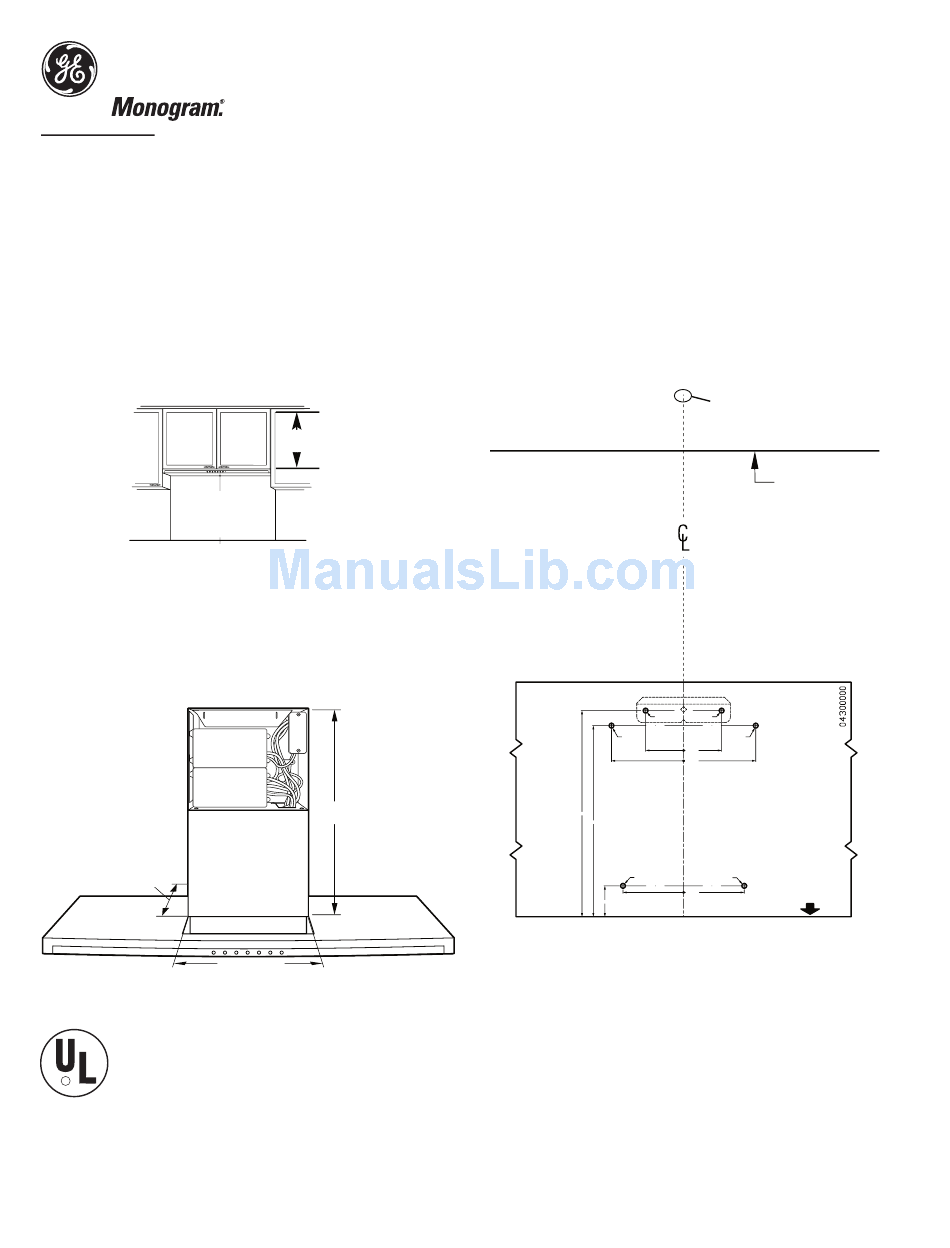

Cabinet Requirements

This hood may be installed beneath a wall-mounted cabinet.
• Both vented and recirculating operation can be accomplished in an
under-cabinet installation.
• If the cabinet has been installed, it must be removed so that wall
framing supports can be added.
24" Min.
*25-1/2" Recommended
30" Max.
The cabinet must be at least 20" high between the bottom frame and
the inside top. A custom cabinet or modifications to a different size
cabinet may be required to accommodate the hood housing.
• The cabinet must be 36" wide.
• The cabinet must be firmly secured to wall studs or the added
framing support and capable of supporting 100 pounds.
11"
11"
Listed by
Underwriters
Laboratories
R
For answers to your Monogram,
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
Specification Created 8/04
130664
36" Chimney Hood
™
20" Min.
19-1/2"
19-1/2"
11-3/4" 11-3/4"
GE Profile or
® ™
service,
®
Ductwork, Wiring
• Determine the exact location of the vent hood.
• Locate the Rear Wall Template packed with the literature.
• Measure 36" from the floor to the top of the cooking surface. Add
the pre-determined hood installation height. Mark that location.
• Use a level to draw a straight pencil line on the wall.
Drill 1/8"
Pilot Holes
Drill 1/8"
Pilot Holes
13-3/4"
12-3/4"
REAR WALL TEMPLATE
Drill 1/8"
Pilot Holes
2-1/16"
49-80271 JR 07-04
• Tape the template in position along the penciled line. Check to be
sure the template is level.
• Use the level to draw a line straight up, from the centerline on the
template to the ceiling.
• Measure 3-3/34" from the back wall to the centerline of a 6-1/2"
hole on the ceiling.
NOTE: If drywall is not present, add drywall thickness to the
3-3/4" dimension.

House Wiring Location:

• The junction box is located on the top right side of the hood.
• Wiring should enter the back wall 20" to 26" above the bottom of
the hood, and within 4" of the right side of the centerline. Wiring
should enter at least 4" above the bracket on the right side.
3-3/4" centerline
to wall
Ceiling
Drill 1/8"
Pilot Holes
Drill 1/8"
Pilot Holes
5-1/16"
9-5/8"
C L
Drill 1/8"
Pilot Holes
ALIGN BOTTOM EDGE WITH
PENCIL LINE INDICATING
8-1/8"
BOTTOM OF THE HOOD.
