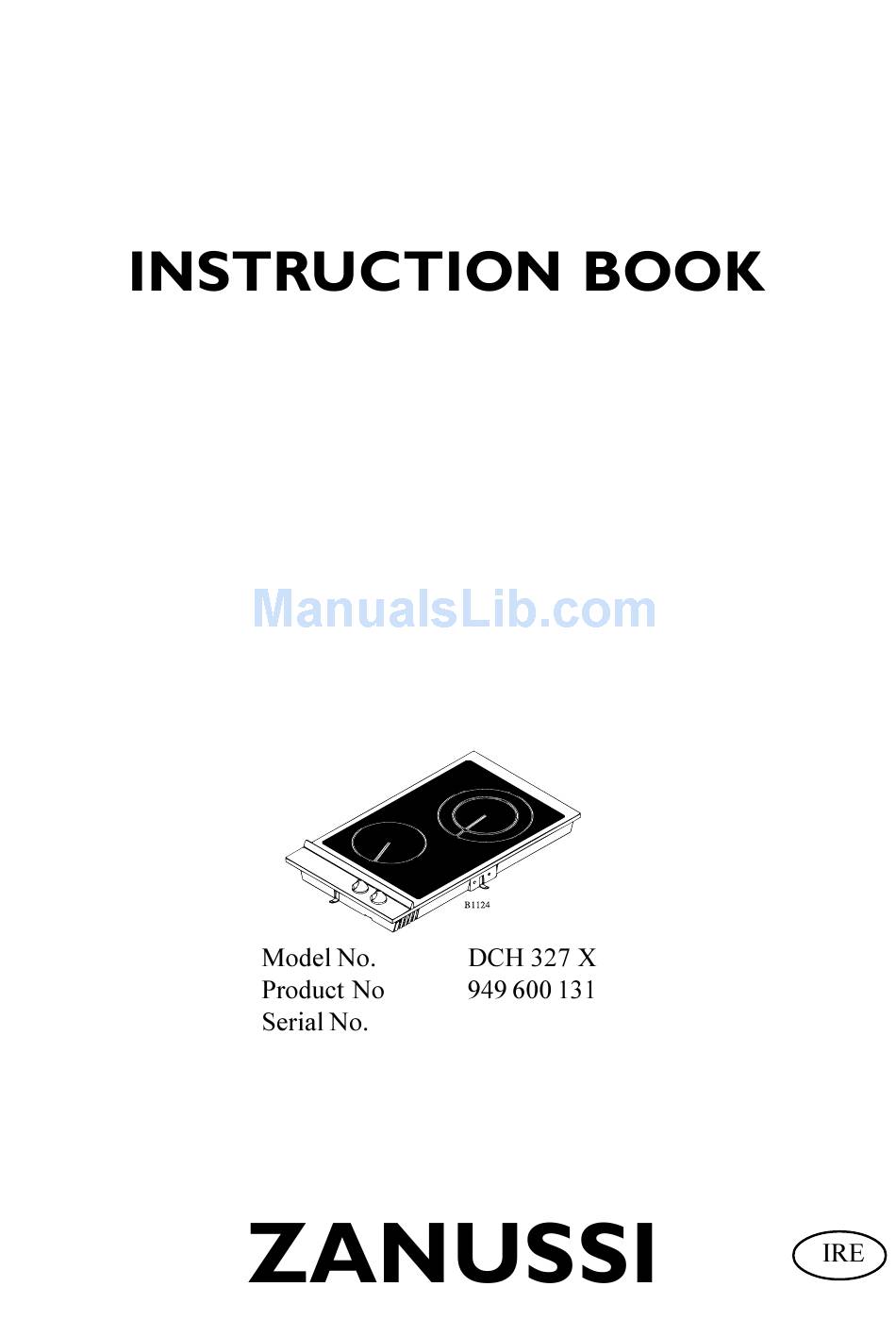

- Page 1 325 87-6516 Rev. 1-842...
- Page 3 For safety's sake, turn pots and pans so Service and repair may only be performed by the distributor, or by a that handles do not protrude, thus service organization approved by the inviting accidents. distributor. Only repair parts delivered by the distributor may be used. Never place plastic or paper, etc., on the unit.
-
Page 4: Installation
Product liability Unpacking Our liability is limited to that which is Check to see whether the unit is stipulated by law, and covers only damaged. damage to persons and property, which results from defects in materials and Distribution damages workmanship of the unit itself. Any damages due to transportation by This liability extends for a period of 10 us or by our representative must be... -
Page 5: Before Use
Before use Before using the hob unit it is advised to clean the ceramic surface with the enclosed cleaning agent. Use a clean, damp cloth or tissue. Dry with a clean cloth. The decorative pattern on the ceramic surface can become scratched and marred with use, depending upon how one uses and maintains the unit, but does not adversely affect performance. - Page 6 Switch symbols (to the left) Switch for regulating the double plate at the rear Switch for regulating the small plate at the front. Regulating The regulating of heat is graduation-free for all plates on a scale from 1 to 12. “1”...
-
Page 7: Pilot Light
Pilot light Pilot light is activated when either of the zones are turned on, and will remain on until the cooking zones are switched off. Residual-Heat indicator Each plate has a residual heat indicator which remains on as long as the temperature of the cooking zone exceeds 80˚C, even if the cooking zone is switched off. - Page 8 Use Proper Cooking Utensils Make the most of your new ceramic- top hob unit by using proper utensils of a good quality. Only pots and pans which are expressly intended for use on ceramic- top hob units may be used. Utensils must, as a minimum, cover the entire circle which represents a given burner.
- Page 9 (use liqud AJAX or other diswashing liquid), and well wrung. All spills must be cleaned up immediately, while the burner is still warm. Use the cleaning agent supplied with the unit. Remove spots caused by utensils with aluminium bottoms, or burned grease, by polishing with the cleaning agent supplied with the unit.
- Page 10 Do not slide saucepans across the surface of the hob - always lift the pan when placing it on, or removing it from the ceramic surface. Wipe the bottom surface of the pots and pans with a clean dry cloth before placing them on the ceramic surface.
- Page 11 The decorative pattern on the ceramic surface can become scratched and marred with use, depending upon maintenance, but does not adversely affect performance. Such blemishes are not covered by the warranty and do not affect the operation of the hob. Spills and melts must be removed immediately, while the surface is still warm, using the scraper supplied with...
- Page 12 Caution: In order to avoid a hazard this appliance must be installed according to these instructions for installation The appliance unit can be mounted in any type of kitchen with a work top whose thickness is between 28 mm and 40 mm.
- Page 13 It is not necessary to attach the reinforcement beam to the table surface, as it is held in place by a specially designed moulding, which is incorporated in the hob unit´s flanges. The unit´s externally measured length 145 mm: Cooker hood 290 mm: Two-burner standard electric hob Two-burner ceramic-top electric hob...
- Page 14 The electrical connection may only be performed by a qualified electrician/ competent person. The electrical connection must be carried out in accordance with prevailing regulations for appliances using heavy current. The connection must comply with any specific requirements specified by the local electricity supply authority.
-
Page 15: Technical Data
Two-phases zero-earth (max. 10A) Cable type 1 mm² HO5VV-F. The cable outside diameter must be between 7,5 and 10,5 mm. Technical data Cell Voltage 230 V Electrical connection 230V - 50Hz Total wattage 2900W Instant heat effect 12/18 cm 750/1700 W Instant heat effect 14 cm 1200 W This unit is labelled to indicate... -
Page 16: Warranty
Check to see whether a fuse has by an alternative service organisation, blown. approved by the distributor. Only spare parts delivered by the distributor may Check to see whether the relay is be used. Spare parts and service are the switched off. - Page 17 Deep fat frying 4. Cooking the food Lower the food gently into the oil. Do For safety purposes, when deep fat not add too much food at once or the frying, fill the pan 1/3 full of oil. Do temperature of the oil will be reduced not cover the pan with a lid and do and may result in soggy, greasy food.
- Page 18 It is better to use two pans rather than overfill one, or use half quantities. 3. What to use Use firm fruit or vegetables and wash well before using. 4. Types of sugar Preserving sugar gives clear jam, however granulated sugar is cheaper and gives equally good flavour.
