24" (61 CM), 27" (68.6 CM), AND 30" (76.2 CM)
INDOOR/OUTDOOR ELECTRIC WARMING DRAWER
PRODUCT MODEL SERIES
JWD2030W
JWD2130W
ELECTRICAL CONNECTION
A 120 volt, 60 Hz., AC only, 15-amp fused, electrical circuit
is required. A time-delay fuse or circuit breaker is also
recommended. It is recommended that a separate circuit
serving only this warming drawer be provided.
LOCATION REQUIREMENTS
IMPORTANT: Observe all governing codes and
ordinances.
Cutout dimensions that are shown must be used. Given
dimensions provide minimum clearance with warming
drawer.
Recessed installation area must provide complete
enclosure around the recessed portion of the warming
drawer.
Grounded electrical supply is required. See "Electrical
Requirements" section.
Electrical supply outlet should be located in the rear wall
on the upper right-hand side of the cutout or in an
adjacent cabinet. The outlet must be recessed. If the
electrical outlet is located in an adjacent cabinet, a 1 "
(3.5 cm) minimum diameter hole should have been drilled
in the back of the cutout or support surface to pass the
power supply cord through to the outlet.
Warming drawer support surface must be solid, level and
flush with bottom of cabinet cutout.
Warming drawers with oiled bronze, black glass, and
white glass panels are approved for indoor use only.
For best performance results make sure the warming
drawer is leveled before completing installation. There is no
way to level the warming drawer after it has been installed.
If the installation is not level, the door may slide open or
not seal tightly, allowing heat to escape.

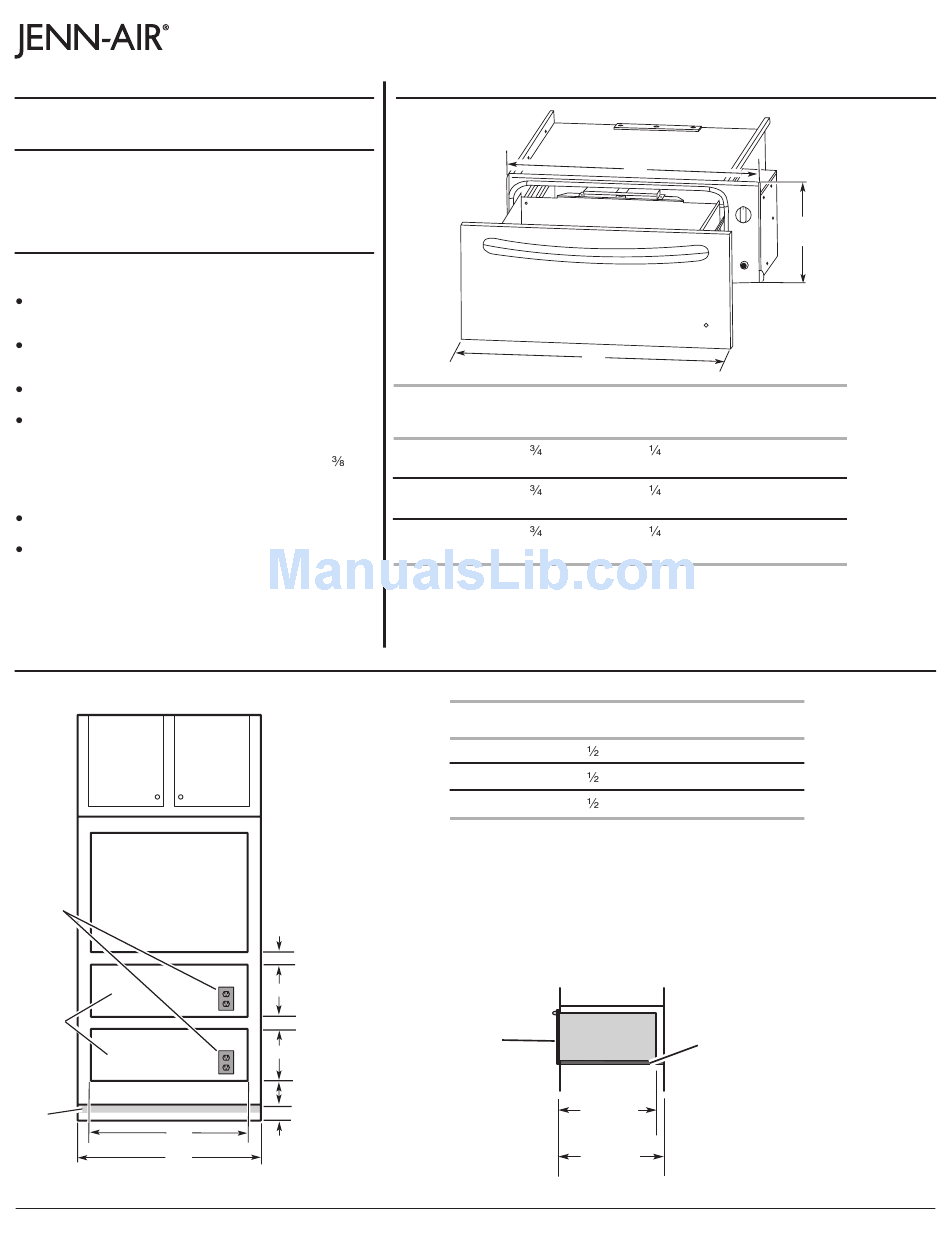

CABINET OPENING DIMENSIONS
Cabinet Front View
120 volt
grounded
outlet
(or located
in adjacent
cabinet)
Warming
drawer
cutouts
Toe
kick
A
B
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
PRODUCT DIMENSIONS
WARMING
DRAWER
SIZE
24"
(61 cm)
27"
(68.6 cm)
30"
(76.2 cm)
WARMING
DRAWER SIZE WIDTH (A)
24" (61 cm)
27" (68.6 cm)
30" (76.2 cm)
Warming drawer can be installed as an indoor single or
double installation or installed under a single oven. Two
warming drawers under a single oven are shown.
NOTE: The warming drawer cannot be leveled after being
installed.
For outdoor installation follow the cutout dimensions above.
Install the outdoor warming drawer in a permanent fixture.
Cabinet Side View
2¹/₂" (6.4 cm) min.
9¹/₈" (23.2 cm)
2¹/₂" (6.4 cm) min.
9¹/₈" (23.2 cm)
Recommended 4¹/₄" (10.8 cm)
Minimum 1" (2.5 cm)
4" (10.2 cm)
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
B
A
OVERALL
RECESSED
WIDTH (A)
WIDTH (B)
23 "
22 "
(60.3 cm)
(56.5 cm)
26 "
25 ""
(67.9 cm)
(64.1 cm)
29 "
28 "
(75.6 cm)
(71.8 cm)
CUTOUT
22 " (57.1 cm)
25 " (64.8 cm)
28 " (72.4 cm)
Warming
drawer
front
22³⁄₄"
(57.8 cm)
recessed
oven depth
24"
(61 cm)
min. cutout
depth
C
RECESSED
HEIGHT (C)
9"
(22.9 cm)
9"
(22.9 cm)
9"
(22.9 cm)
MIN. CABINET
WIDTH (B)
24" (61 cm)
27" (68.6 cm)
30" (76.2 cm)
Support surface must be
solid, level, flush with
bottom of cabinet cutout.
Ref. W10276326A
3/05/10
