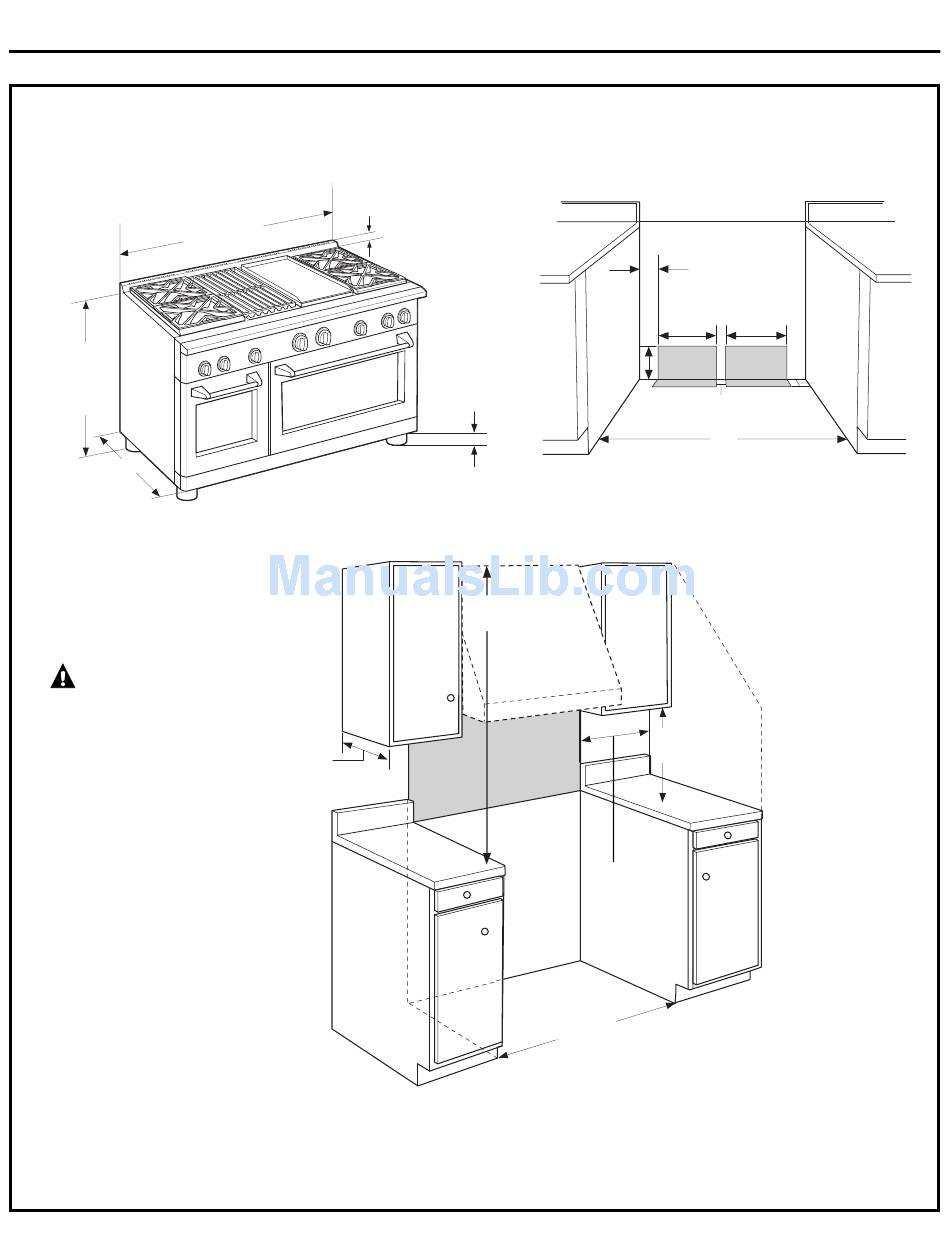

PRODUCT DIMENSIONS AND CLEARANCES

48" Range Models
47-7/8" Width
35-1/4"
to
36-3/4"
Height
28-1/4"
Depth
to Front
of Door
WARNING:
Installations without a hood require
48" minimum to combustibles.
A custom hood installation with
exposed horizontal combustible
surfaces must have an Auto-On
feature. Refer to hood installation
instructions for specific hood
clearances.
The surface of the entire back wall
above the range and below the
hood must be covered with a non-
combustible material such as metal,
ceramic tile, brick, marble or other
stone.
Design Information
1"
Countertop
to Cooking
Surface
3-1/4"
to 4-3/4"
Toekick/leg
Height
48" Minimum
to Combustibles
13"
Max.
4
Universal Utility Locations
6-1/2"
Electric
18"
Non-Combustible
Min.
Material
12" Minimum
Each Side
48" Min.
ADDITIONAL CLEARANCES:
Allow 12" minimum clearance to an adjacent wall
on each side.
Working areas adjacent to the rangetop should have
18" minimum clearance between countertop and
the bottom of the wall cabinet.
8"
14" 16"
Gas/
Electric
2"
2"
48"
12" Minimum
to Adjacent Wall
