Farenheit TI-710B Owner's Manual

In-dash 7” monitor touch screen dvd/cd/mp3/mp4 am/fm radio built-in tv tuner with bluetooth
Hide thumbs Also See for TI-710B:
Table of Contents

Advertisement

Quick Links

Download this manual
TI-710B/ TI-710BT
In-Dash 7" Monitor
Touch Screen
DVD/CD/MP3/MP4
AM/FM Radio
Built-in TV tuner
With Bluetooth
Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new DVD-receiver.

Advertisement

Table of Contents
loading

Related Manuals for Farenheit TI-710B

Summary of Contents for Farenheit TI-710B

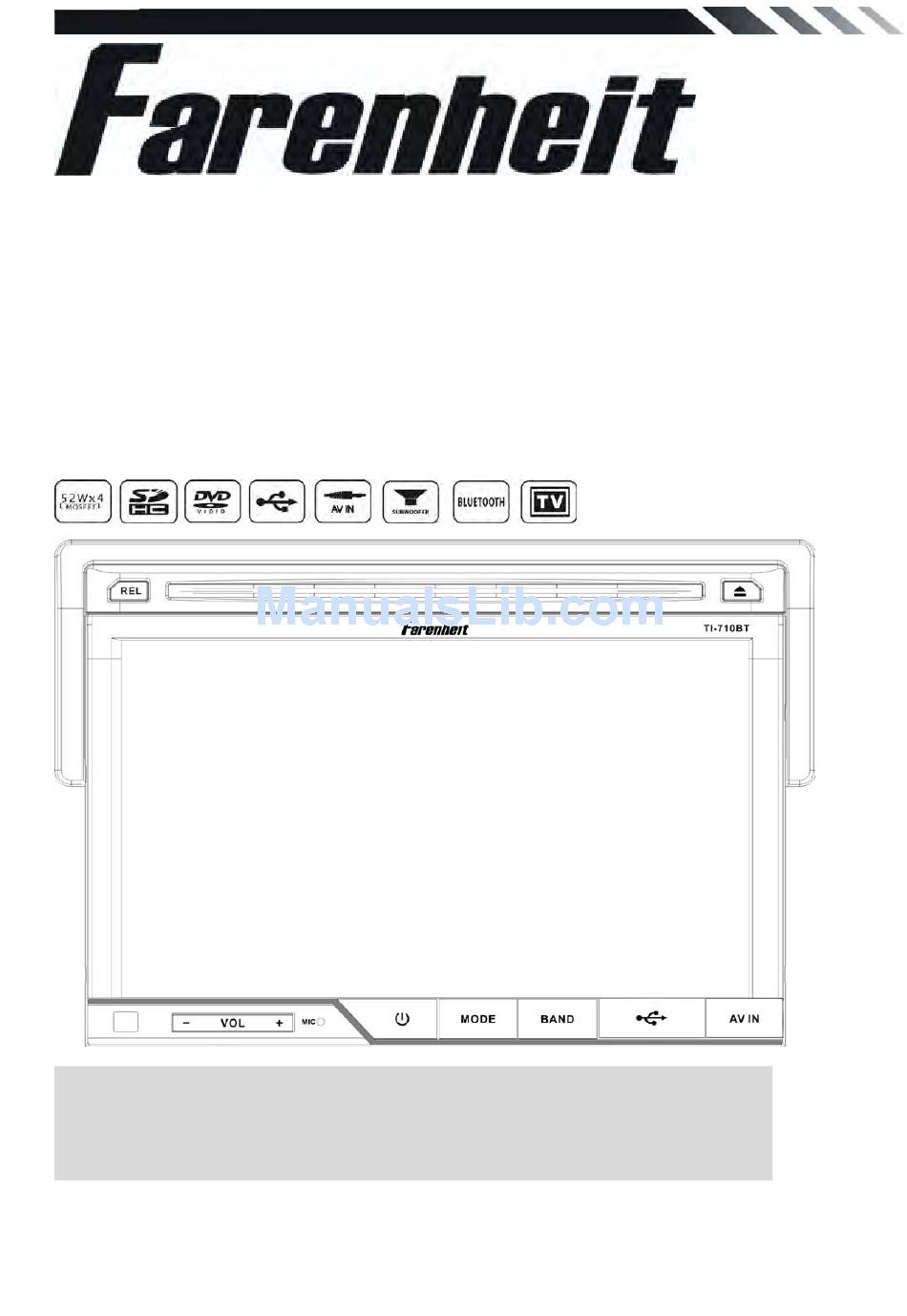

  • Page 1 TI-710B/ TI-710BT In-Dash 7” Monitor Touch Screen DVD/CD/MP3/MP4 AM/FM Radio Built-in TV tuner With Bluetooth Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.

  • Page 2: Warning

    WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage.

  • Page 3: Table Of Contents

    CONTENTS WARNING! ......................... 2 OPERATION PRECAUTIONS ..................2 Accessories ........................ 4 INSTALLATION / UN-INSTALLATION................ 5 WIRING CONNECTIONS ................... 6 Front panel ........................8 REMOTE CONTROL ....................10 REMOVE BATTERY ....................12 MAIN MENU ......................13 ◆ RADIO PLAYER ....................13 ◆DVD PLAYER .......................

  • Page 4: Accessories

    Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt (4) Screw4*6 (5) Mounting Collar (6) Release Key (7) Screw 5*20 Power cable Speaker cable User Manual Remote Control Warranty card...

  • Page 5: Installation / Un-Installation

    INSTALLATION / UN-INSTALLATION Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop.

  • Page 6: Wiring Connections

    WIRING CONNECTIONS NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. Note: To watch video the parking wire should be connected to break signal.
  • Page 7 Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND). The is using a BTL circuit and each loudspeaker must be connected with insulated cables according the unit diagram.

  • Page 8: Front Panel

    Front panel Inner panel 1. IR Sensor IR Remote control signal receiving window. Max distance is 6-8 meters, 45 angels. 2 VOL- button Press to decrease volume level.
  • Page 9 3 VOL+ button Press to increase volume level 4. Mic (Microphone) During a telephone call you should speak in the direction of the built–in the microphone. 5. POWER/MUTE Button Press it to turn on the unit, press it again to turn the unit off. Short press it to MUTE the volume output, press it again to resume volume when the power is 6.

  • Page 10: Remote Control

    REMOTE CONTROL 1: MODE 2: POWER 3: BAND/RANDOM/Clear 4: ENTER 5: UP/DOWN/LEFT/RIGHT 6: EJECT 7: STEREO/MONO/* 8: P.SCN/RPT/# 9: BACKWARD/SEEK- FAST BACKWARD 10:LOUD 11: OSD 12: PBC/STOP 13: Digit numbers 14: Play/Pause 15: Mute/Bluetooth 16: MENU 17: SUBTITLE 18: SETUP 19: ANGLE/Accept 20: INT/Eject 21: VOLUME PLUS...
  • Page 11 In Radio mode: PS (Preset Scan): Press to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds. AS (Auto Save): Long press to save the stations with good reception automatically. In BLUETOOTH mode, press it to make a # symbol.

  • Page 12: Remove Battery

    23. SEL button Press it to enter the SOUND SETTING menu, and press Cursor UP/DN buttons to choose an item and press cursor left/right buttons to set the item. Press SEL button again to exit the menu. / seek + buttons In DVD mode, Press button to skip to the next track.

  • Page 13: Main Menu

    MAIN MENU The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons.

  • Page 14: Dvd Player

    ◆ DVD PLAYER To start DVD Player, tap on DVD button from main menu screen. TOUCH SCREEN MENU You will not see any buttons while DVD is played. Buttons will appear when you tap on TFT screen. Tap the screen again to hide the buttons. Insert DVD disc insert VCD disc NOTE...

  • Page 15: Disc/Usb/Sd/Mmc Interface

    Touch it to select previous or next track. ◆DISC/USB/SD/MMC interface When a file disc, USB or a memory card is played, the screen will show following interface: Mute the sound. Stop button. Press it to Stop playback from the current position, press it again to final stop to the very beginning Play/pause button.

  • Page 16: Setting Control

    Note: If there is no external video input, the TFT displays “NO SIGNAL”. Press the icon to be back to main menu. ◆SETTING CONTROL Your device has default system settings. You can customize the settings to suit your personal needs. Once you change settings, your new settings will remain until you change it again.

  • Page 17: Radio Control

    RADIO CONTROL Tap RADIO button to show RADIO menu. AREA:EUROPE-U.S.A-SOUTH AREA AMERICA-RUSSIA STEREO Set STEREO ON or OFF LOCAL Set LOCAL ON or OFF GENERAL CONTROL Tap GENERAL Button to show GENERAL menu. CLOCK Set CLOCK DISPLAY ON or DISPLAY OFF.

  • Page 18: System Information

    [2].Audio Lang setting: With this option you can select the preferred language for the audio output. When the selected language is recorded on the disc (not all discs have multiple languages recorded) then this language will automatically be played. If not, the first language recorded on the disc is played. [3].

  • Page 19: Calibration

    CALIBRATION The calibration of the screen is useful when some malfunction occur with the touch screen and it needs adjustment. CALIBRATION procedure of the touch screen is described as below: When the target moves to another position, tap and hold at the center of the new target.

  • Page 20: Other Functions

    When system setting PAL, TV sound system can set B/G=>I=>D/K=>/M/N, press ENTER on remote or tap the screen button to select. When system setting SECAM, TV sound system can set B/G=>I=>D/K, press ENTER on remote or tap the screen button to select. When system setting NTSC, press button to automatic skip search term.

  • Page 21: Bluetooth Section

    When the unit have connect with phone, the BT icon will turn on and the Mobile phone name (if available) will be display on the panel. According to mobile pairing device manual, after searching new device (Farenheit), select it, input password "0000" and confirm ok, and device paring is finished.
  • Page 22 call in its call log . Voice Transfer During a call, you can change a call from Bluetooth mode to phone by tapping Transfer button. To have a call in Bluetooth mode again, tap Transfer button. NOTE: the phonebook only supports Western Characters. Any difference in character will be shown such as “...

  • Page 23: Notes On Disc

    NOTES ON DISC  Only use groundless loudspeakers.  Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loud speakers at higher volumes.  Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit.

  • Page 24: Troubleshooting

    TROUBLESHOOTING Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store (No sound is of purchase produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2.

  • Page 25: Troubleshooting

    TROUBLESHOOTING SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCH THE IGNITION KEY NO POWER TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. DISC CANNOT BE PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER LOADED.

  • Page 26: Technical Specifications

    TECHNICAL SPECIFICATIONS General Power supply: 11~16V DC Current consumption: max. 15 A Maximum power output: 52W x 4 channels (max) DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW/DVD±R/±RW playback Dimensions (W x D x H) / 165*178*50 mm/2 kg weight: Working temperature -10℃ - +60℃ range: ESP function: 10 sec.
