Farenheit TI-650B Owner's Manual

In-dash 6.5” monitor touch screen dvd/cd/mp3/mp4 am/fm radio with bluetooth.
Hide thumbs

Advertisement

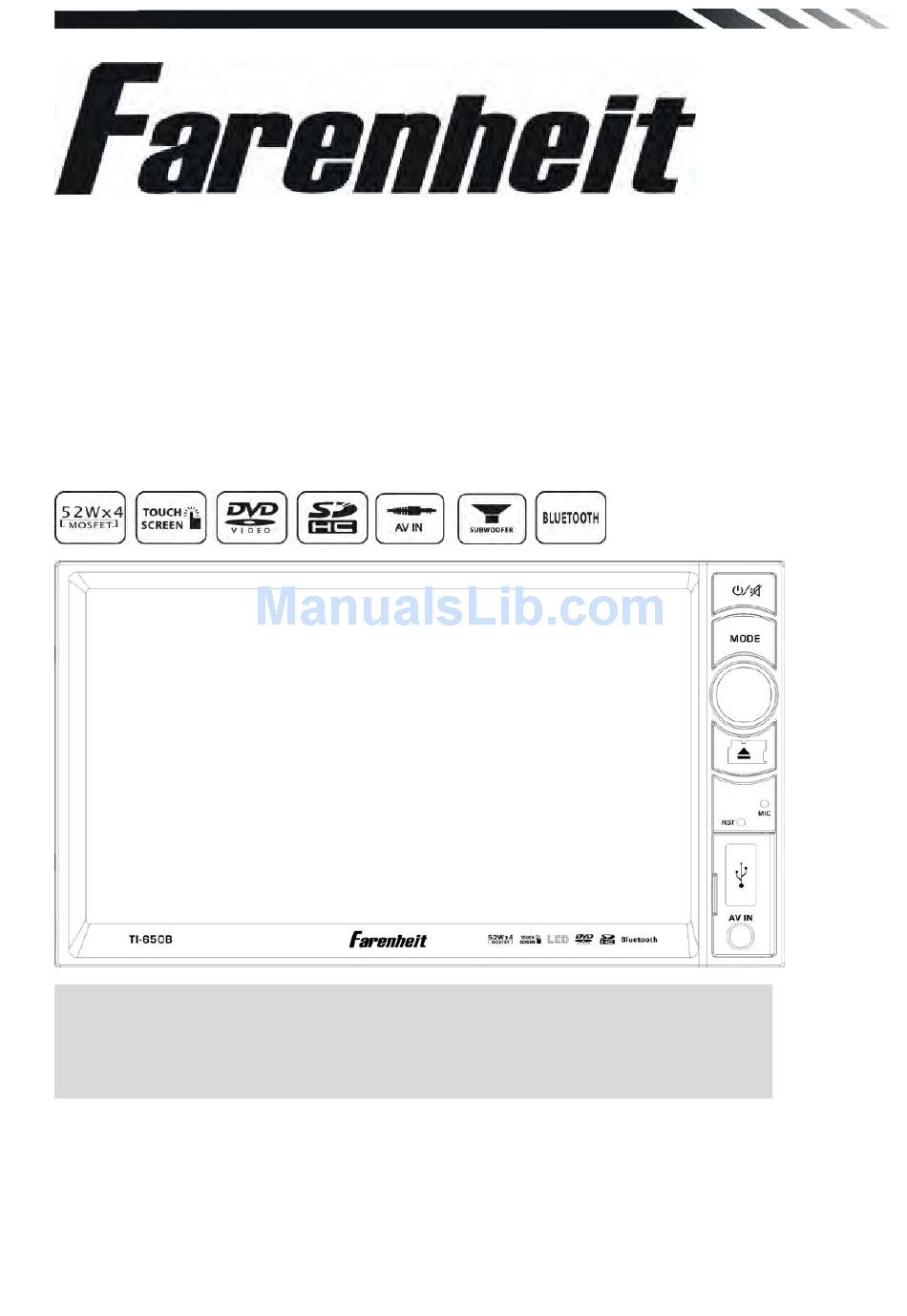

TI-650B
In-Dash 6.5" Monitor
Touch Screen
DVD/CD/MP3/MP4
AM/FM Radio
With Bluetooth
Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new DVD-receiver.

Advertisement

Table of Contents

   Related Manuals for Farenheit TI-650B

   Summary of Contents for Farenheit TI-650B

  • Page 1 TI-650B In-Dash 6.5” Monitor Touch Screen DVD/CD/MP3/MP4 AM/FM Radio With Bluetooth Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.
  • Page 2: Warning

    WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage.
  • Page 3: Table Of Contents

    CONTENTS WARNING! ......................... 2 OPERATION PRECAUTIONS ..................2 CONTENTS ........................ 3 ACCESSORIES ......................4 INSTALLATION ......................5 WIRING CONNECTIONS ................... 6 Front panel ........................8 REMOTE CONTROL ....................9 REMOVE BATTERY ....................12 MAIN MENU ......................13 ◆ RADIO PLAYER ....................13 ◆...
  • Page 4: Accessories

    ACCESSORIES Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt (4) Screw (5) Mounting Collar (6) Release Key (7) Screw 5*20 Power cable Remote Control Warranty card Speaker cable User Manual...
  • Page 5: Installation

    INSTALLATION Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop.
  • Page 6: Wiring Connections

    WIRING CONNECTIONS NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. Note: To watch video the parking wire should be connected to break signal.
  • Page 7 Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND). The is using a BTL circuit and each loudspeaker must be connected with insulated cables according the unit diagram.
  • Page 8: Front Panel

    Front panel 1. POWER/MUTE Button Press it to turn on the unit. Press and hold for 2 seconds to turn the unit off .Press the button briefly to Mute .Please note that the volume will be muted on all audio output connector. 2.
  • Page 9: Remote Control

    Inner panel 9. Disc slot Insert the CD/DVD with the labeled side facing upwards gently into the CD/DVD slot until the device draws in the CD/DVD automatically. 10. SD/MMC CARD slot Remove the control panel by pressing the Eject button. Push a memory card with the writing facing upwards into the card slot until it clicks into place.
  • Page 10 1. MODE button Press it to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), CARD (if there is a SD/MMC card in the unit), Bluetooth and AV IN. 2.
  • Page 11 16. MENU button Press it to show main menu, in DVD mode, long press it to enter TITLE MENU (Enable only if the DVD disc with title menu). 17. SUBTITLE button Press it to select the subtitle language (Available only if the disc with subtitle function). 18.
  • Page 12: Remove Battery

    • Press the MENU icon in the top right corner of the screen to return to the main menu. Select the mode you wish to use in the front zone. • The units screen will change to the selected mode. The DVD or SD/USB movie will continue to play only on the VIDEO OUT and DUAL OUT audio outputs, while the selected mode audio is played through the front and rear LINE outputs.
  • Page 13: Main Menu

    MAIN MENU The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons.
  • Page 14: Dvd Player

    ◆ DVD PLAYER To start DVD Player, tap on DVD button from main menu screen. TOUCH SCREEN MENU You will not see any buttons while DVD is played. Buttons will appear when you tap on TFT screen. Tap the screen again to hide the buttons. Insert DVD disc insert VCD disc NOTE...
  • Page 15: Disc/usb/sd/mmc Interface

    Select the viewing angle of the touch-screen. Select previous or next track. ◆DISC/USB/SD/MMC interface When a file disc, USB or a memory card is played, the screen will show following interface: Mute the sound. Touch to Stop playback from the current position, touch again to final stop to the very beginning Touch to pause playback, touch again to...
  • Page 16: Setting Control

    Note: If there is no external video input, the TFT displays “NO SIGNAL”. 1. Press the △ / ▽ icon to adjust TFT angle. 2. Press the icon to be back to main menu. . ◆SETTING CONTROL Your device has default system settings. You can customize the settings to suit your personal needs.
  • Page 17: Radio Control

    RADIO CONTROL Tap RADIO button to show RADIO menu. AREA:EUROPE-U.S.A-SOUTH AREA AMERICA-RUSSIA STEREO Set STEREO ON or OFF LOCAL Set LOCAL ON or OFF GENERAL CONTROL Tap GENERAL Button to show GENERAL1 menu. DUAL Set DUAL ON/OFF Key CURRENT DUAL VOL Adjust the DUAL VOL CLOCK Set CLOCK display time...
  • Page 18 [1]. Subtitle Lang setting: With this option you can select the preferred language for the subtitles. When the selected language is recorded on the disc then this language will automatically be shown. If not, the first language recorded on the disc is displayed. [2].Audio Lang setting: With this option you can select the preferred language for the audio output.
  • Page 19: System Information

    [7] NTSC/ PAL: Select this menu item to set up your preferred video output format. PAL is commonly used in Europe, NTSC is commonly used in the USA and Japan. Auto is commonly used. [8] DEFAULT: Factory reset. Set all values to Factory default values including memory and preset stations.
  • Page 20: Bluetooth Section

    When the unit have connect with phone ,the BT icon will turn on and the Mobile phone name (if available) will be display on the panel. According to mobile pairing device manual, after searching new device (Farenheit), select it, input password "0000" and confirm ok, device paring is finished.
  • Page 21 call in its call log. Voice Transfer During a call, you can change a call from Bluetooth mode to phone by tapping Transfer button. To have a call in Bluetooth mode again, tap Transfer button. NOTE: the phonebook only supports Western Characters. Any difference in character will be shown such as “+, * or #”.
  • Page 22: Notes On Disc

    NOTES ON DISC  Only use groundless loudspeakers.  Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loud speakers at higher volumes.  Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit.
  • Page 23: Troubleshooting

    TROUBLESHOOTING Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store of purchase (No sound is produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2.
  • Page 24: Troubleshooting

    TROUBLESHOOTING SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCH THE IGNITION KEY NO POWER TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. DISC CANNOT BE PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER LOADED.
  • Page 25: Technical Specifications

    TECHNICAL SPECIFICATIONS General Power supply: 11~16V DC Current consumption: max. 10 A Maximum power output: 52W x 4 channels (max) DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW/DVD±R/±RW playback Dimensions (W x D x H) / 165*178*100 mm/2 kg weight: Working temperature -10℃ - +60℃ range: ESP function: 10 sec.
