Farenheit TID-893 Owner's Manual

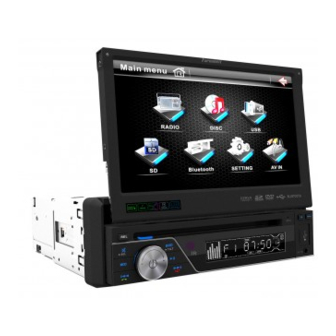

In-dash 7” monitor touch screen dvd/cd/mp3/mp4 am/fm radiowith bluetooth
Hide thumbs
Table of Contents

Advertisement

Quick Links

TID-893/TID-893B
In-Dash 7" Monitor
Touch Screen
DVD/CD/MP3/MP4
AM/FM Radio
With Bluetooth
Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new DVD-receiver.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TID-893 and is the answer not in the manual?

Questions and answers

Related Manuals for Farenheit TID-893

Summary of Contents for Farenheit TID-893

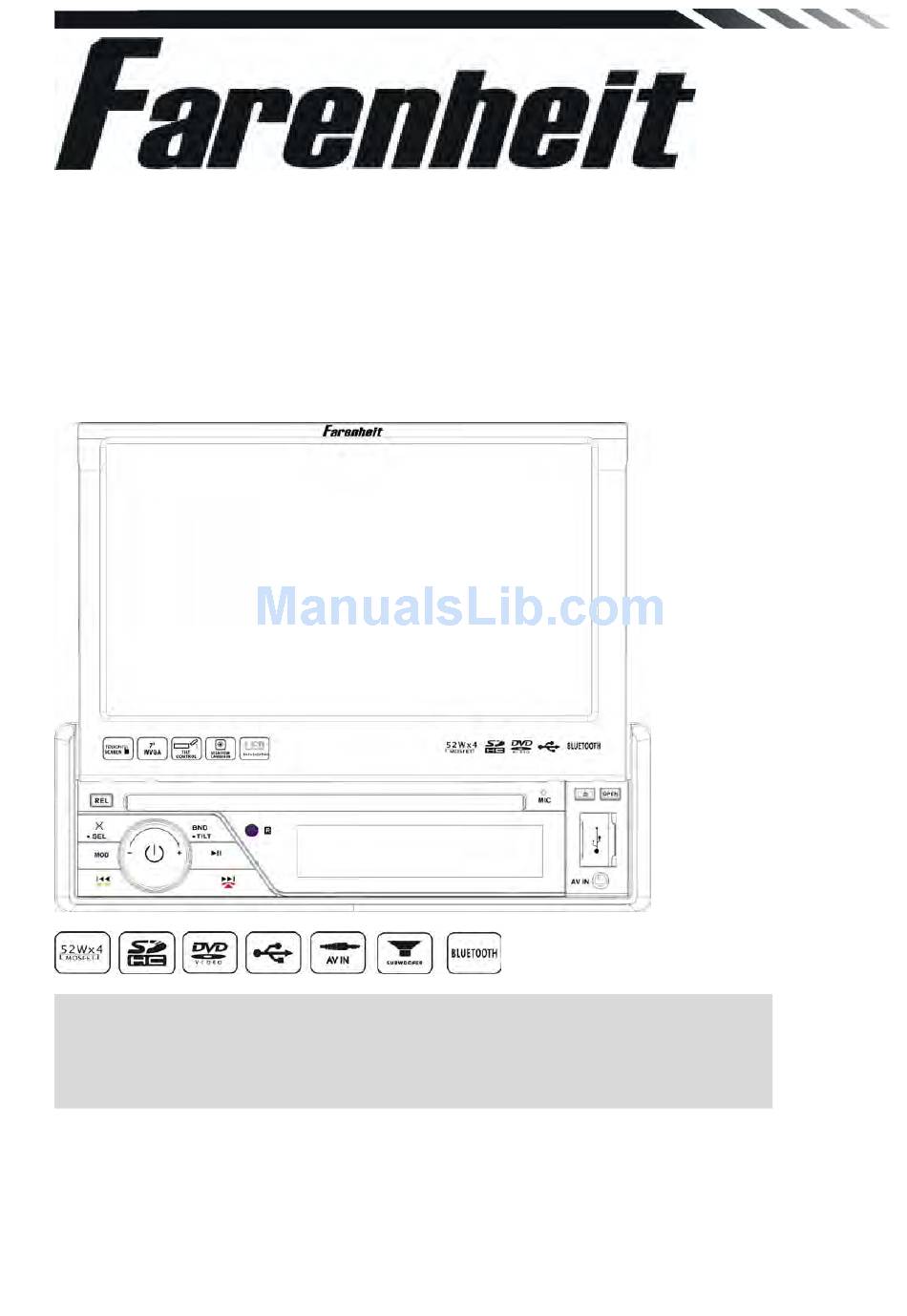

  • Page 1 TID-893/TID-893B In-Dash 7” Monitor Touch Screen DVD/CD/MP3/MP4 AM/FM Radio With Bluetooth Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.

  • Page 2: Warning

    WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage.

  • Page 3: Table Of Contents

    CONTENTS WARNING! ......................... 2 OPERATION PRECAUTIONS ..................2 Accessories ........................ 4 INSTALLATION / UN-INSTALLATION ................ 4 WIRING CONNECTIONS ................... 6 Front panel ........................8 REMOTE CONTROL ....................10 REMOVE BATTERY ....................13 MAIN MENU ......................14 ◆ RADIO PLAYER ....................14 ◆...

  • Page 4: Accessories

    Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Blot (4) Screw 4*6 (5) Mounting Collar (6) Release Key (7) Screw 5*20 Remote Control Warranty card User Manual Power Cable...

  • Page 5: Installation / Un-Installation

    INSTALLATION / UN-INSTALLATION Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop.

  • Page 6: Wiring Connections

    WIRING CONNECTIONS NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. Note: To watch video the parking wire should be connected to break signal.
  • Page 7 Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND). The is using a BTL circuit and each loudspeaker must be connected with insulated cables according the unit diagram.

  • Page 8: Front Panel

    Front panel 1. Release Button Press to detach and release the front panel. When released the unit will switch off automatically after a few second. Detach/Attach the Panel: Press REL button and pull out the left side to detach the panel. To attach it, insert the right side first and then press the left side until hear a click sound.
  • Page 9 Button/ Button In RADIO mode, press to start automatic searching, press and hold for two seconds to start manual searching, then press to tune each frequency step downward. In DVD / SD / USB mode, press button to skip to the previous track. Press button and hold for two seconds to activate fast reverse (REW) search in a track.

  • Page 10: Remote Control

    SD/MMC card slot, for Multimedia playback files only. Insert a SD/MMC CARD into this slot and the unit will automatically start reading and playback the card. * Supported Music File Format: MP3, WMA Files. REMOTE CONTROL 1: MODE 2: POWER 3: BAND/RANDOM/Clear 4: ENTER 5: UP/DOWN/LEFT/RIGHT...
  • Page 11 In SD CARD/ USB mode, press to repeat REP 1 => REP DIR => REP ALL In DVD mode, press to start repeat REP OFF=>REP Chapter=>REP Title=>REP Off. In Radio mode: PS (Preset Scan): Press to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds.
  • Page 12 During playback, press it at the starting point of section you want to repeat(A), press this button again at the ending point of the section you want to repeat (B), section A-B repeating starts. Press it again to cancel the A-B repeat function. Press it and hold for two seconds in DVD mode to zoom the image in or out in the sequence of ZOOM 2->...

  • Page 13: Remove Battery

    REMOVE BATTERY Note:  The distance may vary according to the brightness of ambient light.  If the remote is not used for an extended period of time, remove the battery to prevent possible damage from battery leakage and corrosion. ...

  • Page 14: Main Menu

    MAIN MENU The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons.

  • Page 15: Dvd Player

    Touch this button to select reception of local station or DX for distance station. ◆ DVD PLAYER To start DVD Player, tap on DVD button from main menu screen. TOUCH SCREEN MENU You will not see any buttons while DVD is played. Buttons will appear when you tap on TFT screen.

  • Page 16: Insert Usb/Sd/Mmc And Play Track Will Display As Follows

    In DVD mode touch it to enter TITLE MENU (Enable only if the DVD disc with title menu). Touch it to select previous or next track. Select the viewing angle of the touch-screen. ◆Insert USB/SD/MMC and play track will display as follows: Mute the sound.

  • Page 17: Av-In Mode

    ◆AV-IN Mode To start AV-IN Mode, tap AV-IN icon on the main menu screen. Connect the external audio/video signal source to this unit. Select AV-IN mode in the main menu or by pressing Mode on the front panel. Note: If there is no external video input, the TFT displays “NO SIGNAL”.

  • Page 18: Display Control

    DISPLAY CONTROL Tap DISPLAY button to show DISPLAY menu. SCREEN Screen setting 16:9, 4:3,FULL Backlight Backlight setting LOW, MID, HIGH RADIO CONTROL Tap RADIO button to show RADIO menu. AREA:EUROPE-U.S.A-SOUTH AREA AMERICA-RUSSIA STEREO Set STEREO ON or OFF LOCAL Set LOCAL ON or OFF GENERAL CONTROL Tap GENERAL button to show GENERAL 1 menu.

  • Page 19: Dvd Set Up Menu

    CLOCK Set 24Hour format or HOUR 12Hour format CLOCK Set CLOCK ADJUST time SETTING Set the mobile telephone be AUTO connected automatically or CONNECT manually with car radio. DVD SET UP MENU During the DVD playback, press the SETUP button to enter into the system settings main menu;...

  • Page 20: System Information

    Code Description 1.NONE Kid safe General Audiences – ALL ages admitted PARENTAL GUIDANCE SUGGESTED-Some material may not be suitable fo 3.PG r children PARENTS STRONGLY CAUTIONED-Some material may be inappropriate fo 4.PG-13 r children under 13 5.PG-R Restricted, under 17 requires accompanying parent or adult guardian. RESTRICTED-Under 17 requires accompanying parent or adult guardian 7.NC-17 NO ONE 17 AND UNDER ADMITTED...

  • Page 21: Bluetooth Section（For Tid-893B Only

    When the unit have connect with phone ,the BT icon will turn on and the Mobile phone name (if available) will be display on the panel. According to mobile pairing device manual, after searching new device (Farenheit), select it, input password "0000" and confirm ok, device paring is finished.
  • Page 22 Tap on CALLING button to enter call mode. In Call mode, the unit can be used as your phone. Making and receiving calls are possible with BLUETOOTH. Simply tap phone number and tap button to make a call, and tap button to hang up.

  • Page 23: Notes On Disc

    NOTES ON DISC  Only use groundless loudspeakers.  Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loud speakers at higher volumes.  Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit.

  • Page 24: Troubleshooting

    TROUBLESHOOTING Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store of purchase (No sound is produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2.

  • Page 25: Troubleshooting

    TROUBLESHOOTING SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCH THE IGNITION KEY NO POWER TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. DISC CANNOT BE PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER LOADED.

  • Page 26: Technical Specifications

    TECHNICAL SPECIFICATIONS General Power supply: 11~16V DC Current consumption: max. 10 A Maximum power output: 52W x 4 channels (max) DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW/DVD±R/±RW playback Dimensions (W x D x H) / 165*178*50 mm/2 kg weight: Working temperature -10℃ - +60℃ range: ESP function: 10 sec.

This manual is also suitable for:

Tid-893b

Table of Contents
