GE Monogram ZGU122LPSS Dimensions And Installation Information

ZGU122NPSS - Natural Gas Built-in Dual-Burner Cooktop
ZGU122LPSS - LP Gas Built-in Dual-Burner Cooktop

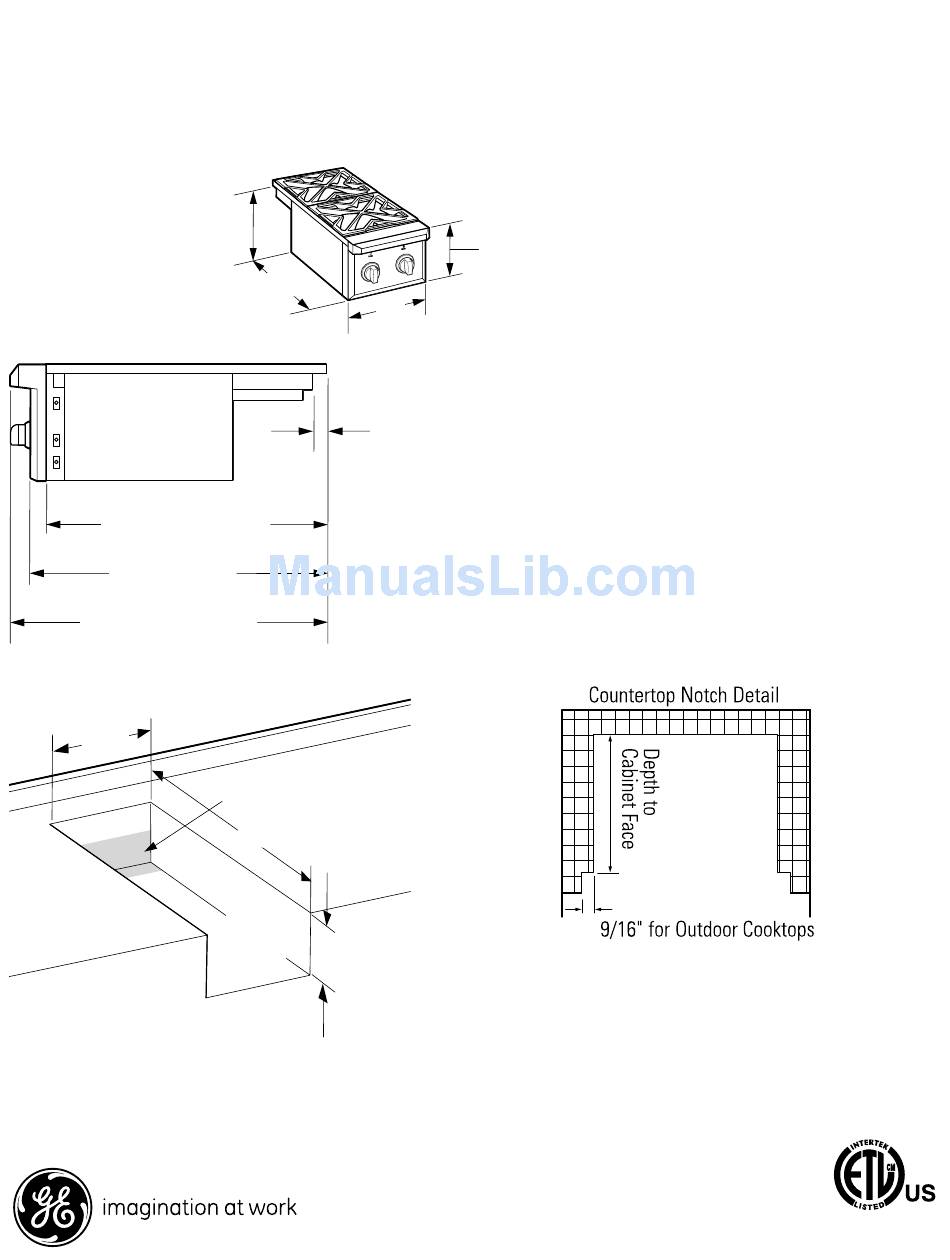

Dimensions and Installation Information (in inches)
12" Min. to
10-1/2" to
Combustibles
the Bottom
on All Sides
of the Side
Support Flange
*25" Countertop Depth
26-1/2" to Front
of Control Panel
28" to Front of Bullnose
11-7/8"
For answers to your Monogram,
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
26-1/2"
13"
7/8" Overlap
at the back
Gas and Electrical Locations
24-1/2"
Outdoor
Cooktop
ZGU122
10-7/8"
GE Profile or
® ™
service,
®
Outdoor Built-in Cooktop
These cooktops are designed to be installed into a
non-combustible enclousure.
• The cooktop drops into the opening and hangs
from the side flanges. It does not require support
11"
from the bottom.
• The cutout must be completely covered with
non-combustible material such as stone, brick,
ceramic tile, concrete board, etc. The countertop
surface and edges must be flat and level.
• If the countertop has an overhang, it must be
notched or cut back flush with the front face of
the cabinet below. See notched detail below.
• Allow 12" minimum clearance on both sides
and the back of the grill to adjacent vertical
combustible construction.
• These gas cooktops cannot be used below any
type of overhead construction.
• These cooktops are designed for outdoor use only.
Do not locate the cooktop in a building, garage or
other enclosed or semi-enclosed area.
• Locate the backside of the cooktop away from
prevailing winds and avoid cooking in windy
conditions.
