Step 7 Installation; Joining Additional Cooktop To Downdraft - GE Monogram ZEW145 Use And Care & Installation Manual

Ge monogram component cooktop svstem use and care guide
Hide thumbs
  • Contents

Advertisement

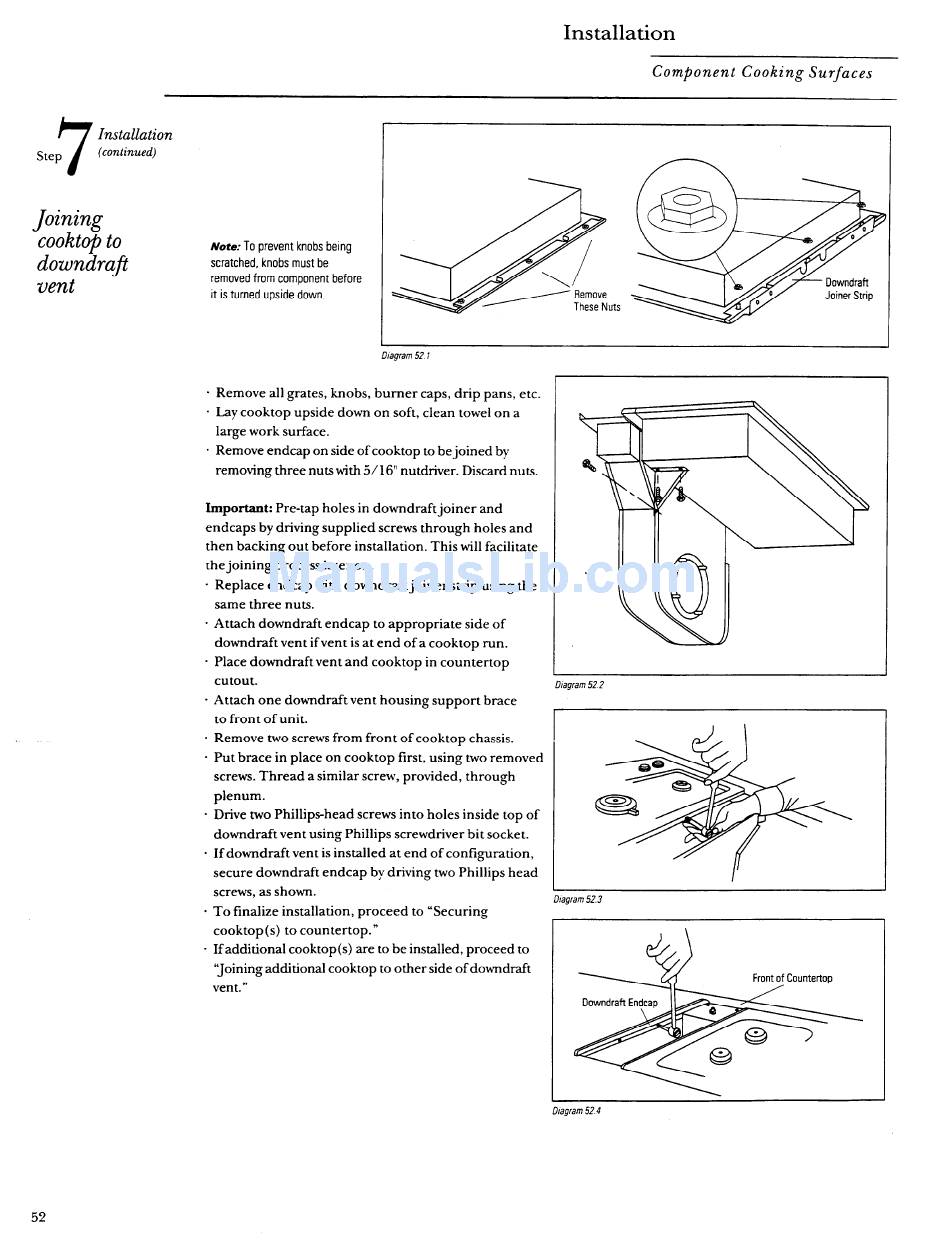

Installation
Component
Cooking
Surfaces
7
Installation
Step
(continued)
Jo~nW
cooktq
~"
Note:
To prevent knobs being
downdrafi
scratched, knobs must be
vent
removed from
component
before
it is turned
upside down.
D/agram521
.
Remove
all grates, knobs, burner caps, drip pans, etc.
" Lay cooktop
upside down on soft, clean towel on a
large work surface.
s Remove endcap on side ofcooktop
to bejoined
by
removing three nuts with 5/ 16" nutdnver. Discard nuts.
Important:
Pre-tap holes in downdraft joiner
and
endcaps
by driving supplied
screws through
holes and
then backing out before installation.
This will facilitate
the joining
process later on.
- Replace
endcap with downdraftjoiner
strip using the
same three nuts.
" Attach downdraft
endcap
to appropriate
side of
downdraft
vent if vent is at end of a cooktop
run.
- Place downdraft
vent and cooktop
in countertop
%)
i
cutout.
D/agram522
"
Attach one downdraft vent housing support brace
to front of unit.
. Remove
two screws from front of cooktop
chassis.
. Put brace in place on cooktop
first, using two removed
screws. Thread a similar screw, provided,
through
plenum.
Q
-
. Drive two Phillips-head
screws into holes inside top of
downdraft
vent using Phillips screwdriver bit socket.
. If downdraft
vent is installed at end of configuration,
secure downdraft
endcap by driving two Phillips head
screws, as shown.
Diagram 523
.
To finalize installation,
proceed
to "Securing
cooktop(s)
to countertop.
"
- If additional cooktop(s)
are to be installed, proceed to
"Joining additional cooktop
to other side of downdraft
Front of Countertop
vent. "
Downdraft Endcap
D:agram524
52
