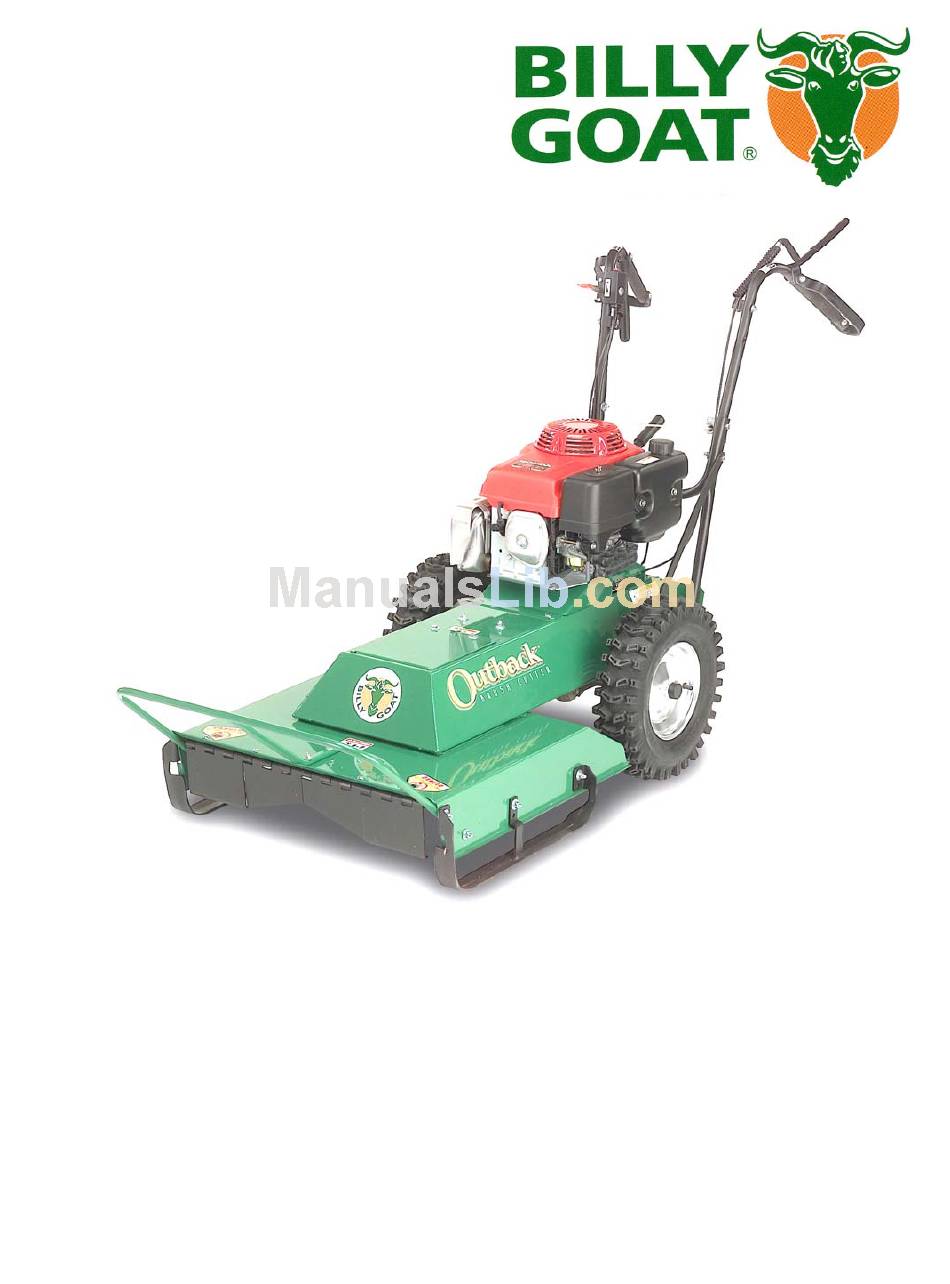

- Page 1 ® BILLY GOAT BC2402 Series Brush Cutter Owner’s Manual Patent Number D386768 Part No 500264 Form No F091506B...
-
Page 2: Table Of Contents
This manual provides complete operating and maintenance instructions that will help to maintain your Brush Cutter in top running order. Read this manual carefully before assembling, operating or servicing your equipment. -
Page 3: Serial Plate Data
BC2402 Series Brush Cutter Owner’s Manual SERIAL PLATE DATA Record the model number, serial number, date of purchase, and where purchased. Purchase Date: Purchased From: BC 2402 SERIES SPECIFICATIONS Engine Type Model Number Horsepower Fuel Capacity Oil Capacity Engine Weight... -
Page 4: General Safety Instructions And Symbols
This symbol indicates that this manual and the engine manufacturer’s manual should be read carefully before assembling, operation or servicing this equipment. This symbol indicates important information that will prevent damage to your BILLY GOAT Brush Cutter. This symbol indicates the engine oil level should be checked before operating this equipment. - Page 5 BC2402 Series Brush Cutter Owner’s Manual DO NOT run this equipment indoors or in any poorly ventilated area. Refueling outdoors is recommended. DO NOT refuel this equipment while the engine is running. Allow engine to cool for at least two minutes before refueling.
-
Page 6: Sound Data
INTENDED USE Your BILLY GOAT ® BC Self-Propelled Brush Cutter is designed for cutting overgrown weeds, brush and other growth down to 3½” (8.9 cm) in height. It is not a lawn mower and does not provide the quality cut of a finish cut mower. -
Page 7: Instruction Labels
BC2402 Series Brush Cutter Owner’s Manual INSTRUCTION LABELS The labels shown below were installed on your BILLY GOAT missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. The correct position for each label may be determined by referring to the Figure and Item numbers shown. -
Page 8: Figure 1 Brush Cutter Assembly Drawing
BC2402 Series Brush Cutter Owner’s Manual Brush Cutter Assembly Drawing Figure 1 Part No 500264 F091506B... -
Page 9: Assembly Instructions
BC2402 Series Brush Cutter Owner’s Manual ASSEMBLY INSTRUCTIONS ® Your BILLY GOAT BC Self-Propelled Brush Cutter was shipped in one carton, completely assembled except for the upper handle assembly and the front guard bar. Mounting hardware for the handle and guard bar is temporarily installed on the lower handle and the front of the deck assembly. -
Page 10: Operation
BC2402 Series Brush Cutter Owner’s Manual OPERATION DO NOT run engine in an enclosed area. Exhaust gases contain carbon monoxide, an odorless and possibly fatal poison. DO NOT start or operate engine if strong odor of gasoline is present. DO NOT start or operate engine if gasoline is spilled. Move equipment away from spill until gasoline has completely evaporated. -
Page 11: Operator Controls
BC2402 Series Brush Cutter Owner’s Manual PERATOR ONTROLS The operator’s station is at the rear of the machine between the handlebars. The operator should STAND in a position to allow both handlebars to be grasped firmly and which allows sufficient leverage to steer the machine. - Page 12 BC2402 Series Brush Cutter Owner’s Manual 3. Pull choke out (Honda engine only). Choke 4. Units equipped with electric starters: Press and hold ON/OFF button until engine starts. ON/OFF (I/O) Switch I-ON O-Off (Manual start shown) DO NOT START equipment with drive or blade clutch engaged.
-
Page 13: Cutting
BC2402 Series Brush Cutter Owner’s Manual PULL STARTER CORD slowly until resistance is felt. Then pull cord rapidly to avoid kickback. 6. Push choke in (Honda engine only). 7. Pull throttle control back to and allow engine to reach correct operating speed. -
Page 14: Shut Down
(i.e., Bermuda, Johnson, etc). When cutting brush and normal field grasses it is recommended that you operate the brush cutter at the standard (top) cutting height. Shut engine off and wait for blade to stop completely. -
Page 15: Handling And Transporting
BC2402 Series Brush Cutter Owner’s Manual HANDLING and TRANSPORTING Using four people to lift unit is recommended. Lift holding the handles and front deck guard. Make sure equipment is properly secured before transporting. NEVER lift the machine while the engine is running. -
Page 16: Maintenance
BC2402 Series Brush Cutter Owner’s Manual MAINTENANCE ERIODIC AINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Inspect for worn or damaged parts. Check for excessive vibration Inspect for loose parts. Sharpen blade. Inspect belts for wear. -
Page 17: Blade Removal And Sharpening
Blade bolt (8-139) is a standard right-hand thread bolt. 5. Remove blade (8-50) and install replacement blade. When replacing the blade use BILLY GOAT Industries PN 500210 only. When sharpening blade make sure to sharpen all cutting edges. 6. Attach new blade with bolt (8-139), lock washer (8-140) and friction washer (8-54 removed earlier. -
Page 18: Blade Drive Belt Tension Adjustment
BC2402 Series Brush Cutter Owner’s Manual LADE RIVE ENSION READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. Numbers in parenthesis ( N-N ) refer to figure and item numbers in Illustrated Parts List. 1. Disconnect spark plug wire. -
Page 19: Blade Clutch Adjustment
BC2402 Series Brush Cutter Owner’s Manual LADE LUTCH DJUSTMENT READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. 1. Disconnect spark plug wire. 2. As the clutch/brake wears or begins slipping or squealing, adjustment may be required to maintain proper cable tension and clutch engagement. -
Page 20: Blade Drive Belt Removal And Replacement
BC2402 Series Brush Cutter Owner’s Manual LADE RIVE EMOVAL AND READ all safety instructions before servicing unit. Numbers in parenthesis (N-N ) refer to figure and item numbers in Illustrated Parts List. Tools required: - 1/2” socket, 3/8” drive - ratchet, 3/8”... -
Page 21: Figure 2 Belt Routing Diagram
BC2402 Series Brush Cutter Owner’s Manual Make sure blade drive belt is properly seated in clutch/brake drive pulley (6-23) and is not resting in gap between clutch/brake drive pulley (6-23) and transaxle drive pulley (6-46) 12. Tighten four screws (6-103) to secure belt guides (6-149, 6-150). -
Page 22: Transaxle Drive Clutch Adjustment
BC2402 Series Brush Cutter Owner’s Manual RANSAXLE RIVE LUTCH READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. 1. Disconnect spark plug wire. 2. As the belt wears or begins slipping or squealing, adjustment may be required to maintain proper cable tension and clutch engagement. -
Page 23: Transaxle Drive Belt Removal And Replacement
BC2402 Series Brush Cutter Owner’s Manual RANSAXLE RIVE EMOVAL AND READ all safety instructions before servicing unit. Numbers in parenthesis ( N-N ) refer to figure and item numbers in Illustrated Parts List. Tools required: ½” socket and ratchet, ½” universal extension bar, pry bar or long screwdriver, adequate support for machine. -
Page 24: Wiring Diagrams
BC2402 Series Brush Cutter Owner’s Manual IRING IAGRAMS SWITCH WHITE BLACK Part No 500264 Starter Switch Wiring Figure 3 FUSE STARTER SOLENOID ENGINE GROUND Starter Circuit Schematic Diagram Figure 4 MAGNETO ON/OFF SWITCH ENGINE GROUND ON/OFF Switch Circuit Schematic Diagram... -
Page 25: Troubleshooting
BC2402 Series Brush Cutter Owner’s Manual TROUBLESHOOTING Problem Engine will not start. Starter does not turn. Will not cut or cutting performance is poor. Abnormal vibrations. Belt slips or smokes. Clutch slips or squeals. Blade brake will not engage. Transaxle will not engage. -
Page 26: Engine Maintenance And Repair
BILLY GOAT will notify their conclusions to the distributor service manager from whom the claim was received. - The decision by the Service Department at BILLY GOAT to approve or reject a Warranty Claim is final and binding. -
Page 27: Maintenance Record
BC2402 Series Brush Cutter Owner’s Manual MAINTENANCE RECORD Date Service Performed Part No 500264 F091506B... -
Page 28: Illustrated Parts List
BC2402 Series Brush Cutter Owner’s Manual ILLUSTRATED PARTS LIST Engine and Engine Base Assembly Figure 6 Part No 500264 F091506B... - Page 29 BC2402 Series Brush Cutter Owner’s Manual ITEM DESCRIPTION Base Assembly with labels Door Base Engine Tube Shift With Grip Clutch Brake Grip 3/4 ID - Black Plate Mount Idler WA Pulley Idler 4.5" OD X 3/8” Bushing Shifter 13 HP Honda GXV390 Electric Start 13 HP Honda GXV390 13 HP OHV B &...
-
Page 30: Figure 7 Handlebar Assembly
BC2402 Series Brush Cutter Owner’s Manual Handlebar Assembly Figure 7 Part No 500264 F091506B... - Page 31 BC2402 Series Brush Cutter Owner’s Manual ITEM DESCRIPTION Handle Brace Left Handle Brace Right Cable Clutch Blade BC2402 Cable Clutch Drive BC2402 Lever Control Blade Handle Upper BC2402 Grip Handle 1” ID x 7.5” Lever Control Clutch Bushing Lever Control...
-
Page 32: Figure 8 Transaxle And Blade Deck Assembly
BC2402 Series Brush Cutter Owner’s Manual Transaxle and Blade Deck Assembly Figure 8 Part No 500264 F091506B... - Page 33 BC2402 Series Brush Cutter Owner’s Manual ITEM DESCRIPTION Deck Assembly with Labels Deflector Front BC2402 Transaxle 3 SPD BC2402 Pulley 5.0" OD ‘A’ Section Belt Traction Drive Plate Pivot Idler/Shifter Shifter Pivot WA Pulley Idler Wheel & Tire 16" SP LH Wheel &...
-
Page 34: Figure 9 Blade Drive Spindle Assembly Detail Drawing
BC2402 Series Brush Cutter Owner’s Manual Blade Drive Spindle Assembly Detail Drawing Figure 9 Part No 500264 F091506B... - Page 35 BC2402 Series Brush Cutter Owner’s Manual ITEM DESCRIPTION Spindle Assembly Complete Spacer Spindle BC2402 Spindle WA BC2402 Bearing 7/8" ID Sealed Press Shaft Drive Blade Spacer Spindle Bearing Pulley 7" OD x 7/8" Bore Adapter Blade WA Washer Friction Blade Screw Cap 7/16-20 x 1-1/4”...
