Socket 479 pentium m intel 855gme 5.25” sbc

Table of Contents

INSTALLATIONS

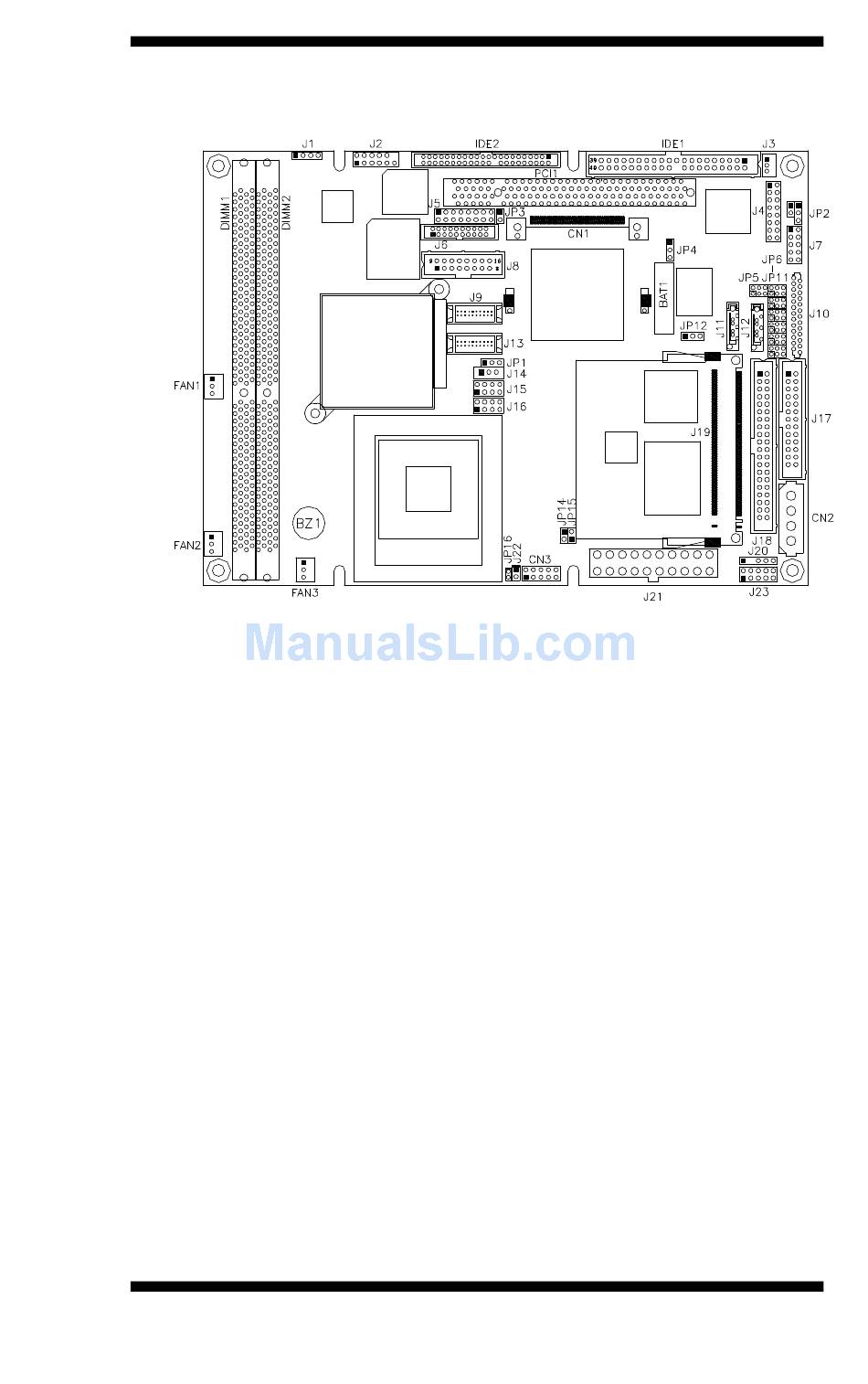

Connector Locations on MAT-880

Connector s on MAT-880................................................................... Page

FAN1, FAN2: System Fan Power Connector ........................................ 16

FAN3: CPU Fan Power Connector ....................................................... 16

IDE1, IDE2: EIDE Connectors ............................................................. 16

J1: CD-In Audio Connector .................................................................. 17

CN2: AT H2/+5V Power Connector ..................................................... 17

J2: External Audio Connector .............................................................. 18

CN3: Digital 4-in 4-out I/O Connector.................................................. 18

J3: Wake On LAN Connector............................................................... 18

J4: Gigabit LAN Connector (used with ID240)..................................... 18

J5: System Function Connector ............................................................ 19

J6: TMDS Connector ........................................................................... 20

J7: 10/100Mbit Ethernet Connector...................................................... 21

J8: VGA CRT Connector ..................................................................... 21

J10: Floppy Drive Connector................................................................ 21

J13, J9: LVDS Connectors (1st channel, 2nd channel).......................... 22

J14: Panel Inverter Power Connector.................................................... 22

J15, J16: USB Connectors.................................................................... 22

J17: Parallel Port Connector................................................................. 23

J18: Serial Ports................................................................................... 23

J20: IrDA Connector ............................................................................ 24

J21: ATX Power Supply Connector ...................................................... 24

MAT-880 User' s Manual
