Configuring the CPU Frequency

The MAT-880 embedded board does not provide DIP switches to configure
the processor speed (CPU frequency).

JP1: LVDS Panel Power Select

Note: The LVDS panel resolution can be configured in the BIOS
Setup.

JP2: Gigabit LAN Enable/Disable

JP3: Compact Flash Slave/Master

10

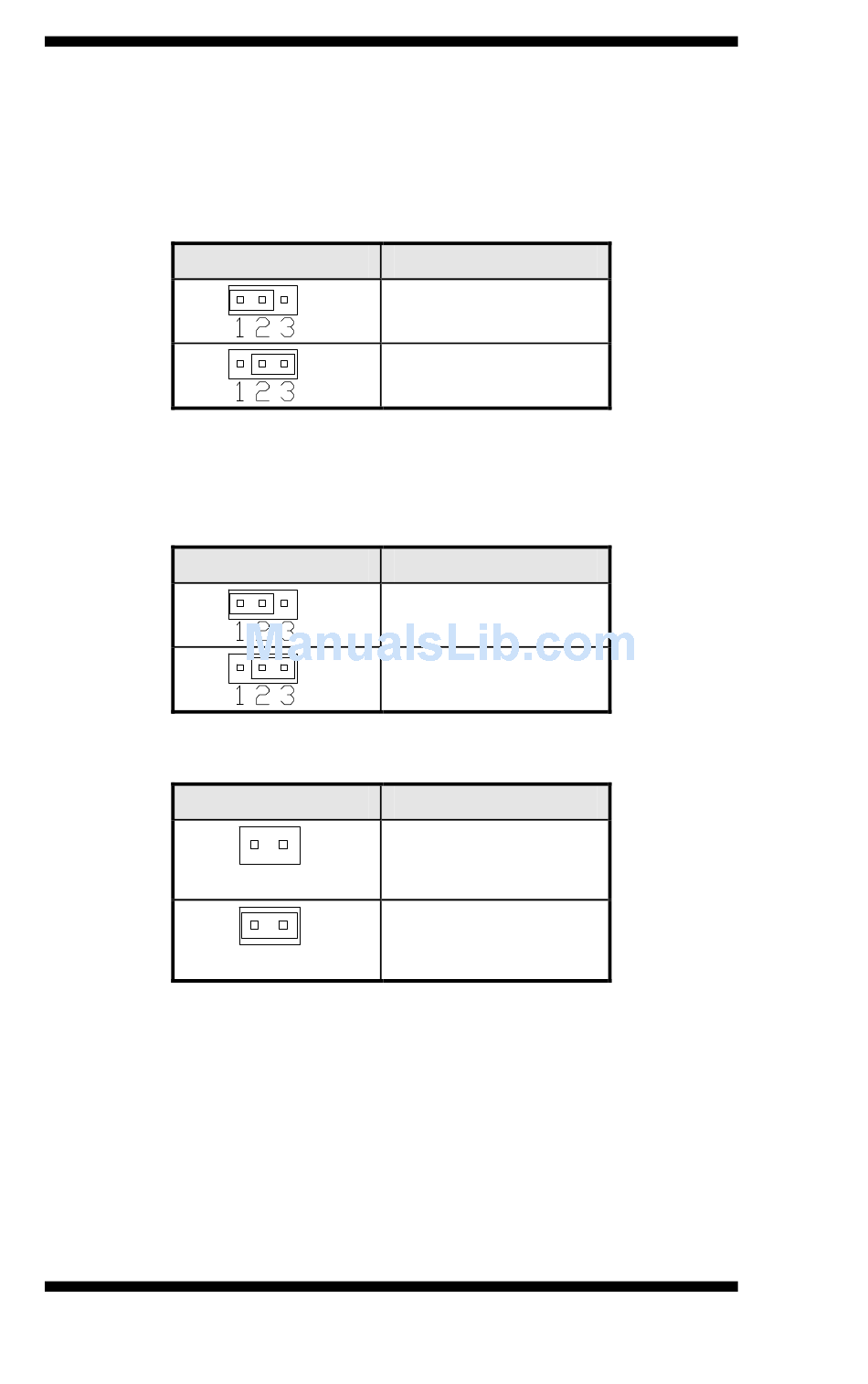

JP1 LVDS Panel Power
JP2
JP3 Compact Flash
Open
Close
MAT-880 User' s Manual
3.3V (default)
5V
Gigabit LAN
Enable
Disable
Slave
Master
