Summary of Contents for Jet J-F225

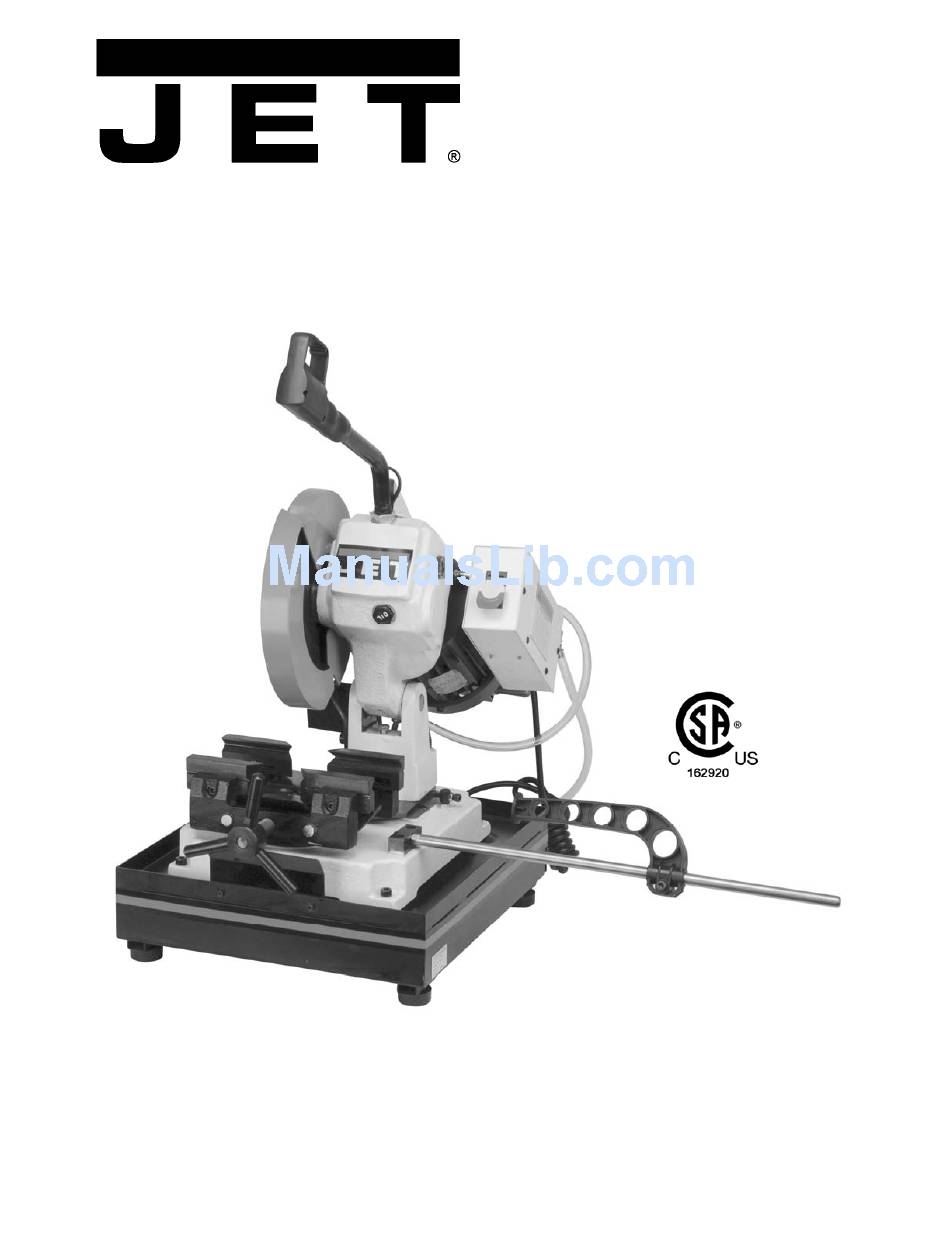

- Page 1 This .pdf document is bookmarked Owner's Manual Benchtop Cold Saw Model J-F225 WALTER MEIER (Manufacturing), Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-414220 Ph.: 800-274-6848 Revision A4 01/2012 www.waltermeier.com Copyright © 2012 Walter Meier (Manufacturing), Inc.
-
Page 2: Warranty And Service
Walter Meier is consistently adding new products to the line. For complete, up-to-date product information, check with your local WMH Tool Group distributor, or visit waltermeier.com. WARRANTY JET products carry a limited warranty which varies in duration based upon the product (MW stands for Metalworking, WW stands for Woodworking). WHAT IS COVERED? This warranty covers any defects in workmanship or materials subject to the exceptions stated below. -
Page 3: Table Of Contents
Table of Contents Warranty and Service ..........................2 Table of Contents ............................ 3 Warnings ..............................4 Introduction ............................. 6 Specifications ............................6 Features ..............................7 Unpacking ............................... 8 Assembly ..............................8 Electrical ..............................9 Adjustments ............................10 Controls ..............................12 Operation .............................. -
Page 4: Warnings
Warnings 1. Read and understand the entire owner's manual before attempting assembly or operation. 2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 3. - Page 5 20. Keep visitors a safe distance from the work area. Keep children away. 21. Make your workshop child proof with padlocks, master switches or by removing starter keys. 22. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are careless acts that can result in serious injury.
-
Page 6: Introduction
The Model J-F225 can perform miter cuts up to 45° to the left. Specifications Model Number .......................... -
Page 7: Features
Features In this section, refer to Figure 1 except where otherwise specified. Miter Cutting Head The miter cutting head (Figure 1) is the unit that cuts the material and consists of a cast iron base, blade support unit guard, transmission unit, and motor. The depth of cut is set by adjusting the depth cut stop. -
Page 8: Unpacking
Unpacking Remove packing and two wrapped parcels containing the handle and workstop, requiring simple assembly, from shipping container. Then lift machine from container and place on sturdy work surface. Assembly Handgrip Tools required 23mm wrench Crosspoint screwdriver Referring to Figure 3: 1. -
Page 9: Electrical
Electrical Connections Volts Total length of cord in feet The J-F225 Cold Saw is rated at 115V, 1Phase and is designed for use on a circuit with an 120V outlet that looks the one shown in Fig. A. and... -
Page 10: Adjustments
Failure to comply may result in serious injury! Performing Angle Cuts The JET J-F225 can perform cuts at angles up to 45º to the left. Adjust the angle of a cut as follows while referring to Figure 5: 1. - Page 11 Changing the Saw Blade The cold saw must not be connected to the power source when changing saw blades. Failure to comply may result in serious injury! Remove the saw blade as follows while referring to Figure 6: 1. Remove the screw (A) and cover plate (B), or loosen the screw just enough to slide the cover plate away to reveal the hub.
-
Page 12: Controls
Controls Power Switch – The power switch has two positions, off and on. To operate the machine, the Power switch must be set to on. Then depress micro-switch (Figure 8) in the trigger handle to start. Locking Key – When the saw is not in use, the switch should be locked in the off position. -
Page 13: Maintenance
Maintenance Lubrication For long life and trouble free operation, it is Maintenance Requirements essential that this machine is kept clean and well lubricated. All maintenance must be Vise and leadscrew – oil daily with Regal carried out with the power switched off. R&O 68 Failure to comply may result in serious injury! -
Page 14: Blade Selection
Blade Selection When using the J-F225 cold saw, it is important to select the correct type of blade for the material to be cut. This section explains the limitations and specific applications of the different types of blades. General characteristics: Fine Tooth Pitch –... -
Page 15: Troubleshooting Blade And Cutting Problems
Troubleshooting Blade and Cutting Problems Problem Probable Cause Solution Incorrect lubricant/coolant fluid Ensure proper coolant flow. Check the cutting speed, feed speed and air pressure Material too hard parameters and the type of blade you are using. With a new blade it is necessary to start cutting at half feeding speed. -
Page 16: Parts List
30 ..... TS-1514031 .....Flat Head Screw ..........M6x20 ......2 31 ..... F225-131 ....Cover ....................1 32 ..... F225-132 ....Support Plate..................2 33 ..... J-F225-133 ....Rear Vise Jaw ..................1 34 ..... J-F225-134 ....Front Vise Jaw..................1 35 ..... F225-135 ....Jaw Insert ....................2 36 ..... - Page 17 72 ..... F225-172 ....Head Gasket ..................1 73 ..... J-F225-173 ....Switch Box .................... 1 74 ..... F225-174 ....Switch ....................1 75 ..... J-F225-175 ....Motor ..............1HP, 115V ....1 ....F225-175C ....Capacitor (not shown).........250VAC, 400MFD ..1 ....F225-175MC ....Magnetic Contact (not shown) ......115V, 1Ph ....1 ....
-
Page 18: Exploded View
Exploded View... -
Page 19: Wiring Diagram
Wiring Diagram... -
Page 20: Ordering Replacement Parts
Ordering Replacement Parts To order parts or reach our service department, call 1-800-274-6848 Monday through Friday (see our website for business hours, www.waltermeier.com. Having the Model Number and Serial Number of your machine available when you call will allow us to serve you quickly and accurately. Walter Meier (Manufacturing), Inc.
