Page of 59
QuickSpecs
Overview
Models

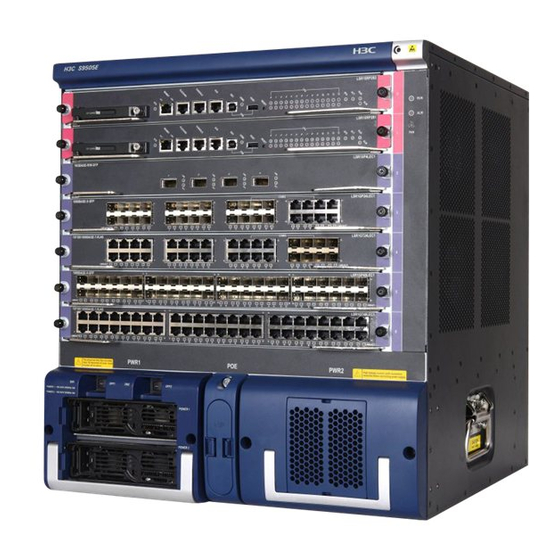

HP 9512 Switch Chassis
HP 9508-V Switch Chassis
HP 9505 Switch Chassis
Data center, large campus, enterprise LANs, MANs
Modular routing switch, IPv6, MPLS
Future-proof architecture
Added functionality with service modules
Robust network and service virtualization
The HP 9500 Switch Series is a family of modular switches that form a next-generation data center/large campus core switching
platform. With unprecedented levels of networking performance, industry-leading availability, and flexible and efficient deployment
options, these switches enable new services while driving down the cost of network operations. The 9500 series switches can provide
more than 1.4 TB of high-performance switching capacity, aggregate up to 192 10-GbE or 576 GbE ports, and offer a future-proof
architecture that enables customers to support emerging enterprise core or data center requirements.
Quality of Service (QoS)
IEEE 802.1p prioritization: delivers data to devices based on the priority and type of traffic
Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP
port number, source port, and DiffServ
Virtual Output Queuing (VOQ) architecture: reduces complexity and increases efficiency and cost-effectiveness by eliminating
head-of-line blocking issues within the queuing system
Bandwidth shaping:
Port-based rate limiting: provides per-port ingress-/egress-enforced maximum bandwidth
Classifier-based rate limiting: uses access control list (ACL) to enforce maximum bandwidth for ingress/egress traffic on
each port
Traffic policing: supports Committed Access Rate (CAR) and line rate
Congestion avoidance: Weighted Random Early Detection (WRED)/Random Early Detection (RED)
Powerful QoS feature: supports the following congestion actions: strict priority queuing (SP), weighted round robin (WRR), and
SP+WRR
Firewall
Stateful firewall: enforces firewall policies to control traffic and filter access to network services; maintains session
information for every connection passing through it, enabling the firewall to control packets based on existing sessions
Zone-based access policies: logically groups virtual LANs (VLANs) into zones that share common security policies; allows both
unicast and multicast policy settings by zones instead of by individual VLANs
Application-level gateway (ALG): deep packet inspection in the firewall discovers the IP address and service port information
DA - 13773 North America — Version 10 — July 12, 2013
HP 9500 Switch Series
Page 1
JC125B
JC474B
JC124B
