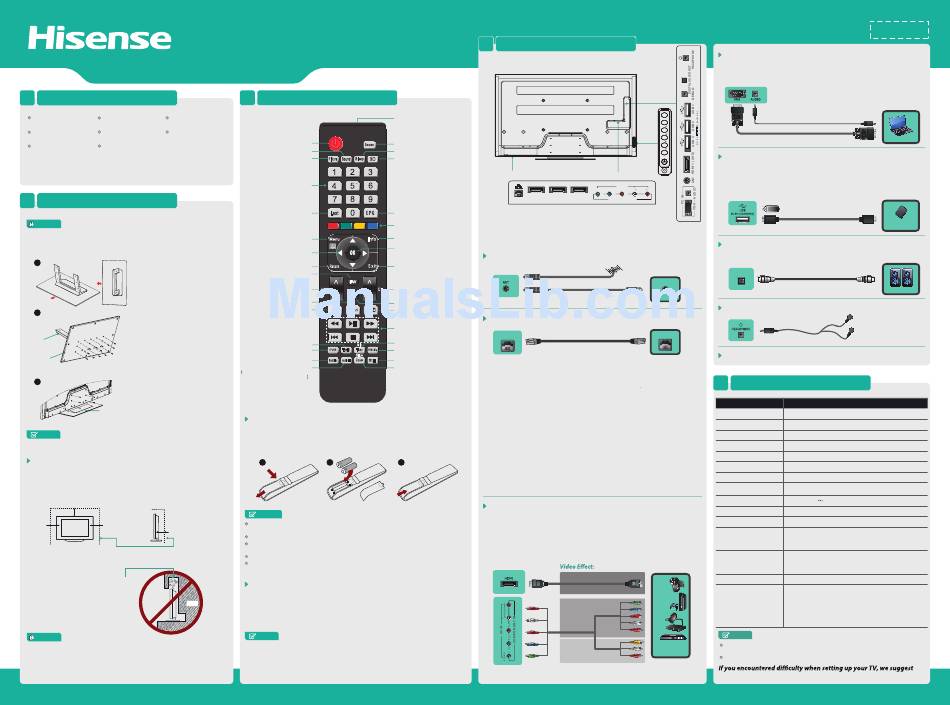

Hisense HLUD84XT900 Quick Setup Manual

HLUD84XT900
1

ACCESSORIES LIST

User Manual Quick Setup Guide Warranty Card
Remote Control Batteries: AAA × 2 3D Glasses × 1
Screw (M5×12) × 13 Screw (M6×25) × 6
• If the item is not specif ied in the accessories list, it should be provided by customer.
Recommend the active shutter 3D glasses model FPR3D16. Other brands 3D
•
glasses may not be supported.
2

INSTALLING THE STAND

CAUTION
Carefully place your TV facedown on a soft, cushioned surface to prevent
damage to the TV or scratching to the screen.
1
To confirm the direction of the base
FRONT
stand.
FRONT
2
Take out the stand accessories, Insert
the stand cover into the base plate, and
secure them with 13 provided screws
Stand Cover
(M5 x 12).
Base Plate
3
Secure the base stand to the TV with
the 6 provided screws (M6 x 25).
Base Stand
NOTE
Product image is only for reference, actual product may vary in appearance.

SECURING THE INSTALLATION SPACE

Make sure that your TV has adequate air circulation. Allow enough space around
the TV as shown below. Avoid operating the TV at temperatures below Inadequate
air 41°F (5°C).
Install with stand
12 inches
(30cm) Leave at least this much
space around the set.
4 inches 4 inches
(10cm) (10cm)
4 inches
(10cm)
Never install the TV set as follows:
Air circulation is blocked.
Wall
CAUTION
Inadequate air circulation can lead to overheating of the TV and may cause
damage to your TV or cause a fire.
QUICK SETUP GUIDE
3
VIEWING THE REMOTE CONTROL
Remote sensing window
Power Standby button: Power on
/ Standby Select input sources
Source
Select sound mode
Set the TV sleep timer
Select picture mode
Picture Sleep 3D 3D button
Sound
Select a channel or input numbers
Display the Electronic Programming
Return to the previous channel Last
Guide in DTV mode
Special function buttons
Display the main menu
Display TV program and input source
Info
/ Back menu display Menu information
Confirm the selection / Display a list of
channels saved in TV tuner memory
▲/▼/◄/►: Up/Down/Left/Right
Return the previous menu Exit the menu
Return
Fast access to your saved favorite
channels
Adjust the volume Select a channel
VOL CH
Mute
Open the HiSmart Hub
Mute and restore sound
Enter the Opera browser
Enter the YouTube app
Media player controls: Rewind,
Play / Pause, Fast Forward, Previous,
Stop and Next
Enter the Teletext mode
Time shift of images on USB devices
/ Mix Teletext with TV pictures
Mix
Start video recorder in DTV mode
PVR T.shift Text HiMedia (digital multimedia player) button
Size
Turn Subtitles on or off
Subtitle AudioI/II Zoom Still Freeze a picture on screen
Switch between different audio Adjust aspect ratio / Adjust Teletext size
only applicable when the TV program
has the feature
ERF-32910

CHANGE THE BATTERIES

1. Slide open the battery cover on the back of the remote control.
2. Install two AAA size (1.5V) batteries. Match the "+" and "-" signs on the batteries to the
signs on the battery compartment.
3. Close the battery cover.
1 2 3
Gently Push
NOTES
Dispose of your batteries in a designated disposal area. Do not throw the batteries
into fire.
Do not mix battery types or combine used batteries with new ones.
Remove depleted batteries immediately to prevent battery acid from leaking into the
battery compartment.
If you do not intend to use the remote control for a long time, remove the batteries.
The effective range of remote control is suggested in the figure below.

Match the Remote Control with TV

1. Please ensure that your TV is switched on.
2. Aim the remote control at the left-bottom of the TV within 4 inches.
3. Press the [Last] and [EPG] buttons on your remote control simultaneously for at least 3
seconds, the LED light on your remote control will light up three times to indicate
successful pairing.
NOTE
If the LED is black, the remote has failed to pair with the TV, repeat the pairing
procedure.
4

MAKING CONNECTIONS

TV Side Panel
MENU
SOURCE
VOL
Botton
VOL
View
CH
CH
Power Switch TV Bottom Panel
AV IN
VIDEO L AUDIO R
Y P P
B R
HDMI 4/ARC HDMI 3 HDMI 2
LAN COMPONENT IN
Check the jacks' for position and type before making any connections.
Loose connections can result in image or color problems. Make sure
that all connections are tight and secure.
ANT Connect an outdoor VHF/UHF antenna.
Outdoor
Antenna
VHF/UHF Antenna
OR
Antenna Cable (75Ω) ANT OUT
LAN Connect an ethernet cable to access a network or the Internet.
LAN

Turning the TV On for the First Time

The Installation Guide Menu appears the first time you turn on the TV. It will assist you to
specify the Remote Pair, Language Setting, Country Setting, Time Zone Setting (just for
Australia area), Use Mode, Network Setting and Channel Search
Press [POWER] to turn on your TV, it will go straight into Setup Wizard menu
•
Press [▲/▼/◄/►] buttons to navigate the menu and change the settings. Press [OK]
•
button to confirm.
Remote Pair - Match your remote control with your TV according to the instructions.
Language Setting - Select your desired language to be displayed on the menu.
Country Setting - Select the country where you will operate the TV.
Time Zone Setting - Select the local time zone according to your region.
Use Mode - Select your Mode Setting: Home Mode or Shop Mode.
Home Mode is the recommended setting which offers full functionality of the television.
Network Setting - Connect an Ethernet cable to access a network or the Internet. TV also
features wireless connectivity. For more information, see "Using the Network Menu".
Channel Search - Search and store all available TV channels automatically.
HDMI / COMP / AV
Connect an HDMI cable or Comp/AV Adapter from an external A/V equipment. No sound
connection is needed for HDMI to HDMI connection. If the device signal resolution does
not match the specification table you need to change the setting of device according to the
table. Please consult your device user manual for instruction.
• To select the HDMI / Component / AV
Press [Source] button, when the list of Input Source appears, press [▲/▼] to select the
source [HDMI] / [Component] / [AV], then press [OK] to connect.
BEST (HDMI)
Y
BETTER
P
b
(COMP)
Component
P
r
L
R
Video
GOOD Video Camera/
AV
L
Set-top Box/
(AV)
Satellite Receiver
R
VGA & AUDIO
Connect a VGA cable and an audio cable from the PC.
• To select the VGA: Press [Source] button, when the list of Input Source appears,
press [▲/▼] to select the source [VGA], then press [OK] to connect.
USB
Connect a USB 2.0 device port for browsing photos, listening music and watching
recorded movies.
• To select the USB device: Press [Source] button, when the list of Input Source
appears, press [▲/▼] to select the source [HiMedia], then press [OK] to connect.
Or press [HiMedia] to directly enter the HiMedia menu
DIGITAL AUDIO OUT
Connect an optical cable from an external digital audio system (Toslink optical cable
is needed).
DIGITAL AUDIO OUT
HEADPHONE Connect Headphone for audio out of the TV.
LAN
DEBUG
Just for factory used, it can't be inserted any equipment.
5

SPECIFICATIONS

Model HLUD84XT900
Size with base (mm) 1921×1175×450
Size without base (mm)
1921×1123×75.6
Weight with base (kg)
97
Weight without base (kg)
76
Screen Diagonal Size
84 inches
Screen Resolution 3840 × 2160
Sound Output (RMS)
10 W + 10 W
Power Consumption
500 W
Power Supply 100V - 240V 50Hz/60Hz
Colour System
PAL NTSC
Television System
PAL B DVB-T
Temperature: 5°C - 45°C
Environmental
Humidity: 20% - 80% RH
Conditions
Atmospheric pressure: 86 kPa - 106 kPa
480I/60Hz, 480P/60Hz, 576I/50Hz, 576P/50Hz,
Component mode 720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz,
1080P/50Hz, 1080P/60Hz
VGA mode
640×480, 800×600, 1024×768, 1280×1024 60Hz
480I/60Hz, 480P/60Hz, 576I/50Hz, 576P/50Hz,
720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz,
HDMI mode
1080P/50Hz, 1080P/60Hz
640×480, 800×600, 1024×768
3840x2160/24Hz, 3840x2160/25Hz, 3840x2160/30Hz
only for UHD port
NOTE
Sources of UHD (4K) content must be connected to the HDMI-1 input. For the
moment digital television channels do not deliver UHD content.
Features, appearance and specifications are subject to change without notice.
you refer to the Trouble Shooting tips in the User Manual.
Dial: 1800 447 367 (Toll Free) http://www.hisense.com.au
ES-G130472
