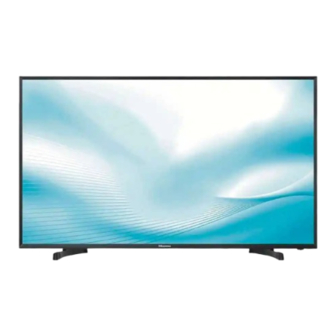

- Page 1 LCD Television Service Manual Chassis: MSD3463 Product: HE40M2160FTS/H40M2100S/H40M2106S/H40M2108S H40MEC2150S/H40MEC2155S Ver 1.0 Hisense Electric Co. Ltd. March 4, 2016...
-
Page 2: Table Of Contents
Content Content ................................... - 2 - Service Manual ..............................- 3 - 1. Precautions and notices ..........................- 3 - 1.1 Warning .............................. - 4 - 1.2 Notes ..............................- 7 - 2. Product Specifications ..........................- 10 - 2.1 Main board layout ..........................- 10 - 2.2 The service manual Includes products ..................... -
Page 3: Service Manual
WHEN REPLACEMENT PARTS ARE REQUIRED, BE SURE TO USE REPLACEMENT PARTS SPECIFIED BY THE MANUFACTURER. Proper service and repair is important to the safe, reliable operation of all Hisense Electric Co., Ltd Equipment. The service procedures recommended by Hisense and described in this Service Guide are effective methods of performing service operations. -
Page 4: Warning
Accordingly, a serviceman that uses a service procedure or tools, which are not recommended by Hisense, must first satisfy himself thoroughly that neither his safety nor the safe of the equipment will be jeopardized by the service method selected. - Page 5 All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the set by a wristband with resistance.
- Page 6 cable clamps. -The insulation of the mains lead should be checked for external damage. 1.1.6 (1) Do not touch Signal and Power Connector while this product operates. Do not touch EMI ground part and Heat Sink of Film Filter. (2) Do not supply a voltage higher than that specified to this product. This may damage the product and may cause a fire.
-
Page 7: Notes
(7) Do not pull out or insert the power cable from/to an outlet with wet hands. It may cause electric shock. (8) Do not damage or modify the power cable. It may cause fire or electric shock. (9) If the power cable is damaged, or if the connector is loose, do not use the product: otherwise, this can lead to fire or electric shock. - Page 8 removing the power board, start servicing at least 2 minutes after the main power has been turned off. • While the main power is on, do not touch any parts or circuits other than the ones specified. If any connection other than the one specified is made between the measuring equipment and the high voltage power supply block, it can result in electric shock or activation of the leakage-detection circuit breaker.
- Page 9 problems resulting from scratches on the parts, the deformation of parts, and short-circuits due to residual electric charge. • Routing of the wires and fixing them in position must be done in accordance with the original routing and fixing configuration when servicing is completed. All the wires are routed far away from the areas that become hot (such as the heat sink).
-
Page 10: Product Specifications
2. Product Specifications 2.1 Main board layout 2.1.1 Use board: TP.MS3463S.PB801 - 10 -... -
Page 11: The Service Manual Includes Products
2.2 The service manual Includes products Product Main & power board(one board) Digital system Panel LVDS cable HE40M2160FTS 3463S\HE40M2160FTS\ROH T2+C+S2 JHD400DF-E31 HX-2X20-L-500P-FFC\guangdong \500\ROH HX-2X20-L-500P-FFC\500\ROH - 11 -... -
Page 12: Tv Front And Rear
2.3 TV Front and Rear TV Front - 12 -... - Page 13 - 13 -...
- Page 14 2.4 Specification (The exact value of the TV reference user guide) - 14 -...
- Page 15 2.5 Remote control - 15 -...
-
Page 16: Factory/Service Osd Menu And Adjustment
3. Factory/Service OSD Menu and Adjustment 3.1 How to enter the Factory OSD Menu With user’s RC Power on the TV. 1. Press “Menu” button and call up User OSD Menu. 2. Select “ Sound” -> press “OK” button on RC to ensure then move button to “Balance”... - Page 17 Colour Temp R Gain G Gain B Gain R Offset G Offset B Offset TO Fac Power mode last memory Software update start Uart bebug on/off Item Default Options Notes MODE M, U Note: MODE “M” is only used for factory production. Qingdao Huangdao Russia...
- Page 18 3.2.2 Design Menu White balance Picture Curve Volumn Curve Sound Mode The above Factory/Service OSD Menus are reference only, please refer to the actual unit to determine the appearances. - 18 -...
-
Page 19: Software Updating
4. Software updating 4.1 USB upgrade USB upgrade includes two methods. One is USB directly upgrade the other is USB menu upgrade. MSD3463_SN51_75.bin * USB directly upgrade sk.Unplug the TV power cord and plug MSD3463_SN51_75.bin in root directory of USB di the U disk to the TV. - Page 20 4.2 Mstar Tool upgrade 1 Install the USB-serial driver For the first connecting ,the pc will recognize and automatically install the USB device.the process is just like the installation of mini disk. See the following figure. - 20 -...
- Page 21 2 Hardware connecting You can update the software through a special tool a USB-to –serial port (as following) USB port to your PC and the serial to the TV’S VGA port. - 21 -...
- Page 22 3 USB Board Driver - 22 -...
- Page 23 - 23 -...
- Page 24 “Comport setting “item need choose corresponding com port. How to look up corresponding com port? Now show.as following - 24 -...
- Page 25 - 25 -...
- Page 26 4 Mstar ISP Tool Install the ISP_Utility V4.5.2.8 -------only for the first time update. Connect the PC and main board with the USB-serial board Click the” Config “button. And then a dialog window will show as below. Draw on the front of “Use USB” Port Type setting is USB Base Addr setting is 0x38C ISP Slave Address choose 0x92...
- Page 27 Click the Connect button Click the Connect button if appear the following figure, It indicates that the ISP_TOOL has connected. If appear the following figure It indicates that the ISP_TOOL has not connected. Please click the Dis Con button and click Connect button to connect again.. Check: a Power on b USB board connect c connection line match - 27 -...
- Page 28 Click the“Read ”button Choose the update file from the folder. MSD3463_SN51_75.bin The update file has been chosen successfully - 28 -...
- Page 29 Click the“Auto”button and choose parameters as following. Click the “Run” button to start If appear green ”PASS”, it indicates that the “software written” is successful . If show” error message “then click the “Run” button again and again till show the following dialog window - 29 -...
- Page 30 - 30 -...
- Page 31 The above appears on the screen-the word “PASS” shows in the information displaying window, indicating upgrading is over - 31 -...
-
Page 32: Troubleshooting
5.Troubleshooting 5.1 Troubleshooting for Remote Control Remote control does not work Try new batteries Replace battery Replace RC Replace remote control Check IR receiver Change Led & IR board Replace Led & IR BD Change Led & IR cable Replace Led & IR cable Replace main board - 32 -... - Page 33 5.2 Troubleshooting for Function Key Buttons does not work Check solder connections and Check switches see if any switches are stuck. Replace Key BD Check key board Check Key BD cable Change Key BD Replace main board - 33 -...
- Page 34 Replace Main Replace Main BD Power on Replace Panel (to contact Hisense tech support.) Replace Power BD Notes: Above TV configure is that TV in work state, indication Led is blue and in standby state the indication led is red.
- Page 35 5.4 Troubleshooting for Audio No sound Reconnect Check connecter Replace speaker wire Check speaker wire Replace speaker set Check speaker set Replace main board Power Supply Board - 35 -...
- Page 36 5.5 Troubleshooting for TV/VGA/HDMI input No picture on the screen Check Signal Source Make sure signal source is available Reconnect Check connect Replace cable Check cable Replace main board - 36 -...
- Page 37 5.6 Troubleshooting for YPbPr input No picture on the screen Check Source work or not Check Source Device Reconnect Check connect Check Wires (Green Blue, Red) Replace wires Replace main board - 37 -...
-
Page 38: Circuit Instruction
5.7 Troubleshooting for Video input No picture on the screen Check Source work or not Check Signal Source Reconnect Check connect Replace Cable/Wires Check Cable/ Wires Replace main board 6. Circuit instruction Power assign and Main board signal process - 38 -... -
Page 40: Schematic Circuit Diagram
7. Schematic circuit diagram 8. Explode View - 40 -... - Page 53 CB118 RB124 RB125 DB103 RB126 RB127 TB101 Vbridge RB141 DB102 RB142 RB123 SGND RB143 SGND CB117 CB111 DB106 BB101 RB128 T3.15AL 250V~ LCB3 RB129 CYB1 CYB4 NTCB1 Vbridge QB101 SGND RB106 CB116 DB101 RB101 QB102 CNB1 RB107 RB109 SGND CYB2 CYB5 RB102 SGND...
- Page 54 CN10 12V_OFF 12V_OFF 5V_STB 5V_M 12V_OFF 12V_OFF 3V3_STB NC/4PIN-2.0-D-H- NC/4PIN-2.0-D-H- POW_EN/ 10ohm-0402-5%-1/16W 0.1uF-0402-X5R-20%-16V SWPA6045S4R7MT 5V_STB POW_EN NC/10Kohm-0402-5%-1/16W EN/SYNC 5V_STB 10Kohm-0402-5%-1/16W 100Kohm-0402-5%-1/16W 10Kohm-0402-5%-1/16W KMBT3904 ME2345A CD27 0.1uF-0402-X5R-20%-16V 12V_OFF RM10 MP9495DJ-LF-Z 10Kohm-0402-5%-1/16W 100Kohm-0402-5%-1/16W RM14 0.1uF-0402-X5R-20%-16V POW_EN/ 22uF-0805-X5R-20%-6.3V ME2325-G 22uF-0805-X5R-20%-6.3V 0.1uF-0402-X5R-20%-16V 0.1uF-0402-X5R-20%-16V 0.1uF-0402-X5R-20%-16V 100Kohm-0402-5%-1/16W 33Kohm-0402-1%-1/16W 10uF-0603-X5R-20%-6.3V...
- Page 55 DVDD_DDR +1.15V_VDDC +1.5V_DDR AVDD_DDR_DATA AVDD_DDR_DATA AVDD5V_MHL +1.5V_DDR 3V3_STB 3V3_MOD1 +1.15V_VDDC +1.15V_VDDC +1.15V_VDDC DVDD_DDR 10uF-0603-X5R-20%-6.3V 1uF-0402-X5R-20%-16V 10uF-0603-X5R-20%-6.3V 1uF-0402-X5R-20%-16V FCM1005KF-121T06(120ohm-500mA) FCM1005KF-121T06(120ohm-500mA) NC/0.1uF-0402-X5R-20%-16V 0.1uF-0402-X5R-20%-16V 1uF-0402-X5R-20%-16V 0.1uF-0402-X5R-20%-16V 1uF-0402-X5R-20%-16V 1uF-0402-X5R-20%-16V 1uF-0402-X5R-20%-16V 1uF-0402-X5R-20%-16V 1uF-0402-X5R-20%-16V 1uF-0402-X5R-20%-16V 1uF-0402-X5R-20%-16V ,IC Main Chip,MSD3463GSA-Z1,LQFP216,SMD,Mstar 3V3_MOD1 3V3_STB 3V3_DMPLL 3V3_STB HDMI1_RX0_N RX0N_B HDMI1_RX0_P IR_DAT RX0P_B IRIN...
- Page 56 RXO4_N CF16 CN15 RXO4_P CF17 VCC_PANEL VCC_PANEL VCC_PANEL VCC_PANEL NC/5.6pF-0402-NPO-5%-50V VCC_PANEL VCC_PANEL NC/5.6pF-0402-NPO-5%-50V RXO4_N RXO0_N RXO0_P RXO0_N RXO0_P RXO1_N RXO1_P RXO1_N RXO1_P RXO4_P RXO2_N RXO2_P RXO2_N RXO2_P 5.6pF-0402-NPO-5%-50V RXEC_N RXEC_P RXEC_N RXEC_P 5.6pF-0402-NPO-5%-50V RXO3_N RXO3_P RXO3_N RXO3_P RXE4_N CF10 RXE0_N RXE0_P RXE0_N RXE0_P...
- Page 57 HDMI0_5V RX2+ HDMI0_5V HDMI0_RX2_P HDMI0_RX2_N RX2- HDMI0_5V HDMI0_RX1_P RX1+ HDMI0_RX1_N RX1- 45 R1ohm-0402- 5%-1/16W RX0+ HOTPLUG0 HDMI0_RX0_P 10Kohm-0402- 5%-1/16W HDMI0_RX0_N HDMI0_SDA/ 10Kohm-0402- 5%-1/16W RX0- HDMI0_RXC_P RXC+ HDMI0_SCL/ HDMI0_RXC_N HDMI0_HPDIN RXC- 45 R1ohm-0402- 5%-1/16W HDMI_ARC/ 1Kohm-0402- 5%-1/16W HDMI0_SCL/ HDMI0_SCL KMBT3904 HDMI0_SDA/ HDMI0_SDA 10Kohm-0402- 5%-1/16W 33ohm-0402- 5%-1/16W...
- Page 58 RV20 VGA_RIN+ 0ohm-0402-5% -1/16W NC/SFI0402-240E-2R5PP-LF 75ohm-0402-5% -1/16W 33ohm-0402-5% -1/16W 5V_M 0.047uF-0402-X7R-10% -16V USB_5V WLHD-051A NC/0ohm-0603-5% -1/10W MSMD110 0ohm-0402-5% -1/16W 100uF-16V-20% -511-105 -F=2.5-XF NC/SFI0402-240E-2R5PP-LF UART-TX/DDC UART-TX_SDA RV21 VGA_GIN+ 75ohm-0402-5% -1/16W 33ohm-0402-5% -1/16W 0.047uF-0402-X7R-10% -16V UART-RX/DDC UART-RX_SCL 0ohm-0402-5% -1/16W 100ohm-0402-5% -1/16W NC/SFI0402-240E-2R5PP-LF 75ohm-0402-5% -1/16W USB_5V 100ohm-0402-5% -1/16W...
- Page 59 SCART Input SCART_VIN SC_CVBSIN1 75ohm-0402-5%-1/16W SCART_VOUT SCART_CVBS_OUT1 NC/100pF-0402-NPO-5%-50V 150ohm-0402-5%-1/16W 0.047uF-0402-X7R-10%-16V SCART_Gin 0ohm-0402-5%-1/16W NC/SFI0402-240E-2R5PP-LF 120pF-0402-NPO-5%-50V AV14 75ohm-0402-5%-1/16W ,DIO ESD,17.5pF,9V,DFN1006-2L,SMD,ESD5451N-2/TR,Willsemi NC/SFI0402-240E-2R5PP-LF SC_ROUT 75ohm-0402-5%-1/16W AR-OUT SC_RIN/ NC/100pF-0402-NPO-5%-50V AR-IN SC_LIN/ RS13 SCART_AuLin/ SC_LIN SC_LOUT AL-OUT A-GND RS14 B-GND SC_LIN/ SCART_Bin 10Kohm-0402-5%-1/16W Form IC AL-IN SCART_Bin 12Kohm-0402-5%-1/16W RS16...
- Page 60 CN11 5V_CI PC-CL1D-PV-A03-C-03 5V_M 5V_CI VPP1 VPP2 PCM_D0 PCM_D1 PCM_CE_N CE1# FCM1005KF-121T06(120ohm-500mA) PCM_D2 CE2# 22uF-0805-X5R-20%-6. 3V PCM_D3 0.1uF-0402-X5R-20%- 16V PCM_D4 PCM_CD2_N CD2# PCM_D5 PCM_CD1_N CD1# PCM_D6 VS1# PCM_D7 IOIS16# PCM_WAIT_N WAIT# INPACK# PCM_IRQA_N IRQ# PCM_RESET RESET PCM_IOWR_N 5V_CI IOWR# PCM_IORD_N TSI_SYNC PCM_IRQA_N IORD#...
- Page 61 3V3_Tun_T RFT1 0.1uF-0402-X5R- 20%-16V SDCL1005C68NJTDF(68nH-0402 5%-C) 470pF-0402-X7R- 10%-50V 1.2pF-0402-NPO- 0.25pf-50V 220pF-0402-X7R- 10%-50V 180pF-0402-NPO- 5%-50V 1Kohm-0402- 25% SDCL1005CR27JTDF( NC/SDCL1005CR27JTDF( SDCL1005C2N7STDFM01 SDCL1005CR18JTDF(180nH-0402 5%-C) SDCL1005CR18JTDF(180nH-0402 5%-C) 1Kohm-0402- 25% 5V_ANT SDCL1005CR18JTDF(180nH-0402 5%-C) 0.1uF-0402-X5R- 20%-16V CD33 0.1uF-0402-X5R- 20%-16V CT31 0.022uF-0402-X7R- 10%-16V NC/? CT33 NC/FSMD050 RF_INPUT NC/0.1uF-0402-X5R- 20%-16V LT13 R840...
- Page 62 AMP_MUTE AMP_MUTE/ 4K7ohm-0402-5%-1/16W 10uF-0805-X5R-20%-16V 4K7ohm-0402-5%-1/16W 10uF-0805-X5R-20%-16V 470uF-16V20%-1012-105 -F=5.0-XL RA14 AMP RIN PH_AROUT CA33 RA16 AMP LIN PH_ALOUT RA18 AVCC CA34 CA35 RA10 22uF-0805-X5R-20%-6.3V 6800pF-0402-X7R-10%-50V 10ohm-0402-5%-1/16W 22uF-0805-X5R-20%-6.3V 6800pF-0402-X7R-10%-50V 100ohm-0402-5%-1/16W 0.22uF-0402-X5R-10%-16V 1uF-0402-X5R-20%-16V 0ohm-0402-5%-1/16W NC/SFI0402-240E-2R5PP-LF 0.033uF-0402-X7R-10%-16V 0.22uF-0402-X5R-10%-16V 1000pF-0402-X7R-10%-50V 0ohm-0402-5%-1/16W NC/SFI0402-240E-2R5PP-LF 0.033uF-0402-X7R-10%-16V NC/100Kohm-0402-5%-1/16W 0.22uF-0402-X5R-10%-16V CN13 1Kohm-0402-5%-1/16W 100ohm-0402-5%-1/16W...
