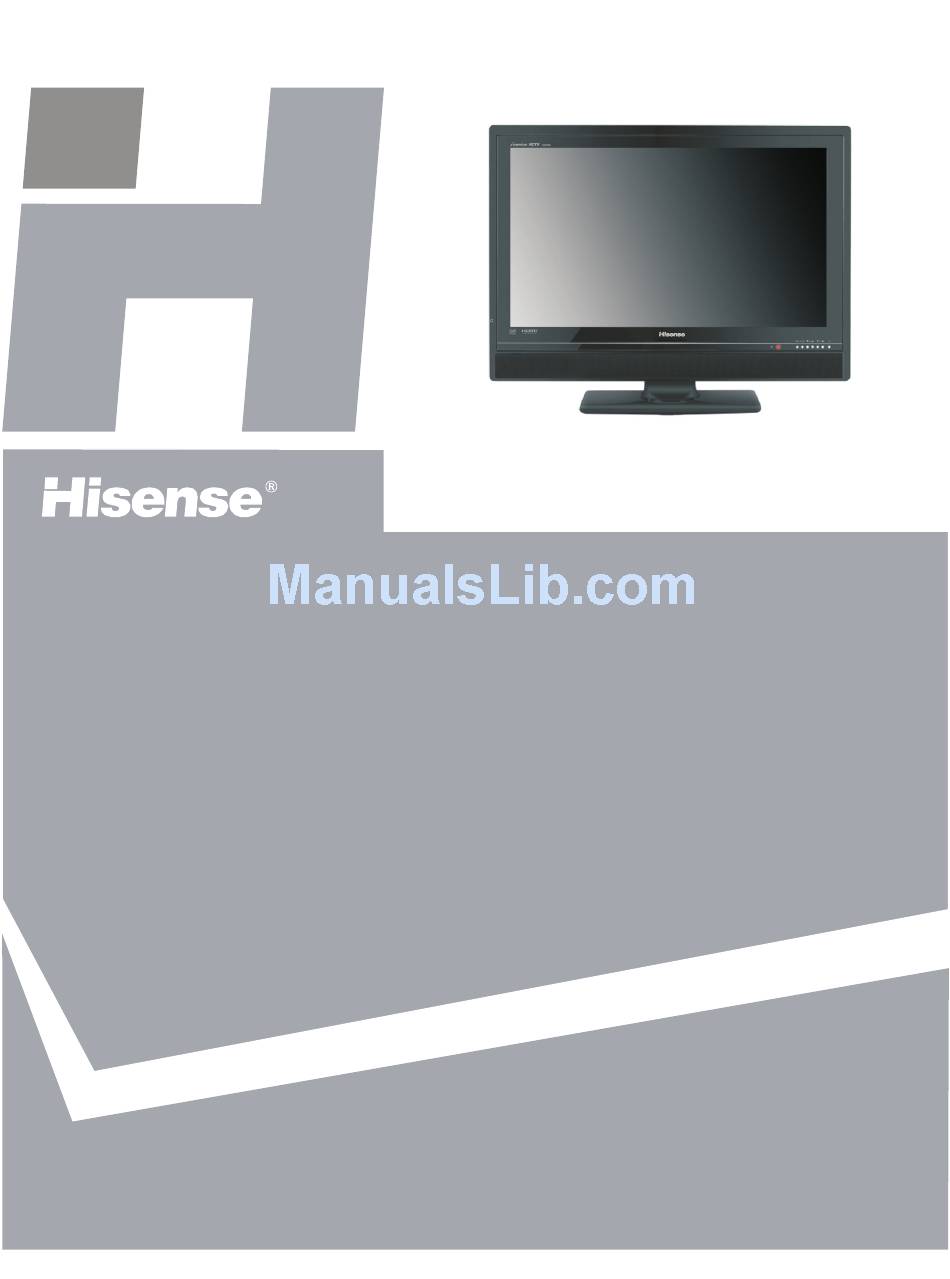

Instruction Manual
HSLC5533HDI
22 INCH LCD
Part No:IES071112

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSLC5533HDI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hisense HSLC5533HDI

Summary of Contents for Hisense HSLC5533HDI

  • Page 1 Instruction Manual HSLC5533HDI 22 INCH LCD Part No:IES071112...
  • Page 3 Hisense Hisense 36 MONTHS IN HOME REPLACEMENT WARRANTY Hisense Hisense Hisense 1800 447 367...
  • Page 4 This page has been left blank intentionally.

  • Page 5: Table Of Contents

    Dear customer, Thank you for choosing this LCD color TV. We expect our product and service will deliver many years of visual enjoyment. This manual is to guide you to set up and operate your TV as quickly as possible. Please read all the safety and operation instructions carefully before you begin, then follow the instructions carefully.

  • Page 6: Important Safeguard

    IMPORTANT SAFEGUARD FIRE AND SHOCK PRECAUTIONS Adequate ventilation must be provided to prevent heat build up inside the unit. Keep the inside of unit free from Ÿ foreign objects, such as hairpins, nails, paper, etc. Do not put the set into a bookcase or other enclosures in which it would be poorly ventilated.

  • Page 7: Preparation For Using Your New Tv

    Selecting a location for the TV 1. Place the TV on a sturdy platform (away from direct sunlight for optimal viewing). 2. Place the TV far enough from the walls to allow proper ventilation. Inadequate ventilation may cause overheating which may damage the TV.(150mm minimum recommended distance around covered enclosure) Note: Please contact retail dealer for wall mounting.

  • Page 8: Back Connections

    Model number and serial number found here. Plug headphone into this jack. When headphones are plugged in, no sound Headphone jack comes from the loudspeakers.(to HSLC5533HDI) NOTE: The above picture is for reference only, please refer to the actual TV to determine their appearance.

  • Page 9: Connecting Your Tv

    Connecting your TV AC INPUT Whenever you connect an audio system to your set ensure that all elements are switched off When connecting an external device, match the color of the connection terminal to the cable. NOTE: colors for inputs and cables must correspond on both devices.

  • Page 10: Connecting Computer

    Connecting an Aerial (For analogue and Digital signals) To view television channels correctly, a signal must be received by the set from the following source: -An outdoor VHF/UHF antenna Connecting External display receiver Devices Connecting External display receiver Devices from RF INPUT to this jack. Optical Audio Connect an optical audio device to this jack (Toslink optical cable is needed).

  • Page 11: Connecting Hdmi

    Connecting HDMI -Supports digital connections between HDMI - enabled AV devices such as (PVRs, DVD, BluRay, HDDVD, AV receivers and digital devices.). -No sound connection is needed for an HDMI to HDMI connection. NOTE: Some devices such as a PVR or DVD players require a HDMI signal to be set via the output in the device's settings - please consult your device user manual for instructions.

  • Page 12: Using The Remote Control

    Using the remote control Preparing the remote control Installing the remote control batteries 1 Open the battery cover on the back of the remote control. 2 Install two AAA size(1.5V) batteries. Match the “+” and “-” signs on the batteries to the signs on the battery compartment. 3 Close the battery cover.

  • Page 13: Learning The Remote Control

    Using the remote control Learning the remote control Remote sensing Window Power Indicator On/Off(Standby) Available source selection SLEEP SOURCE Set the sleep time For direct channel access To return to the last view program LAST TV button switches from Source to TV Fast access to your saved favorite programs Select the HDMI source Select the component source...

  • Page 14: Using The Tv

    Using the TV features Using your TV Turning your TV on and off To turn your TV on and off: Turning on: Connect the TV to an AC power outlet and turn on the power switch located below the front right hand side of unit.

  • Page 15: Memorizing Channels

    Memorizing channels When you first set up your TV or if you move your TV to a different geographical location, you should scan for (memorize) channels. Your TV searches for all channels in your area that have a signal, then stores the channel information in memory.

  • Page 16: Fine Tuning Channels

    Fine tuning channels Under poor reception conditions, or when receiving analogue signals from distant TV stations, the picture quality might be improved by using the Fine Tune option in the Channel submenu. Select Fine Tune and adjust to display the best image using [VOL /VOL ]. (Applicable for Analogue transmission only) select Channel, then press the [VOL /OK] to highlight Press the [MENU] then press he [CH /CH ] Manual install.

  • Page 17: Selecting The Sound Mode

    Selecting the sound mode To select the sound mode: Press the [SOUND] button one or more times to select the sound mode you want. You can select User, Ÿ Music, Standard, and Speech. Selecting the audio mode To select the audio mode: Press the [I/II] button one or more times to select the audio mode you want.

  • Page 18: Freezing A Picture

    Freezing a picture To freezing a picture : Press the [STILL] button repeatedly to turn on or off picture still mode.(Not supported in YP HDMI Ÿ 1080i/P signal) Displaying video source information To display video source information: Press the [INFO] button .

  • Page 19: Setting Up Parental Guidance

    Setting up Parental Guidance You can block TV programs and movies based on ratings. Some TV ratings also let you block certain types of content. Australia States TV ratings Rating Description General audiences Parental guidance recommenced Mature audiences only, parental strongly advised Mature audiences only, younger 15 years and older Adult audiences, strong violent, younger 15 years and older Restricted, younger 18 years and older...

  • Page 20: Using The On-Screen Display (Osd)

    Using the on-screen display (OSD) Your TV has an on-screen display (OSD) that you can use to change settings for your TV. To use the OSD: 1 Press the [MENU]. The OSD opens. Picture Brightness Contrast Colour Sharpness Colour Temperature Standard Enhanced Setting : Select...

  • Page 21: Sound Menu

    Sound menu Sound Balance Digital Audio Output Auto Equalizer : Select OK : Enter : Exit Option Description Balance Adjusts the volume from the left and right speakers. Auto Volume Control Turns automatic volume control on or off. This option keeps the audio in a preset range to eliminate large spikes in volume.

  • Page 22: System Menu

    System menu System Blue Screen Setup Wizard OSD Setting Country Region NSW/ACT Timer Factory Reset : Select : Select OK : Enter OK : Enter : Exit : Exit Option Description Blue Screen set the blue screen on or off. Setup Wizard If the setup wizard is on, you will be first asked set the Date, Time, Country Region, and Auto Install items at the next once turn on TV.
  • Page 23 Lock Lock Change Password Parental Guidance Hotel Lock Child Lock : Select OK : Enter : Exit Note: To go back on any screen, press [Menu] button. Option Description Change the Lock password. The default password is 2008. Change Password Classified the programs into the following kinds: Block None None programs are blocked.
  • Page 24 Channel Channel Manual Install Auto Install Fine Tune Program Edit : Select OK : Enter : Exit Option Description In Analog signal type manual install: Signal Type Analog Channel No. which you would like to manual install channel No. Name which you would like to manual install channel name.

  • Page 25: Appendix

    Using the TELETEXT Selecting teletext mode Select the channel that is broadcasting the desired Teletext program. 2 Press [TEXT] button and alternate between Teletext mode and normal mode. Note: All the operations below should be under the Teletext mode except TIME operation. You can directly input your desired page number by pressing [0~9] buttons.

  • Page 26: Cleaning And Care

    Cleaning and care WARNING: Do not try to remove the cabinet back. Refer servicing to qualified service technicians. To clean the TV screen: 1. Unplug the TV to avoid possible shock hazard. 2. Use a clean cellulose sponge or chamois cloth dampened with a solution of mild detergent and warm water to clean the TV screen and trim.

  • Page 27: Specifications

    Innovation is life Specifications Model HSLC5533HDI Diagonal display size 22 inches Resolution 1680X1050 Pixels Television system PAL B/G DVB-T Color system PAL/NTSC Channel coverage VHF-L: 48.25 to 168.25MHz VHF-H: 175 .25 to 463.25MHz UHF: 471.25 to 863.25MHz PC mode SVGA XGA SXGA...
