ZVB36SN/BN
GE Monogram

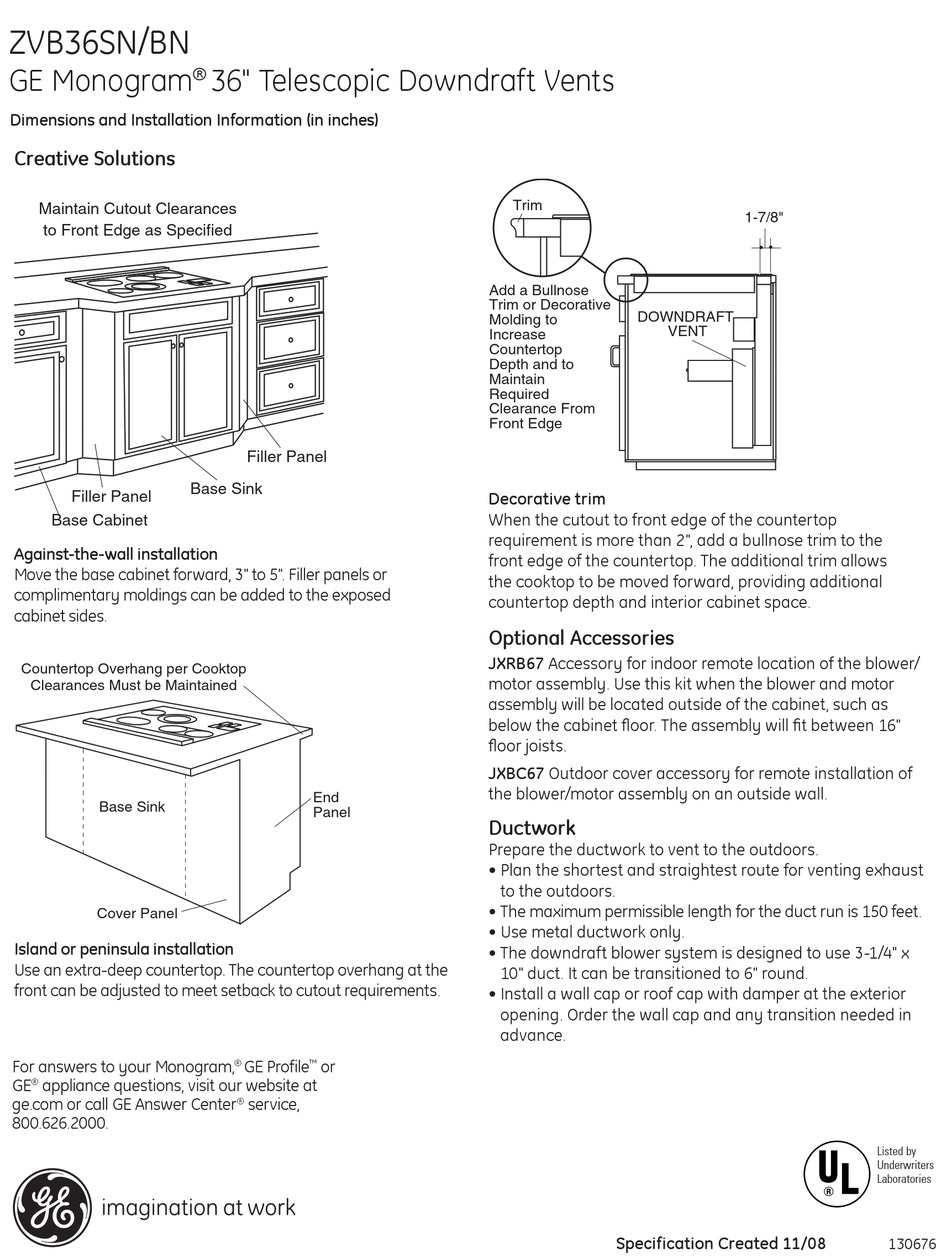

Dimensions and Installation Information (in inches)
Creative Solutions
Maintain Cutout Clearances
to Front Edge as Specified
Filler Panel
Base Cabinet
Against-the-wall installation
Move the base cabinet forward, 3" to 5". Filler panels or
complimentary moldings can be added to the exposed
cabinet sides.
605Dia159
Countertop Overhang per Cooktop
Clearances Must be Maintained
Base Sink
Cover Panel
Island or peninsula installation
Use an extra-deep countertop. The countertop overhang at the
front can be adjusted to meet setback to cutout requirements.
605Dia160
For answers to your Monogram,
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
36" Telescopic Downdraft Vents
®
Filler Panel
Base Sink
End
Panel
GE Profile or
® ™
service,
®
Trim
Add a Bullnose
Trim or Decorative
DOWNDRAFT
Molding to
Increase
Countertop
Depth and to
Maintain
Required
Clearance From
Front Edge
Decorative trim
When the cutout to front edge of the countertop
requirement is more than 2", add a bullnose trim to the
front edge of the countertop. The additional trim allows
the cooktop to be moved forward, providing additional
605Dia161
countertop depth and interior cabinet space.

Optional Accessories

JXRB67 Accessory for indoor remote location of the blower/
motor assembly. Use this kit when the blower and motor
assembly will be located outside of the cabinet, such as
below the cabinet floor. The assembly will fit between 16"
floor joists.
JXBC67 Outdoor cover accessory for remote installation of
the blower/motor assembly on an outside wall.
Ductwork
Prepare the ductwork to vent to the outdoors.
• Plan the shortest and straightest route for venting exhaust
to the outdoors.
• The maximum permissible length for the duct run is 150 feet.
• Use metal ductwork only.
• The downdraft blower system is designed to use 3-1/4" x
10" duct. It can be transitioned to 6" round.
• Install a wall cap or roof cap with damper at the exterior
opening. Order the wall cap and any transition needed in
advance.
Specification Created 11/08
1-7/8"
VENT
Listed by
Underwriters
Laboratories
130676
