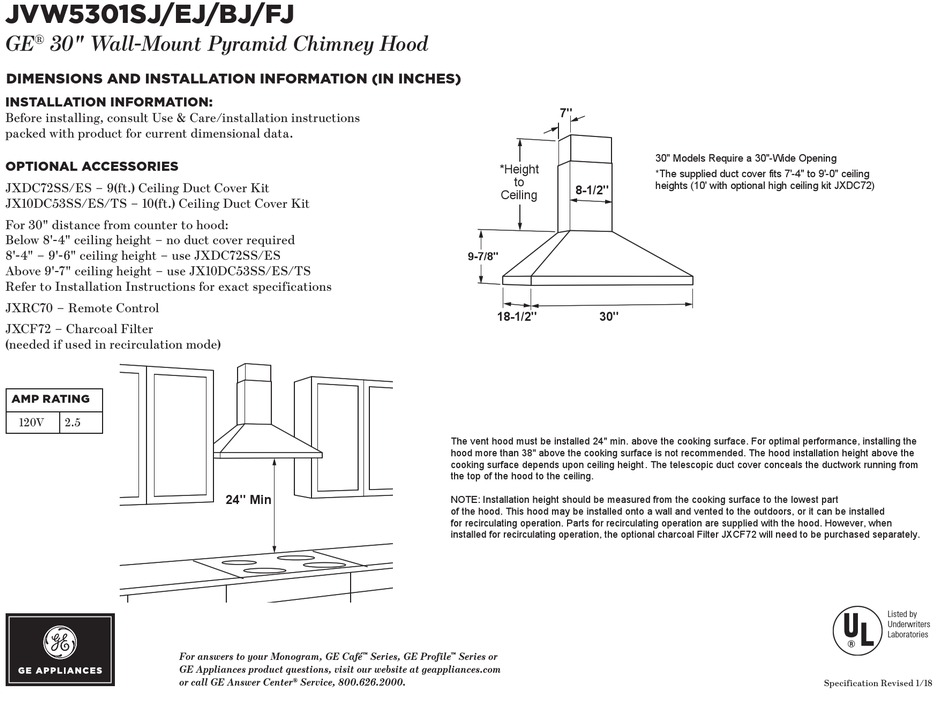

JVW5301SJ/EJ/BJ/FJ
GE 30" Wall-Mount Pyramid Chimney Hood
®
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

INSTALLATION INFORMATION:

Before installing, consult Use & Care/installation instructions
*Height
packed with product for current dimensional data.
to
Ceiling

OPTIONAL ACCESSORIES

JVW5301SJ_EJ
JXDC72SS/ES – 9(ft.) Ceiling Duct Cover Kit
JX10DC53SS/ES/TS – 10(ft.) Ceiling Duct Cover Kit
9-7/8"
For 30" distance from counter to hood:
Below 8'-4" ceiling height – no duct cover required
8'-4" – 9'-6" ceiling height – use JXDC72SS/ES
18-1/2"
Above 9'-7" ceiling height – use JX10DC53SS/ES/TS
30" models require a 30"-wide opening
Refer to Installation Instructions for exact specifications
*The supplied duct cover fits 7'-4" to 9'-0" ceiling heights
JXRC70 – Remote Control
(10' with optional high ceiling kit JXDC72)
JXCF72 – Charcoal Filter
(needed if used in recirculation mode)
AMP RATING
120V 2.5
The vent hood must be installed 24" min. above the cooking surface. For optimal performance, installing the
hood more than 38" above the cooking surface is not recommended. The hood installation height above the
cooking surface depends upon ceiling height. The telescopic duct cover conceals the ductwork running from
the top of the hood to the ceiling.
For answers to your Monogram, GE Café
NOTE: Installation height should be measured from the cooking surface to the lowest part
GE Appliances product questions, visit our website at geappliances.com
of the hood. This hood may be installed onto a wall and vented to the outdoors, or it can be installed
or call GE Answer Center
for recirculating operation. Parts for recirculating operation are supplied with the hood. However, when
installed for recirculating operation, the optional charcoal Filter JXCF72 will need to be purchased separately.
7"
8-1/2"
JVW5301SJ_EJ
30"
24" Min
™ Series, GE Profile
® Service, 800.626.2000.
18-1/2"
30" models require a 30"-wide opening
*The supplied duct cover fits 7'-4" to 9'-0" ceiling heights
(10' with optional high ceiling kit JXDC72)
7"
*Height
to
8-1/2"
Ceiling
9-7/8"
18-1/2"
30" models require a 30"-wide opening
*The supplied duct cover fits 7'-4" to 9'-0" ceiling heights
(10' with optional high ceiling kit JXDC72)
The vent hood must be installed 24" min. above the cooking surface. For optimal performance, installing the
hood more than 38" above the cooking surface is not recommended. The hood installation height above the
cooking surface depends upon ceiling height. The telescopic duct cover conceals the ductwork running from
the top of the hood to the ceiling.
NOTE: Installation height should be measured from the cooking surface to the lowest part
of the hood. This hood may be installed onto a wall and vented to the outdoors, or it can be installed
for recirculating operation. Parts for recirculating operation are supplied with the hood. However, when
installed for recirculating operation, the optional charcoal Filter JXCF72 will need to be purchased separately.
24" Min
™ Series or
The vent hood must be installed 24" min. above the cooking surface. For optimal performance, installing the
hood more than 38" above the cooking surface is not recommended. The hood installation height above the
cooking surface depends upon ceiling height. The telescopic duct cover conceals the ductwork running from
30"
30" Models Require a 30"-Wide Opening
*The supplied duct cover fits 7'-4" to 9'-0" ceiling
heights (10' with optional high ceiling kit JXDC72)
24" Min
30"
Listed by
Underwriters
Laboratories
Specification Revised 1/18
